Product Overview

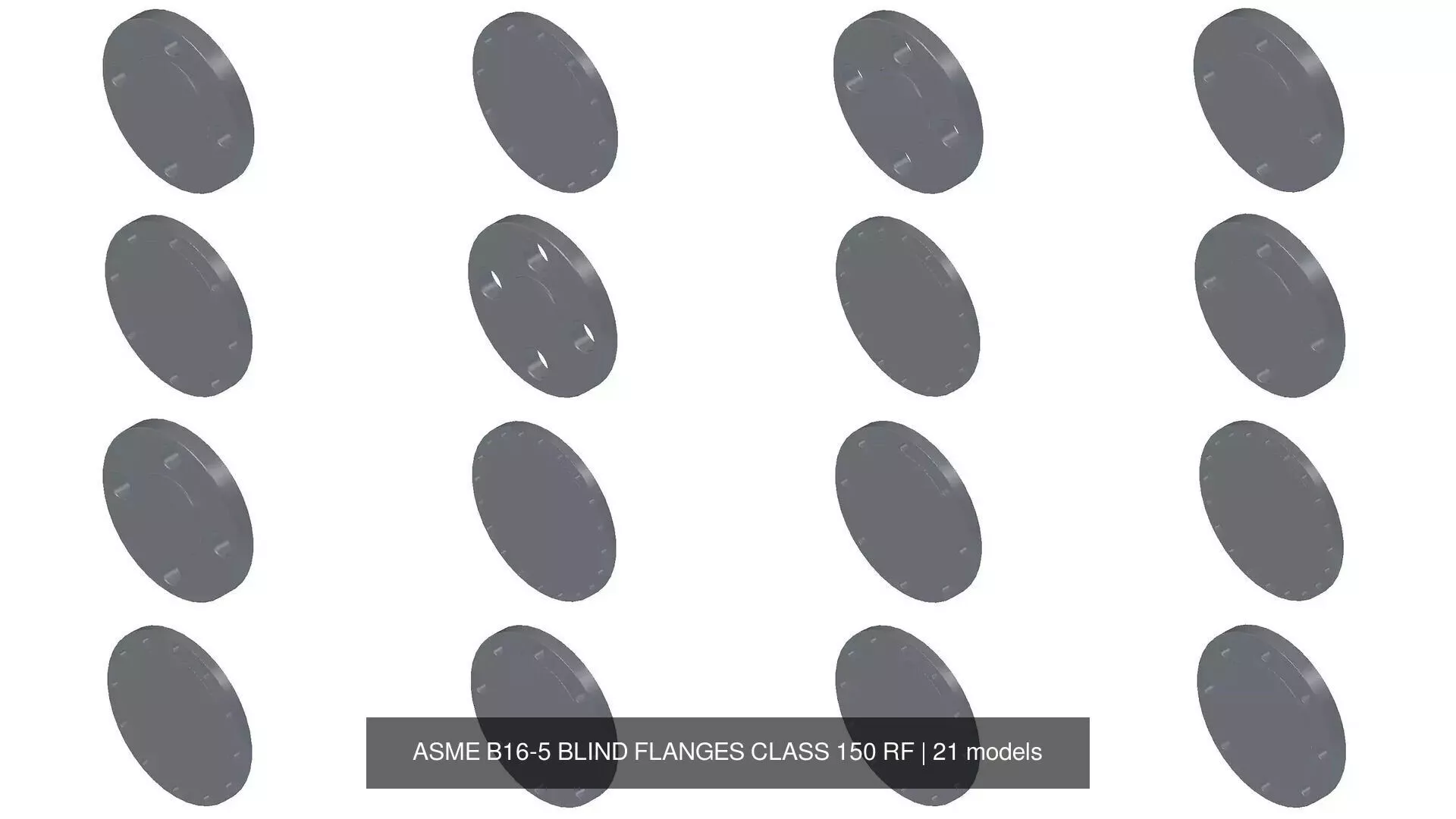

Professional-grade 3D model of an ASME B16.5 Blind Flanges NPS 1/2to 24 Class 150 Raised Face in Metric units, engineered to exact industry specifications for use in piping system design, CAD assemblies, and manufacturing documentation. These models captures all dimensional requirements defined in the ASME B16.5 standard for carbon steel and alloy steel flanges.

What's Included

• Raised Face (RF) configuration — optimized for RF sealing applications
• Multiple file formats: STEP (.stp), STL, and OBJ
• Accurate bolt hole patterns matching Class 150 specifications
• Clean topology optimized for rendering and simulation

Ideal Use Cases

• Piping system design and stress analysis
• Procurement visualization and RFQ packages
• Training materials and technical documentation
• CFD and FEA simulations requiring accurate boundary conditions

Quality Assurance

Every dimension has been verified against ASME B16.5 tables for all nominal pipe sizes. The model includes proper chamfers, fillets, and surface transitions that reflect real-world manufacturing practices. No simplified approximations.

Customer Support

I'm committed to ensuring you get the most out of this asset. If you encounter any issues with the files, need assistance with integration, or require conversion to a format not listed above, please reach out via the marketplace messaging system. I'm happy to help resolve any concerns or provide custom conversions to meet your project needs.

IMPORTANT NOTICE REGARDING USE OF THIS 3D MODEL

By downloading or purchasing this 3D model, the Buyer acknowledges and agrees to the following:

Reference Only: This digital asset is intended for visualization, conceptual design, and educational purposes only. It is NOT a certified engineering drawing or a substitute for official manufacturer documentation.

Non-Standardized Features: While core dimensions comply with ASME B16.5, secondary features (chamfers, fillets, and surface transitions) are modeled based on general industry conventions. These features may differ from the specific dimensions of a physical flange produced by a specific manufacturer or found in the latest edition of the ASME B16.5 standard.

Verification Required: For any application involving pressure containment, structural integrity, safety-critical systems, or final manufacturing, the Buyer MUST verify all dimensions against:

• The latest official ASME B16.5 standard.
• Certified dimensional drawings provided by the flange manufacturer.
• Project-specific engineering specifications.

No Warranty: The model is provided as is without warranty of any kind, expressed or implied, including but not limited to warranties of merchantability or fitness for a particular purpose. The Seller assumes no liability for errors, omissions, or damages resulting from the use of this model in engineering calculations, fabrication, or installation.

Professional Judgment: It is the sole responsibility of the Buyer and their qualified engineering team to validate the suitability of this model for their specific application.
