Product Overview

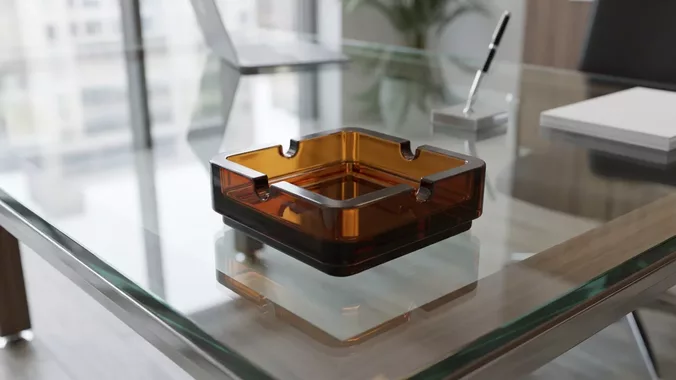

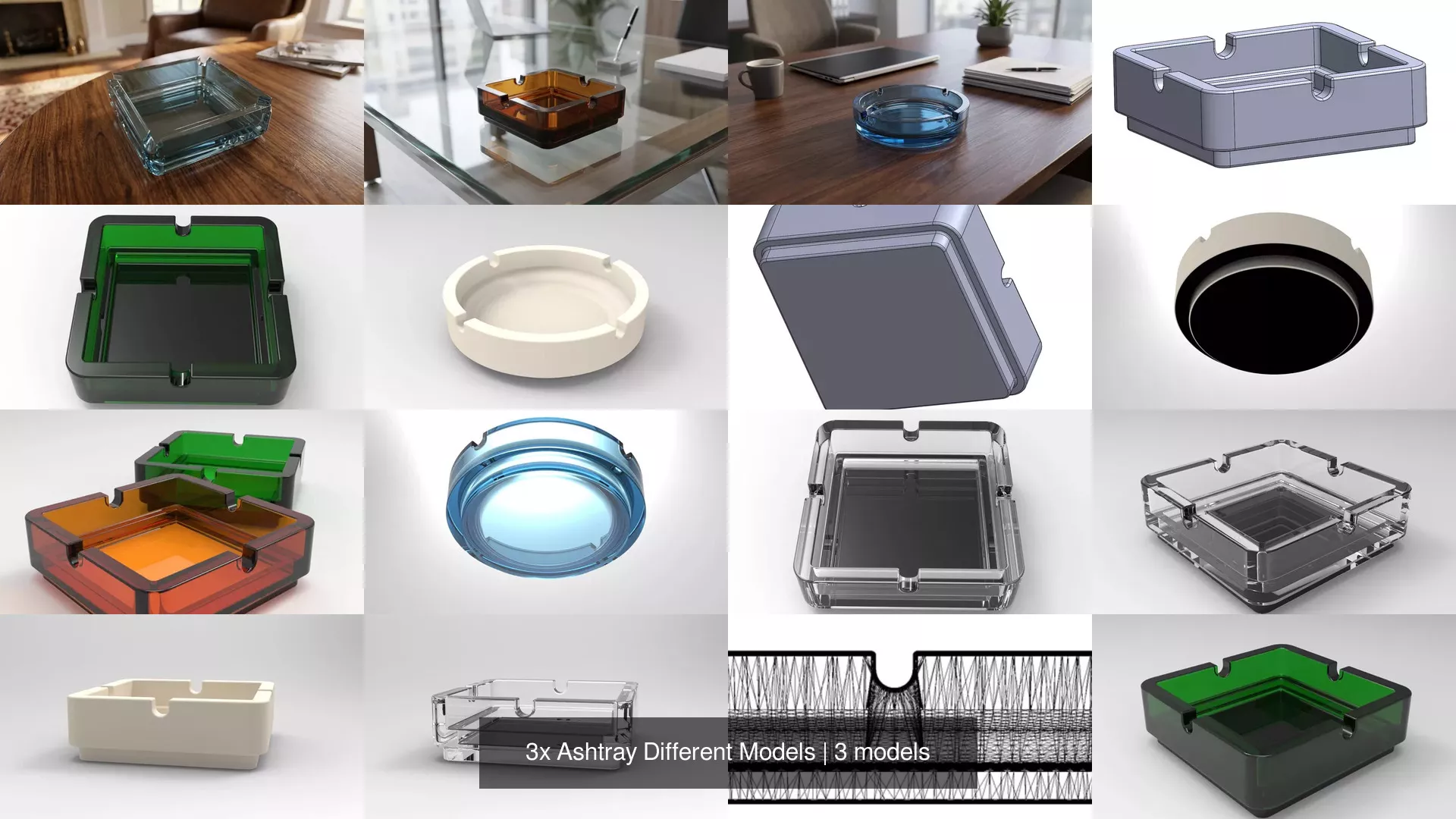

A sset of three different ashtray, 2x square shaped one cilindrical.

Key Design & Structural Features

The three models were created using SolidWorks; the parts are properly modeled solid, using the correct material thicknesses.

Development & Visual Versatility

The package includes KeyShot files with all materials, lights, and cameras set up. Since the model is high-definition, it can also be used in other software—both 3D modeling and visualization programs—such as Cinema 4D and 3ds Max, and rendered with your preferred materials in V-Ray, Corona, or other software. It can also be imported into real-time engines and simulators such as Unreal Engine and Unity.Please note that you’ll also find *.glb files, which allow you to use the 3D models within Adobe After Effects to animate them and incorporate them into motion graphics projects.

Technical Specifications

• Scale: the file is designed in 1:1 scale (millimeters/metric system)• Topology: All the 3D files are generated from SolidWorks and KeyShot so the surfaces are clean and optimized geometry• The materials are chosen based on the object's design, so the object coud be rendered using glass style materials or cermaics or even plastics, this is up to the final renders style.• No other elements are in the scene, you will find just the square ashtray.

Dimensions

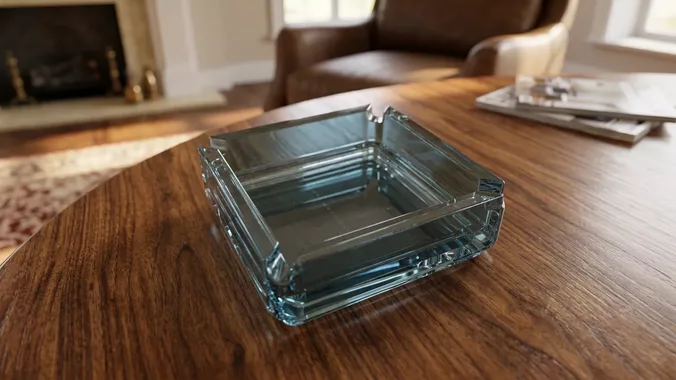

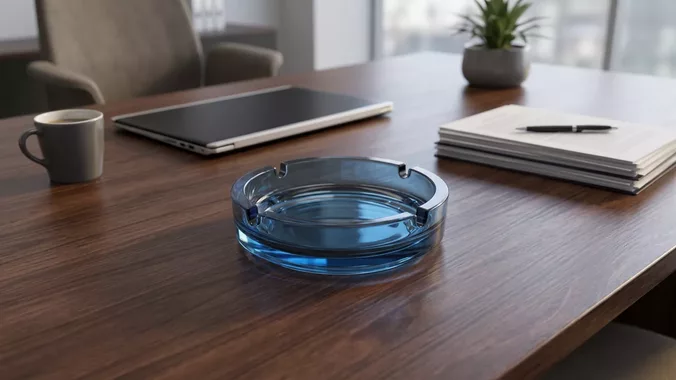

• 100x100x33 mm (square) - 125 radx33 mm (cilindric)• N°4 holders for cigarettes for each ashtray• Thickness is 8 mm

3D model available in these formats

• FBX (Multi-Format Exchange)• OBJ (Universal Wavefront)• GLB / glTF (Optimized for Web, Mobile & AR configurators)• STL (High-density, error-free mesh optimized for 3D printing)• STEP / IGES (NURBS format for manufacturing and CAD cross-compatibility)• PARASOLID (*.x_t interchange format for engineering software)• KEYSHOT (package with materials, scene, studio lighting, and cameras)

Customization

If you need specific dimensional adjustments (e.g., change base diameter, thickness, overall height), or a tailored material palette for your design project, feel free to contact me for custom requests!
