Airbrush Booth Vent Free 3D print model

A filter and ventilation set up for a D.I.Y spray booth.

Made to print on 220mmx220mm print beds. This is assembled with M2x6 screws. All parts in this assembly requires to be printed twice as most are symmetrical and the retension ring part is used to hold the exhaust panels and filter exhaust parts together in addition to the M2x6 screws.

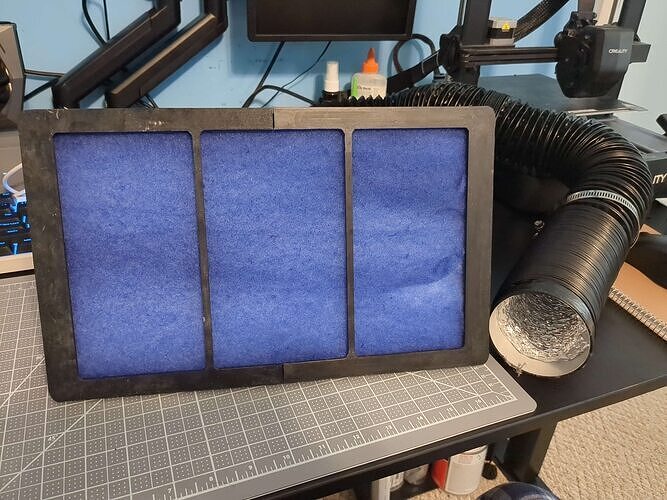

This was designed to fit dual 120mm pc cooling fans in the booth body. The filter collar brackets are made to slide onto the front of booth body to retain an airbrush filter cut to fit the front opening. The ports on the exhaust panel and filter exhaust are made for 3inch wide flexible ducts. Filter exhaust is made to fit a 10x10x1 air filter.
