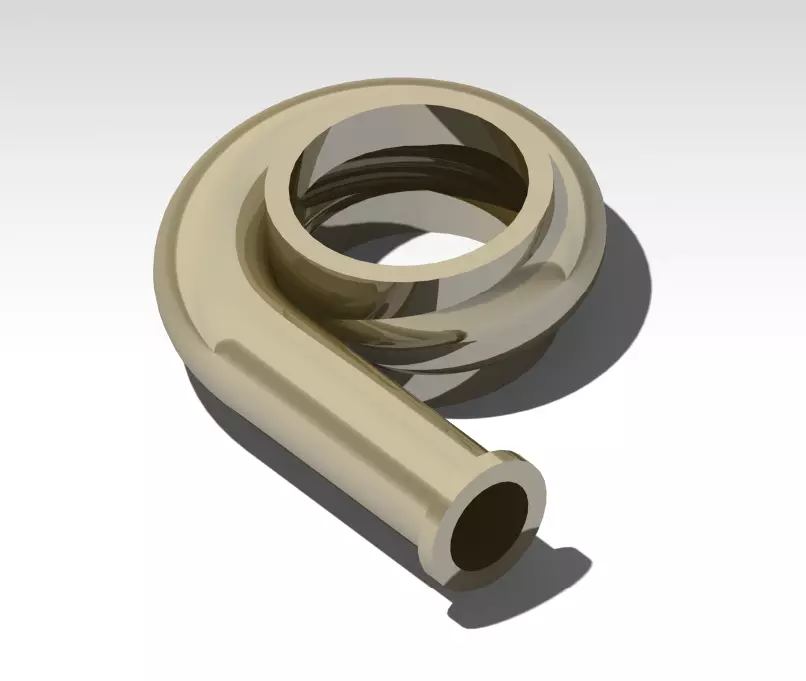

Volute Casing CAD Model Generic 3D print model

This is a 3D CAD model of a generic volute casing, designed for use in centrifugal pumps or turbomachinery applications. The volute guides fluid from the rotating impeller to the outlet while converting kinetic energy into pressure. This component is critical in fluid systems and commonly used in CFD simulation, flow analysis, and hydraulic design.

The model is created in CATIA V5 with clean geometry suitable for fluid domain meshing and integration into mechanical assemblies. Internal flow channels follow a typical spiral shape, ideal for simulation or conceptual product development.

Features:

• Generic volute casing geometry
• Designed in CATIA V5
• Clean internal spiral channel for fluid flow
• Ideal for CFD, flow analysis, and CAD integration
• No impeller included — ready for pairing with custom rotor
• Compatible with common engineering platforms

Applications:

• Centrifugal pump and turbopump design
• Fluid dynamics simulation (CFD)
• Mechanical system integration
• Engineering training and academic use
• Hydraulic system concept development

File formats:

• CATIA .CATPart
• STEP (.stp)
• IGES (.igs)
• STL (optional for meshing or visualization)
