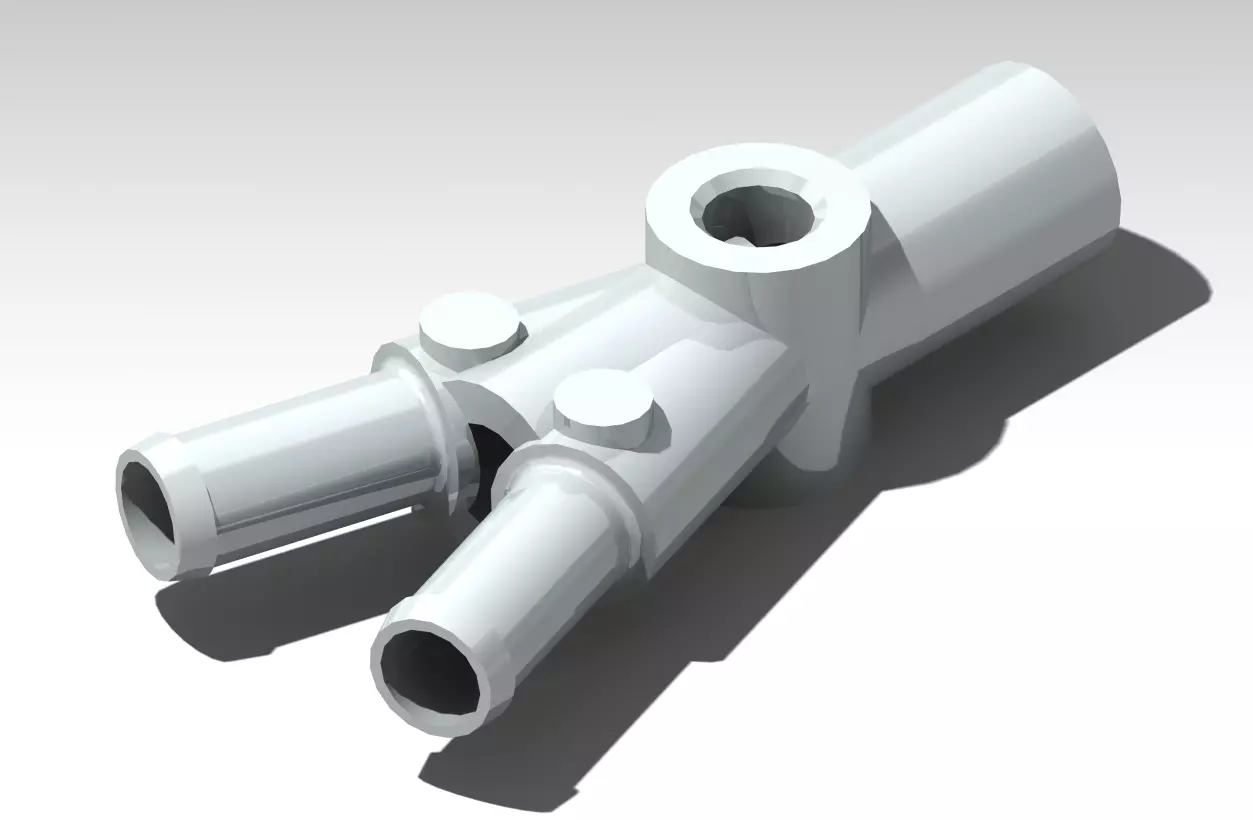

Flow Control Valve CAD Model for Simulation and Design 3D print model

This is a generic 3D CAD model of a flow control valve, suitable for use in fluid systems design, simulation, and mechanical engineering projects. The geometry is clean and dimensionally consistent, ideal for integration into piping assemblies or hydraulic/pneumatic systems.

This model does not include moving parts or internal sealing detail, and is intended for conceptual layout, documentation, or simulation studies.

Features:

• Generic flow control valve geometry
• Designed in CATIA
• Ideal for fluid system layouts or schematic CAD work
• Simplified topology for integration in assemblies
• Suitable for 3D simulation setups (e.g. CFD domain preparation, not meshed)

Applications:

• Mechanical and fluid engineering
• Piping design
• Simulation environments
• Engineering education and student projects
• CAD layouts and documentation

File formats:

• CATIA .CATPart
• STEP (.stp)
• IGES (.igs)
• STL (optional for visualization)
