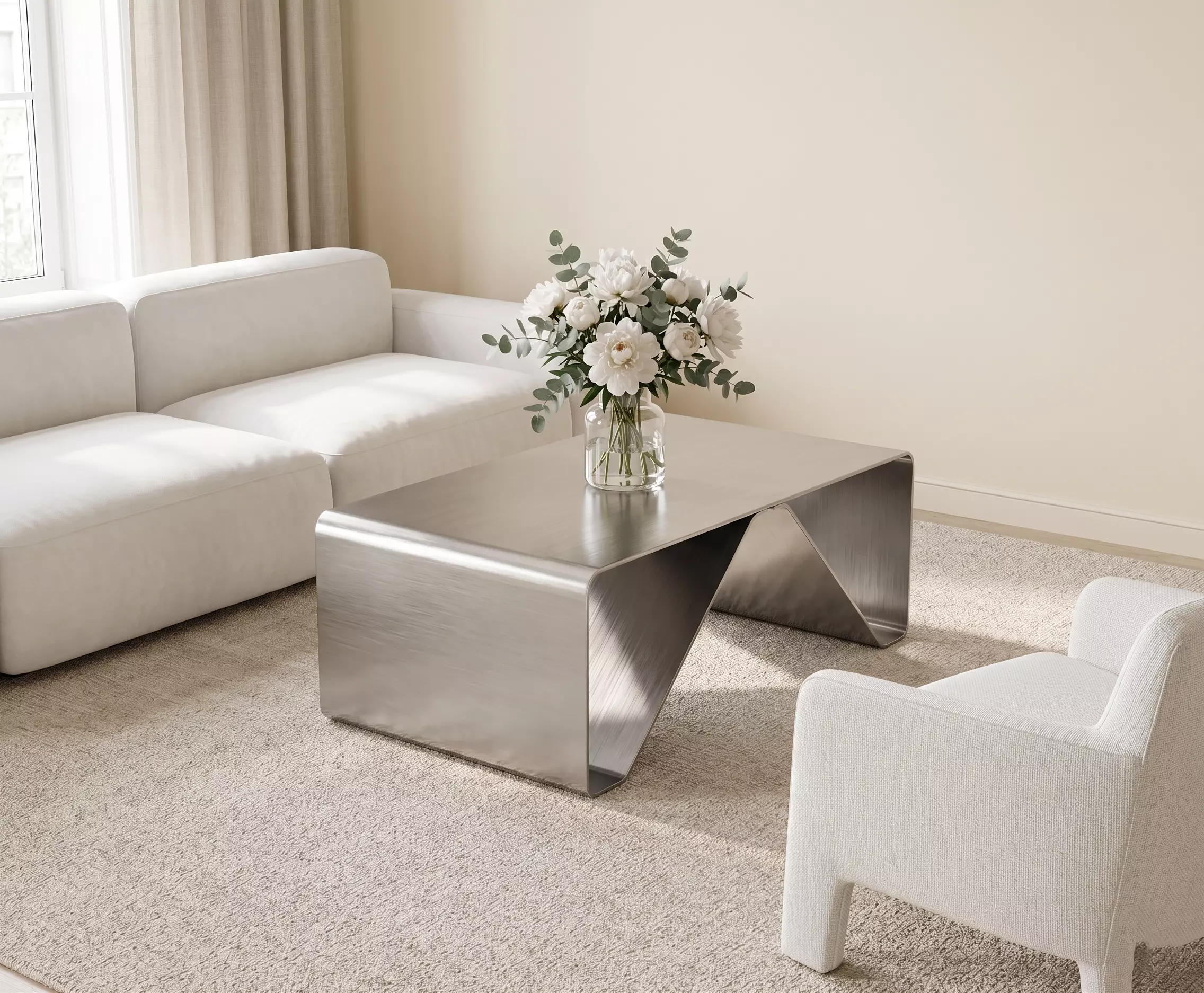

Professional Manufacturing Package for Loft Coffee Table Base

This is a fully engineered, production-ready design for a monolithic loft-style coffee table base, optimized for CNC laser/plasma cutting and press brake bending. It is designed for real-world manufacturing, not just visualization.

Technical Specifications:- Overall Dimensions: *950 x 600 x 400 mm
*- Recommended Material: *AISI 304 Stainless Steel or Mild/Carbon Steel
*- Sheet Thickness: 4.0 mm
**- Estimated Weight: **57 kg (Note: This is a heavy-duty, solid industrial piece)

Structural Analysis (100 kg distributed load):

• Factor of Safety: 4.9

• Maximum Deflection: 5.0 mm


Manufacturing Guide Included:The package includes a detailed PDF Engineering Bending Guide specifying:

• Standard air bending for main frame (R4 inner radius)

• Step/bump bending instructions for top corners (R35 radius, 2-3 mm step spacing)

• Nesting instructions regarding material grain direction

• Standard manufacturing tolerances (Linear: ±1.0 mm | Angular: ±0.5°)

Included File Formats:- PDF:Detailed part drawing and bending instructions
- DXF: 1:1 Flat pattern ready for CNC nesting (bend lines indicate center of bend)
- SolidWorks: Native 3D CAD files for parametric editing- STEP: *Universal 3D format for other CAD software*- STL: For 3D printing scale models or basic mesh viewing
