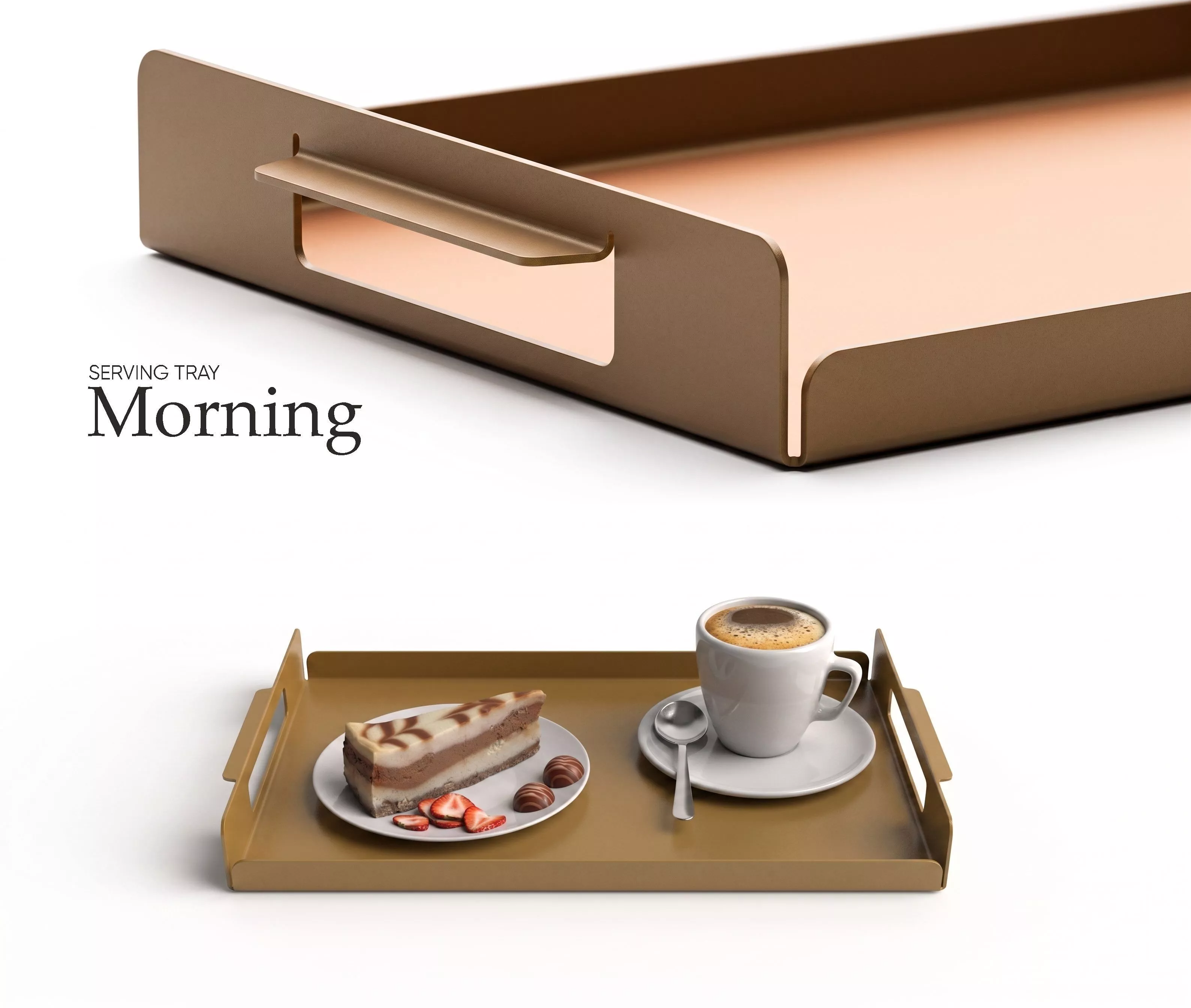

Enhance your product line or DIY portfolio with this professional, production-ready design of minimalist serving trays. This package includes two unique conceptual designs: the Morning and Evening editions, both carefully engineered for sheet metal laser cutting and CNC bending.

These trays feature an elegant aesthetic, integrated ergonomic handles, and a robust structural design optimized for 2.0 mm aluminum.

WHAT YOU WILL GET:

1. DXF File (Flat Pattern): Production-ready vector file for laser cutting. It features 2 distinct layers:

• Layer 0 (Geometry / Cut contour)

• Layer BENDS (Bend reference lines in a different color, dashed)

1. STEP File: High-precision 3D CAD model of the folded tray, crucial for press brake operators and CNC control.

2. PDF Drawing: Overall dimensions (General/Product Dimensions) sheet with technical notes for quick reference.

3. README_Specifications.txt: Detailed assembly sheet with specific material properties and fabrication parameters.

DESIGN & MANUFACTURING PARAMETERS:

1. Recommended Material: Aluminum 5052-H32 (Provides outstanding scratch resistance, great rigidity, and premium satin finish after anodizing).

2. Thickness: 2.0 mm

3. Calculated K-Factor: 0.38 (Adjustable by the manufacturer depending on the tooling).

4. Weight: ~890–990 grams (perfect lightweight premium feel).

5. Finish Recommendation: Chemical anodizing (Matte/Satin) to protect against food acids and everyday wear.

Note: These files are fully tested, clean of overlapping lines, and perfectly optimized to go straight from your computer to the laser cutting machine and press brake.
