SWIVEL JIB CRANE LIFTING WINCH HOIST HOOK FLATBED TRUCK PICKUP 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

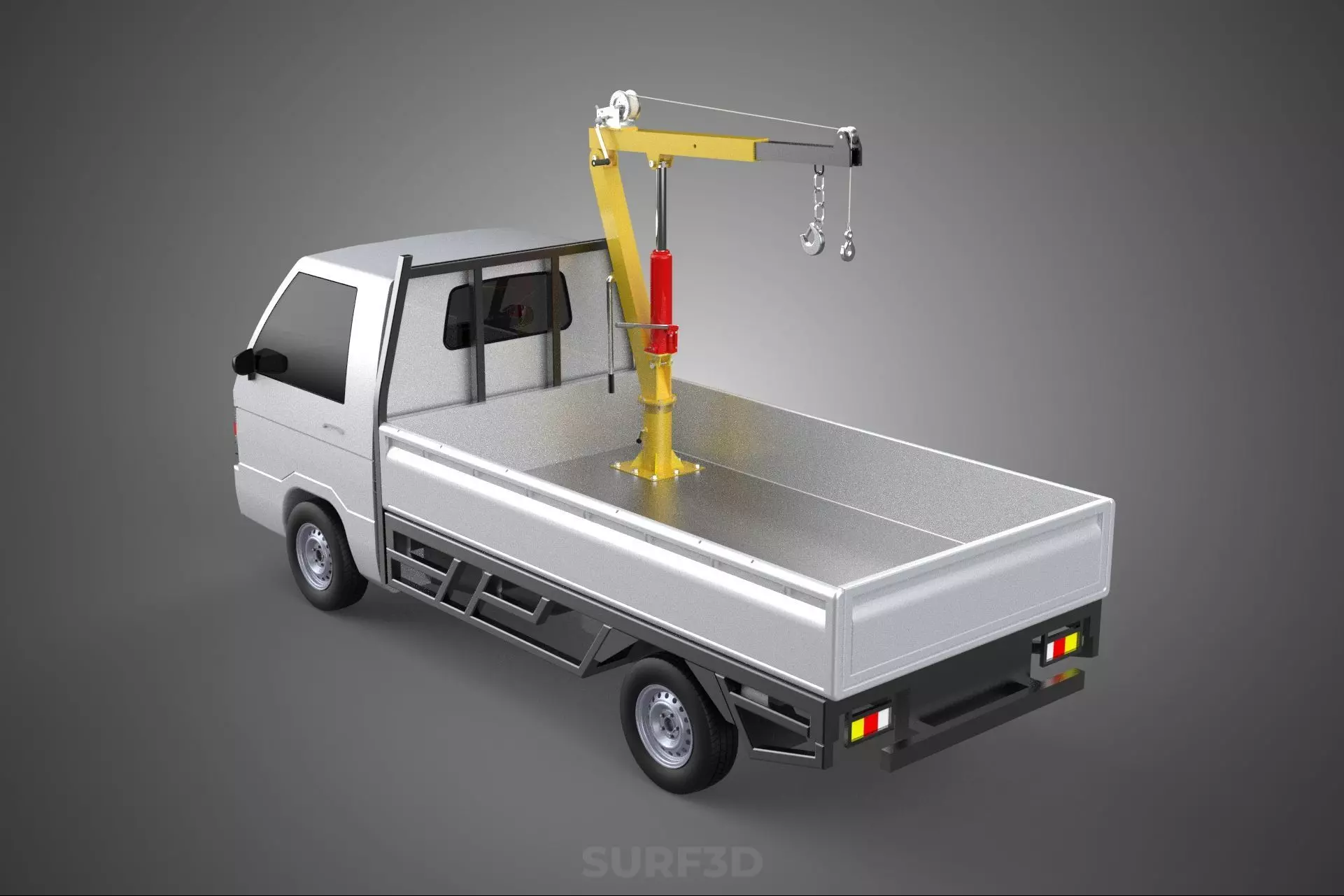

A Swivel Jib Crane Lifting with Hand Crank Winch Hoist Hook Attached on Flatbed Truck Pickup describes a specific, mobile, and manually operated material handling system. This integrated apparatus combines the rotational and lifting capabilities of a jib crane with the mobility of a flatbed pickup truck, utilizing a hand-cranked winch for vertical movement. It is engineered for applications requiring localized lifting and positioning of loads, particularly in environments where access to external power is limited or unnecessary.

Core Components and Functionality:

1. Swivel Jib Crane: This is the primary lifting structure, consisting typically of a vertical mast or column affixed rigidly to the truck's chassis, and a horizontal boom (or jib) extending from it. The boom is designed to slew or rotate, often through a full 360 degrees, around the mast's axis via a slew bearing. This rotational capability allows the operator to lift a load from one position and swing it to another within the crane's radius, such as from the ground onto the truck bed or vice versa. The jib's length determines the crane's reach, while its structural integrity dictates the maximum permissible load it can handle at various radii.


2. Hand Crank Winch Hoist: Mounted directly onto the jib crane's structure, typically along the boom or at the base of the mast, the hand crank winch is the mechanism responsible for the vertical lifting and lowering of loads. It comprises a drum around which a steel wire rope or cable is wound, a manual crank handle, and a system of gears that provide mechanical advantage. This gear reduction allows a single operator to lift substantial weights that would otherwise be impossible by direct force, albeit at a slower speed. A braking mechanism, often a ratchet and pawl system, is integrated to securely hold the load at any desired height, preventing unintentional descent.


3. Hoist Hook: Attached to the free end of the winch's wire rope, the hoist hook is the terminal device for engaging with the load. These hooks are typically made of high-strength steel, often featuring a safety latch to prevent accidental disengagement of the sling, chain, or lifting eye from the load.


4. Flatbed Truck Pickup: The flatbed pickup truck serves as the mobile platform and stable base for the entire lifting system. The jib crane is securely mounted to the truck's frame, usually at the rear corner or center of the flatbed. The truck provides the necessary mobility to transport the crane and its potential loads to various work sites. For stability during lifting operations, especially when handling loads at the crane's maximum capacity or reach, the truck may be equipped with manual or hydraulic outriggers that extend horizontally and vertically to brace the vehicle, preventing tipping. The flatbed itself offers a large, open surface for transporting materials before or after lifting.

   Operational Principle:

   The system operates entirely manually. An operator positions the truck at the desired location. If stability is a concern, outriggers are deployed. The jib is then slewed to position the hoist hook directly over the load. The hand crank winch is operated to lower the hook, attach it to the load, and then cranked manually to lift the load vertically. Once the load is clear of obstructions, the jib is rotated to swing the load to its destination, after which the winch is used to lower it. This manual process requires physical effort but offers precise control.

   Applications:

   This type of mobile, manual lifting system is particularly valuable in diverse applications where portability, independence from external power sources, and cost-effectiveness are paramount. Common uses include:

5. Field Service and Maintenance: Lifting heavy components (e.g., engines, pumps, generators) for repairs or installations in remote locations.

6. Construction: Small-scale lifting of materials, tools, or equipment on job sites without large, dedicated crane infrastructure.

7. Agriculture: Loading and unloading feed, equipment, or produce in various farm settings.

8. Logistics and Delivery: Assisting with the loading and unloading of goods from the truck bed, especially for items too heavy for manual handling.

9. Emergency Services/Recovery: Light recovery operations or handling of debris.

10. Home/Personal Use: Moving heavy objects for landscaping, DIY projects, or garage organization.

    Advantages:


11. Portability: Highly mobile due to its integration with a pickup truck.

12. Independence: Requires no external power supply (electricity or hydraulics), making it ideal for remote or undeveloped sites.

13. Cost-Effective: Generally less expensive to purchase and maintain than hydraulic or electric crane systems.

14. Simplicity: Straightforward operation and maintenance.

15. Versatility: Capable of lifting and swinging loads in multiple directions.

    Limitations and Safety Considerations:

    While advantageous, the system has limitations. Lifting capacity is restricted by human effort and the crane's structural limits, typically ranging from a few hundred pounds to over a thousand, depending on the specific model. Operation is slower compared to powered systems, and operator fatigue can be a factor. Most critically, proper load rating, weight distribution, and vehicle stability are paramount. Overloading or operating on uneven terrain without proper stabilization (e.g., outriggers) can lead to vehicle tip-over, posing significant safety risks. Adherence to manufacturer's load charts and safety protocols is essential for safe operation.
