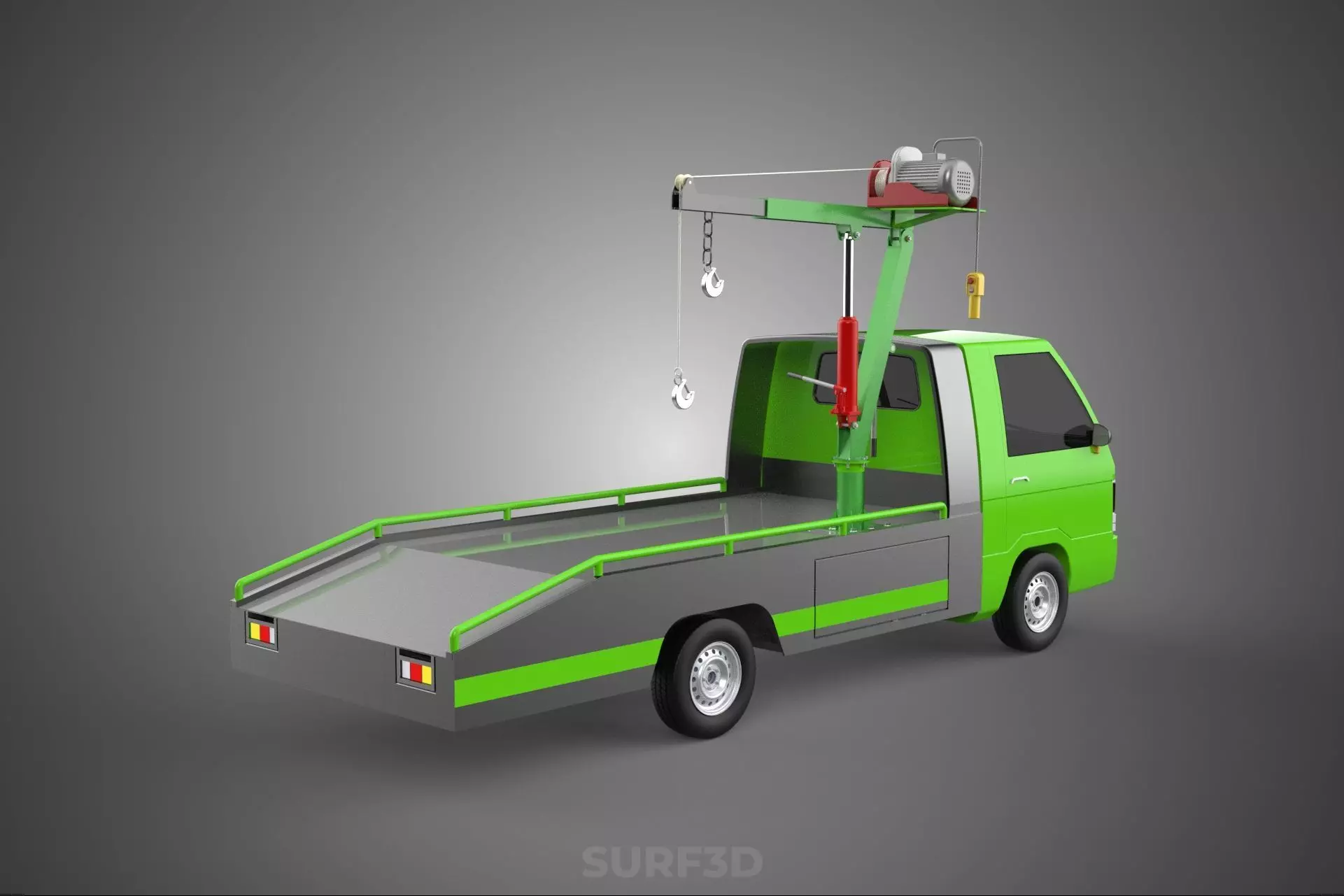

ELECTRIC WINCH HOIST REMOTE SWIVEL CRANE HOOK JIB TRUCK PICKUP 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
An Electric Winch Hoist with Remote on Swivel Crane Hook Jib attached in a Truck Pickup, often referred to as a pickup truck crane, utility crane, or service body crane, is a specialized mobile lifting system designed to significantly enhance the loading, unloading, and precise positioning capabilities of a light commercial vehicle. This integrated apparatus transforms a standard pickup truck into a versatile and portable lifting solution for various professional and industrial applications.

System Components and Functionality:

1. Electric Winch Hoist: At the core of the system is the electric winch hoist, an electromechanical device responsible for the vertical movement of loads. It comprises an electric motor, a robust gear reduction system, and a drum or spool onto which a durable wire rope (or synthetic cable) is wound. Powered typically by the truck's 12V DC electrical system (though 24V DC variants exist for higher capacities), these hoists are designed for intermittent duty, offering a range of lifting capacities, commonly from 500 pounds (approx. 227 kg) to over 2,500 pounds (approx. 1,134 kg). Essential safety features often include thermal overload protection, dynamic braking to hold loads, and limit switches to prevent over-lifting or over-lowering.


2. Remote Control: Operation of the hoist is facilitated by a remote control unit, which can be either a wired pendant control or a wireless radio frequency (RF) remote. Both types typically feature up, down, and emergency stop buttons. Wired pendants offer direct tactile control, while wireless remotes provide enhanced operator mobility and safety by allowing control from a safe distance, away from the immediate load path and potential hazards. This remote capability enables precise manipulation of the hoist, improving efficiency and reducing the risk of injury.


3. Swivel Crane Hook Jib: The lifting force from the hoist is transferred to the load via a swivel crane hook jib. This component consists of a horizontal boom or jib arm, typically constructed from high-strength steel, which extends outwards from a vertical mast. The key feature of this jib is its ability to rotate or swivel around its vertical axis, often through a full 360-degree arc, allowing loads to be picked up and placed accurately across a wide operational area without requiring the truck to be repositioned. A robust lifting hook, commonly equipped with a safety latch, is securely attached at the end of the jib arm, and the hoist's wire rope passes over a sheave or pulley at this point for smooth vertical travel.


4. Truck Pickup Attachment: The entire lifting assembly is securely mounted to the structure of the pickup truck. Common attachment points include the truck bed, often requiring significant reinforcement of the bed structure and potentially the chassis, or the integration with a specialized service body. Proper installation is paramount to ensure structural integrity, distribute forces effectively, and prevent vehicle instability or tip-over, especially when lifting loads at maximum extension or near maximum capacity. The hoist's electrical system is hardwired into the truck's battery, typically via heavy-gauge wiring and an appropriate circuit breaker for protection. Some systems may include manual or hydraulic outriggers to enhance stability during heavy lifting operations.

   Operational Overview and Applications:

   In operation, the operator positions the pickup truck within reach of the object to be lifted. Using the remote control, the hoist lowers the hook to engage and secure the load. Once secured, the hoist lifts the load vertically. The swivel mechanism of the jib then allows the operator to swing the suspended load horizontally to its desired location, within the jib's operational radius. Finally, the hoist lowers the load into place. This combination of vertical lift and horizontal swing makes the system exceptionally efficient for transferring items from ground level to the truck bed, from the truck bed to a work surface, or for precise placement tasks.

   These integrated lifting systems find extensive application across numerous sectors, including:

5. Construction: For lifting tools, materials, and small machinery on job sites.

6. Utilities: Handling transformers, power poles, and heavy equipment for electrical, telecommunications, and plumbing services.

7. Landscaping: Moving heavy rocks, trees, and large planters.

8. Agriculture: Loading feed sacks, machinery parts, and other farm supplies.

9. Fleet Services: Assisting with vehicle maintenance, engine handling, and heavy component replacement.

10. General Hauling and Logistics: Simplifying the loading and unloading of heavy, bulky items where a forklift is impractical or unavailable.

    Advantages and Safety:

    The primary advantages of this system include its portability, enabling heavy lifting capabilities to be deployed directly to diverse worksites; its versatility for both vertical lifting and horizontal positioning; and its cost-effectiveness compared to dedicated mobile cranes for lighter to medium loads. The remote control enhances operator safety by maintaining distance from the load, and electric operation offers a quieter and often more environmentally friendly alternative to internal combustion engine-powered systems. Critical safety considerations involve strict adherence to the manufacturer's maximum load capacity, ensuring the vehicle is on stable and level ground, utilizing outriggers if equipped, regularly inspecting lifting components for wear, and comprehensive operator training.
