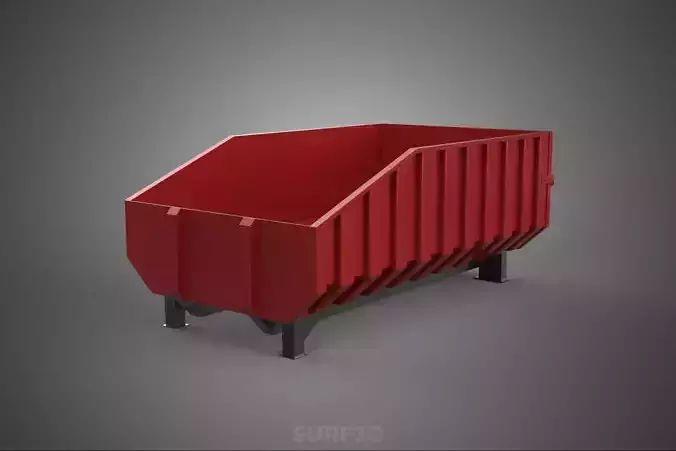

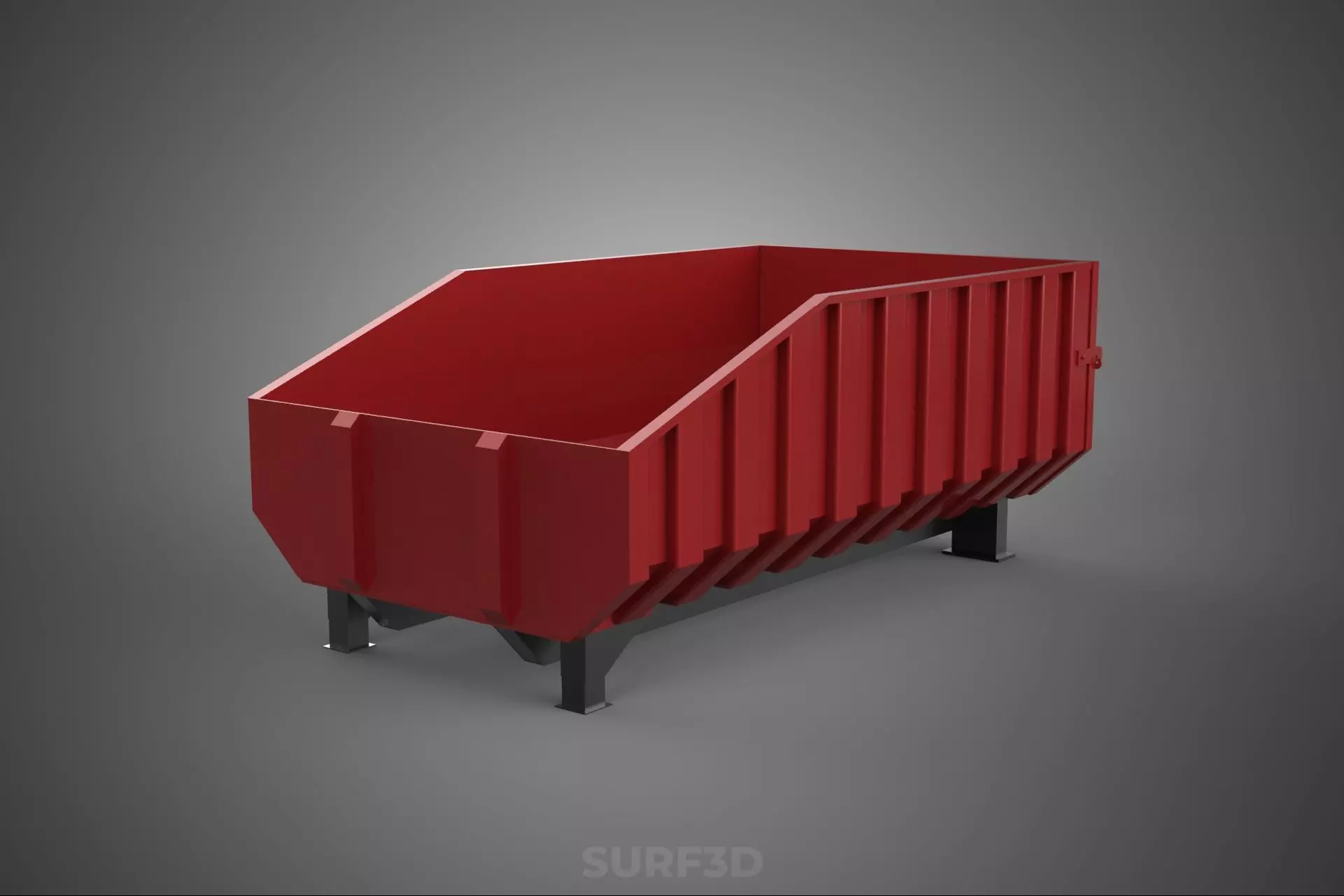

BIN TRUCK BED DUMP BODY BOX CONTAINER CARGO VEHICLE PICK UP CAR 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
BIN BED DUMP FOR TRUCK

A bin bed dump for a truck is a specialized vehicle body or integrated attachment designed for the efficient collection, containment, and automated discharge of bulk materials, waste, or other payloads. It constitutes a form of dump body that incorporates a fixed or highly integrated bin-like container structure atop a truck chassis or bed. The primary function is to enable the truck operator to unload the bin's contents by tilting the entire bin structure upwards, typically towards the rear, allowing gravity to empty the material.

Mechanism and Design:

The core functionality of a bin bed dump relies on a pivot system and a powerful lifting mechanism. The bin is mounted on a subframe that is affixed to the truck's main chassis rails. This subframe incorporates pivot points, usually located towards the rear of the bin, around which the bin rotates. The lifting mechanism, most commonly a hydraulic cylinder or a system of hydraulic cylinders, is positioned between the truck chassis/subframe and the bin. When hydraulic fluid is pumped into the cylinder, it extends, pushing against the bin and causing it to tilt on its pivots.

Key components typically include:
1. The Bin: A robust container constructed from steel or occasionally aluminum. Its shape and size are designed to maximize capacity while remaining within vehicle weight and dimension regulations. It may feature a hinged tailgate or rear door to facilitate controlled or complete emptying.
2. Subframe: A structural steel framework that provides rigidity, supports the bin, and connects to the truck's chassis. It also incorporates the pivot points for the tilting action.
3. Hydraulic System: Consists of a hydraulic pump (often powered by the truck's engine via a Power Take-Off or PTO), hydraulic cylinders, hoses, valves, and a reservoir. This system generates the force required to lift the loaded bin.
4. Controls: Operators typically control the dumping action from within the truck cab, using levers or electronic controls that activate the hydraulic system. External controls may also be present.
5. Safety Features: May include safety props to secure the body in a raised position for maintenance, warning lights or alarms during operation, and stability control considerations in the hydraulic circuit.

Variations and Applications:

While the fundamental principle remains tilting a bin, variations exist in design and application. The bins can range from relatively shallow open-top containers to deeper, enclosed structures, depending on the material being transported (e.g., construction debris vs. fine aggregate). The tilting angle and method (pure rear dump, three-way dump, etc.) can also vary.

Bin bed dumps are widely utilized across several industries:
* Waste Management: Collection of commercial or residential waste, particularly in areas where larger roll-off containers are impractical.
* Construction: Transport and dumping of building materials, excavation spoil, or demolition debris, especially for smaller projects.
* Landscaping: Delivery and distribution of soil, mulch, gravel, and removal of green waste.
* Agriculture: Handling and distribution of feed, grain, fertilizer, or manure.
* General Material Handling: Transporting and easily unloading various bulk goods that are suitable for gravity discharge.

Advantages and Considerations:

The primary advantage of a bin bed dump is the efficiency it offers in unloading bulk materials. The automated tilting mechanism significantly reduces the labor and time required compared to manual methods, facilitating faster turnaround times. It also provides secure containment of materials during transport.

However, considerations include the increased initial cost compared to a standard flatbed or utility body, the added weight of the bin and hydraulic system which reduces potential payload capacity, and the need for regular maintenance of the hydraulic components. Safe operation requires attention to the vehicle's stability, especially when dumping on uneven ground or with unbalanced loads.

In essence, the bin bed dump is a practical and versatile solution for material handling and waste disposal operations requiring the combination of containment during transport and swift, self-unloading capabilities.
