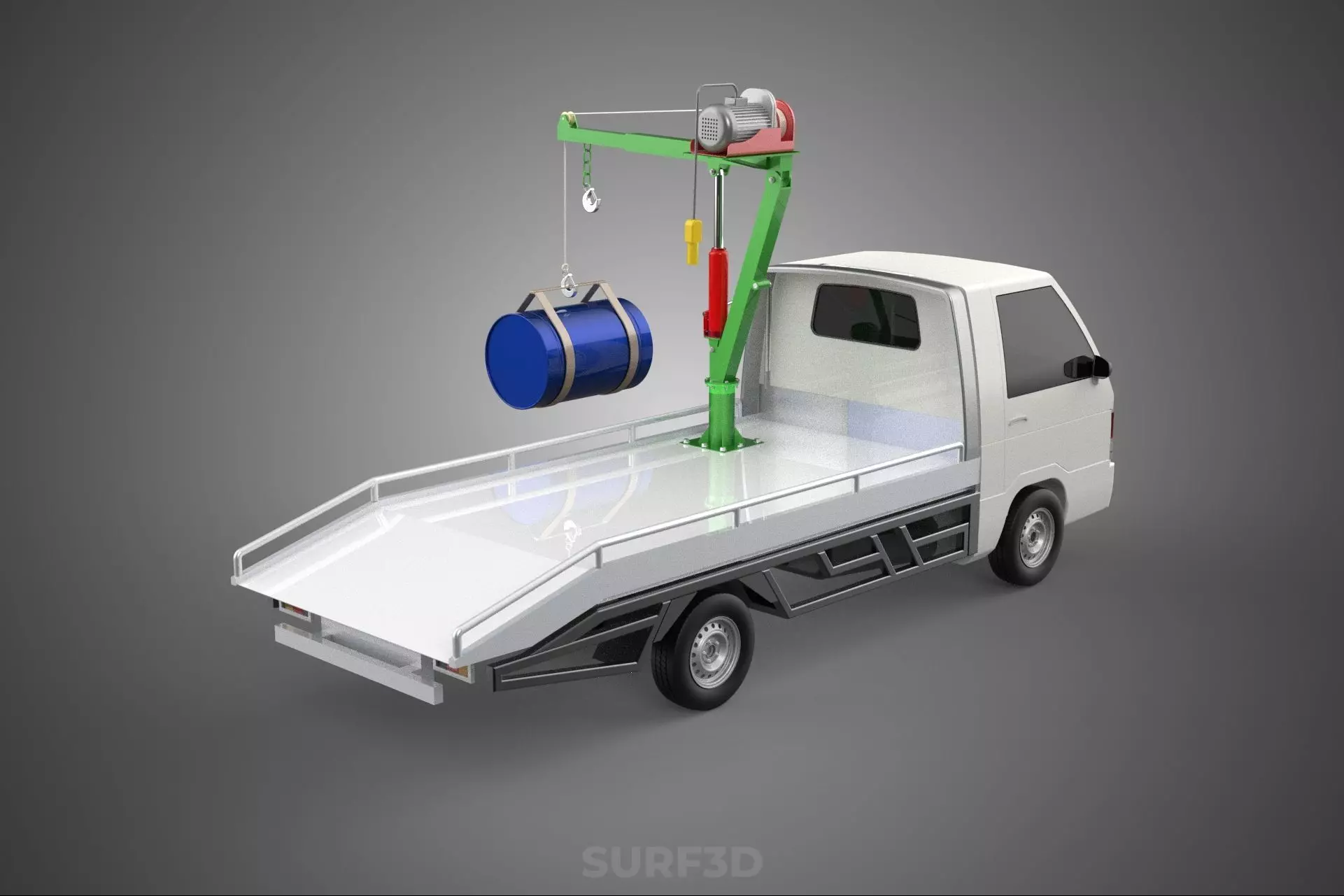

ELECTRIC LIFTING CRANE WINCH HOIST JIB DRUM BARREL PICKUP TRUCK 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
An electric pickup truck crane, often referred to as a vehicle-mounted crane or utility service crane, is a specialized mobile lifting apparatus designed for the efficient and safe elevation and manipulation of loads, specifically drum barrels or similar cylindrical containers, for loading onto or unloading from a pickup truck or other utility vehicle. This system integrates an electric winch hoist mechanism with a jib arm that is permanently or semi-permanently affixed to the truck's chassis or bed.

Components and Functionality:

1. Jib Arm (Boom): The primary structural component providing reach and height. Typically constructed from high-strength steel, the jib arm can be fixed-length, telescoping, or articulating (knuckle boom). It is mounted on a robust base, often incorporating a slew bearing, allowing it to rotate (slew) through a specific arc (e.g., 270° or 360°) relative to the truck for precise load positioning.

2. Electric Winch Hoist: This is the core lifting mechanism. It comprises:

3. Electric Motor: A DC electric motor (typically 12V or 24V, powered by the vehicle's electrical system or an auxiliary battery) drives the hoist. Electric power offers quiet operation, eliminates exhaust emissions during lifting, and is convenient for field use without requiring external power generators.

4. Gearbox: Reduces motor speed and increases torque for lifting heavy loads.

5. Winding Drum: A cylindrical drum around which a high-strength steel cable or wire rope is spooled.

6. Cable/Wire Rope: Extends from the winding drum, passes over a series of sheaves (pulleys) at the end of the jib arm, and terminates with a robust lifting hook or specialized attachment for drums (e.g., drum grab, sling).

7. Mounting Base: A sturdy steel frame or plate engineered for direct attachment to the pickup truck's chassis, typically in the bed area. This base is designed to distribute the lifting forces safely to the vehicle's frame, ensuring stability during operation. For higher capacities, some systems may include manually or hydraulically deployable outriggers to enhance stability and prevent truck tipping.

8. Control System: Operation is typically managed via a wired pendant control or a wireless remote control. These controls allow the operator to precisely manage the hoisting (up/down), slewing (left/right rotation), and sometimes boom extension/retraction functions. Safety features like emergency stop buttons and overload protection are standard.

   Operation and Characteristics:

   The operational sequence involves positioning the truck near the load, deploying any necessary outriggers, swinging the jib arm over the drum barrel, securely attaching the drum to the hoist hook, lifting the drum using the electric winch, slewing the jib arm to position the drum over the truck bed, and then lowering it safely into place.

   Key characteristics include:

9. Mobility: Inherits the inherent mobility of the pickup truck, enabling lifting operations in diverse, often remote, locations where stationary equipment is impractical.

10. Compact Design: Engineered to be relatively compact and often foldable or retractable when not in use, minimizing intrusion into the truck bed space during transport.

11. Lifting Capacity: Varies significantly based on the model, ranging from a few hundred kilograms (e.g., 500 lbs to 2,000 lbs) to several tons, with capacity typically decreasing as the jib's reach increases.

12. Power Source: Relies on the vehicle's battery, making it energy-efficient and independent of external power grids or fossil fuels for the lifting mechanism itself.

13. Versatility: While specifically designed for drum barrels, these cranes can often be adapted with different lifting attachments to handle other types of cargo within their weight limits.

    Applications:

    Electric pickup truck cranes are widely utilized across various sectors, including:

14. Industrial and Commercial: Handling lubricants, chemicals, waste, or raw materials in drums at manufacturing plants, warehouses, or remote sites.

15. Environmental Services: Transporting waste drums or hazardous materials.

16. Agriculture: Moving feed, water, or fertilizer barrels on farms.

17. Construction: Lifting smaller equipment, tools, or materials on job sites where larger cranes are not feasible.

18. Field Service and Maintenance: Assisting technicians with heavy component lifting during on-site repairs of machinery or infrastructure.

19. Logistics: Specialized delivery of drummed goods to various locations.

    This apparatus provides a practical, efficient, and mobile solution for lifting and manipulating cylindrical containers, optimizing workflows and mitigating manual handling risks in diverse operational environments.
