Turnbuckle hydraulic cylinder 3D model
Description

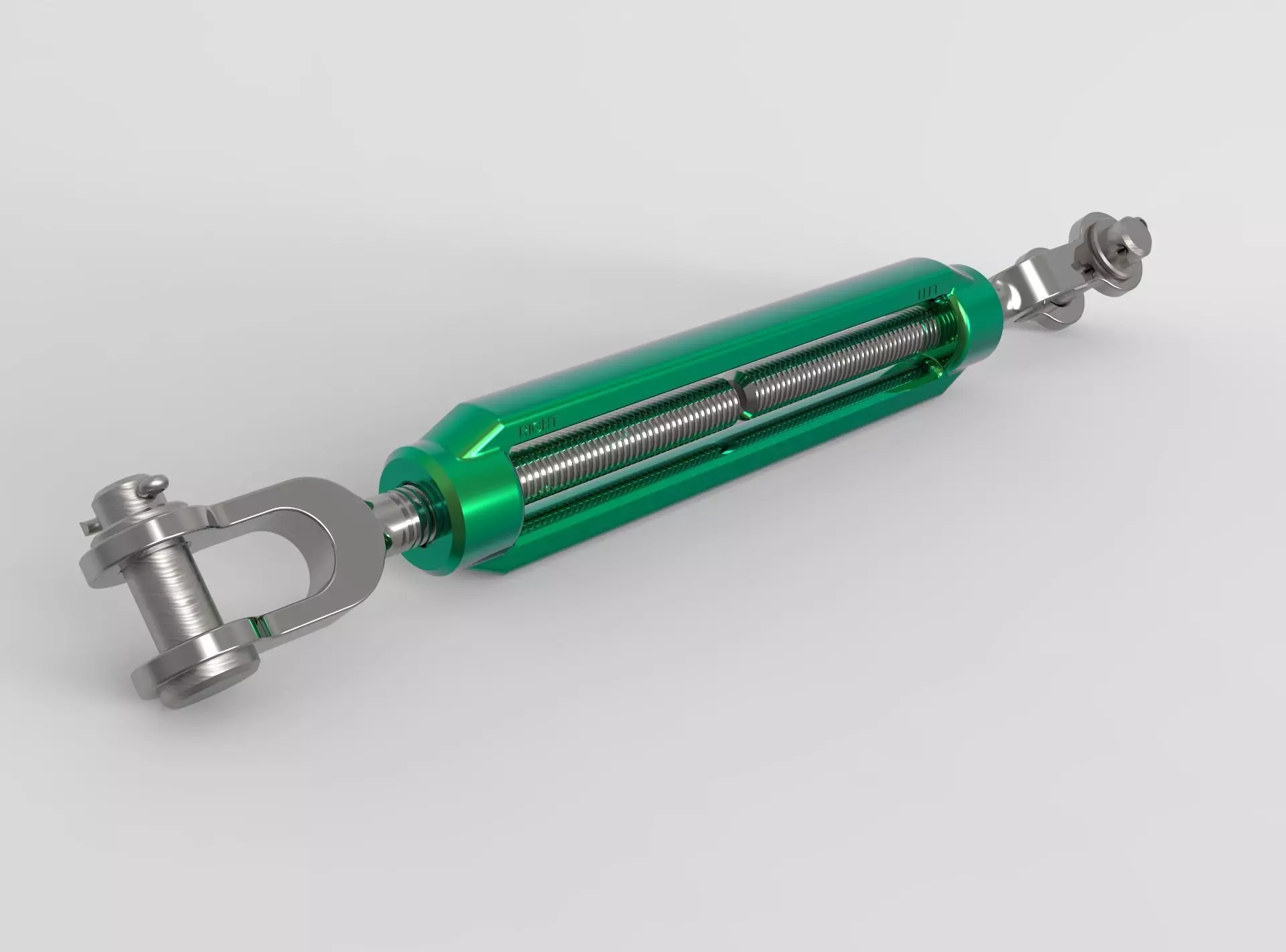

A device for tightening and removing slack from rigging, cables. It is a double screw tie, into which rods with multidirectional threads are screwed from both sides. When turning the lanyard body, the remaining fixed screws, depending on the direction of rotation, converge or diverge, changing the working length.
The archive contains files :
finger.SLDPRT
washer.SLDPRT
assembly.SLDASM
body.SLDPRT
left thread screw.SLDPRT
right thread screw.SLDPRT
splint.SLDPRT
Turnbuckle hydraulic cylinder
Royalty Free License
Turnbuckle hydraulic cylinder
Royalty Free License
3D Model formats
Format limitations
Native
- SolidWorks 2020 (.sldprt, .sldasm, .slddrw)40 MB
Exchange
- STEP (.stp)684 KB
- IGES 5.3 (.ige, .igs, .iges)410 KB
- Stereolithography (.stl)3.44 MB
- 3D Manufacturing File (.3mf)1.13 MB
- KeyShot 9.3.14 (.bip, .ksp)10.6 MB
- OBJ (.obj, .mtl)742 KB
- 3D ACIS (.sat)1.11 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Other
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2021-09-29
- Model ID#3297679
