DESCRIPTION

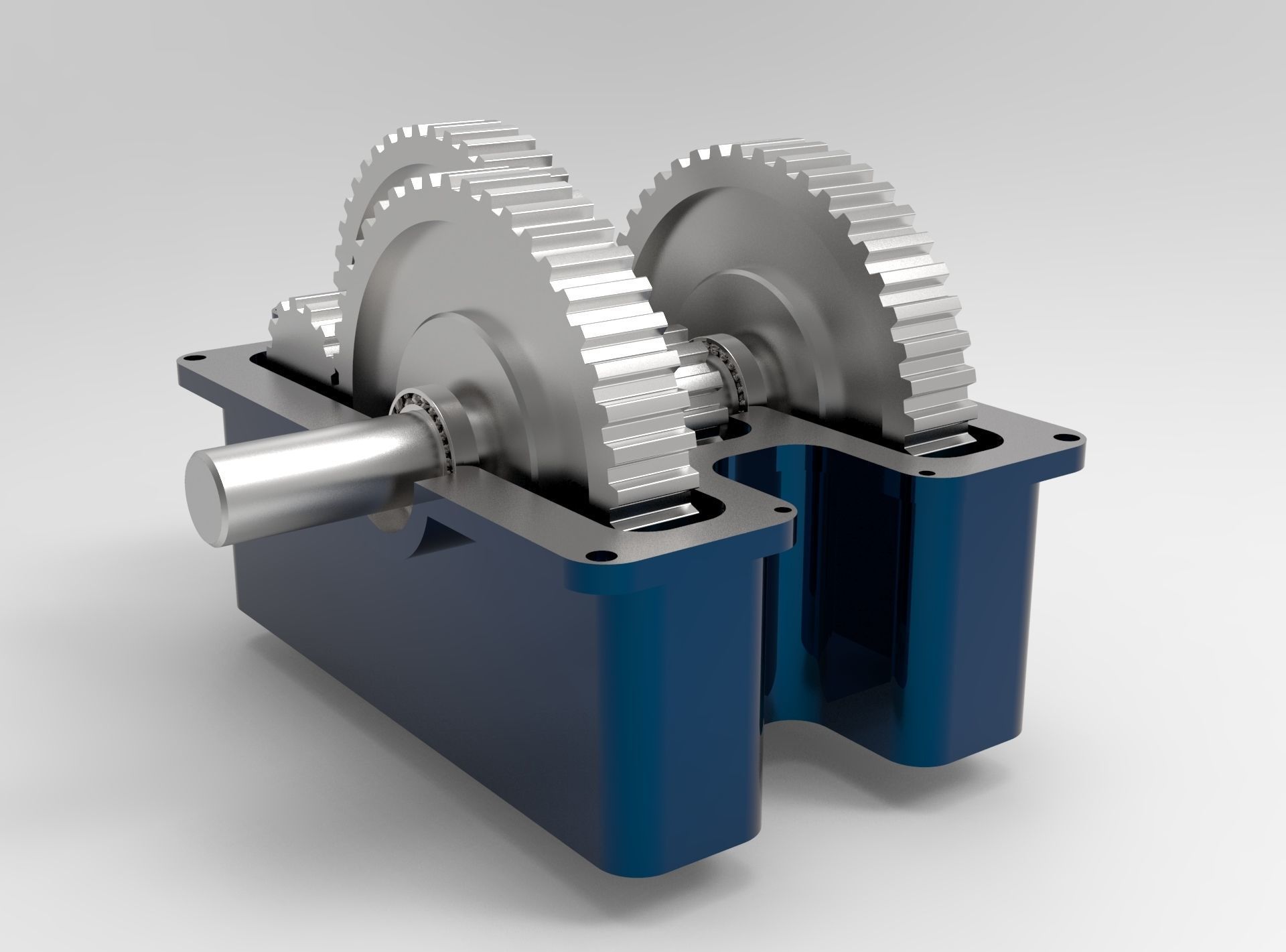

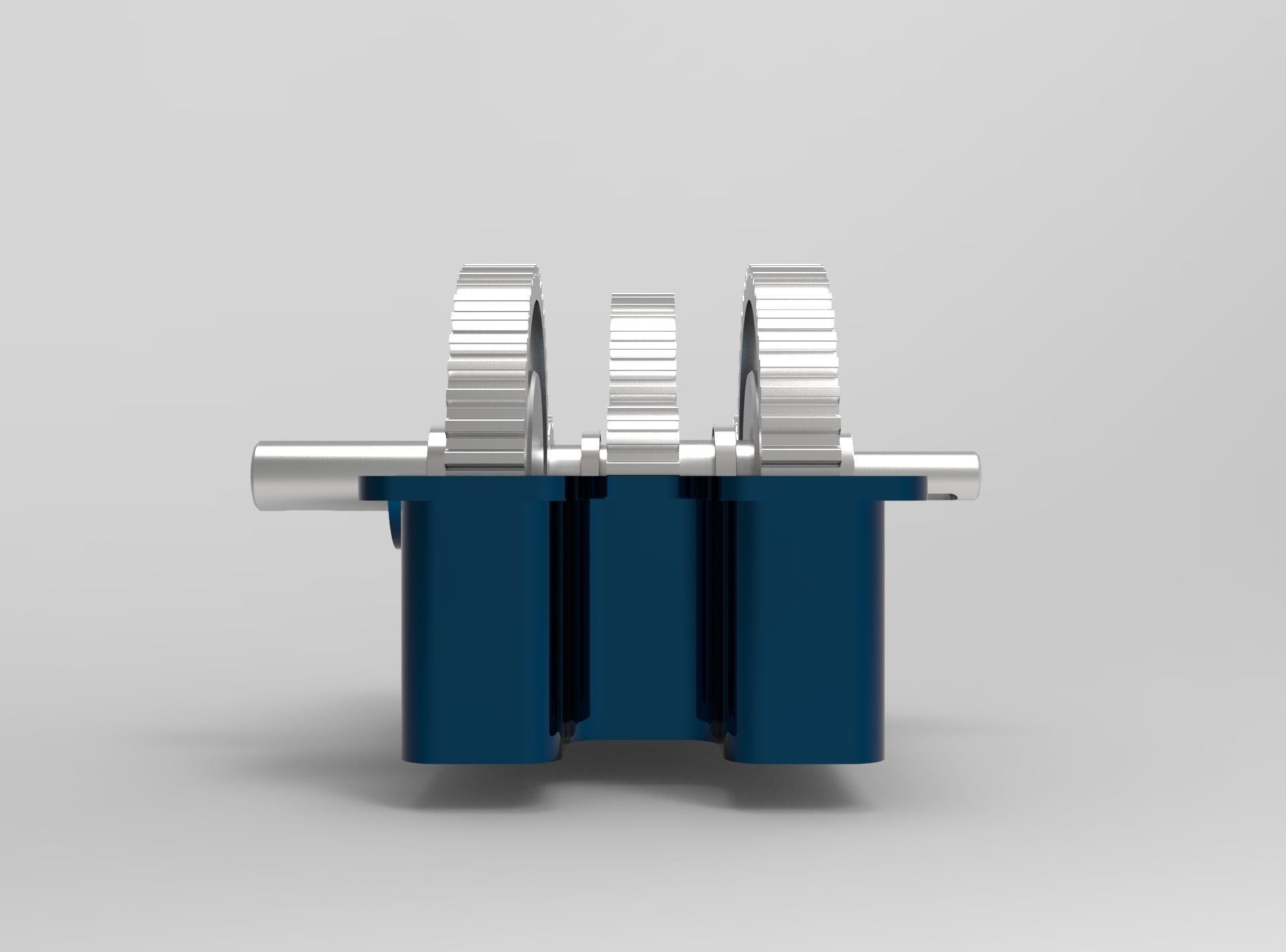

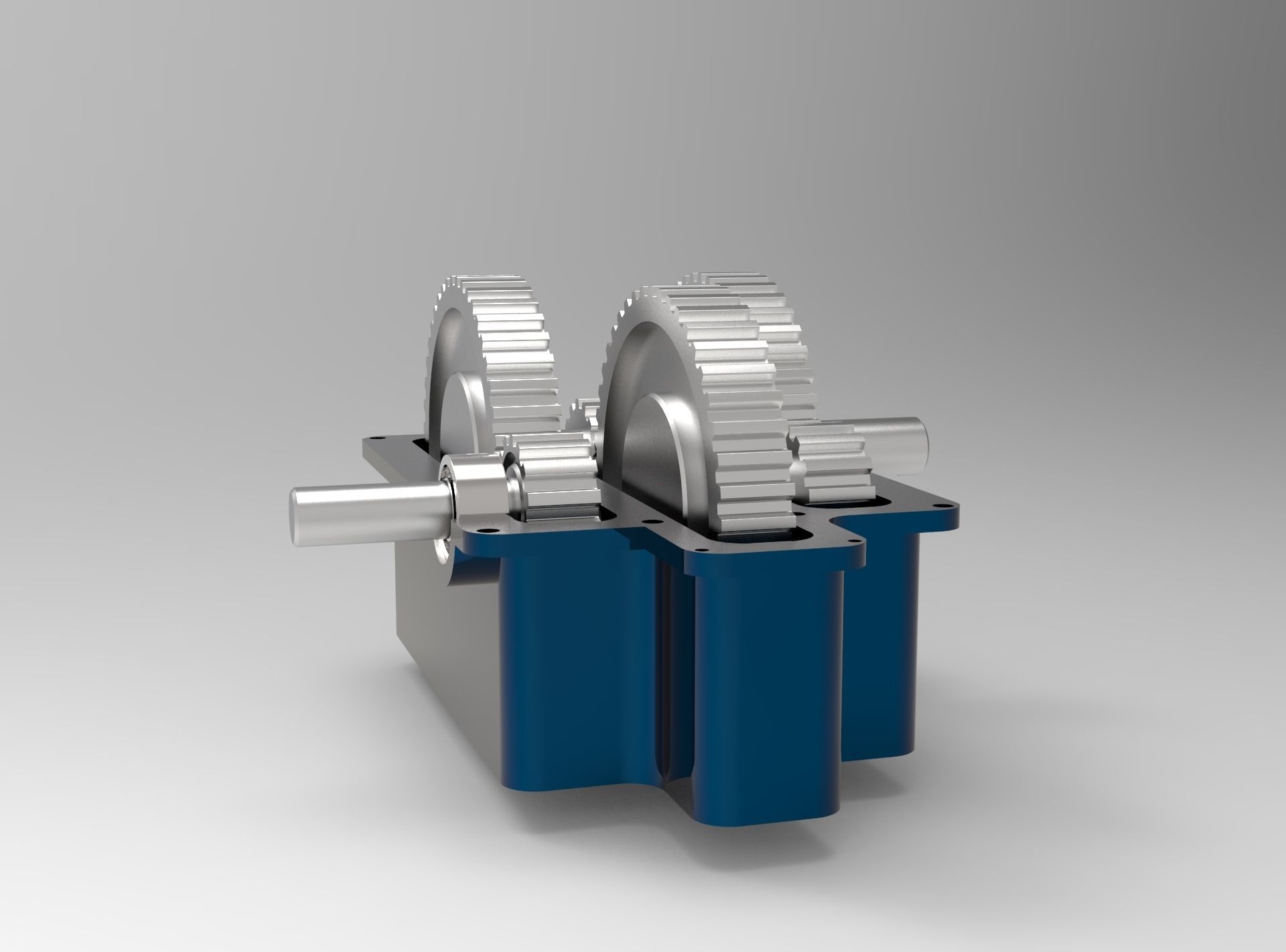

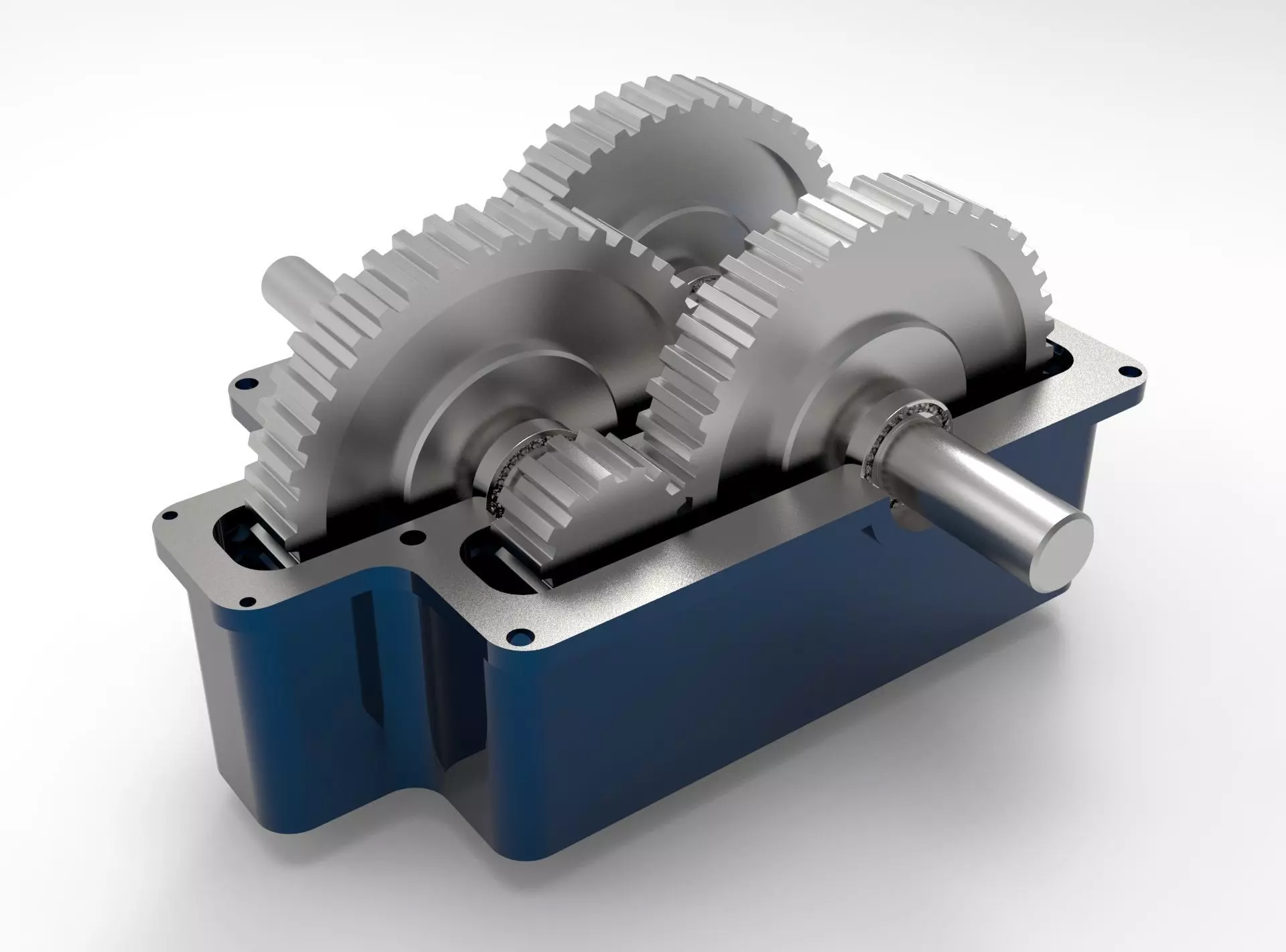

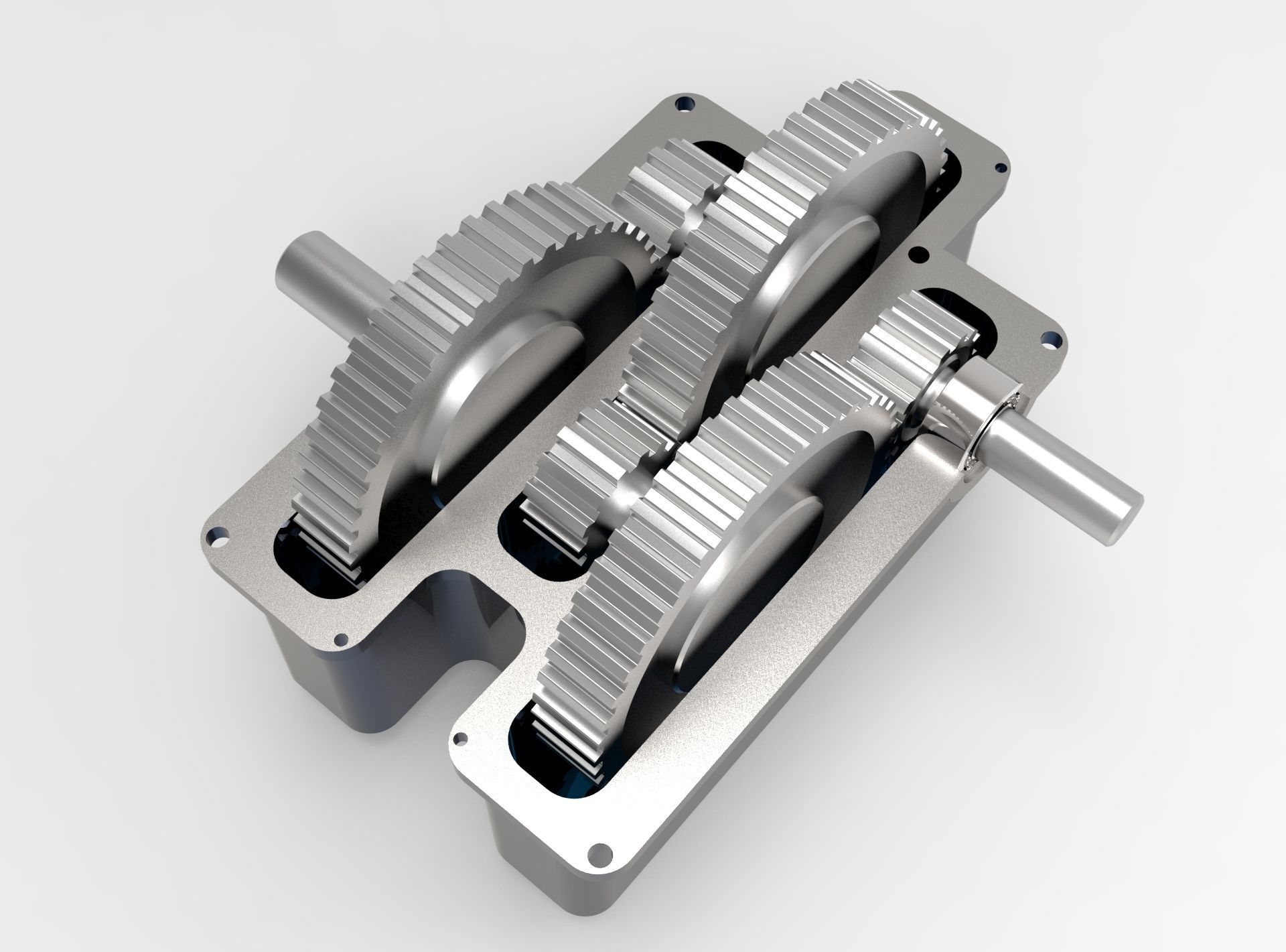

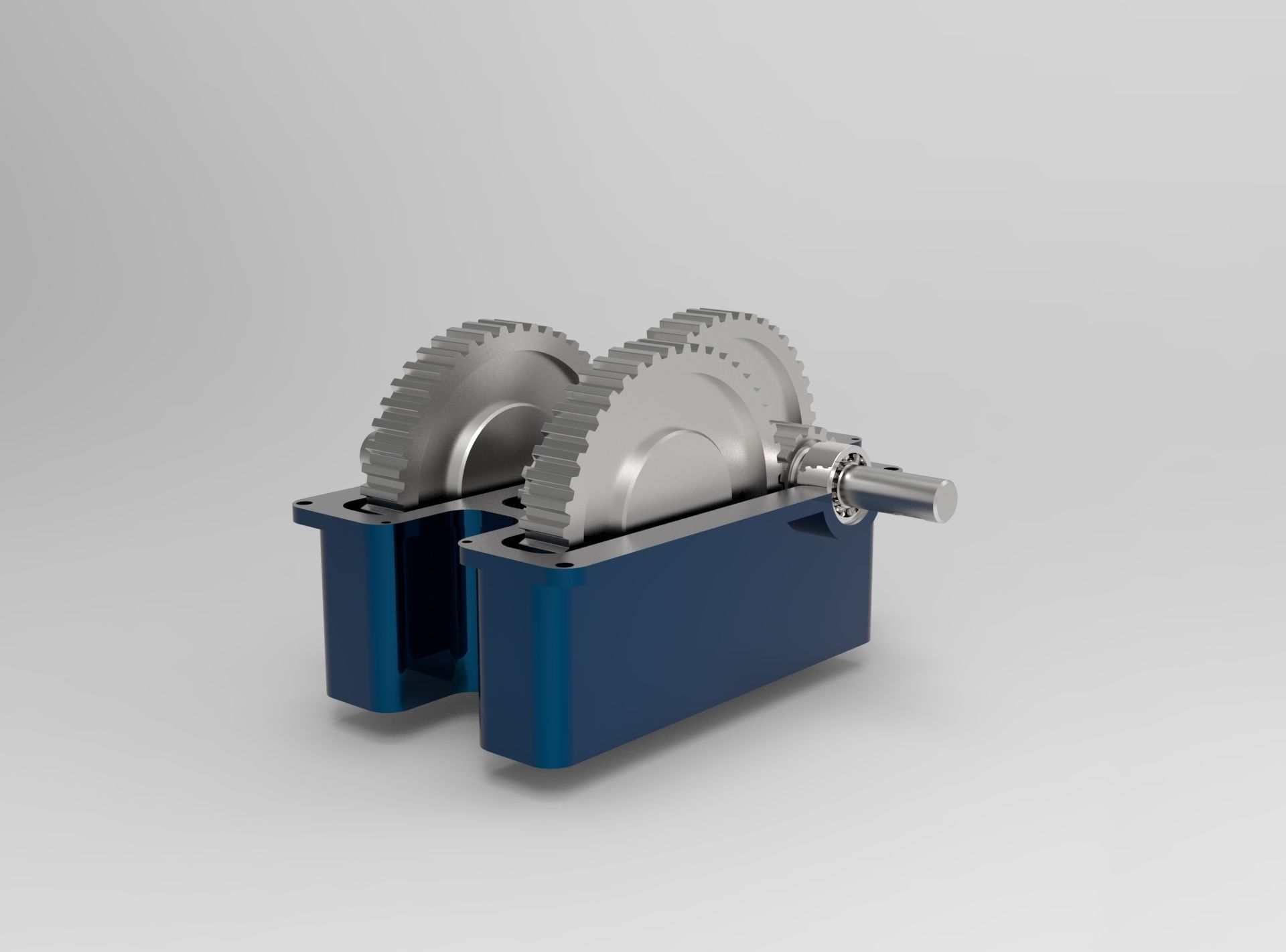

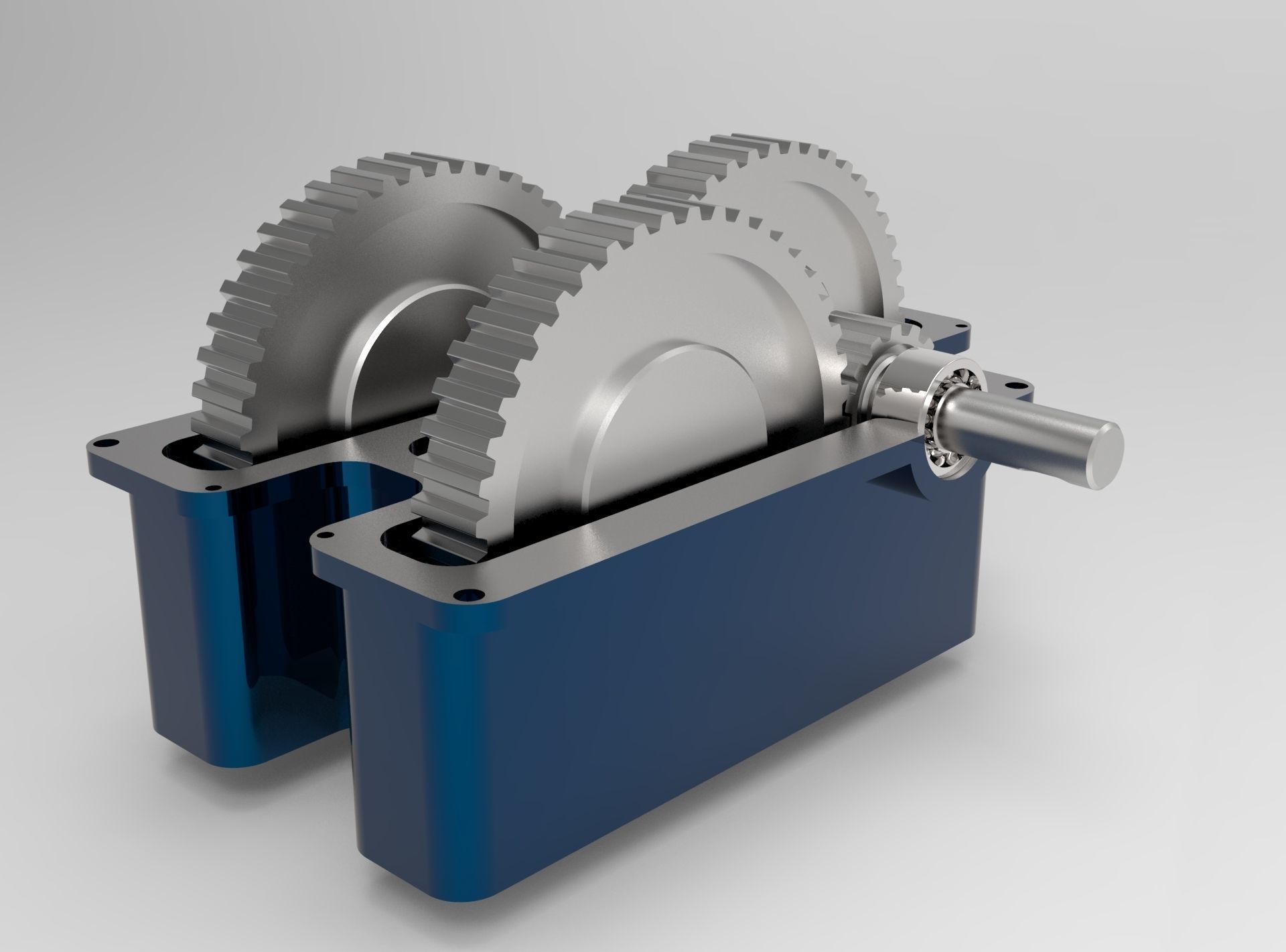

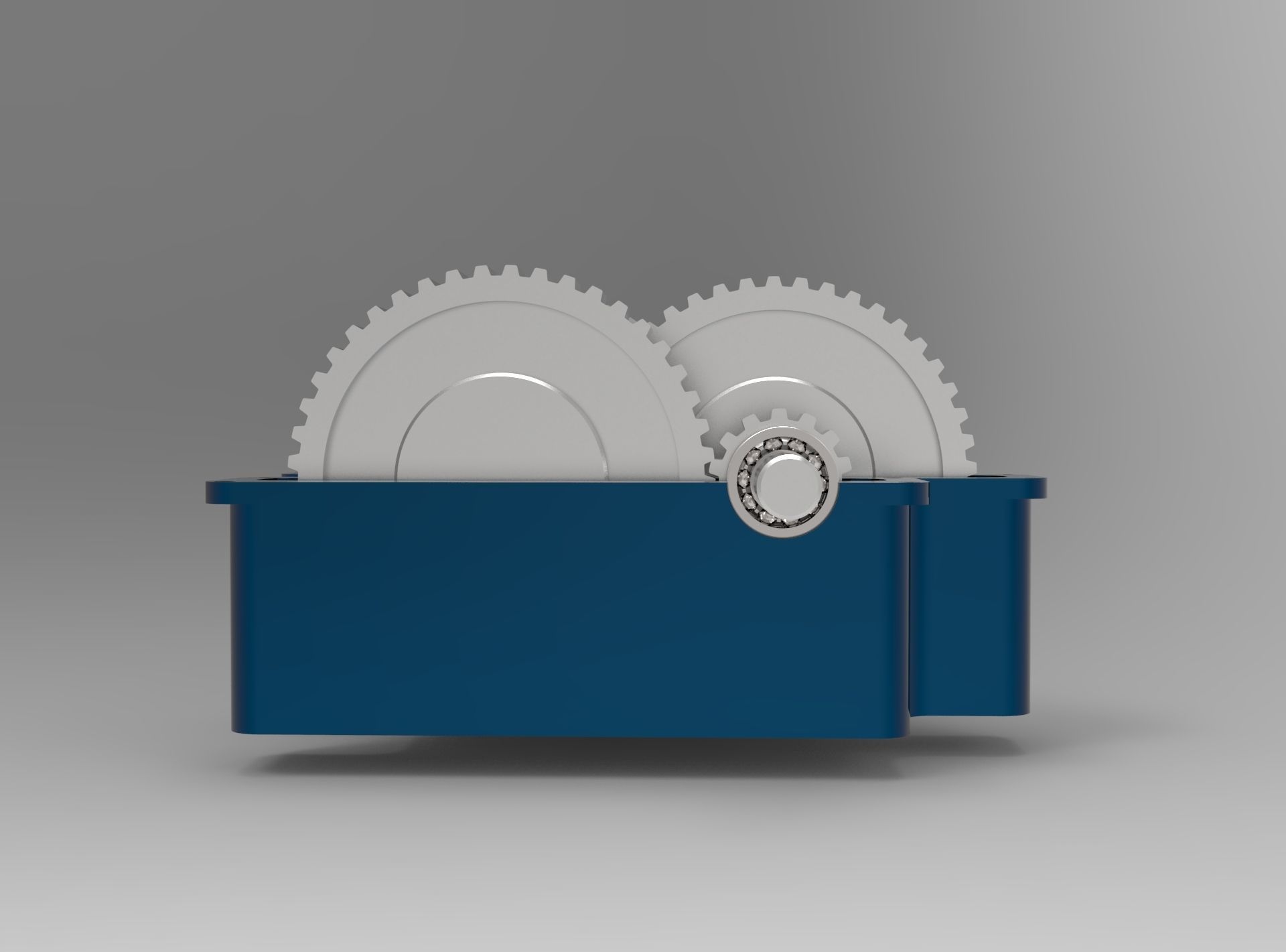

3d model of the gearbox. The work was done in Solidworks 2020. The assembly can be used to demonstrate the operation of the device.

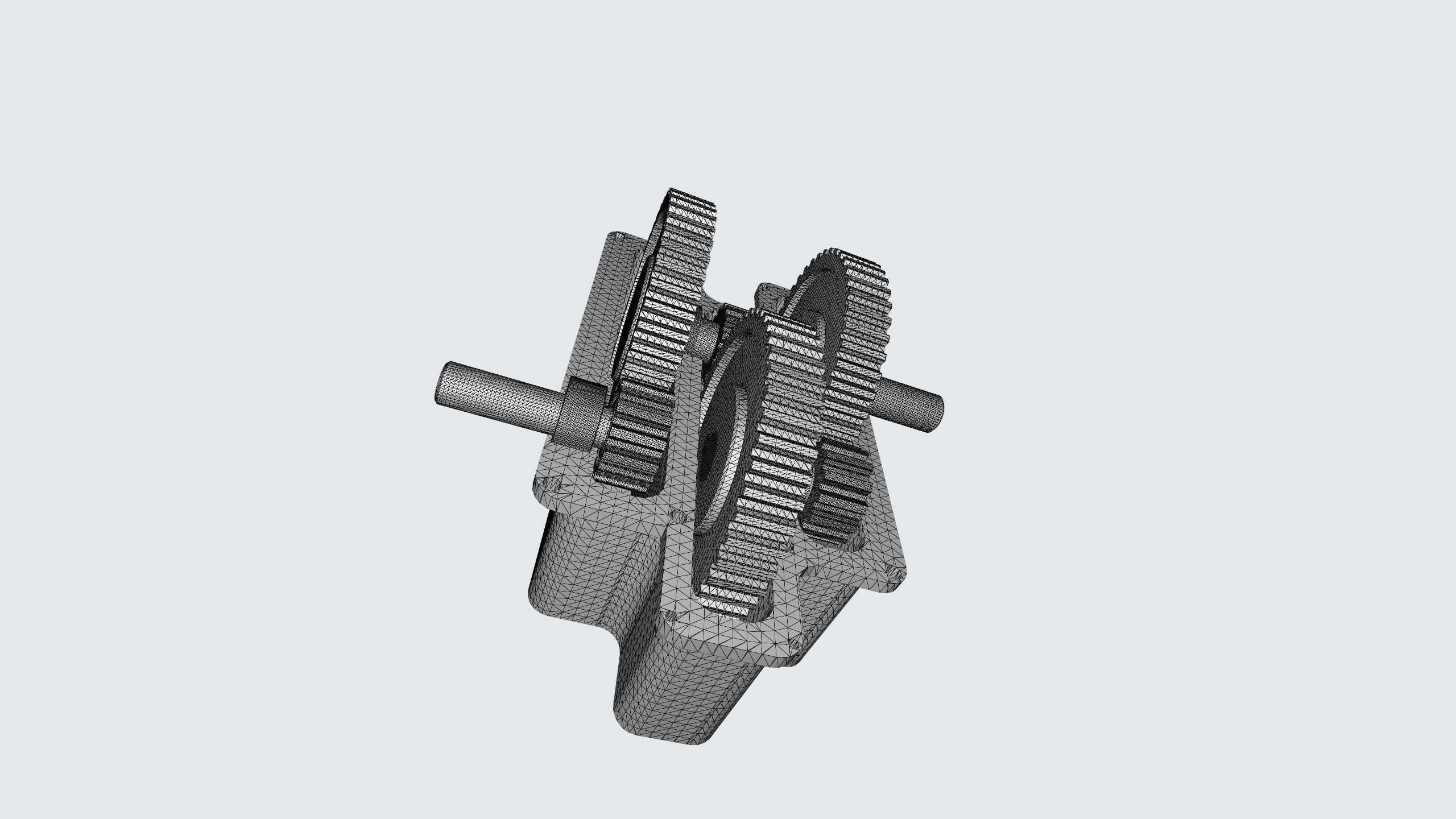

Models are suitable for printing on a 3D printer. Polygon models do not have the correct mesh, please consider this before purchasing.

Assembly dimensions: 65x110x119 (mm.)

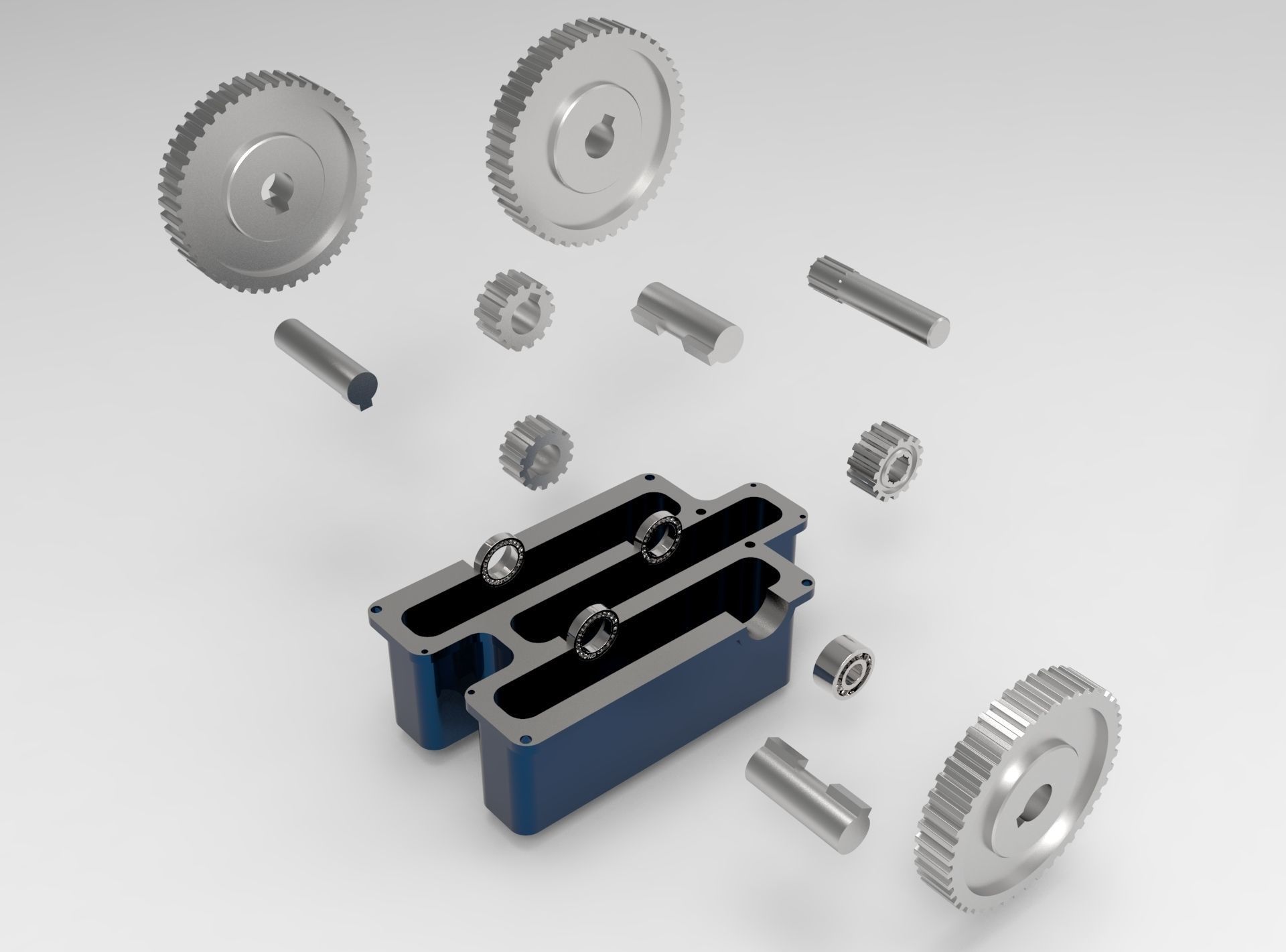

The archive contains files :

  • frame

  • gear_1

  • gear_2

  • gear_3

  • shaft _1

  • shaft _2

  • shaft _3

  • reducer _assembly

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
cgtdg
cgtdgCommunity member
This user is part of the CGTrader community
awesome
BEST PRICE GUARANTEED
Found this model cheaper on another marketplace? Let our support team know - we’ll match it.

Reducer with bearings and gears 3D model

Royalty Free License
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
Native file format
SLDPRT
Size: 2.97 MB
2020
Exchange formats
OBJ
OBJ<br />File Size: 7.02 MB
STP
STEP<br />File Size: 548 KB
STL
Stereolithography<br />File Size: 4.12 MB
SAT
3D ACIS<br />File Size: 1.48 MB
3MF
3D Manufacturing File<br />File Size: 1.98 MB
BIP
KeyShot<br />Version: 9.3.14<br />File Size: 2.36 MB
IGE
IGES<br />Version: 5.3<br />File Size: 563 KB
