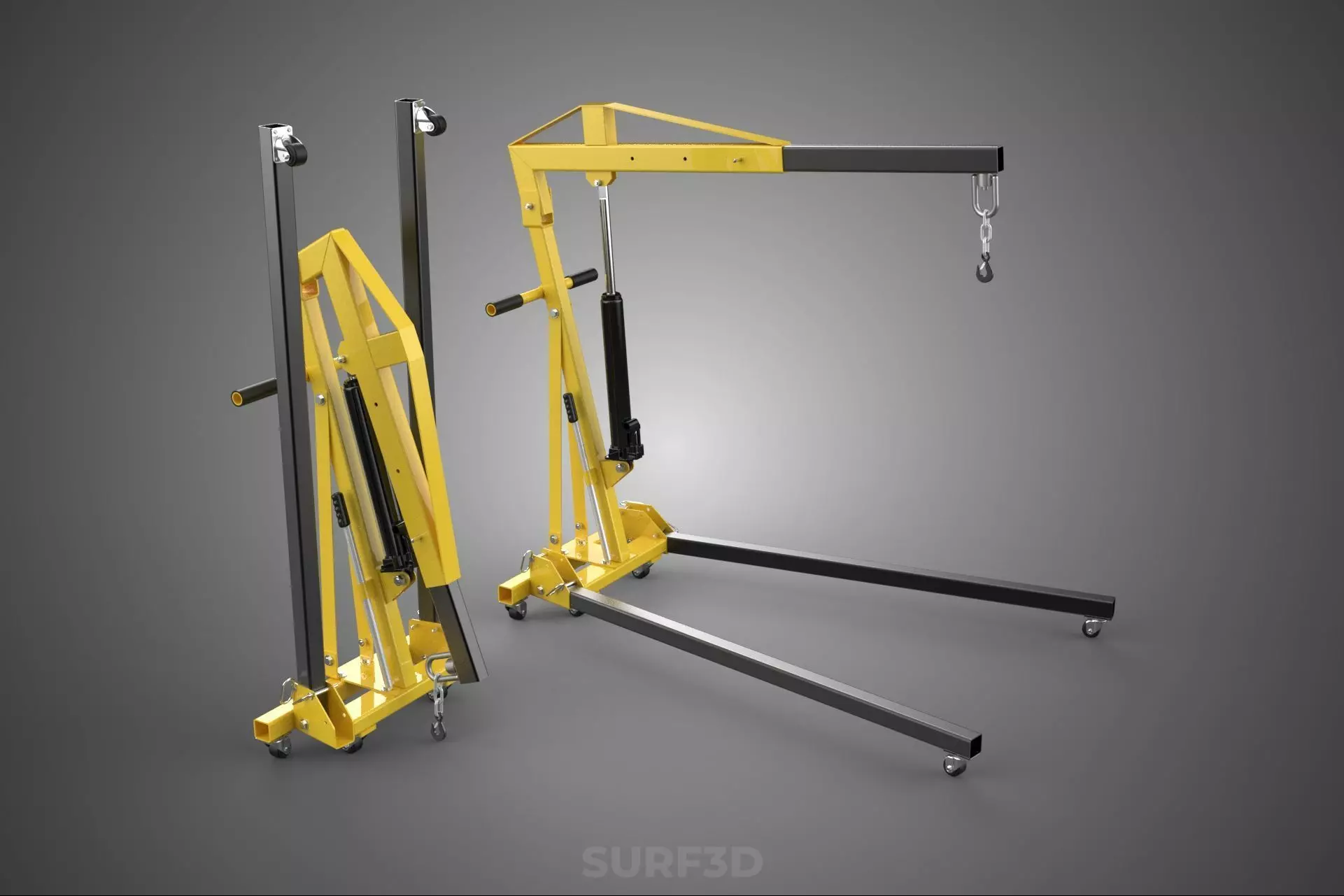

## Collapsible Hydraulic Engine Crane Hoist

A collapsible hydraulic engine crane, also widely known as a folding engine crane, foldable engine hoist, shop crane, or cherry picker, is a specialized piece of mobile lifting equipment designed primarily for the safe and controlled removal, installation, and relocation of internal combustion engines, transmissions, and other heavy components within vehicles. Its defining characteristic is its ability to be folded or collapsed into a significantly smaller form factor when not in use, facilitating easier storage and transport compared to fixed or rigid-frame engine cranes.

Design and Components:

The design of a collapsible hydraulic engine crane is centered around a robust steel frame engineered for structural integrity under load while incorporating hinged or segmented elements for folding. Key components include:

1. Base/Frame: Typically constructed from heavy-gauge steel tubing, the base provides stability. In collapsible models, the legs of the base are often hinged near the vertical mast and secured by pins or bolts when in the operational configuration. This allows the legs to swing inwards, significantly reducing the footprint for storage. The base is usually fitted with durable casters or wheels (often two fixed and two swiveling) for mobility.
2. Vertical Mast/Column: A sturdy upright member rising from the base, which supports the hydraulic cylinder and the boom. In some collapsible designs, the mast itself may have a hinge point allowing it to fold down, further reducing the unit's height for storage or transport.
3. Hydraulic Cylinder/Ram: The core lifting mechanism. This is a piston and cylinder assembly operated by hydraulic fluid. A hand-operated pump lever or foot pedal applies pressure to the fluid, extending the piston and raising the boom. A release valve allows the fluid to return to the reservoir, lowering the load under control. These cylinders are specifically rated for high lifting capacities.
4. Boom/Jib: A horizontal or angled arm extending from the top of the mast. The boom typically features multiple adjustment points, allowing its effective length to be varied. A longer boom provides greater reach but reduces the maximum lifting capacity due to increased leverage on the structure and cylinder. The boom terminates in a hook or attachment point.
5. Hook: A heavy-duty hook, often equipped with a safety latch, located at the end of the boom, to which chains, slings, or engine leveling devices are attached for lifting the load.
6. Folding Mechanism: Consists of strategically placed hinges and locking pins (or bolts) in the base legs and potentially the mast, enabling the frame to be collapsed and secured in its folded state.

Mechanism of Operation:

Operation involves positioning the crane base around the front or side of the vehicle. The load (e.g., engine) is securely attached to the boom's hook using appropriate lifting accessories. The hydraulic pump is then actuated via the handle or pedal, which extends the hydraulic ram, causing the boom to pivot upwards and lift the load. The integrated wheels allow the crane and its suspended load to be carefully maneuvered. To lower the load, the hydraulic release valve is slowly opened, allowing the hydraulic fluid to return and the boom to descend. For storage, locking pins are removed from the hinged points, allowing the legs and potentially the mast to fold into a more compact position.

Applications:

Collapsible hydraulic engine cranes are indispensable tools in:

* Automotive repair workshops (professional and amateur)
* Vehicle restoration projects
* Engine building facilities
* Garages with limited space

They are used for tasks such as:

* Removing and installing vehicle engines
* Lifting heavy transmissions and axles
* Positioning vehicle bodies or subframes during assembly/disassembly
* Handling other heavy mechanical components

Advantages:

The primary advantage of the collapsible design is its significantly reduced storage footprint. This makes it ideal for smaller garages or workshops where floor space is at a premium. They offer a cost-effective solution for handling heavy loads compared to overhead gantries or permanent lifts for many automotive tasks. They are also relatively portable when folded, allowing them to be moved between work areas or stored out of the way when not actively lifting.

Disadvantages and Considerations:

While convenient for storage, collapsible cranes generally have lower maximum lifting capacities than larger, rigid-frame cranes of similar construction size, although heavy-duty collapsible models exist. Their stability is dependent on the base configuration and the proper distribution of weight. Movement with a heavy load requires caution due to the rolling nature of the casters. As with all lifting equipment, exceeding the stated weight capacity is extremely hazardous and can lead to structural failure.

Safety:

Safe operation requires adherence to the manufacturer's instructions, ensuring the crane's weight capacity is not exceeded, proper load attachment using rated hardware, operating on a level and stable surface, and maintaining awareness of the surrounding environment.
