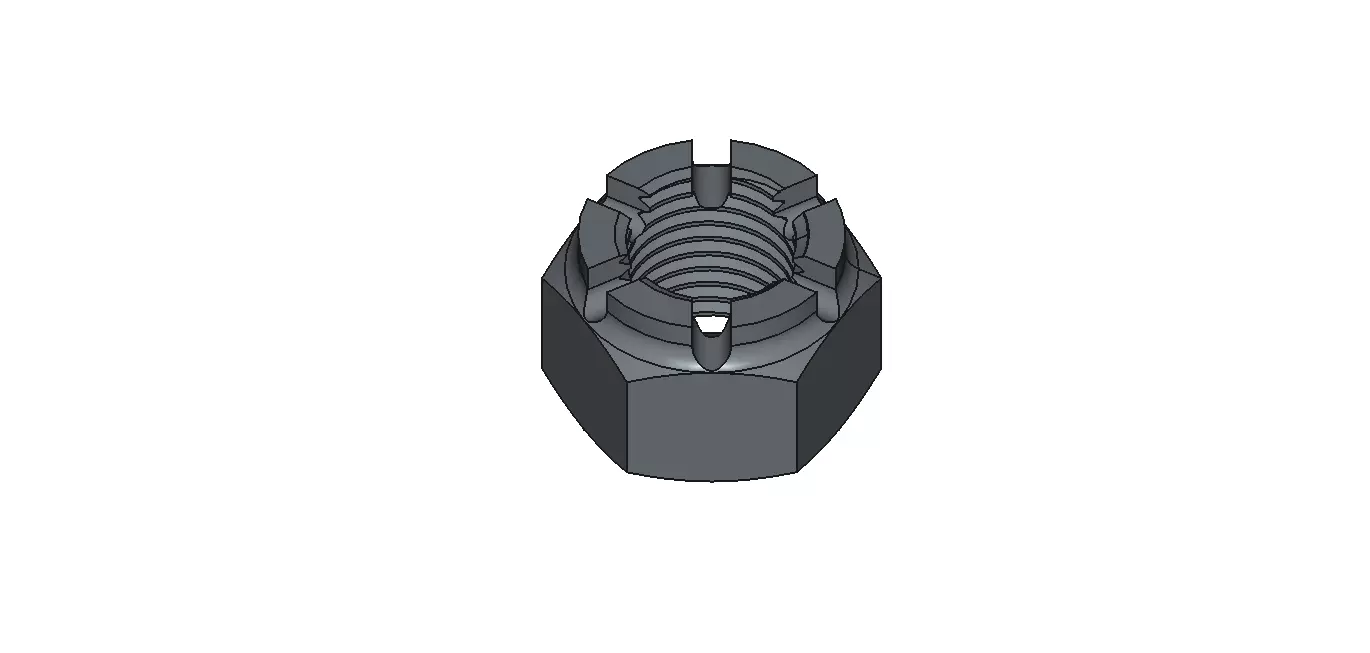

M36 Castle Nut 3D model
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

Precision-engineered M36 Castle Nut (DIN 935) designed for extreme heavy-duty fastening in large-scale industrial and structural applications. The castellated (slotted) design allows secure locking with a cotter pin, preventing loosening under vibration—ideal for heavy machinery, construction systems, and industrial assemblies.

This 3D model features accurate real-world dimensions, clean topology, and optimized geometry. Perfect for CAD assemblies, product visualization, rendering, and 3D printing, it delivers high detail and reliable performance for professional use.

Technical Details

SpecificationsThread Size: M36 × 4.0 (Metric Coarse)Standard: DIN 935Wrench Size (Across Flats): 55 mmHeight:Full (DIN 935): ~36.0 mm

3D Model InfoScale: Real-world (millimeters)Units: mmGeometry: Polygonal meshTopology: Clean and optimizedAccuracy: Based on standard engineering dimensions

Related Tagsnutcastlehexfastenermechanicalengineeringindustrialcadstlsteppinlockingprinting
