M20 Castle Nut 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

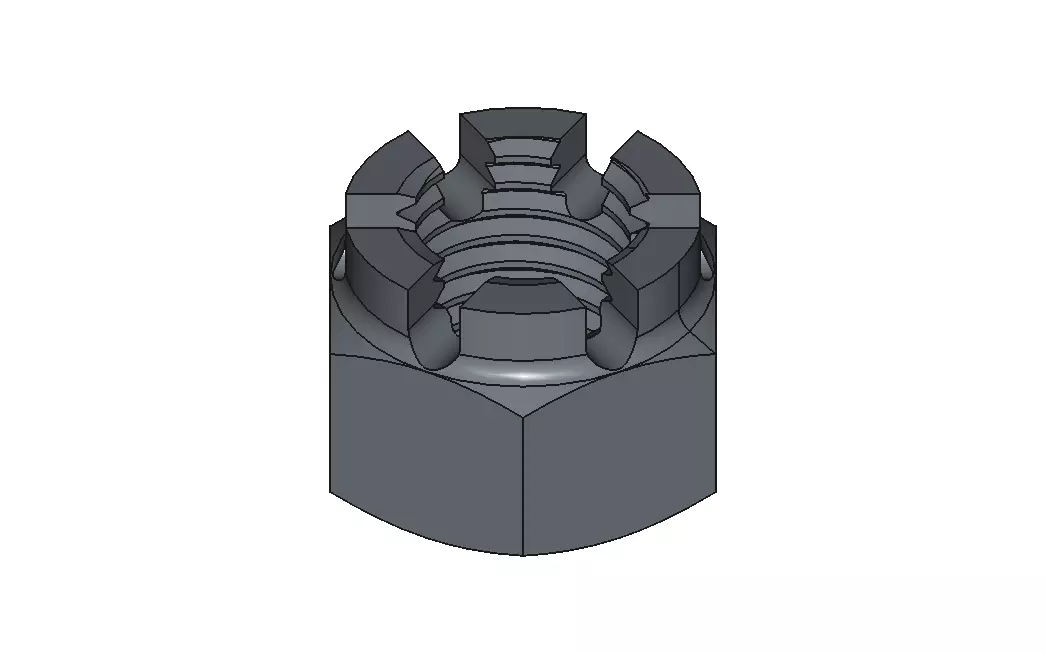

Precision-engineered M20 Castle Nut (DIN 935) built for heavy-duty fastening in industrial and mechanical applications. The castellated (slotted) design enables secure locking with a cotter pin, preventing loosening under vibration—ideal for machinery, automotive systems, and structural assemblies.

This 3D model is created with accurate real-world dimensions, clean topology, and optimized geometry. Perfect for CAD assemblies, rendering, product visualization, and 3D printing, it offers high detail while maintaining efficient performance for professional use.

Technical Details

SpecificationsThread Size: M20 × 2.5 (Metric Coarse)Standard: DIN 935Wrench Size (Across Flats): 30 mmHeight:Full (DIN 935): ~22.0 mm

3D Model InfoScale: Real-world (millimeters)Units: mmGeometry: Polygonal meshTopology: Clean and optimizedAccuracy: Based on standard engineering dimensions

Related Tagsm20nutcastledinhexfastenermechanicalengineeringindustrialcadstlsteppinlockingprinting
