DESCRIPTION

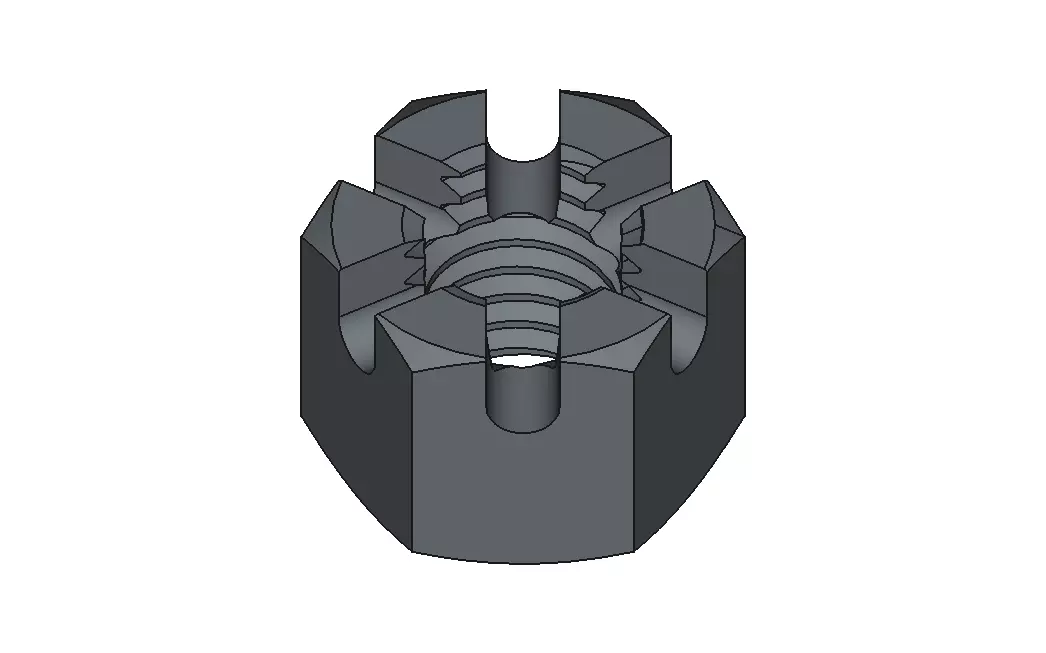

Precision-engineered M5 Castle Nut (DIN 935) designed for secure fastening in mechanical and industrial applications. This model features a castellated (slotted) design, allowing the use of a cotter pin to prevent loosening under vibration—ideal for automotive, machinery, and engineering assemblies.

The 3D model is created with accurate real-world dimensions, clean geometry, and optimized topology. It is perfect for CAD projects, product visualization, rendering, and 3D printing, offering a great balance between detail and performance.

Technical Details

SpecificationsThread Size: M5 × 0.8 (Metric Coarse)Standard: DIN 935Wrench Size (Across Flats): 8 mmHeight:Full (DIN 935): ~5.5 mm

3D Model InfoScale: Real-world (millimeters)Units: mmGeometry: Polygonal meshTopology: Clean and optimizedAccuracy: Based on standard engineering dimensions

Related Tagsnutcastlehexfastenermechanicalengineeringindustrialcadstlsteppinlockingprinting
