EN1092-1 PN16 Type 11 Weld Neck Flange DN50-DN600 3D model
thumbnail
play iconthumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

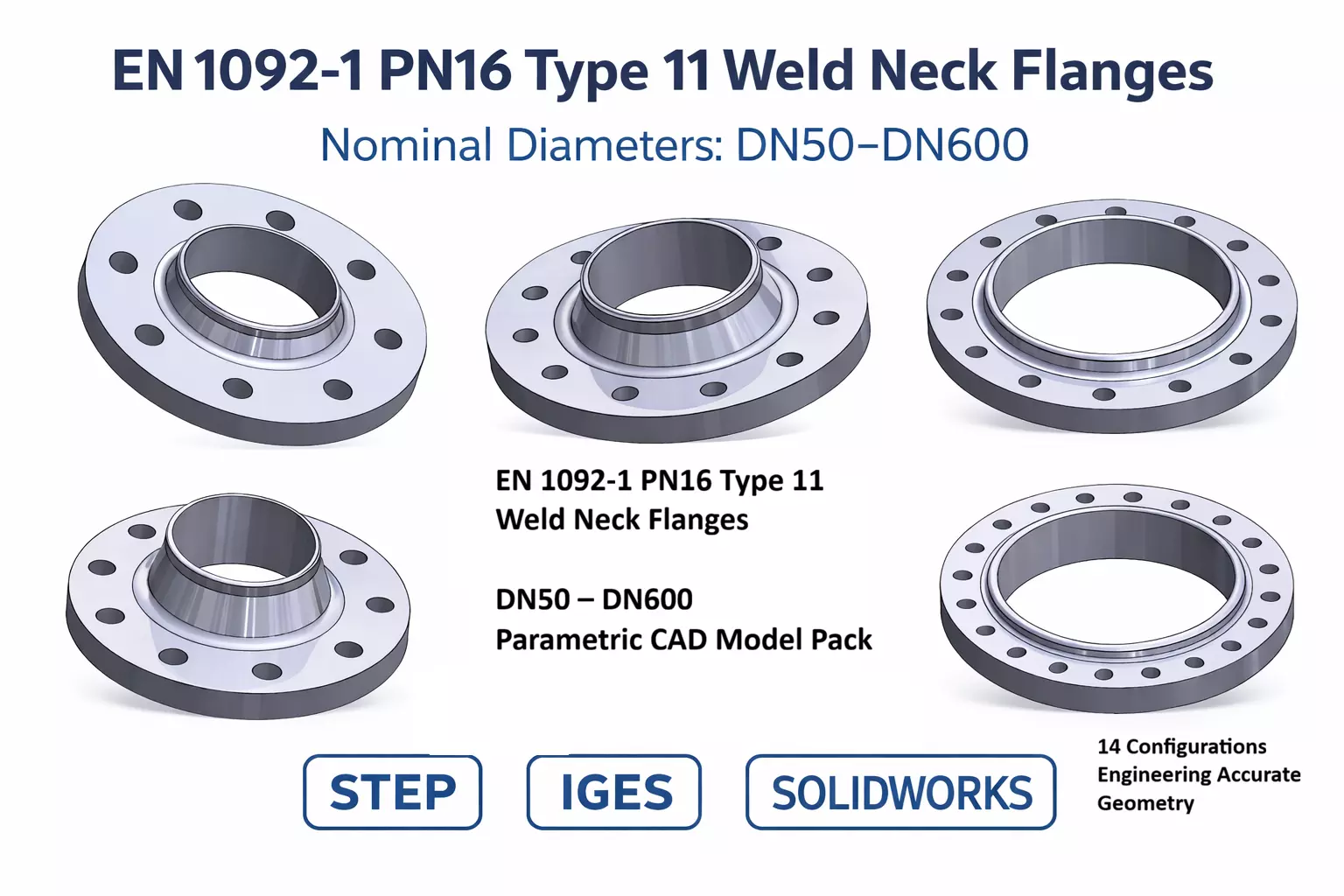

Parametric CAD model pack of EN 1092-1 PN16 Type 11 Weld Neck Flanges.

This model set includes multiple flange sizes from DN50 up to DN600 according to EN1092-1 standard.

The geometry is suitable for industrial piping design, plant engineering, and mechanical CAD assemblies.

Included formats:• SOLIDWORKS SLDPRT (configurations)• STEP (AP214)• IGES

Features:• Accurate engineering dimensions• Parametric configuration setup• Clean topology for CAD use• Ready for industrial piping projects

Sizes included:DN50DN65DN80DN100DN125DN150DN200DN250DN300DN350DN400DN450DN500DN600

Related Tagsflangeweldneckpipepn16industrialfittingcadengineeringsolidworkssteppipingmechanical
