EN1092-1 PN16 Plain - Blind Flange Pack DN50-600
thumbnail
play iconthumbnail
play iconthumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

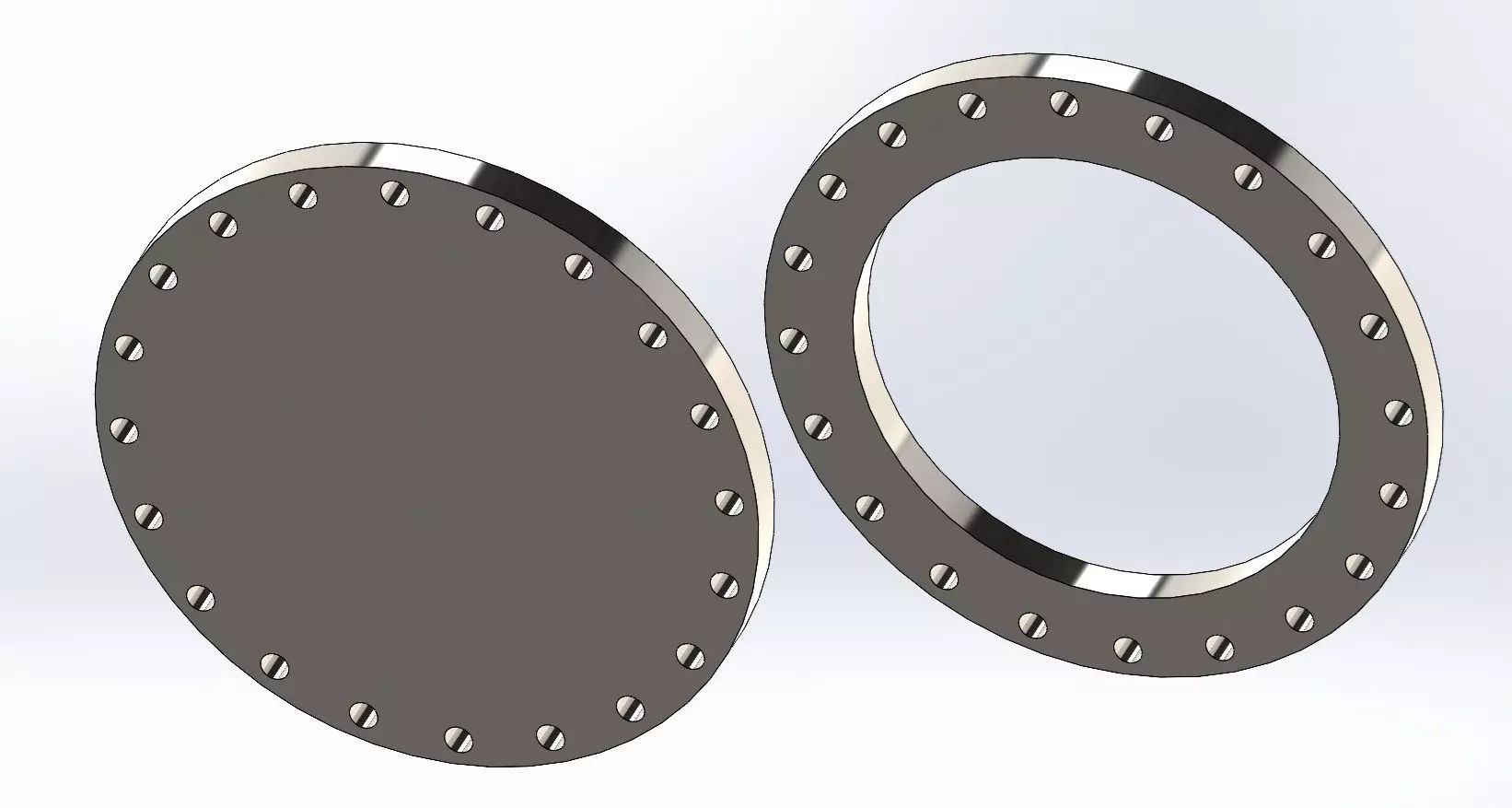

EN 1092-1 PN16 flange pack including:

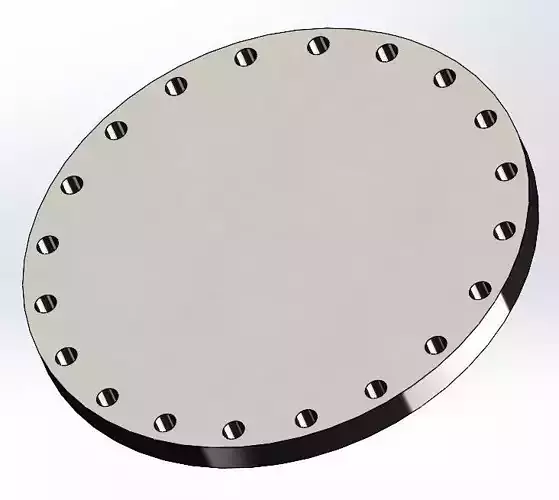

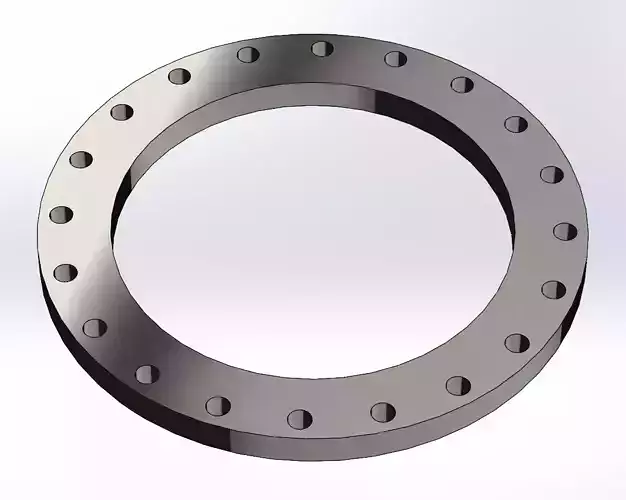

• Type A Plain Flange (DN50–DN600)• Type 05 Blind Flange (DN50–DN600)

All nominal diameters from DN50 to DN600 included.Fully compliant with EN 1092-1 PN16 standard.

Each model contains:

  • SolidWorks native file (.SLDPRT)
  • STEP neutral file (.STEP)
  • IGES file (.IGES)
  • Parametric configuration table
  • Units: millimeters (mm)

Bolt circle, hole diameter and thickness are fully configurable.

Suitable for piping systems, pressure equipment and industrial design.

Standard dimensions according to EN 1092-1 Table 6.Pressure rating: PN16.Face type: Type A (Plain) / Type 05 (Blind).No central bore for blind version.

Related Tagspn16blindflangeplaintypepackindustrialpipingmechanicalengineeringcadsolidworksstepparametricpressure
