EN10253 Pipe Elbow 90 Long Radius DN250-DN400 CAD Library 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

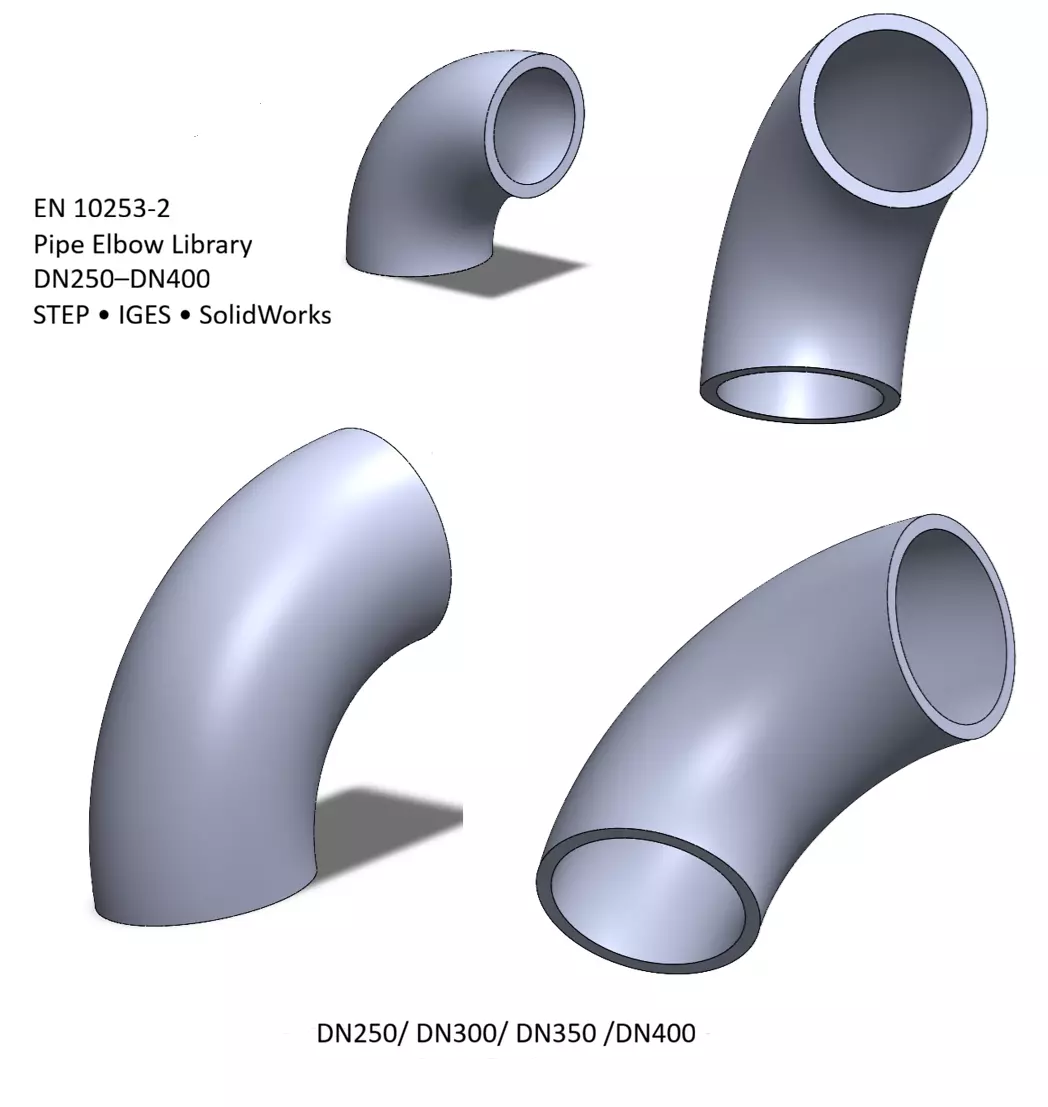

EN10253-2 Pipe Elbow CAD Library

This library contains parametric 90 degree long radius pipe elbows based on the EN10253-2 piping standard.

Included nominal sizes:DN250DN300DN350DN400

The models are created as clean solid CAD geometry suitable for engineering assemblies and piping layouts.

Formats included:STEP (.step)IGES (.igs)SolidWorks (.sldprt)

Geometry:NURBS / B-Rep solid geometry

Units:Millimeters

Applications:Industrial piping systemsPlant engineeringMechanical CAD assembliesPipeline routing and layouts

Software:Created in SolidWorks

Related Tagspipeelbowpipingfittingcadengineeringsolidworkssteppipelineindustrialmechanical
