EN10253-2 Pipe Elbow 90 Long Radius DN25-DN200 STEP IGES 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

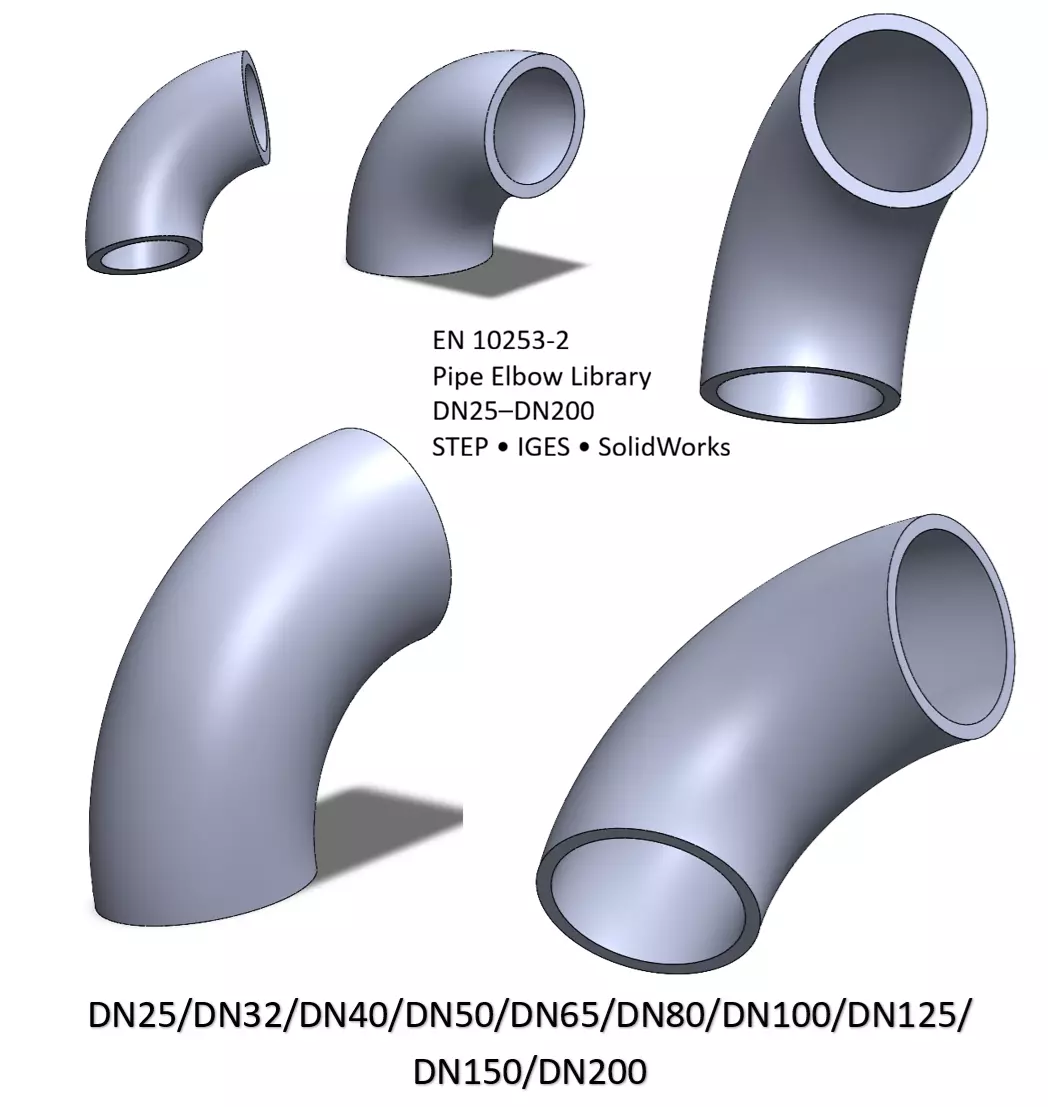

EN10253-2 pipe elbow 90 long radius CAD model library including DN25-DN200 sizes in STEP, IGES and SolidWorks formats.

Standard: EN10253-2Type: Long radius elbow 90Series: 4

Included nominal sizes:DN25DN32DN40DN50DN65DN80DN100DN125DN150DN200

Formats included:STEP (.step)IGES (.igs)SolidWorks (.sldprt)

Geometry: NURBS / B-Rep solid geometryUnits: millimeters

Suitable for:• industrial piping systems• plant engineering• mechanical CAD assemblies• piping layouts

Related Tagspipeelbowpipingfittingdegreecadplantdesignindustrialstepsolidworks
