Korvet 038 Soviet turntable 3D model

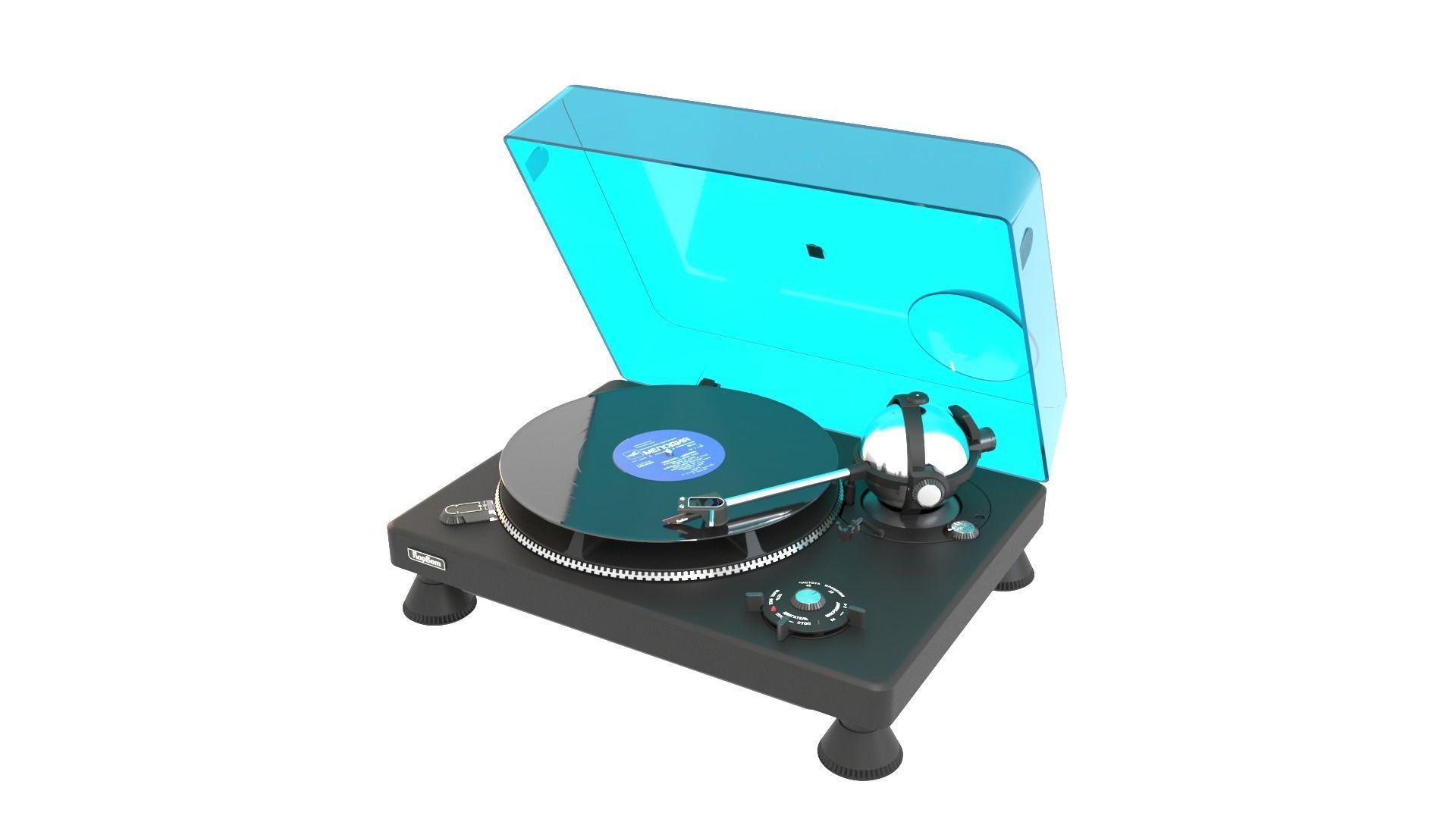

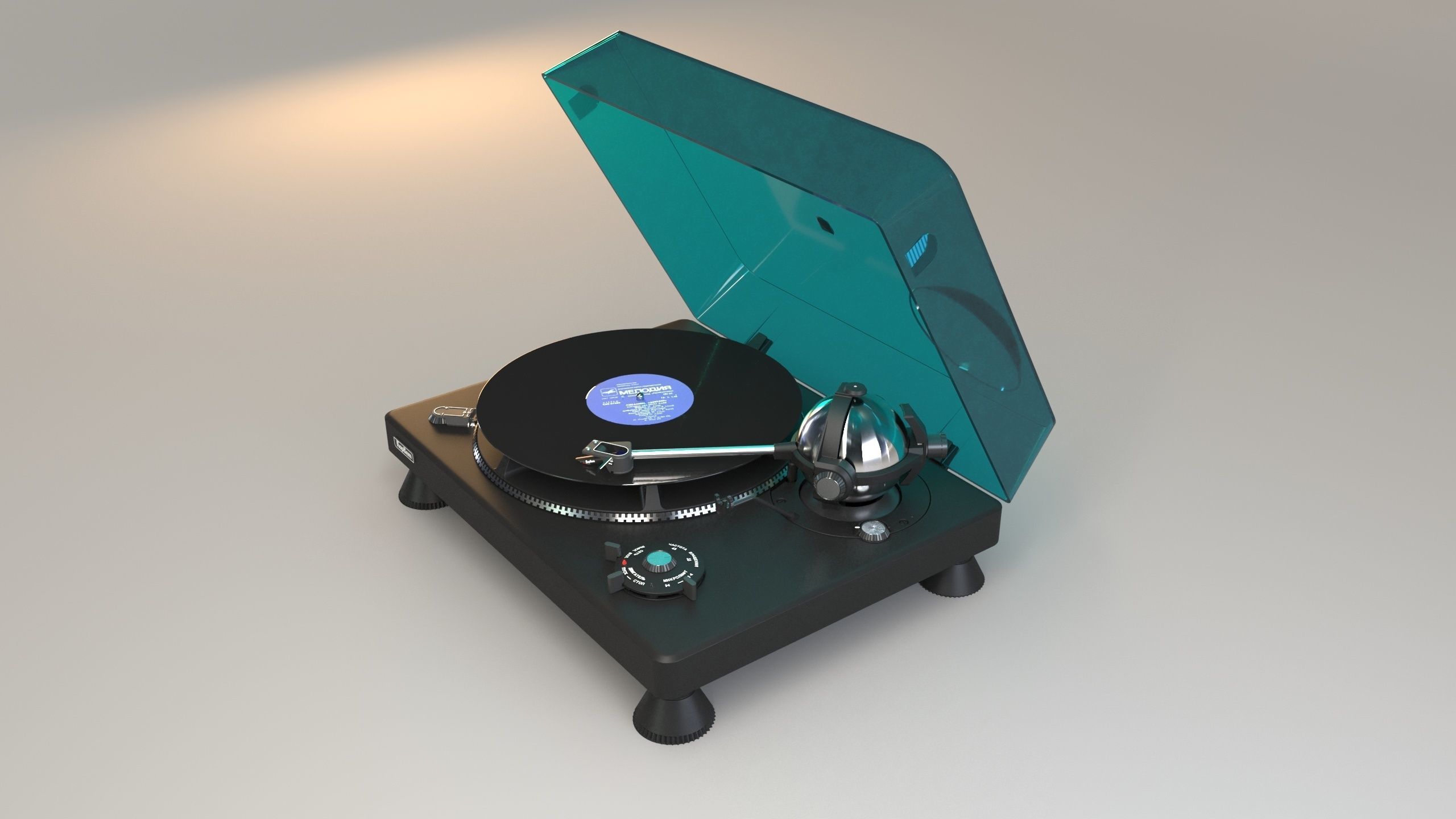

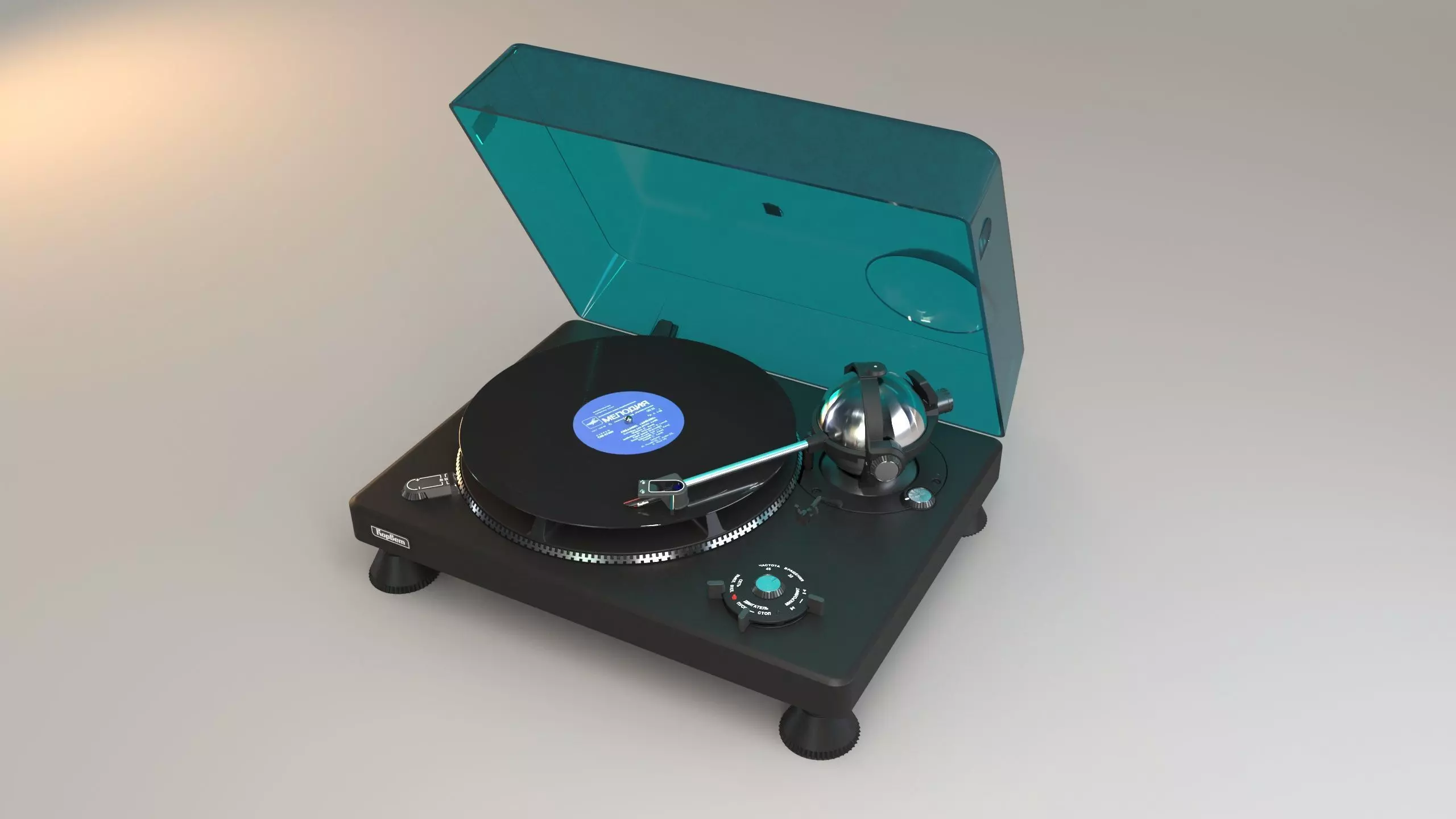

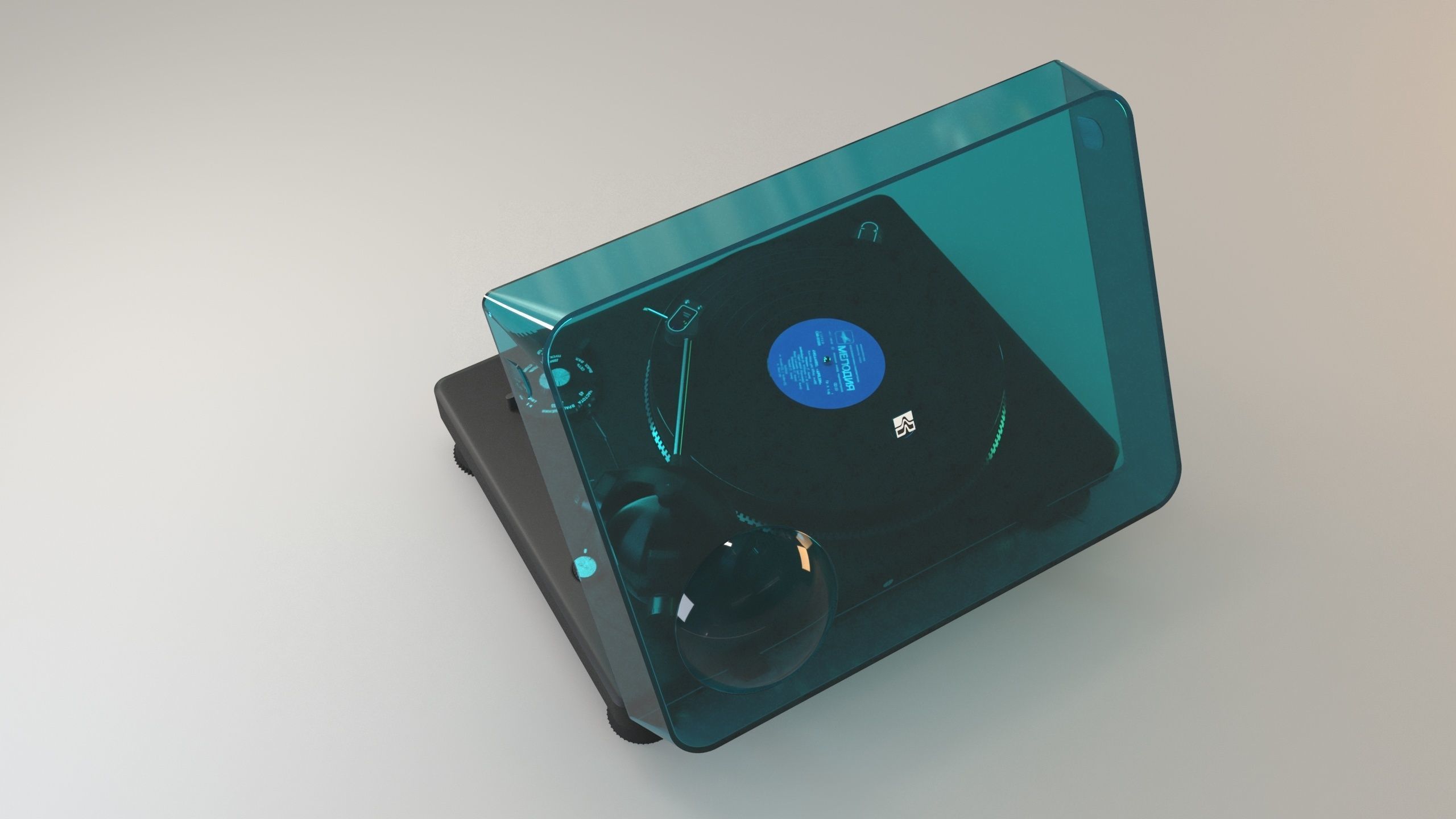

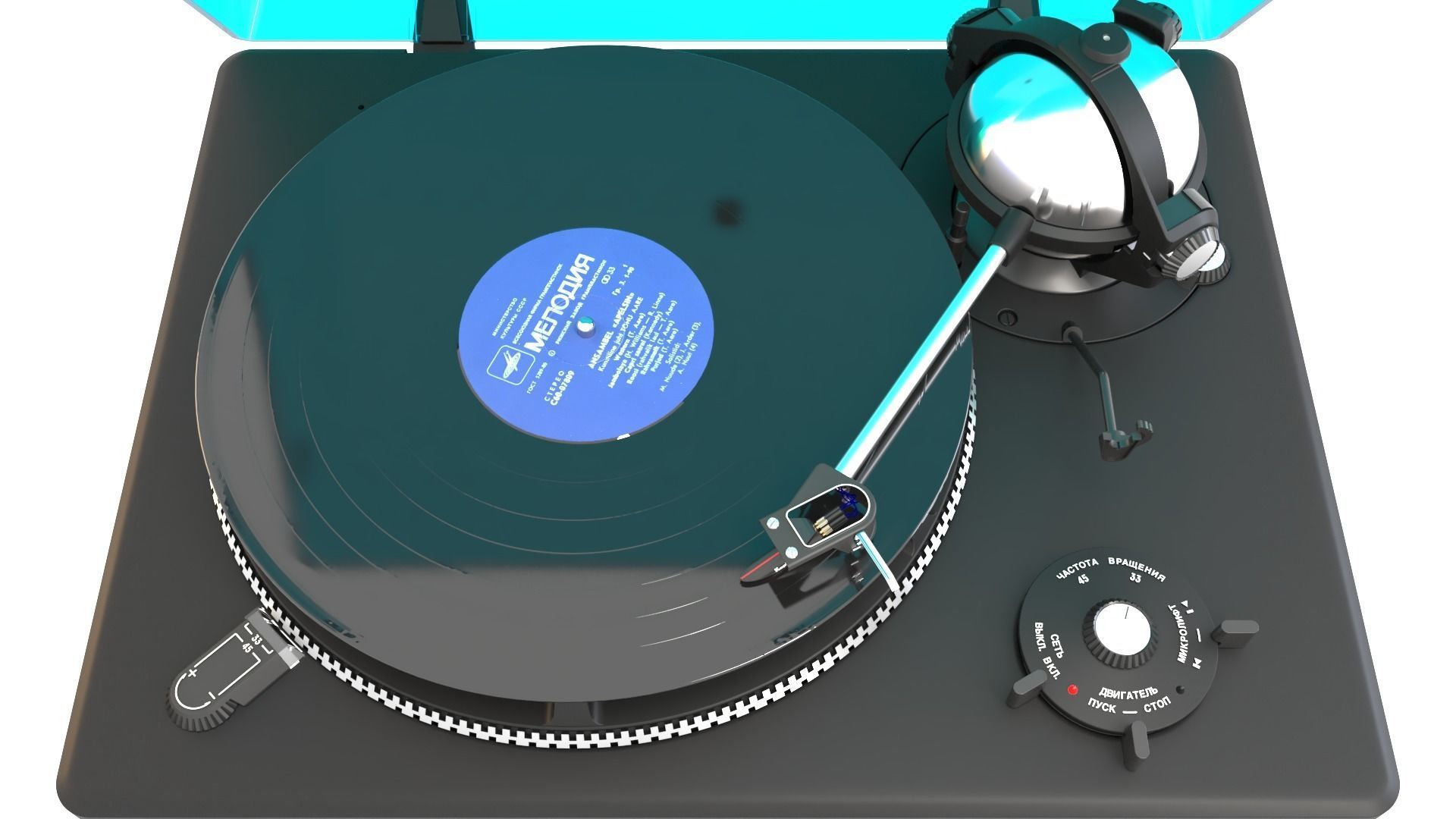

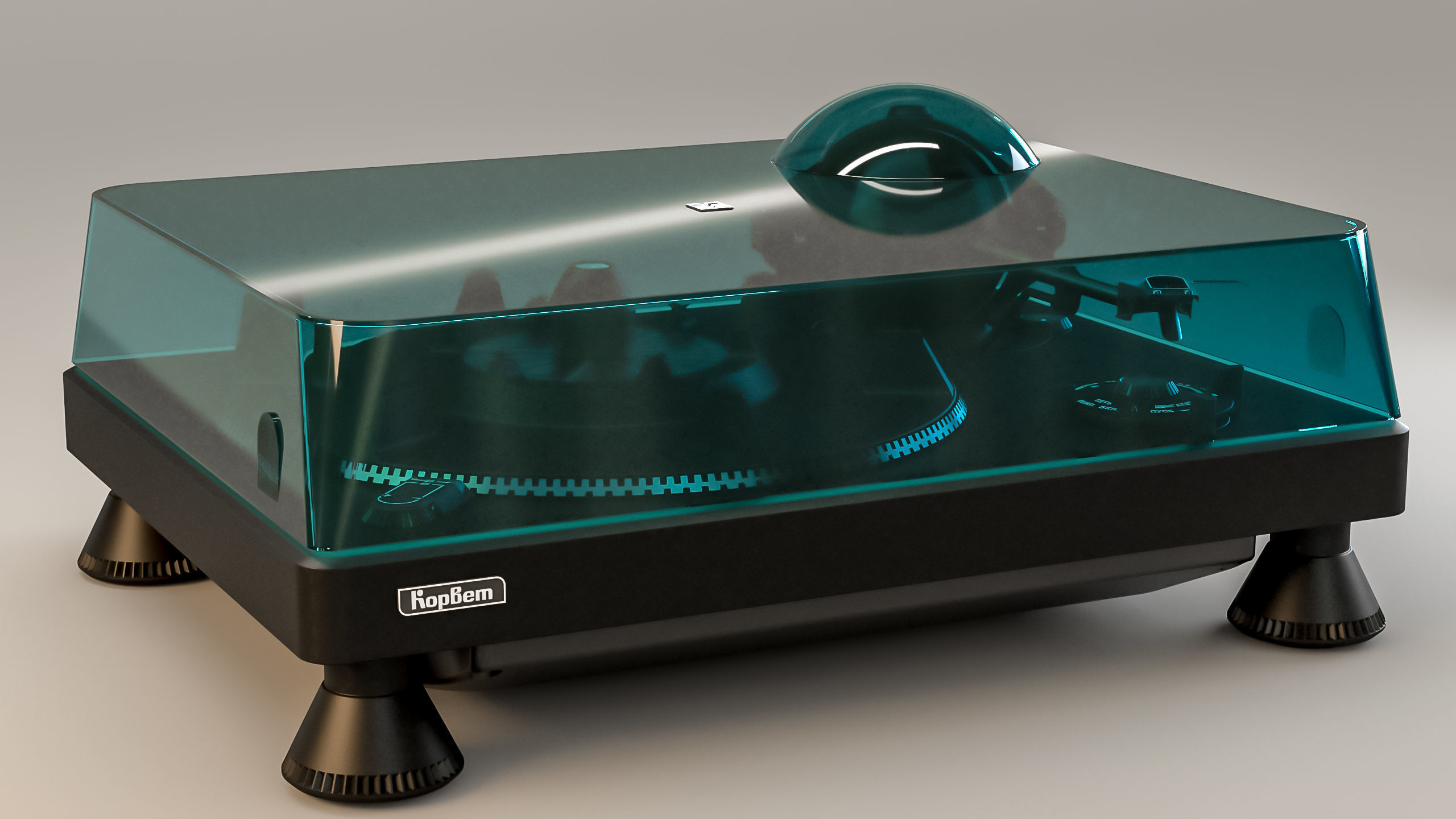

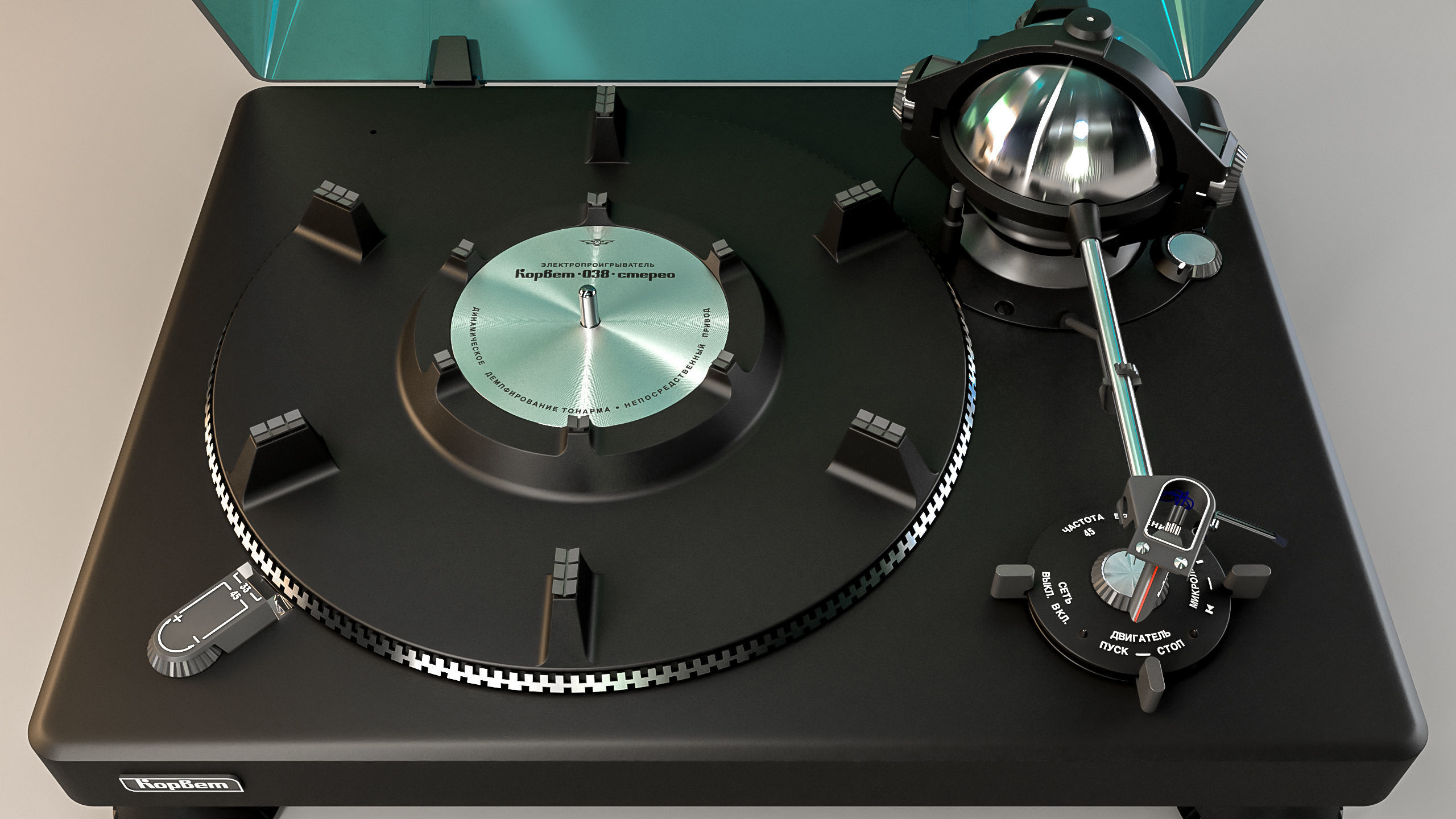

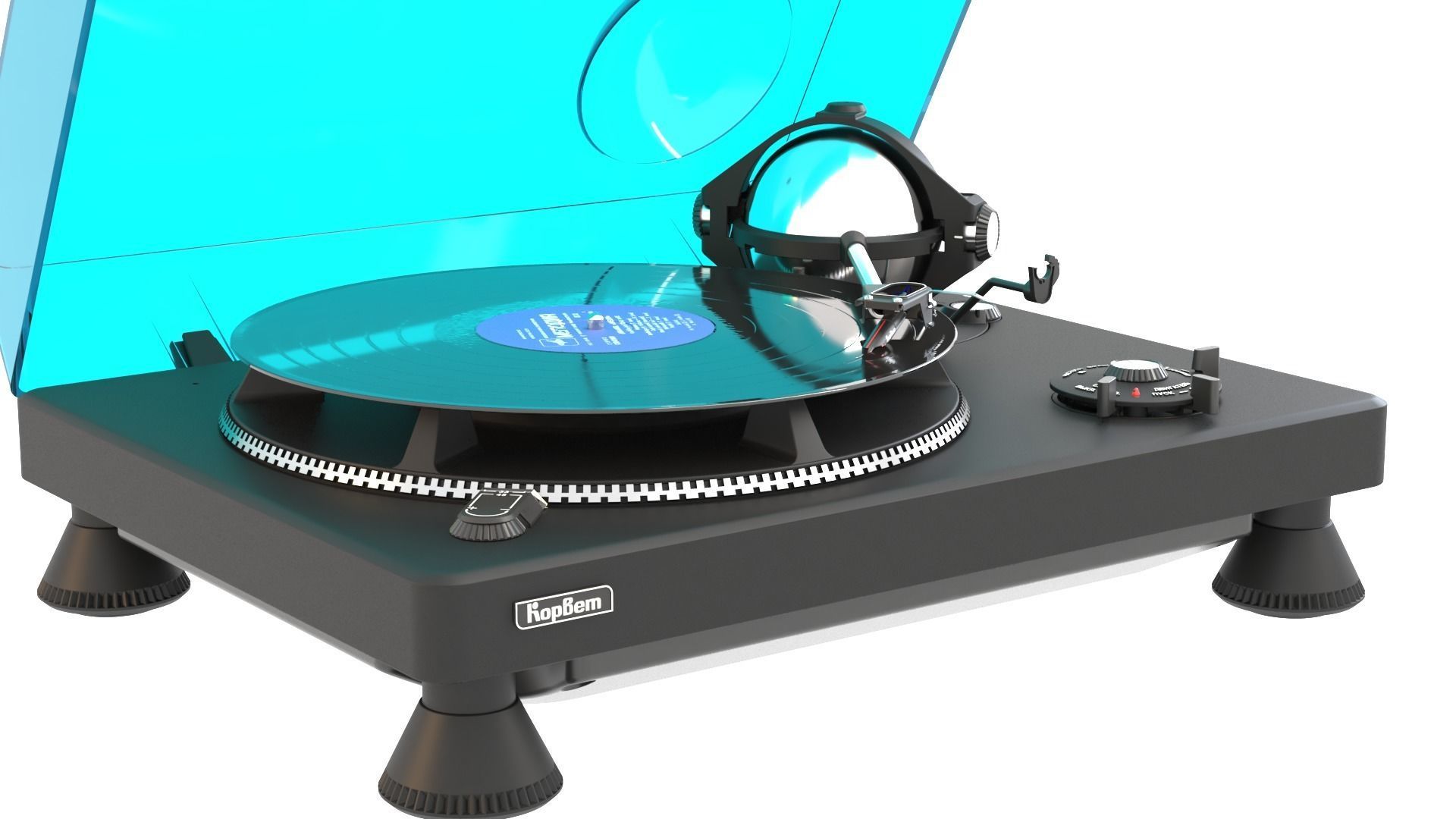

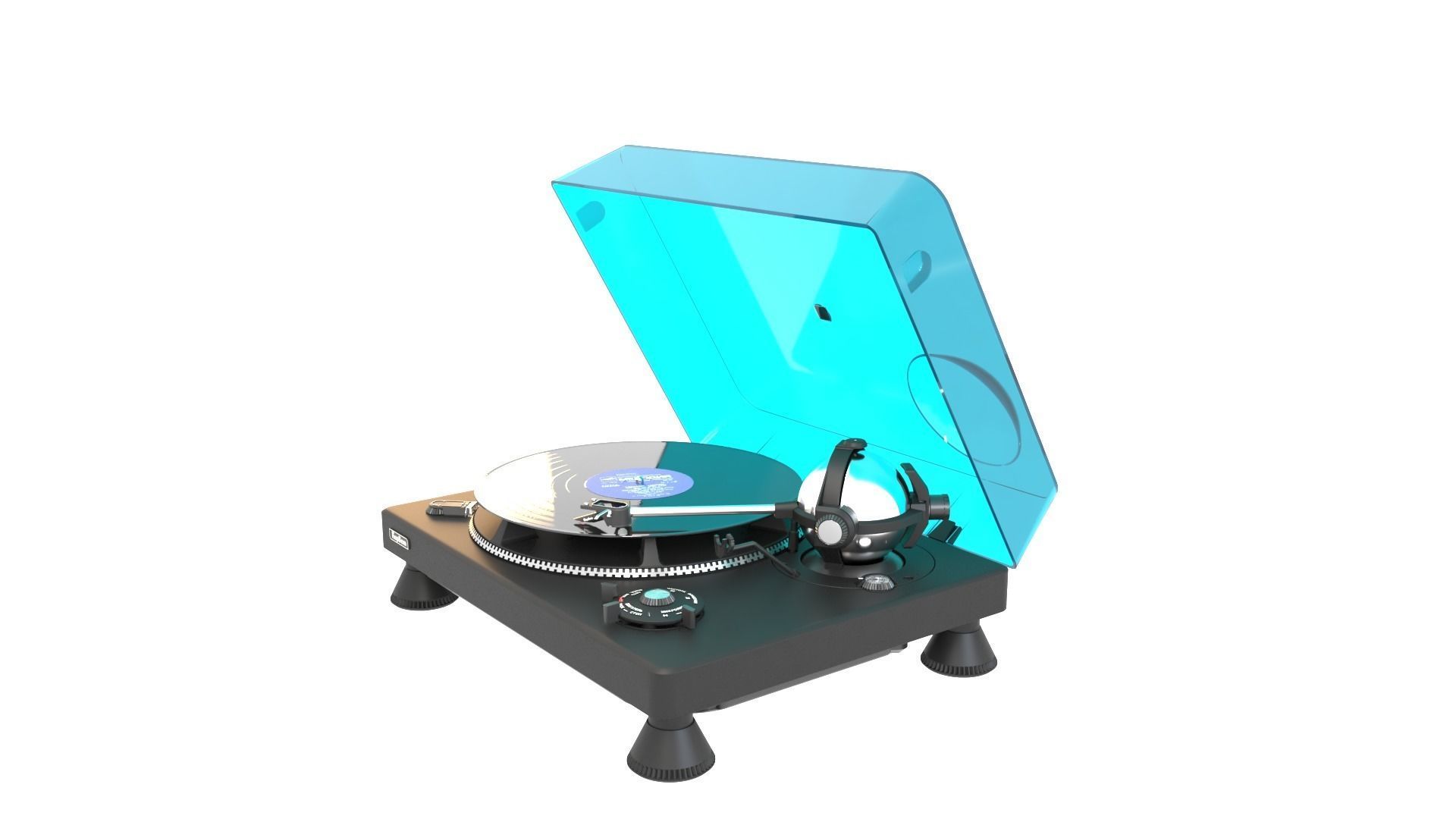

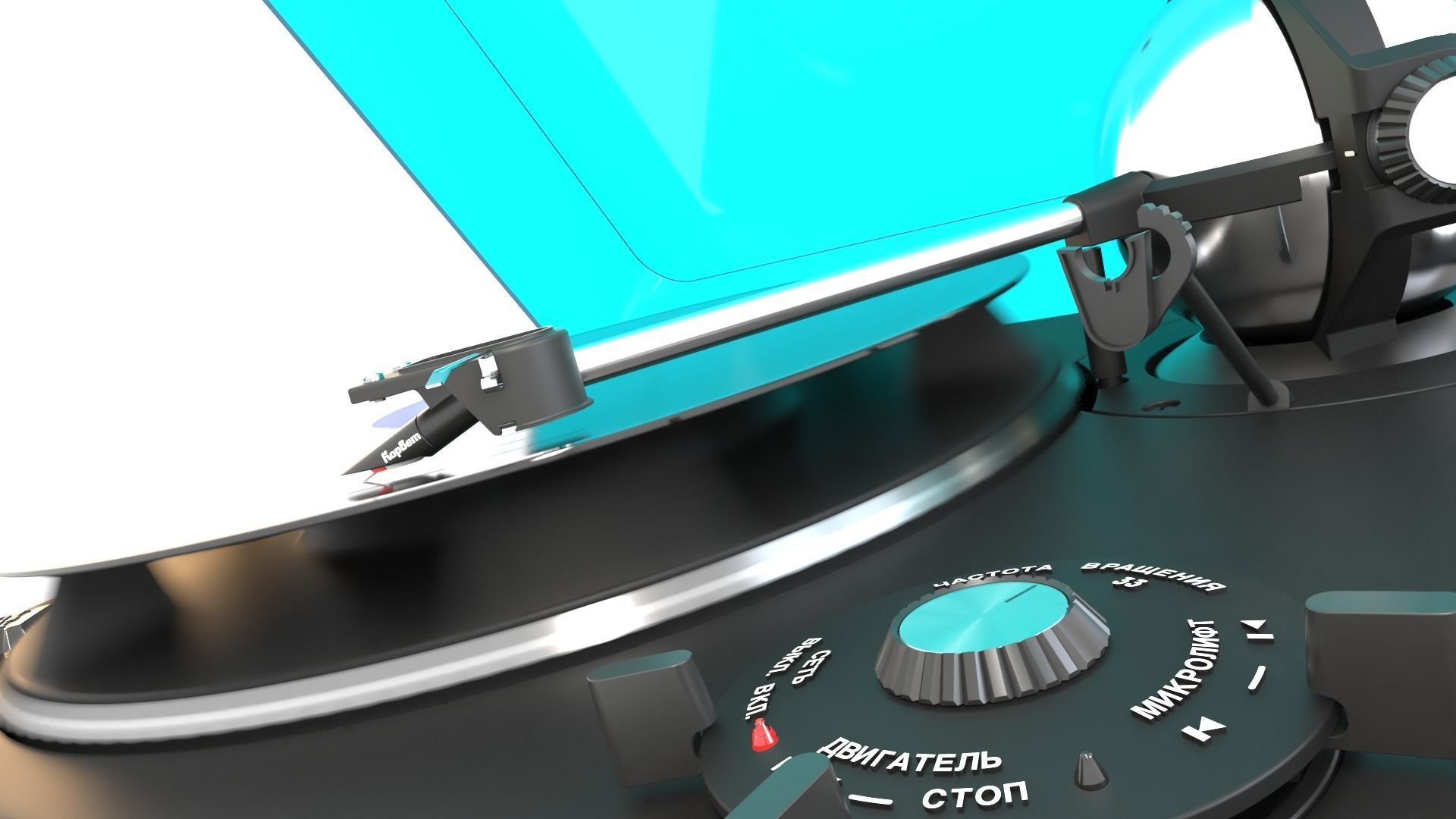

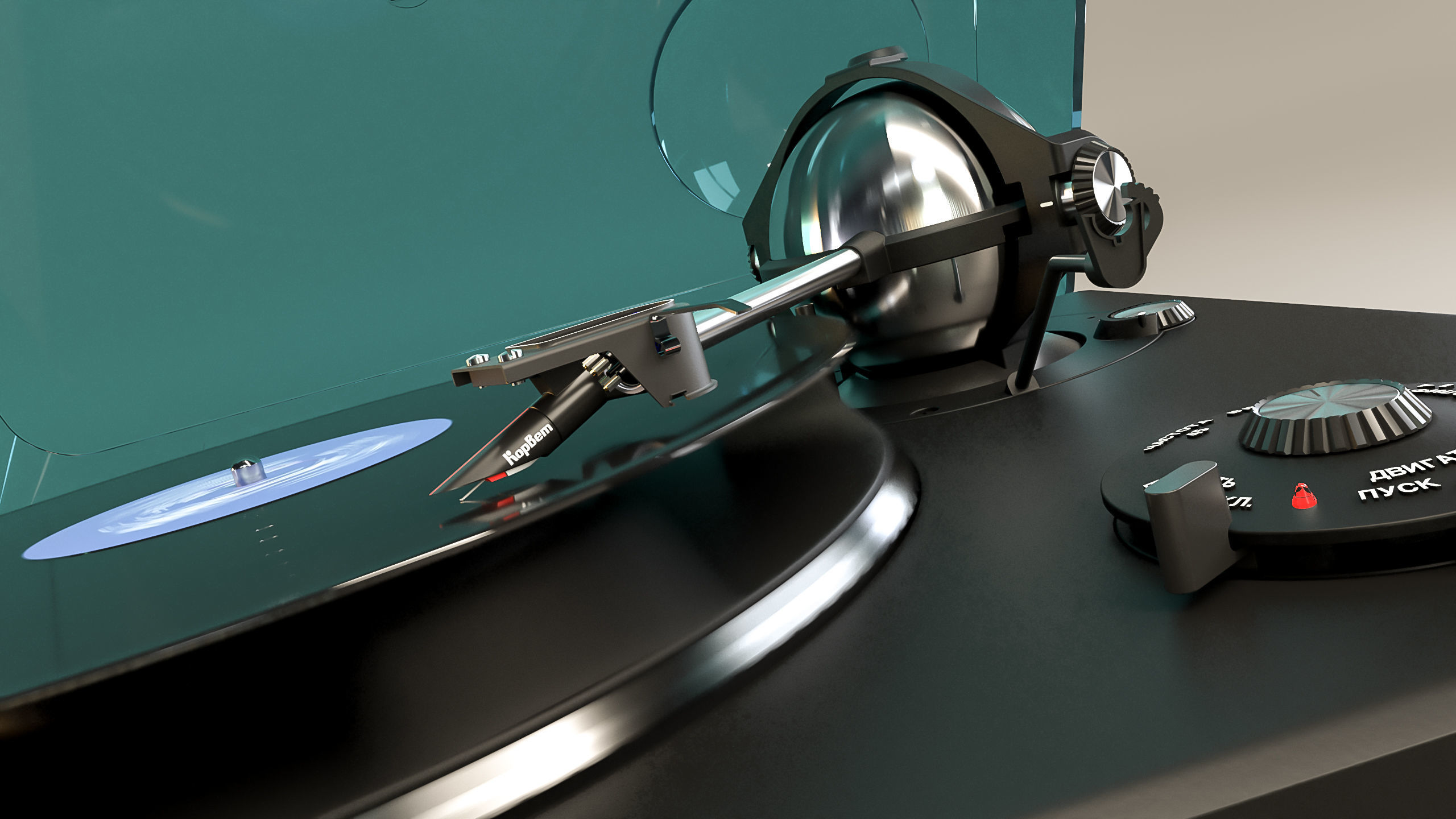

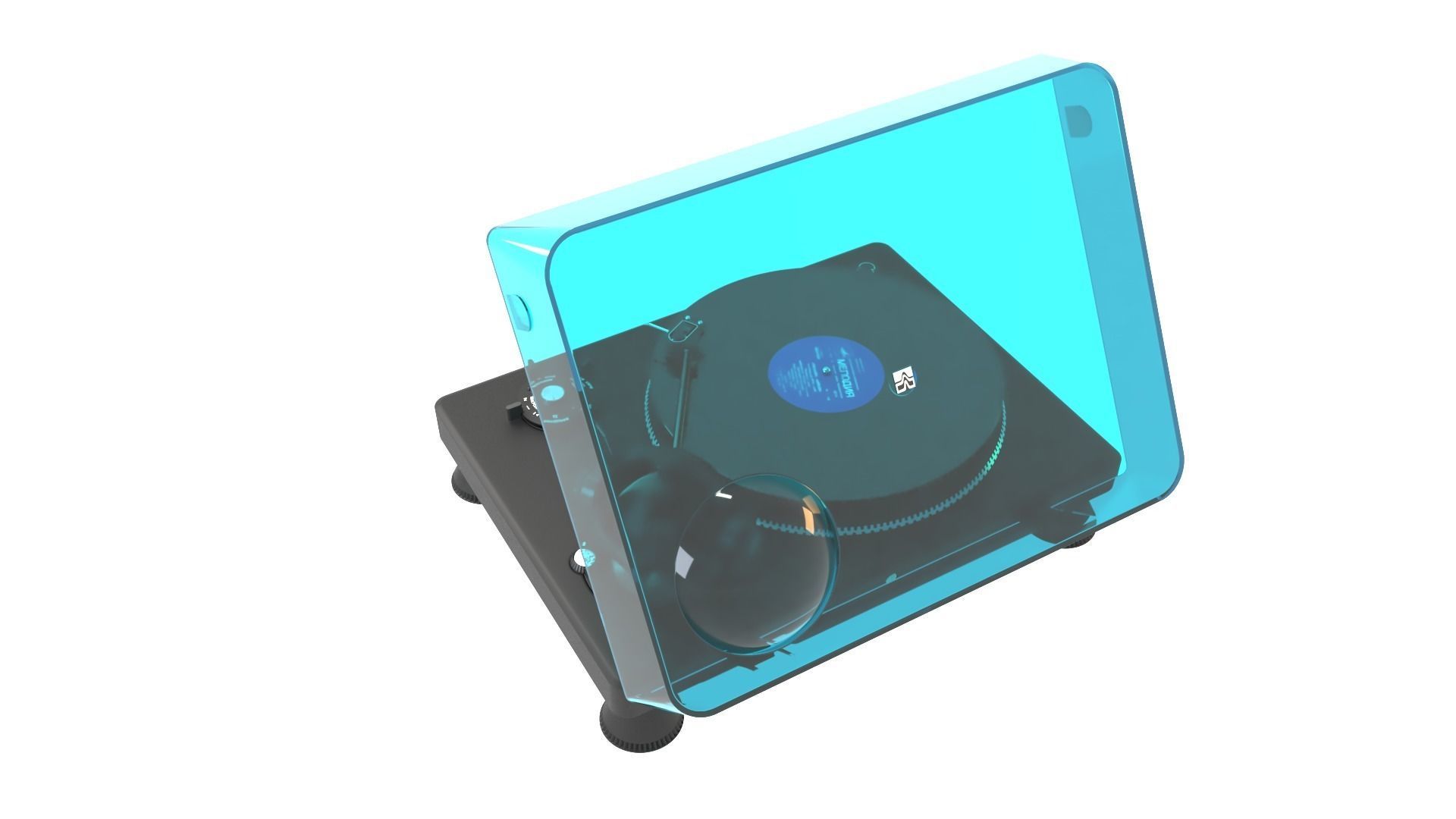

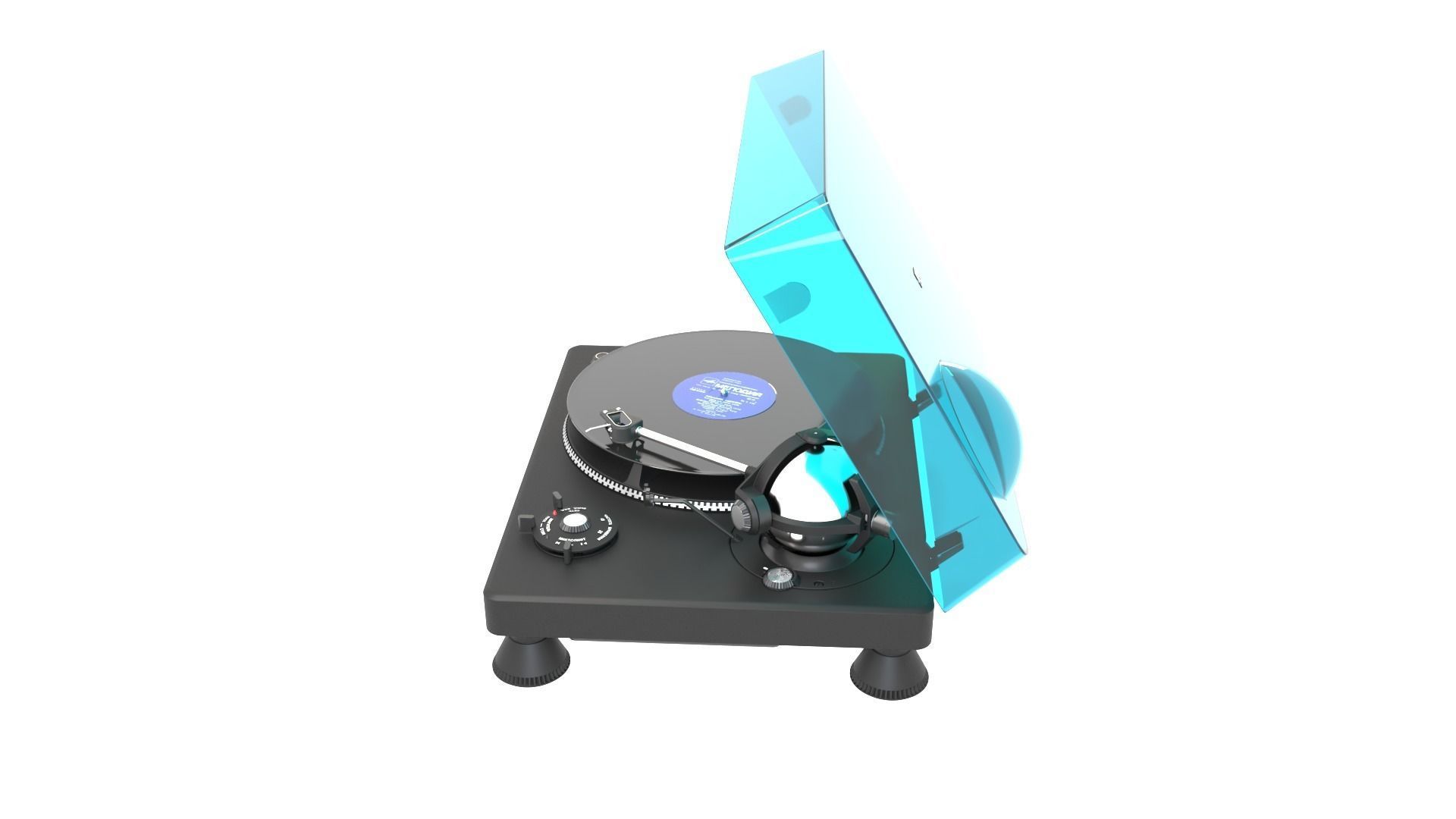

This is a high-detailed 1:1 3d model of *Korvet -038 (Corvette-038) Soviet turntable *

What is a Korvet-038?

Corvette-038-stereo electric player has been producing the Russian Kirovsky Ladoga plant. The model has an ultra-quiet DC motor with electronic switching windings(brushless DC). The tonearm uses viscous dynamic damping of the main resonance in the horizontal and vertical planes. The downforce and roll-off compensators regulate the load on the needle within 0 ... 25 mN and its uniform pressure on both sides of the groove. Magnetic pickup head GZM-018 Korvet, the needle holder is made of beryllium, which reduced the mass of the mobile system to 0.8 mg. Diamond elliptical needle with crystallographic orientation. The electronic control unit has a plate cleaner and a self-locking device that turns off the engine power and raises a pickup above a phonograph record and a micro lift, it is made on photoelectronic elements and reed switches. Corvette-038-stereo is similar in design, parameters and layout to the Corvette-003-stereo player. The frequency of rotation of the disk 33, 45 rpm The detonation coefficient of 0.1%. Acoustic noise level 20 dB. The relative level of rumble is -70 dB. The frequency range is 20 ... 20,000 Hz. The background level is -75 dB. Harmonic coefficient 0.8%. Dimensions: 485x225x370 mm. Weight 12 kg.

Korvet-038 is a unique player. It is unique because this development can really be proud of - it has no analogues. Purely our invention, never repeated by anyone.

Korvet 038 — «Great Soviet Turntable» - paper on habr by nadeyev

Model contents

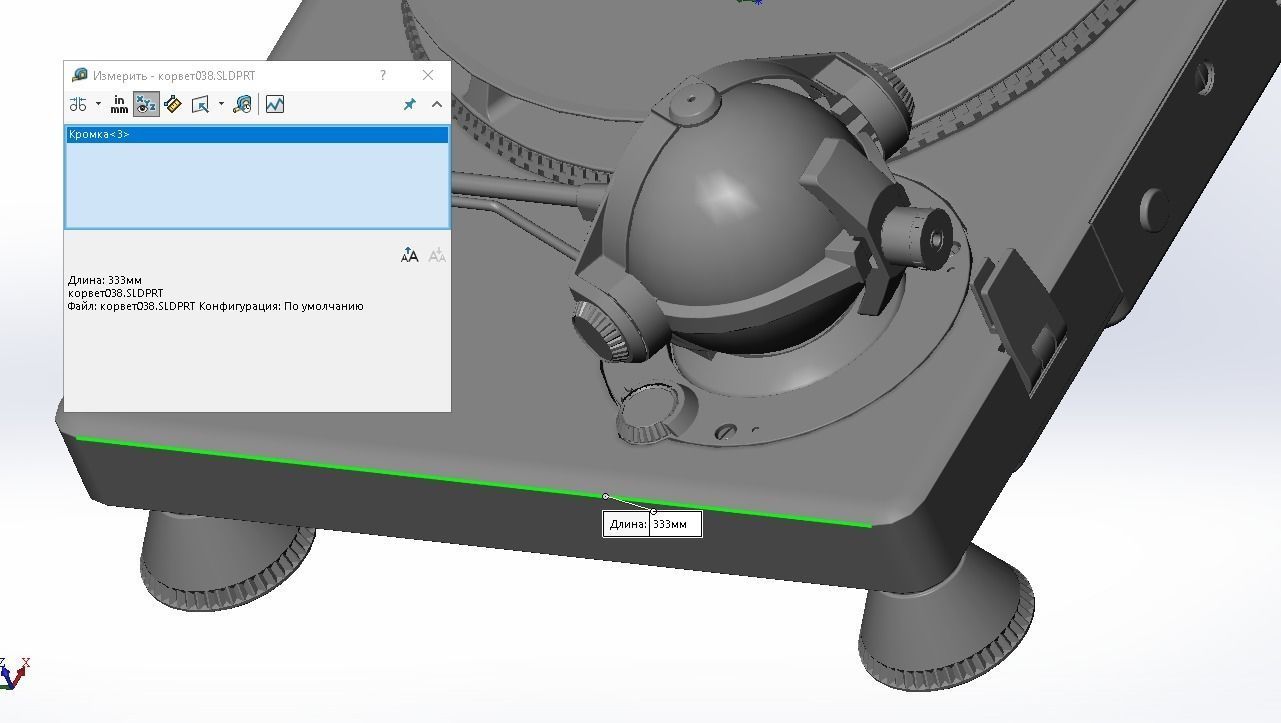

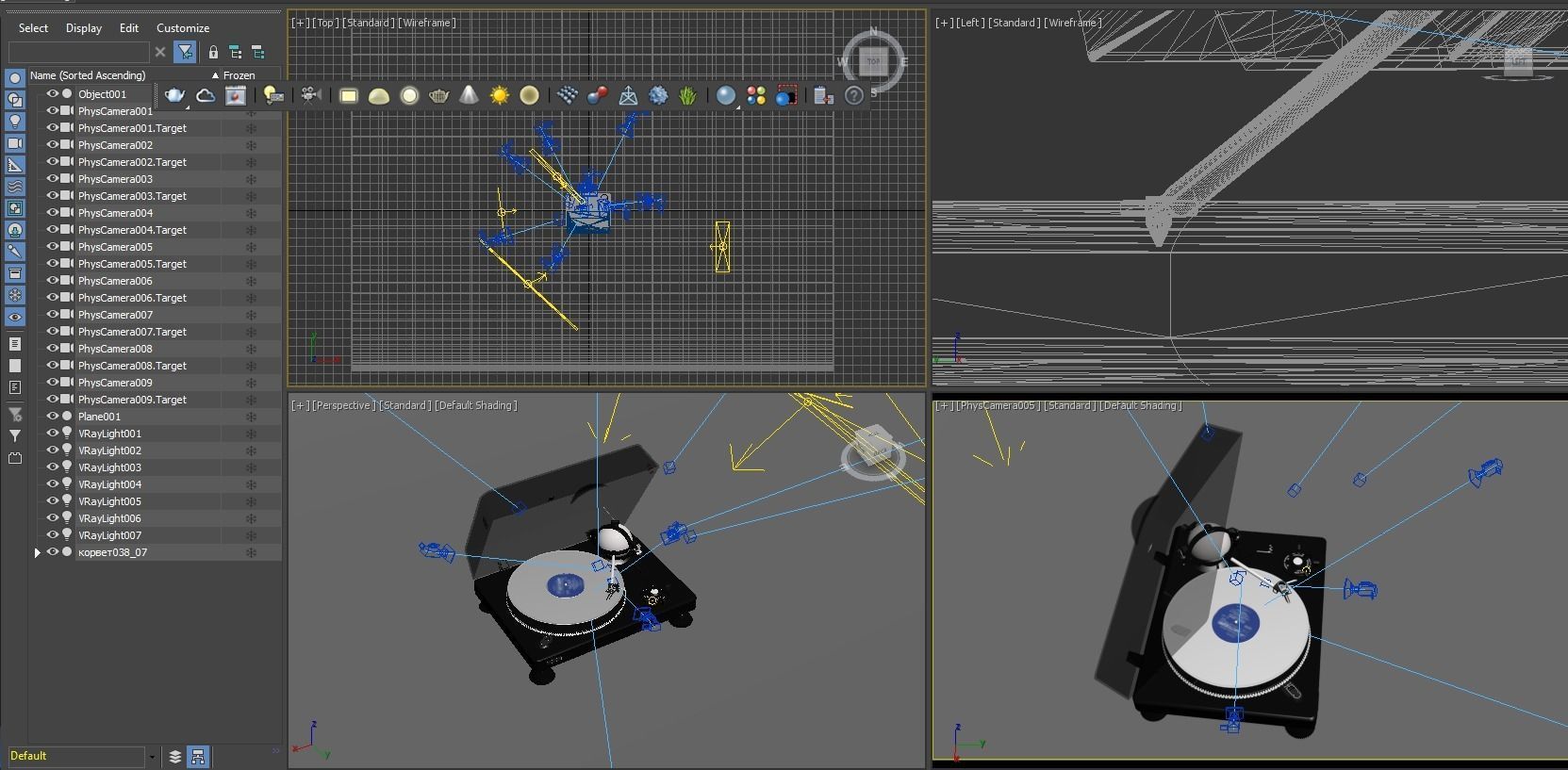

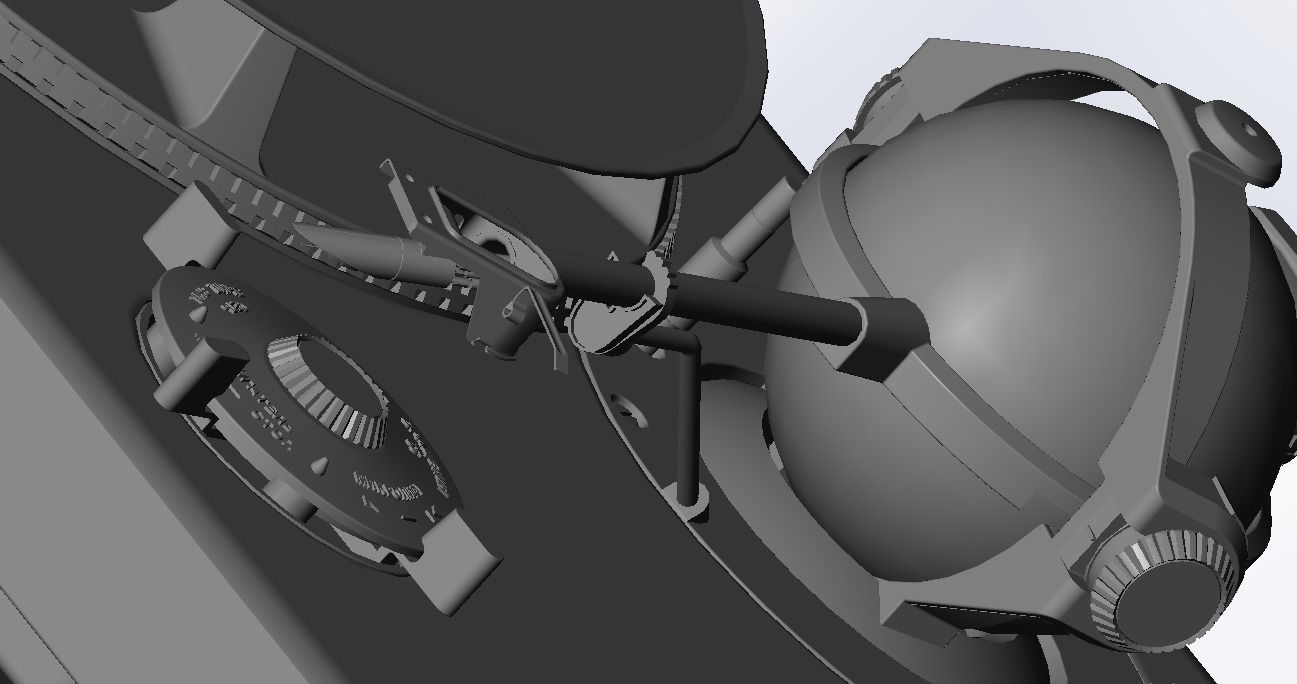

In this pack you can download the 3d model for 3dsmax (in max, 3ds, fbx) rendered with a high-detailed materials for V-Ray As a bonus you get the source CAD-files in STEP,SAT, and Russian COMPAS software. All models are made to be suitable for editing and even 3d-printing.

Use cases

This turntable is especially suitable for cyberpunk/steampunk game environment, because it is sort of unique device. Another use case is a replication project, where you can use the originals to make an mp3 or compatible turntable fit into the enclosure. Also you can use model to repair you own turntable
