Elliptical gear - 3D Printing 3D print model

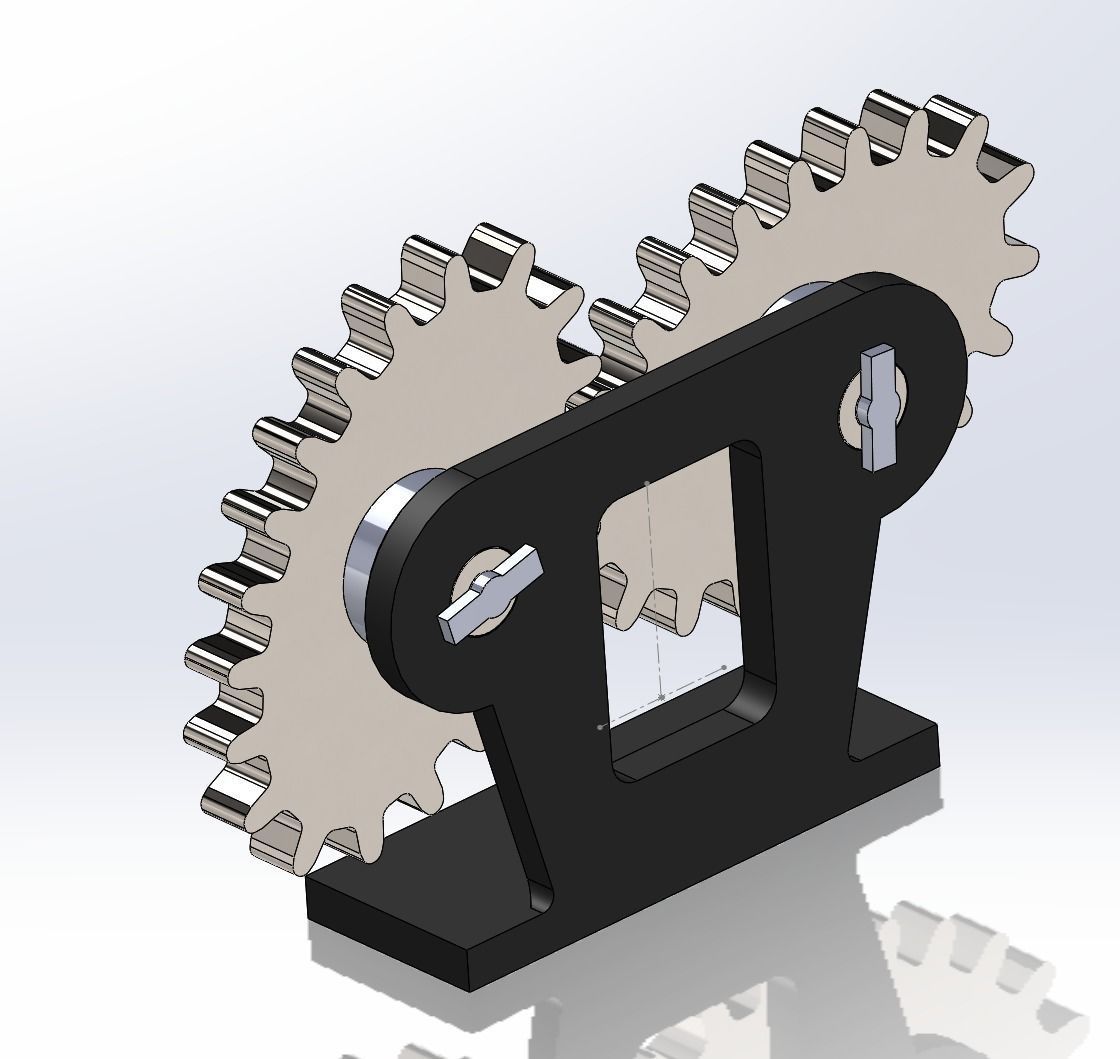

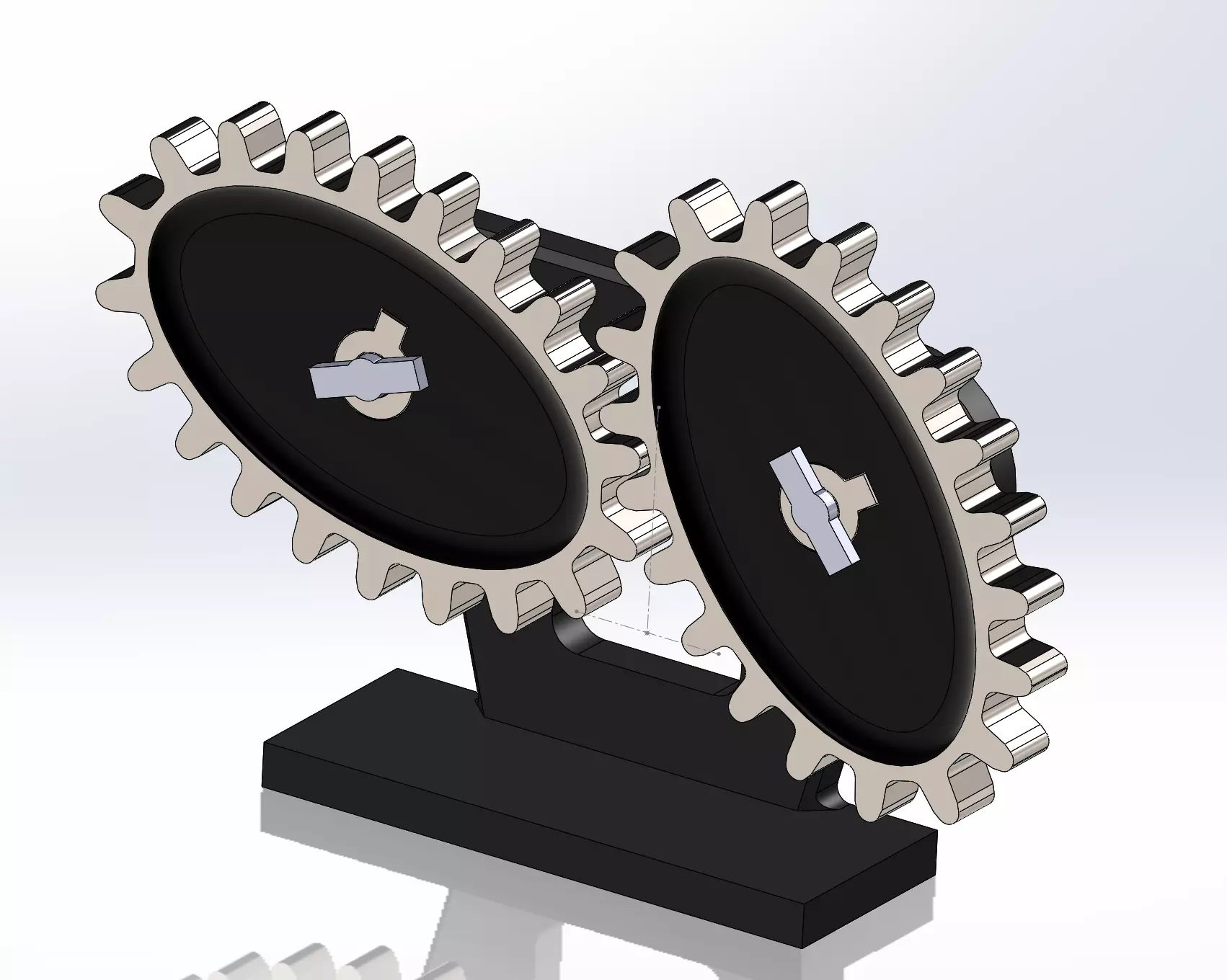

This is the 3d printing version of the SolidWorks Elliptical gear model that I shared on my channel.

The SolidWorks model and the 3D printing model not similar. The SolidWorks model not convenient for 3d printing.

I made this model with the same size of the previous SolidWorks model. but I print it with 30% size.

The dimensions in mm.

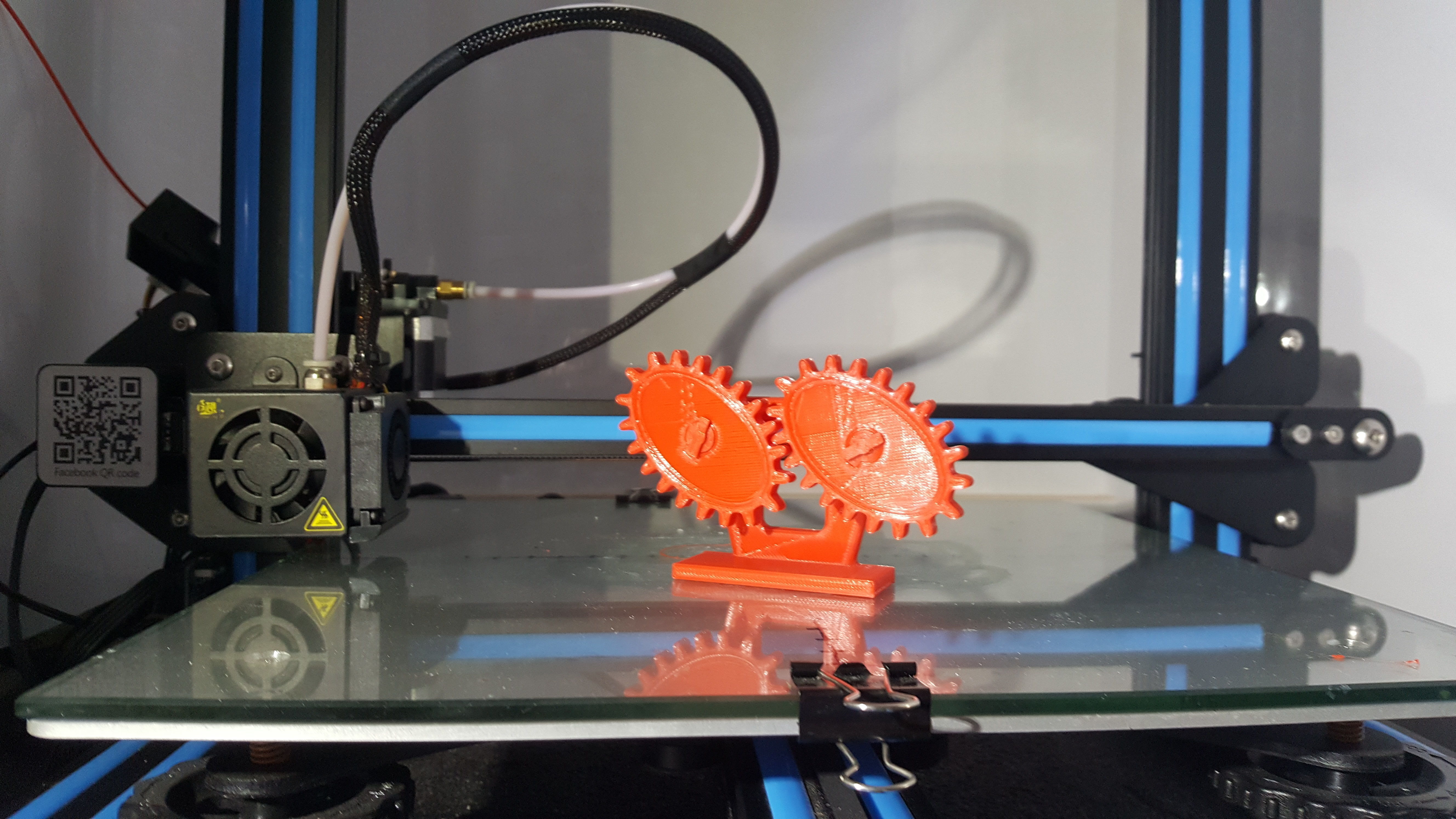

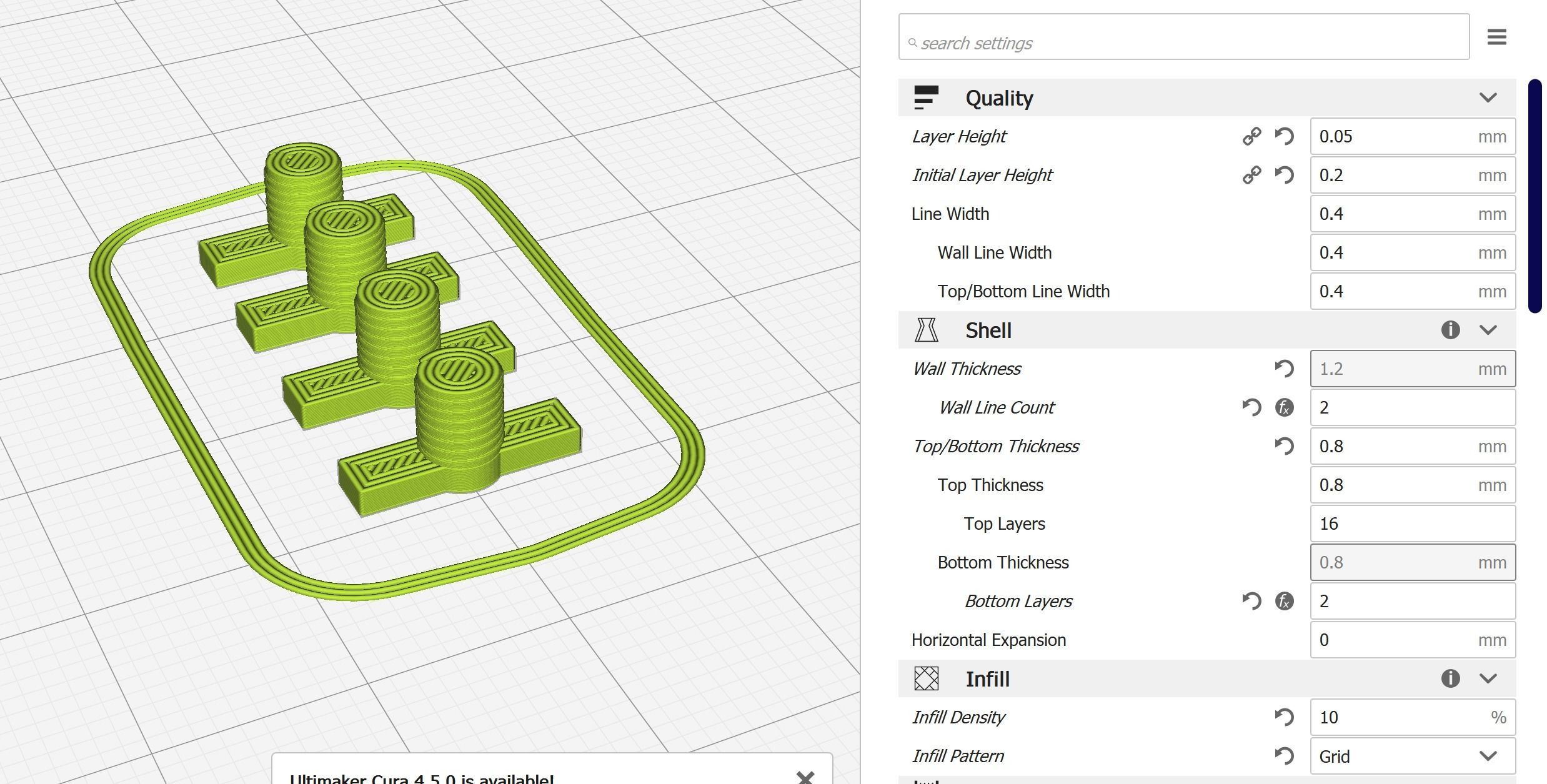

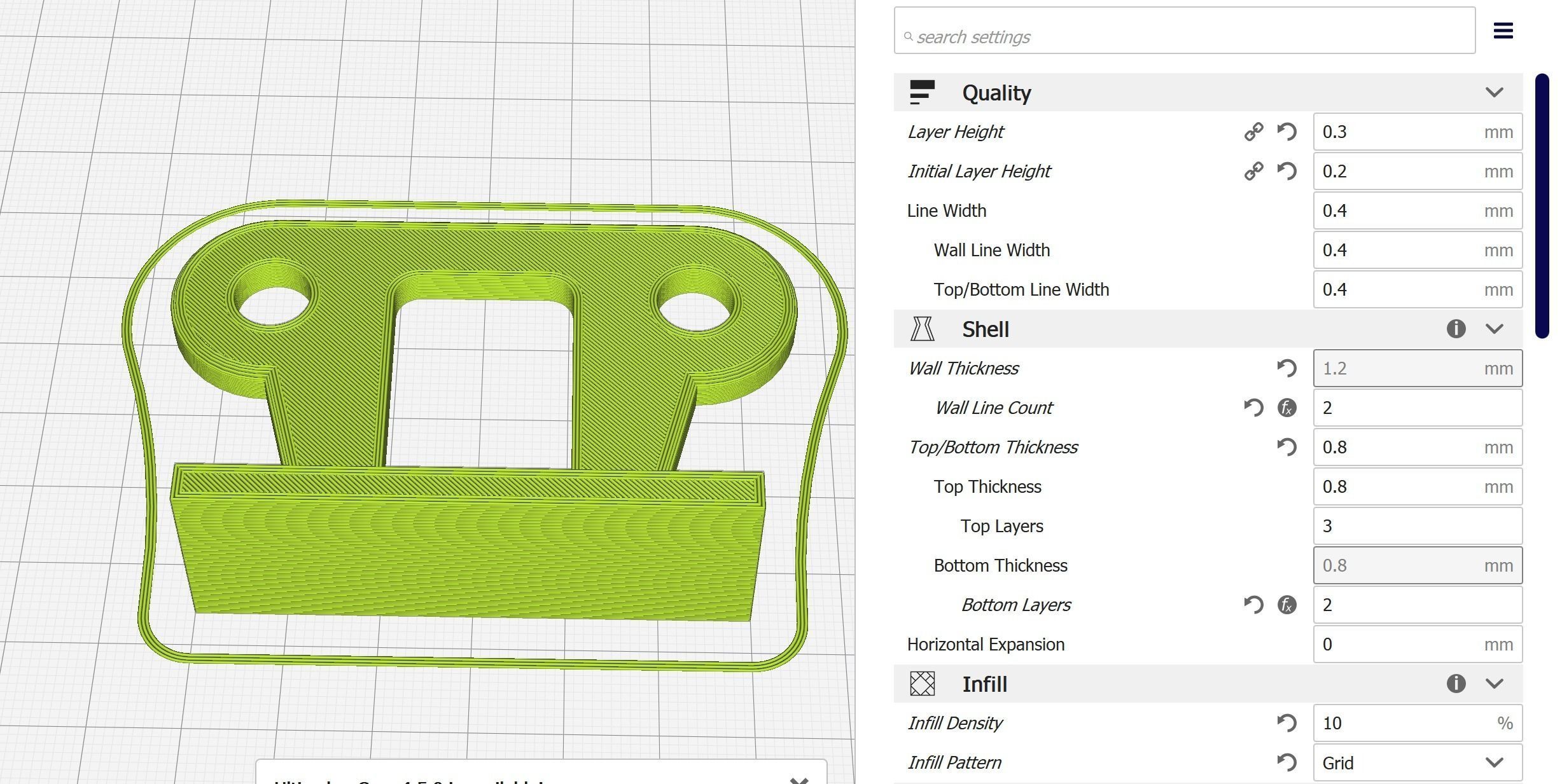

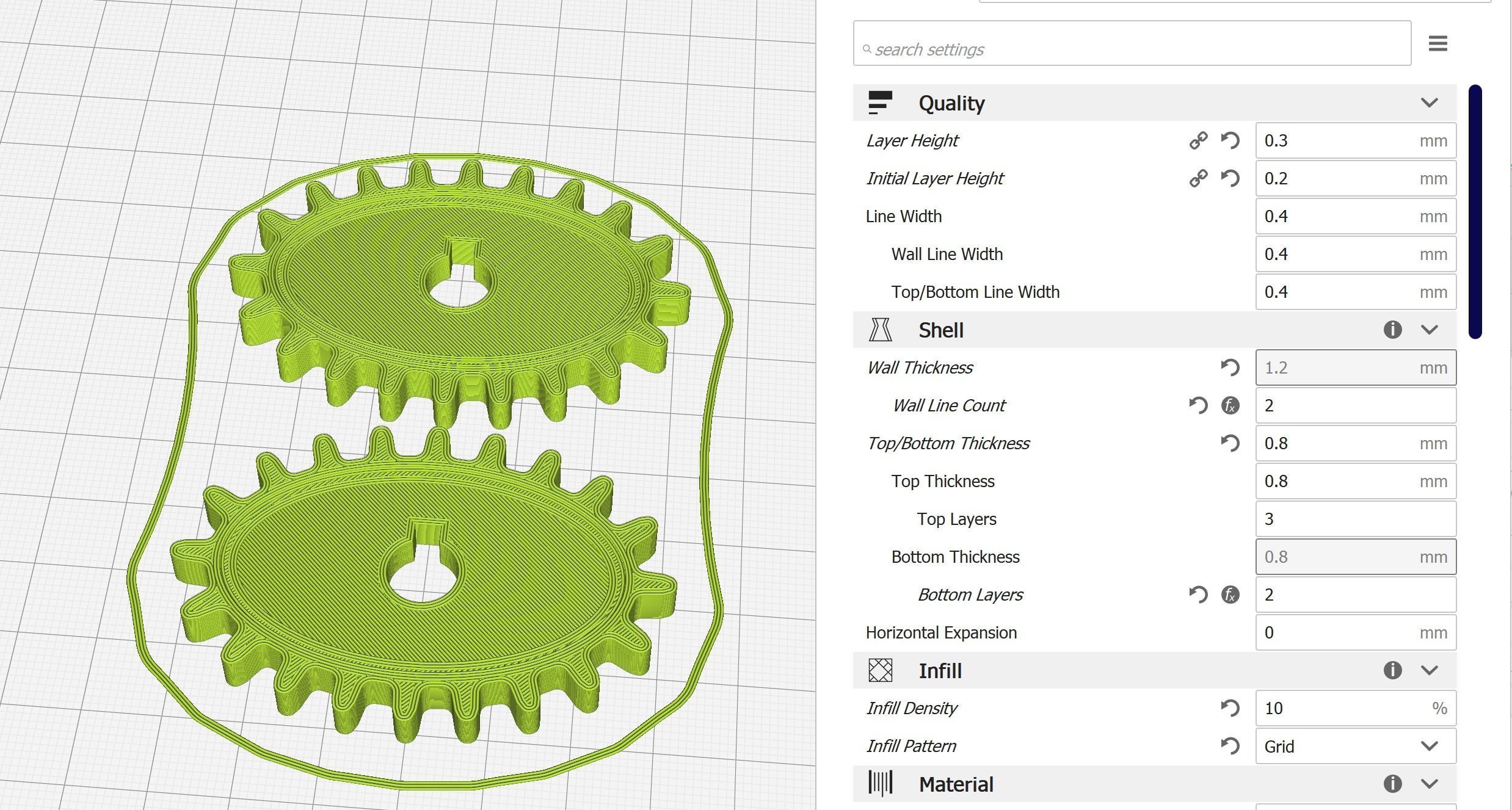

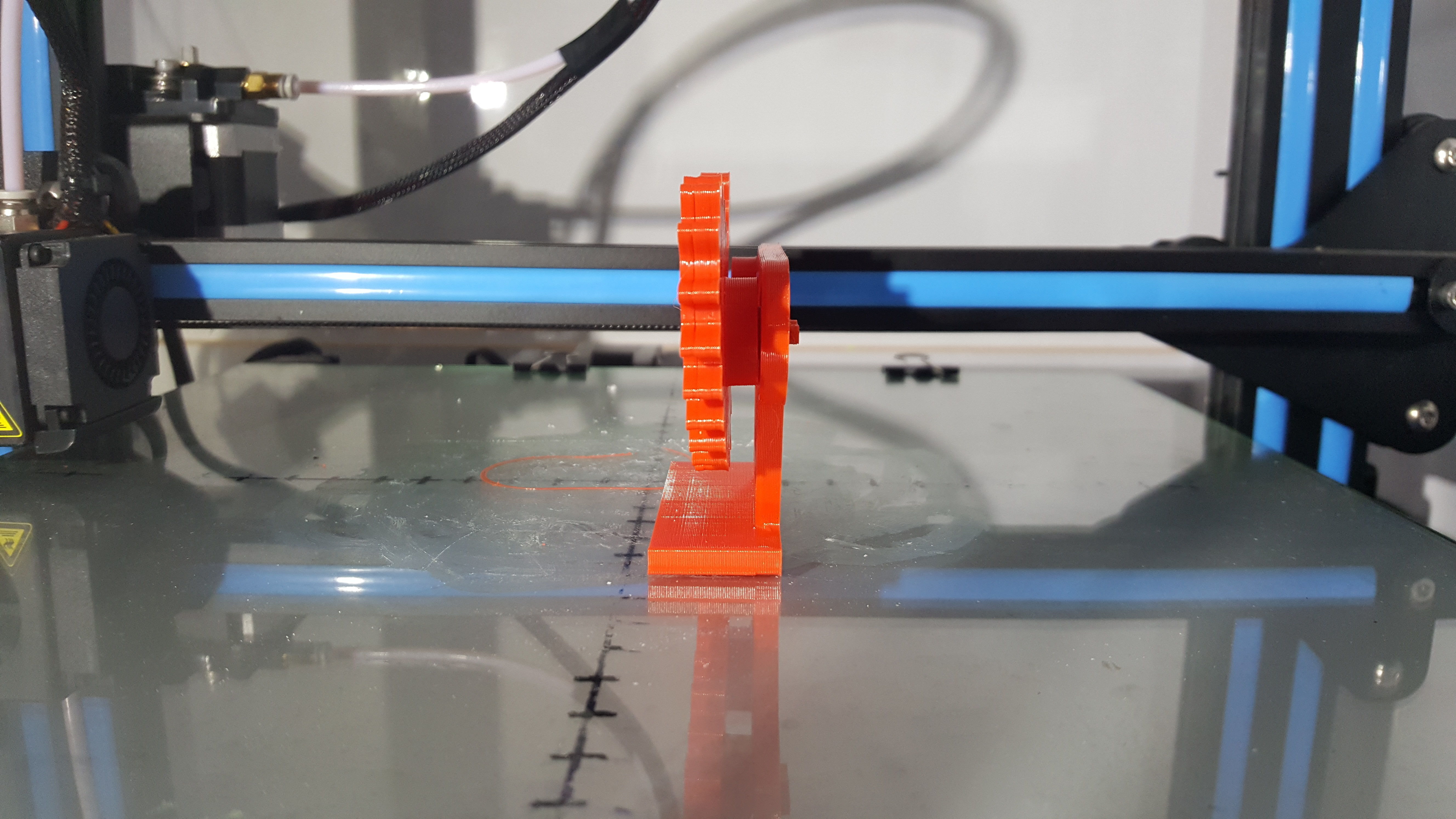

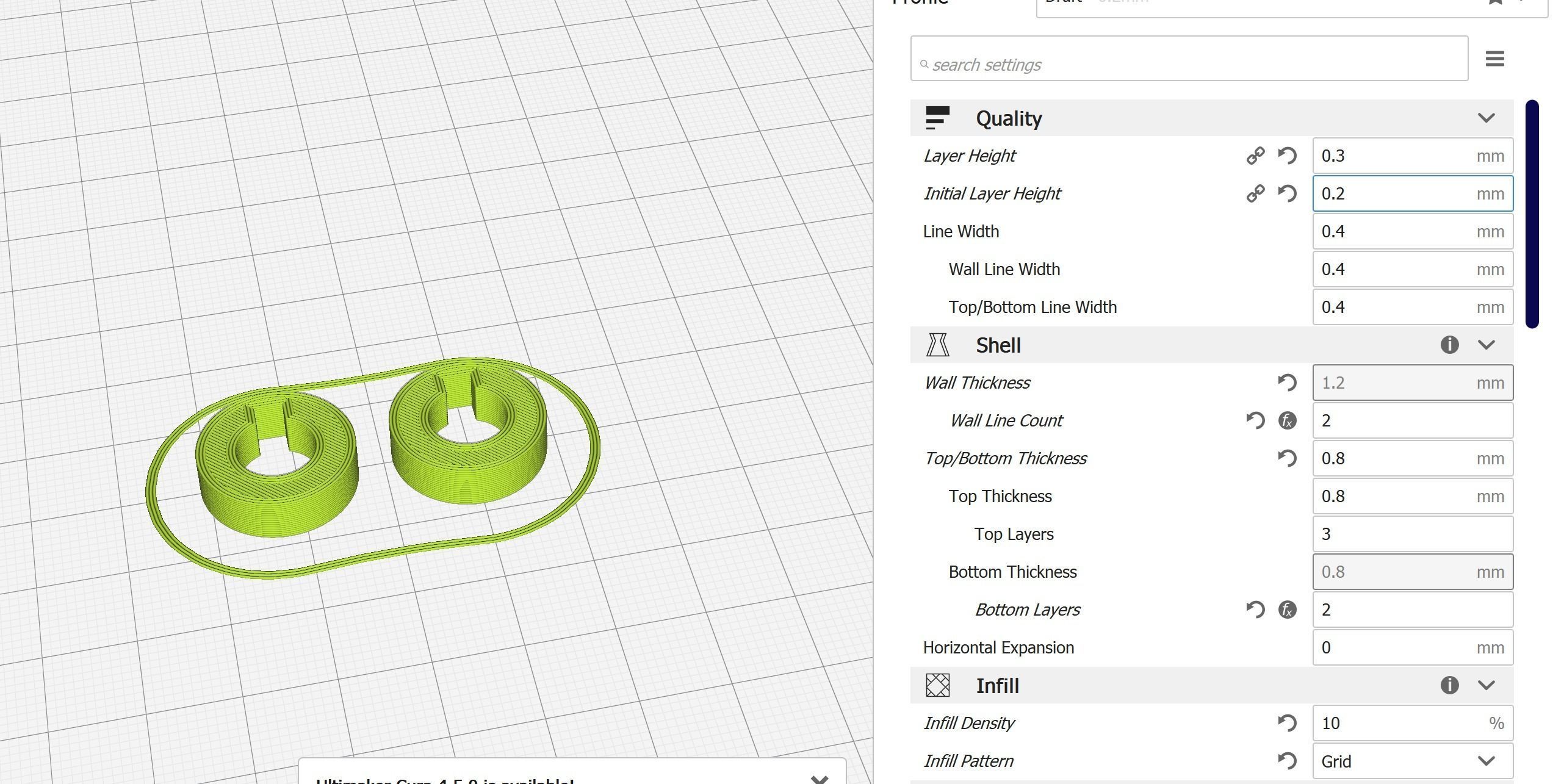

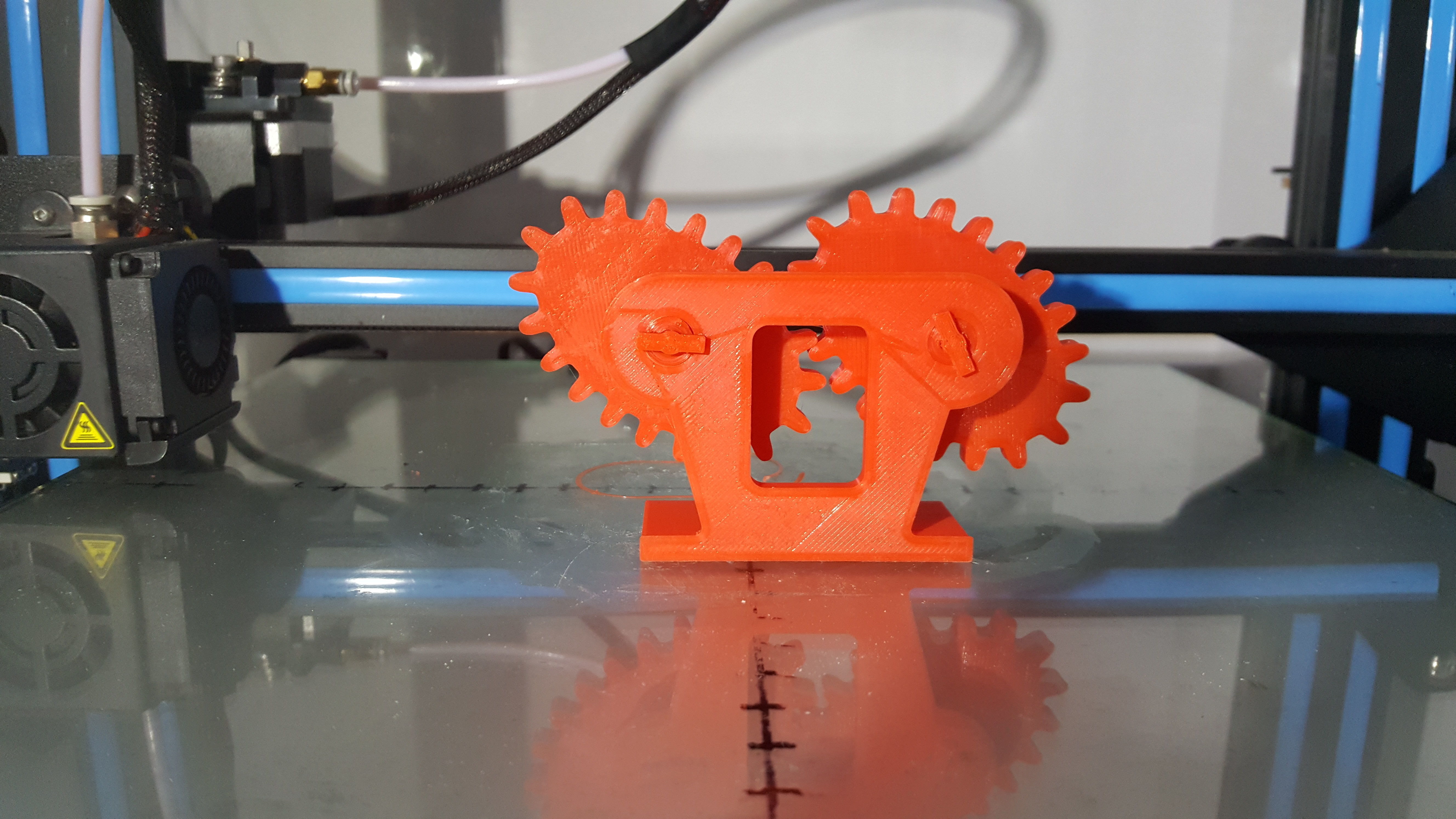

The model is printed by qura software and Creality Cr-10s printer. You can see the settings for all parts in the images.

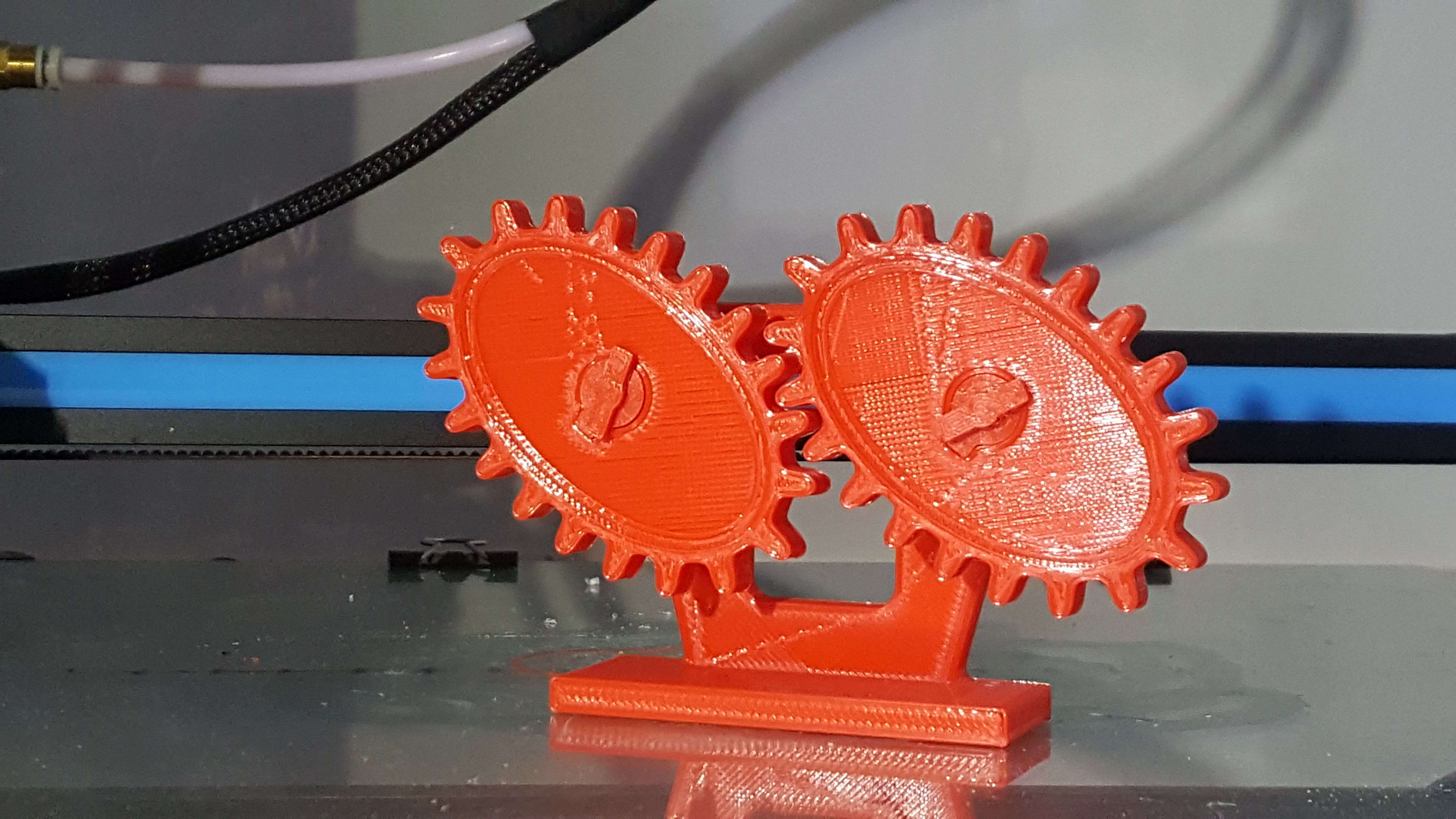

The model works 100%.

The link for the SolidWorks Model on my Youtube channel 3D CAD Models:

https://www.youtube.com/watch?v=RkQfnJh_WKc

You can download the SolidWorks Model free from Cgtrader:

https://www.cgtrader.com/profile/models/2252092/edit

    This product has no reviews yet
    Elliptical gear - 3D Printing
    $3.00
    All prices are exclusive of VAT
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response - % in - h
    3D model formats
    • Stereolithography (.stl) (5 files)-Version: 2018Version: 2018Version: 2018Version: 2018Version: 2018
    3D model details
    • Publish date2020-03-08
    • Model ID#2306781
