Bend Pipe with Intersection and Flanged Coupling 3D print model

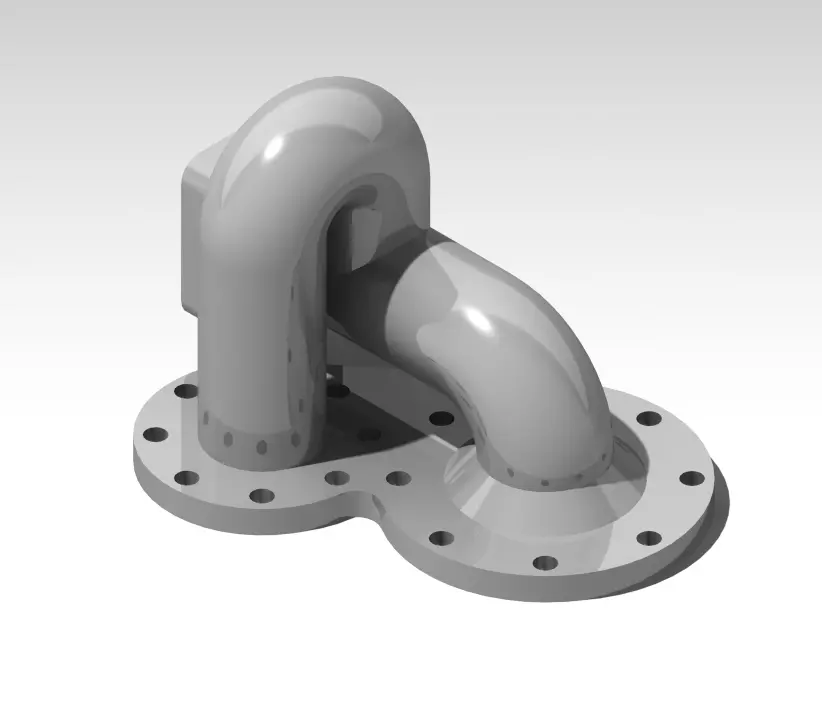

This is a high-quality 3D CAD model of a bend pipe with intersection and flange couplings, commonly used in complex piping layouts for industrial fluid or gas transport systems.

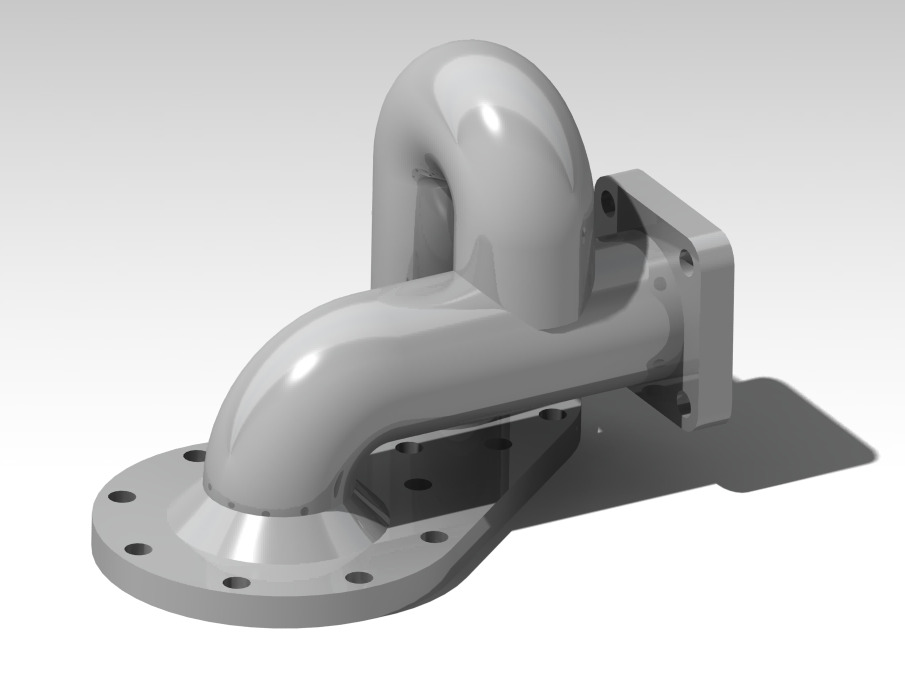

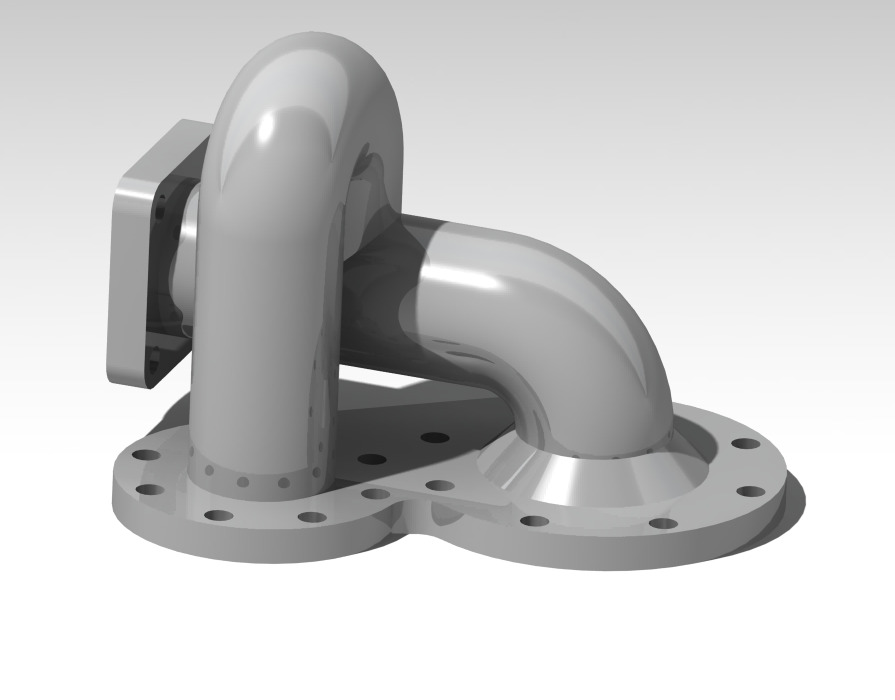

The model features a curved pipe section with an orthogonal intersecting branch, all terminated with standard flanged ends for secure bolt-on assembly. Perfect for use in plant design, piping layout, flow simulation (CFD), or educational demonstrations.

Designed in CATIA V5 with manufacturing-grade precision.

Features:

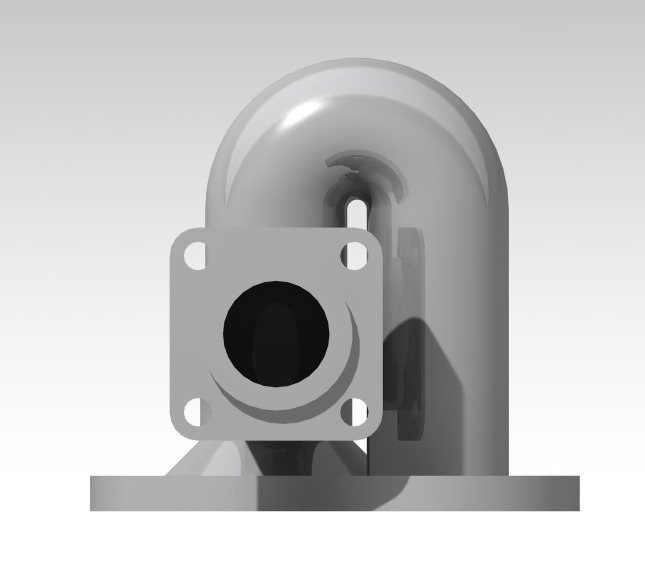

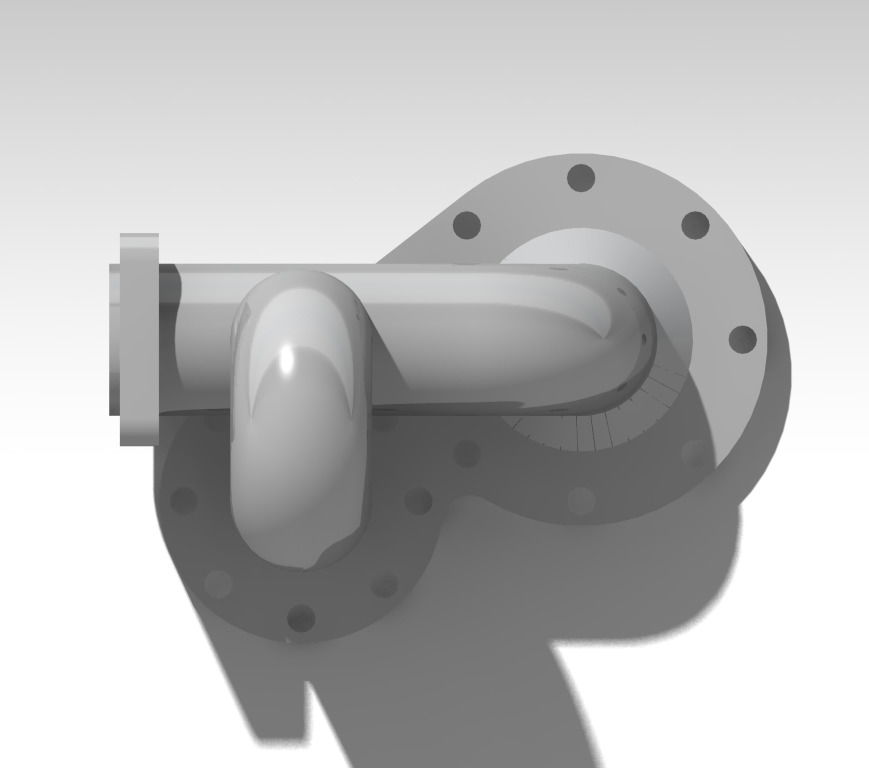

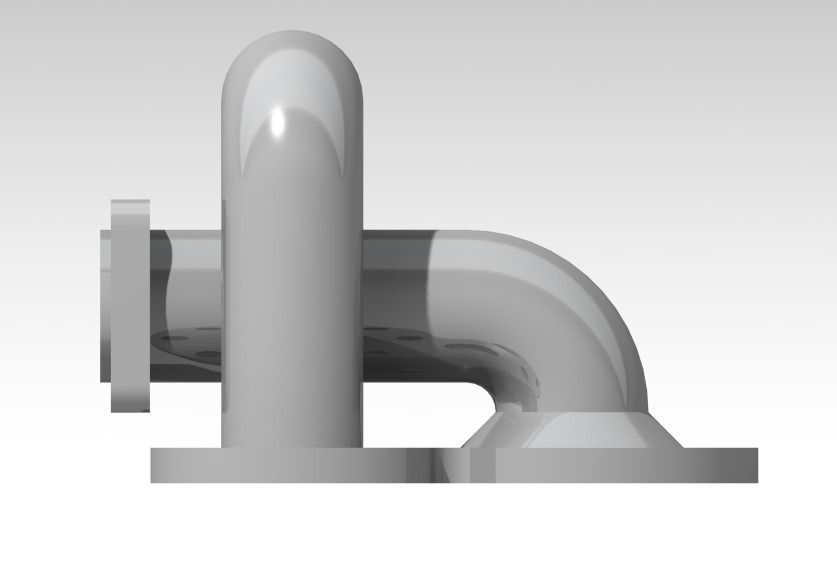

• Bend pipe geometry with perpendicular intersection
• Dual and triple flange configuration
• Standard flange layout for bolted connections
• Ideal for engineering studies and simulation
• Accurate surface transitions and inner contours
• Ready-to-use in piping assemblies

Formats Included:

• CATPart (CATIA V5 native)
• STEP (.stp)
• IGES (.igs)
• STL (for 3D printing or meshing)

Applications:

• Piping and plant layout design
• HVAC and industrial plumbing
• Oil & gas and chemical processing industries
• CFD simulation and stress analysis (FEM/FEA)
• Mechanical design and component assemblies
