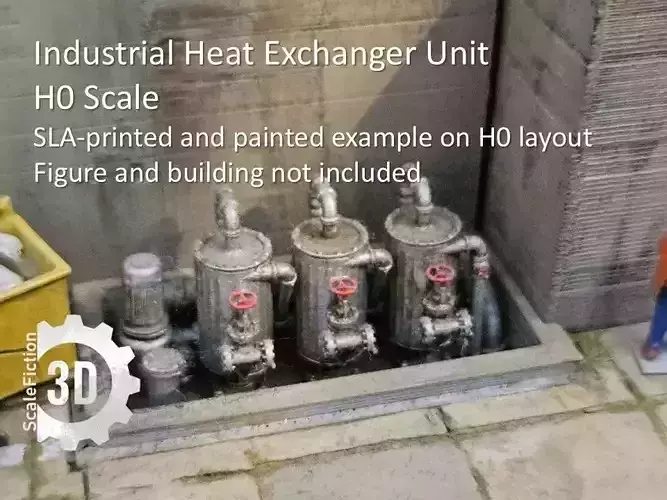

This detailed STL model represents an industrial apparatus assembly featuring a triple heat exchanger system with integrated bypass valves and a circulation pump. Designed in H0 scale (1:87), the unit is ideal for enhancing chemical plant scenes, technical dioramas, or modern industrial railway layouts.

In real-world dimensions, the prototype would measure approximately 2 meters in height and 3.8 meters in width, making it a prominent and realistic feature in any scene focused on process engineering or industrial infrastructure.

The model is finely detailed and specifically optimized for resin-based SLA 3D printing.

! FDM printing is not supported ! – the intricate details and thin structures cannot be reliably reproduced with filament printers.

Printing Instructions:We recommend angling the model during slicing and adding adequate supports to ensure a successful print and preserve fine surface details. Proper orientation and support placement are essential due to the model’s structural complexity and overhangs.

Painting Recommendation:For a realistic industrial look, prime the model in silver, then apply a sepia or brown wash to simulate light corrosion and emphasize pipework, weld lines, and mechanical elements. This weathering technique brings out depth and adds authenticity to the final finish.

Use Case:Perfect for industrial or utility zones in 1/87 H0-scale layouts, especially those inspired by chemical plants, refineries, or modern processing facilities.

Included:

1 STL file of the full apparatus assembly

Important:This is a digital download. No physical items will be shipped. Figures, buildings, and scenery shown in any preview images are not included.
