Sabine Wren helmet - updated 3D print model

helmet sliced to parts as described on infographic + complete uncut helmet also included

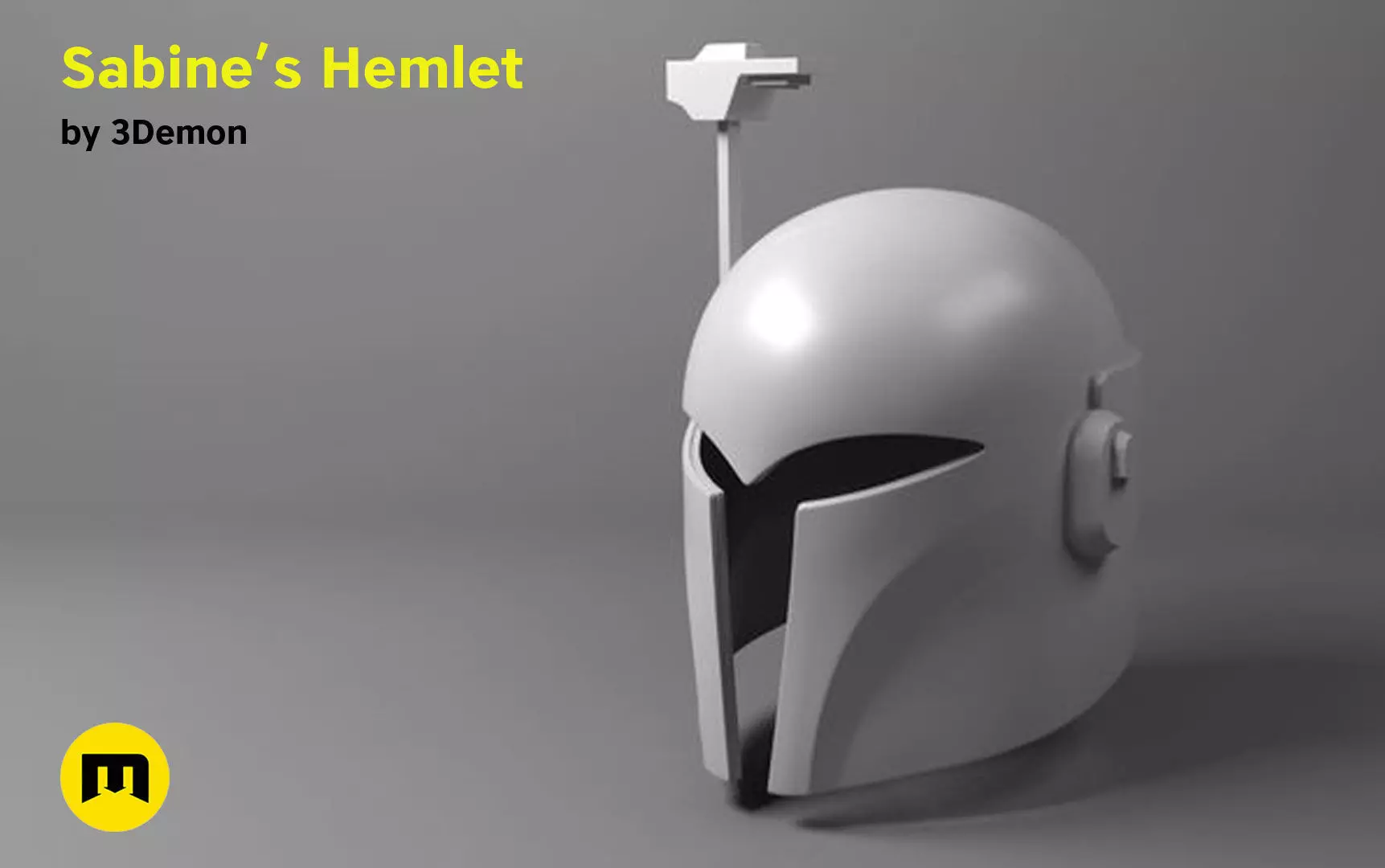

Updated version of Sabine Wren helmet from Star Wars Rebels series. Helmet now includes mandalorian rangefinder and is more efficiently divided, so parts take less space on printing platform and also require minimal or no use of printing supports, which saves printing time and your filament.

Sabine Wren (codename Spectre 5) was a young female human Mandalorian and the weapons expert of the Ghost crew. Sabine was born on the planet Mandalore in the waning years of the Galactic Republic, into Clan Wren of House Vizsla.[1] For more info about this character or Mandalorians, check these links: [1] http://starwarsrebels.wikia.com/wiki/Sabine_Wren http://starwars.wikia.com/wiki/Mandalorian

SCALE SETTINGS AND OPTIONS:

Default size is set to the dimensions as mentioned on infographic picture (x: 244mm (width without rangefinder and ear parts), y: 310mm, z: 308mm (391 mm with rangefinder) with thickness of helmet around 5 mm. However, we recommend to check your size of the head and adjust the scale according to it. We recommend to downscale all parts to around 80% (x: 195 mm, y: 248 mm, z: 246 mm (312 mm with rangefinder) with thickness of helmet around 4 mm. It should be sufficient to for the average head size and there is also some tolerance to attach cushions from the inner side for comfortable wearing.

PRINTER SETTINGS:

As the helmet is quite big and is meant to be post-processed , we recommend a height of layer from 0.2 to 0.3 mm on FDM printers. All parts are aligned to printing platform for easy manipulation. Most of the parts need minimal or no use of printing supports to save printing time and filament. Optional part for printing is the inner rim of visor (rim_R/L.stl parts) on which you can easier attach transparent foil (visor). This part however, due to it's shape, needs to be printed on supports. For reliable printing, we also recommend to set a brim to helmet shell parts, for their height and low thickness. It will ensure, that the part won't come off the printing platform during the printing process.

ASSEMBLY:

All parts are described on infographic pictures. For easier and more precise bonding process, small holes were created in most of the parts, which fits for connecting pin part (included as pin.stl). You will need totally 42 pin parts for connecting all pieces together. If you feel confident enough, you can skip the assembly with pin parts and just bond pieces together without them.

Model was created by MakersLab team. We are group of modelling and 3d printing enthusiasts, who work in 3D makerspace located in Prague, Czech Republic. Creating comics and cosplay accessories, technical gadgets and much more. Take a look at our facebook and CGTrader profiles or our website to find more about us:

https://www.facebook.com/makerslabcz/?fref=ts https://www.cgtrader.com/makerslab http://www.makerslab.cz/en/

Item Rating120
  • kkylegilbert
    2019-05-29 12:45
    Recommended
    Thanks for the great file. Nearly half way done with printing the helmet now. :)
  • ookolb-ok
    2019-05-12 19:32
    Recommended
    Top CAD Model. Exactly what I have been looking for. Price is also absolutely okay. Thank you for your work.
  • ddarthkitt
    2019-05-12 12:39
    Recommended
    Thank you for having the alignment tabs!
  • jjlcintado
    2019-04-08 09:21
    Recommended
  • ttk1097
    2018-11-25 20:12
    Recommended
    Perfect! Highly recommend. I down sized fro my 10 y/o. Here is a link to some photos of the “make”. https://www.flickr.com/gp/115672393@N05/vN0J0z
