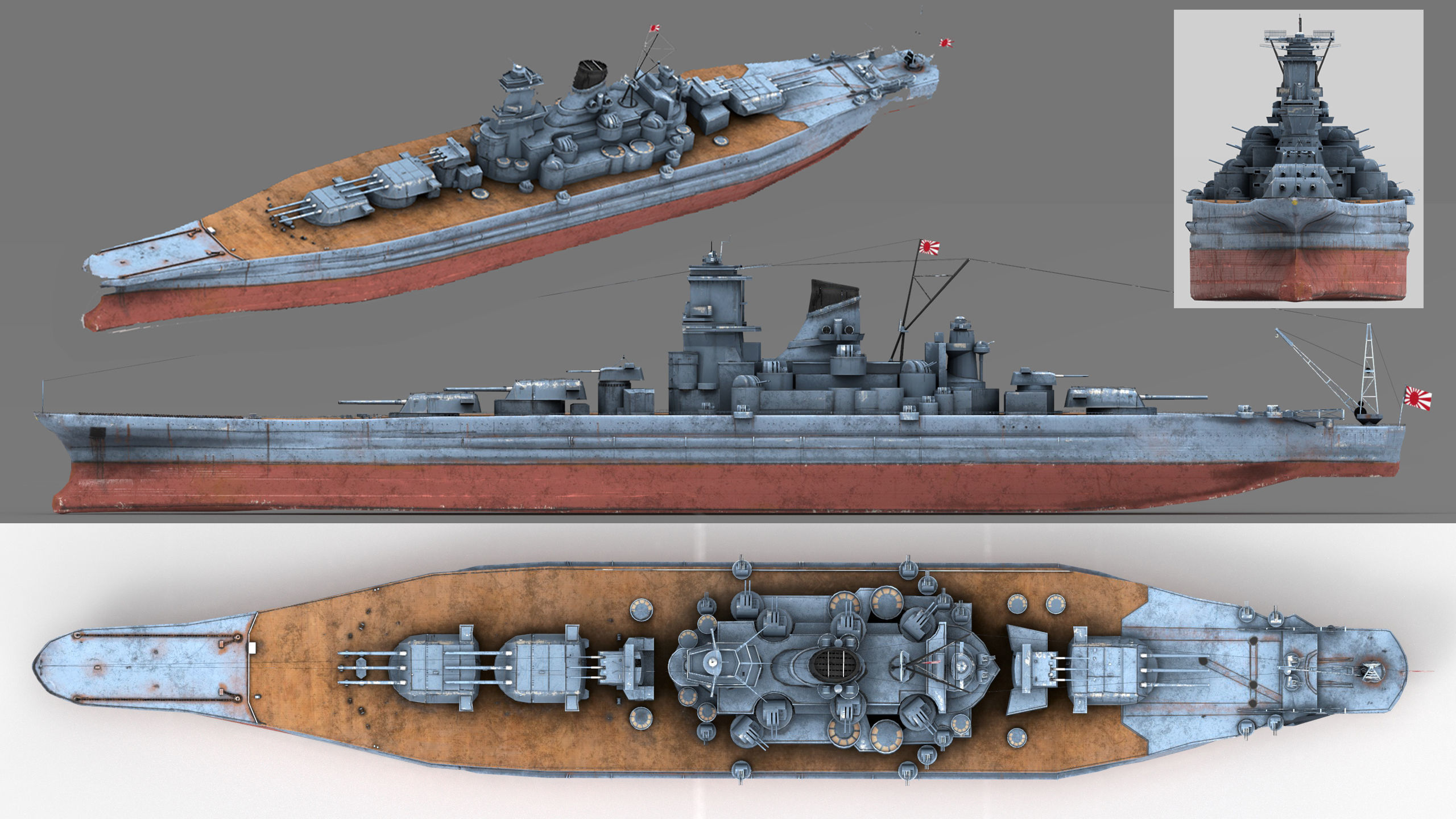

Japanese battleship Musashi 3D model

Model of Mushashi Battleship Yamato Class WWII Done in Maya 2008

Name: Musashi Namesake: Musashi Province Ordered: June 1937 Builder: Mitsubishi Shipyard, Nagasaki Laid down: 29 March 1938 Launched: 1 November 1940 Commissioned: 5 August 1942 Struck: 31 August 1945 Fate: Sunk during the Battle of Leyte Gulf, 24 October 1944

General characteristics

Class & type: Yamato-class battleship Displacement: 68,200 long tons (69,300 t) (normal) 72,800 long tons (74,000 t) (full load) Length: 244 m (800 ft 6 in) (p/p) 263 m (862 ft 10 in) (o/a) Beam: 36.9 m (121 ft 1 in) Draft: 10.86 m (35 ft 8 in) (full load) Installed power: 150,000 shp (110,000 kW) 12 × Kanpon water-tube boilers Propulsion: 4 × propellers 4 × steam turbines Speed: 27.46 knots (50.86 km/h; 31.60 mph) Range: 7,200 nmi (13,300 km; 8,300 mi) at 16 knots (30 km/h; 18 mph) Complement: 2,500 Sensors and processing systems: 1 × Type 21 air search radar 1 × Type 0 hydrophone system

Armament: September 1942: 3 × triple 46 cm Type 94 guns 4 × triple 15.5 cm 3rd Year Type guns 6 × twin 127 mm Type 89 dual purpose guns 12 × triple 25 mm Type 96 AA guns 2 × twin 13.2 mm Type 93 anti-aircraft machine guns October 1944: 3 × triple 46 cm Type 94 guns 2 × triple 155 mm 3rd Year Type guns 6 × twin 127 mm Type 89 guns 35 × triple, 25 × single 25 mm Type 96 guns 2 × twin 13.2 mm Type 93 machine guns

Armor:

Waterline belt: 410 mm (16.1 in) Deck: 200–230 mm (7.9–9.1 in) Gun turrets: 250–650 mm (9.8–25.6 in) Barbettes: 380–560 mm (15.0–22.0 in) Conning tower: 500 mm (19.7 in) Bulkheads: 300–340 mm (11.8–13.4 in) Aircraft carried: 6–7 floatplanes Aviation facilities: 2 × catapults

Musashi (武蔵?), named after an ancient Japanese province,[1] was one of two Yamato-class battleships built for the Imperial Japanese Navy, beginning in the late 1930s. The Yamato-class ships were the heaviest and most powerfully armed battleships ever constructed,[3] displacing 72,800 long tons (74,000 t) fully loaded and armed with nine 46-centimetre (18.1 in) main guns. Her secondary armament consisted of four 15.5-centimetre (6.1 in) triple-gun turrets formerly used by the Mogami-class cruisers. She was equipped with six or seven floatplanes to conduct reconnaissance.

Commissioned in mid-1942, Musashi was modified to serve as the flagship of the Combined Fleet and spent the rest of the year working up. The ship was transferred to Truk in early 1943 and sortied several times that year with the fleet in unsuccessful searches for American forces. She was used to transfer forces and equipment between Japan and various occupied islands several times in 1944. Musashi was torpedoed in early 1944 by an American submarine and forced to return to Japan for repairs where the navy greatly augmented her anti-aircraft armament. The ship was present during the Battle of the Philippine Sea in June, but did not come in contact with American surface forces. Musashi was sunk by an estimated 19 torpedo and 17 bomb hits from American carrier aircraft on 24 October 1944 during the Battle of Leyte Gulf. Over half of her crew were rescued.

  • zzerorigs
    Buyer
    2018-01-04 17:01
    Whenever I try to increase or decrease the scale of the Musashi, I deforms to extremes. If some could help me with this please, I would greatly appreciate it.
    • sanchiespsanchiesp
      Author
      2018-01-04 17:21
      Depends on the program does not need to deform anything to scale it. In Maya select everything, then group Control G it and then scale it with E. anyway, ask in the forum. https://www.cgtrader.com/forum
    • kkarlu
      2018-12-22 21:19
      Excellent job
      Item Rating10
      • JomoJomo
        2017-06-15 12:20
        Recommended
      Japanese battleship Musashi
      $10.10
      All prices are exclusive of VAT
      Save with CGTrader Credits
      Send your price offer to the author if you want to buy it at lower price.
      Royalty Free License
      Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
      Response 73% in 2.1h
      3D Modeling
      Lighting
      Rendering
      UV mapping
      Texturing
      Shaders
      Hire me
      3D model formats
      • Autodesk Maya 2008 (.ma, .mb)31.9 MBVersion: 2008Renderer: Mental Ray
      • Autodesk FBX (.fbx)106 MB
      • Rhinoceros 3D (.3dm)29 MB
      • OBJ (.obj, .mtl) (2 files)-
      • Stereolithography (.stl) -
      3D model details
      • Publish date2014-12-29
      • Model ID#101684
      • Animated
      • Rigged
      • VR / AR / Low-poly
      • PBR
      • Geometry Polygon mesh
      • Polygons 264,135
      • Vertices 268,082
      • Textures
      • Materials
      • UV Mapping
      • Unwrapped UVs
      • Plugins used
