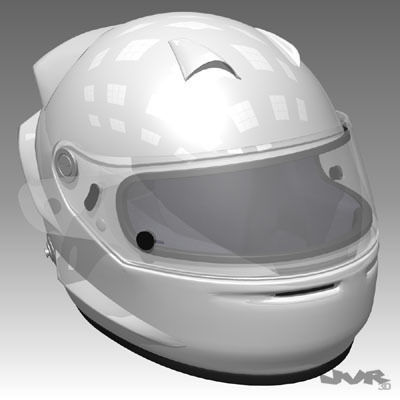

Car Helmet Cutaway 3D model

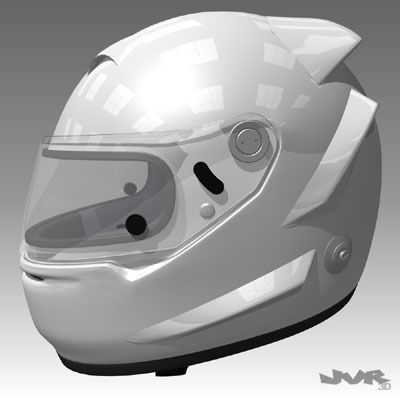

Original design helmet with cutaway.

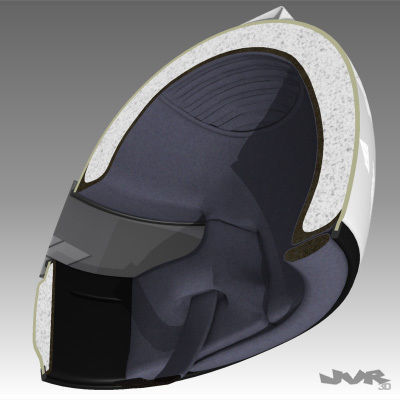

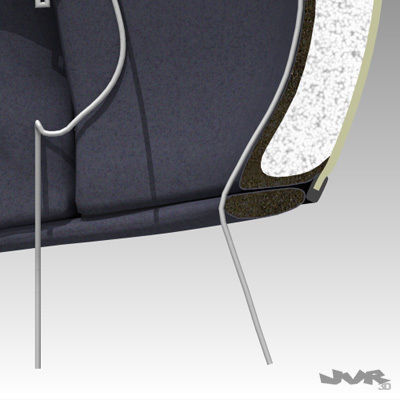

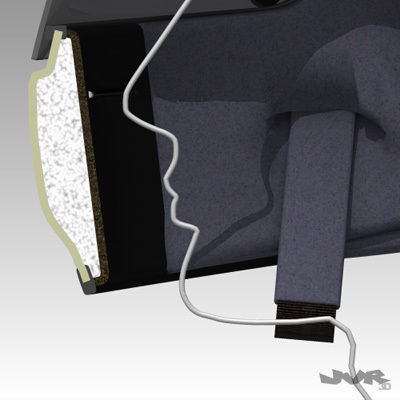

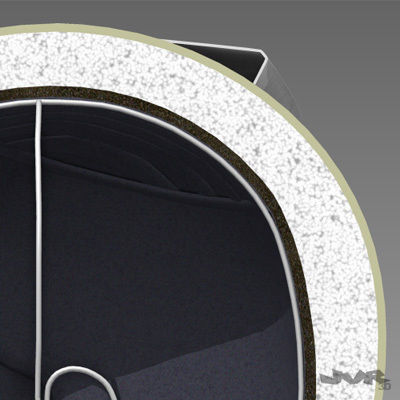

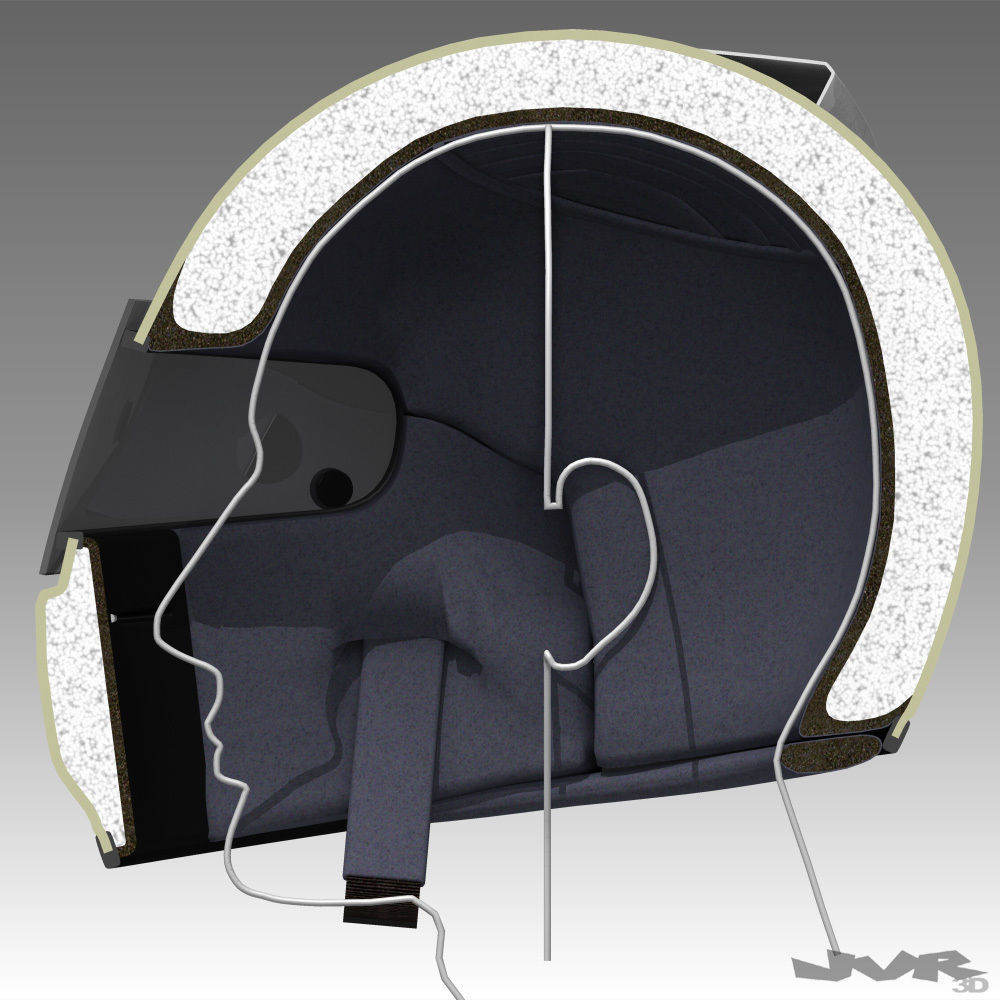

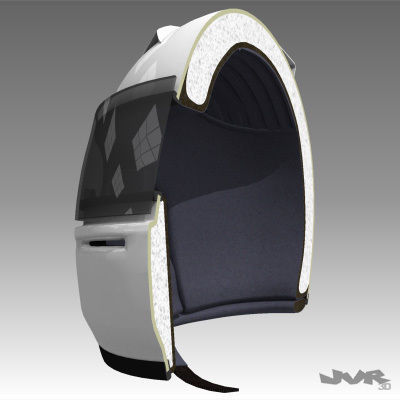

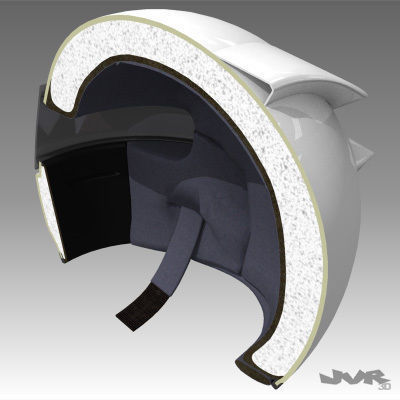

Sectioned areas shows all the usual elements who absorbs impact energy and preserves head against injuries.

Model includes:

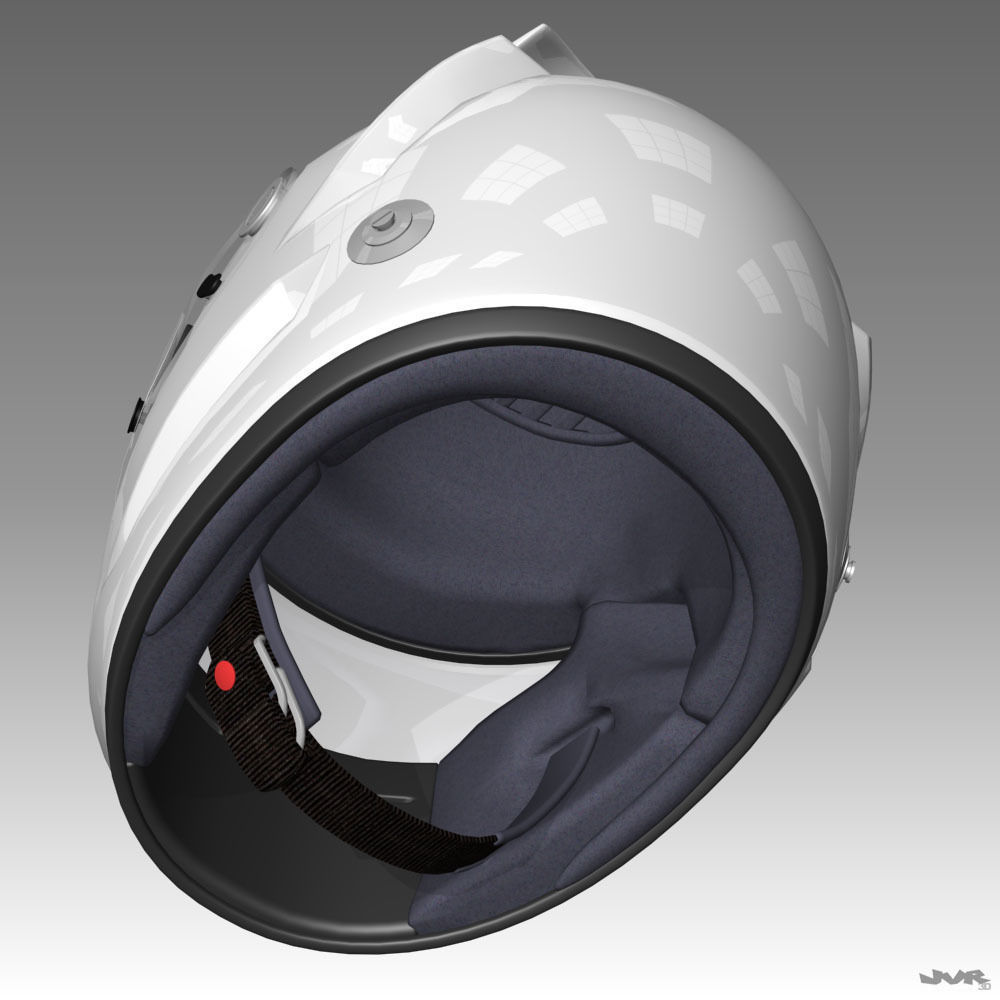

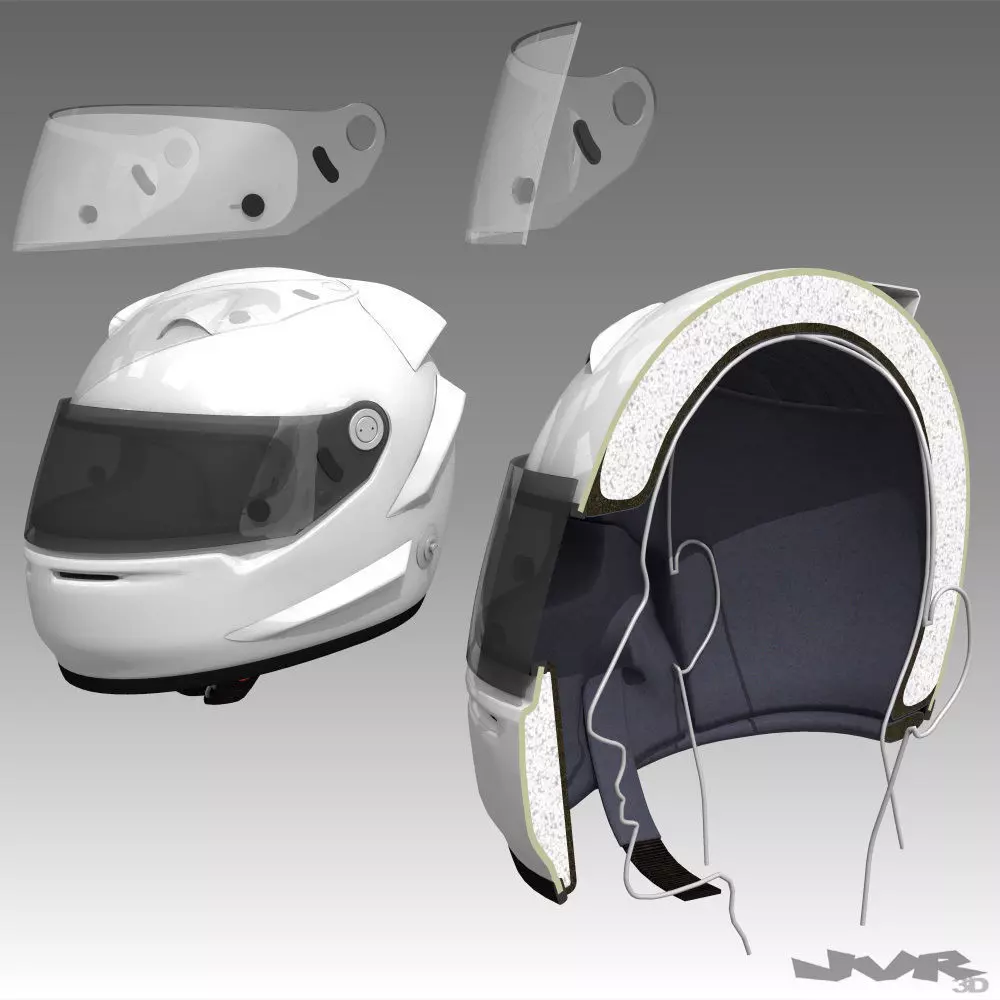

- Complete and sectioned helmet and accesories.
- Aerodynamic appendices easily detachables.
- Clear and dark visors.
- Film protector for visors.

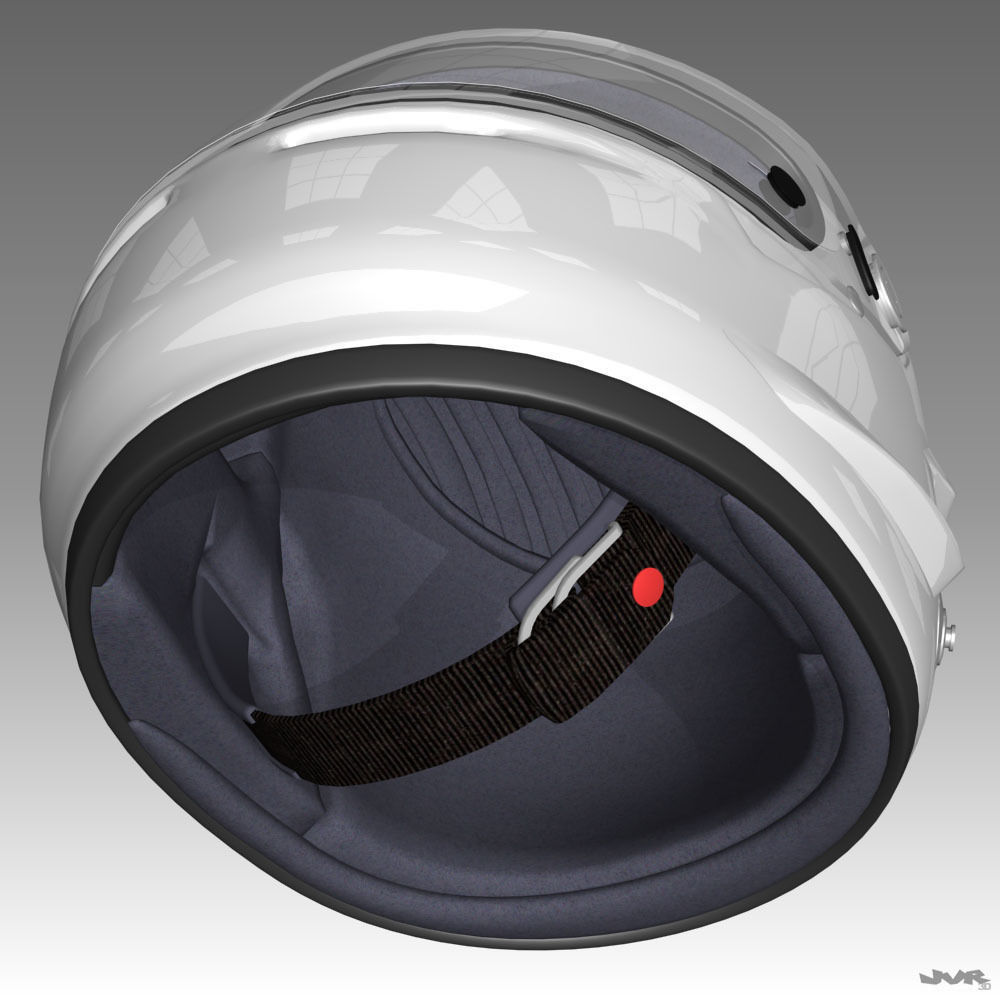

- Steel anchors for head and neck protector.

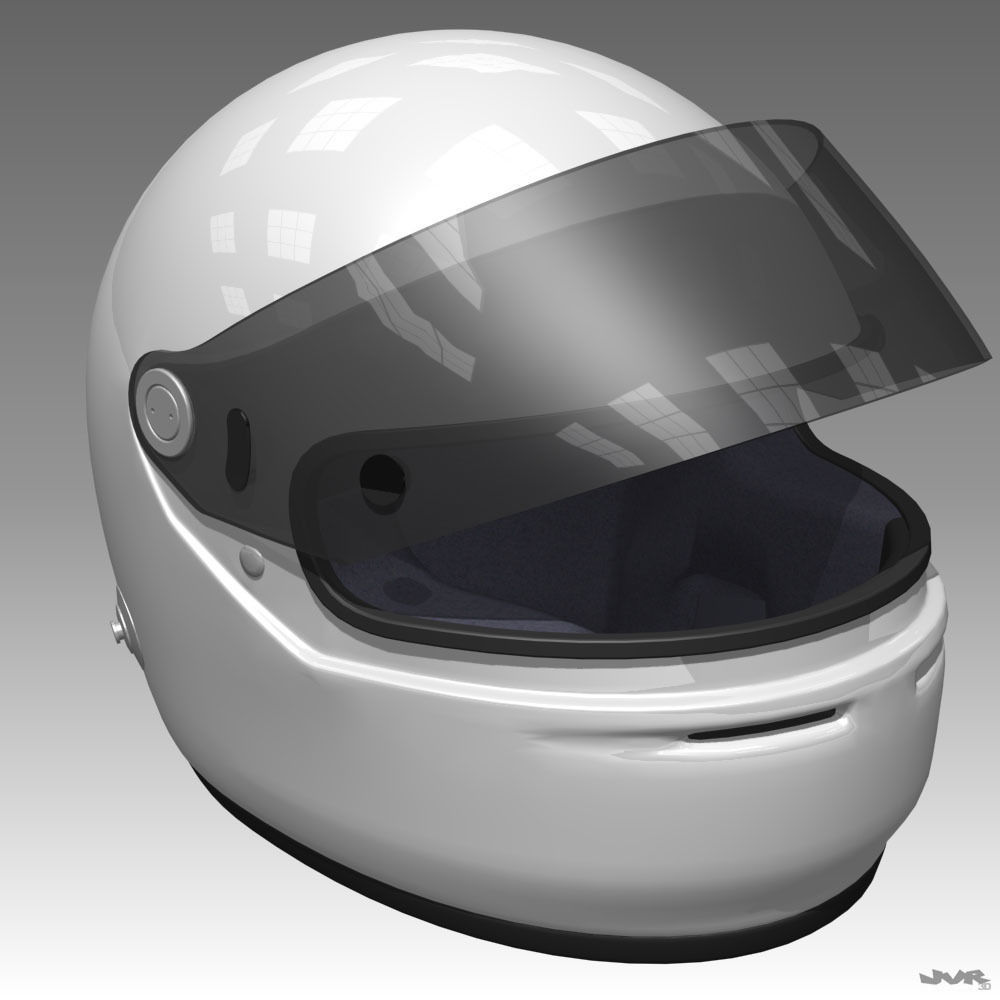

Visor have local axis in order to rotate it and make posible to open and close it.

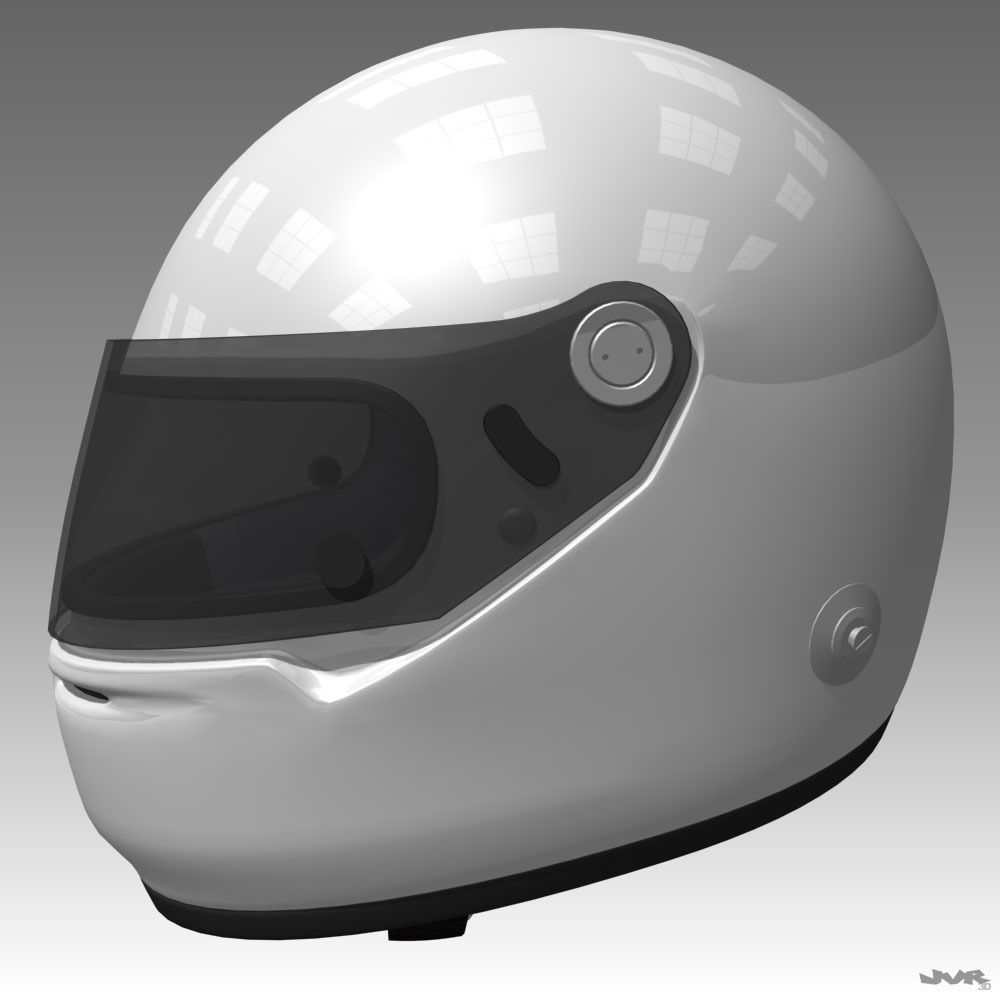

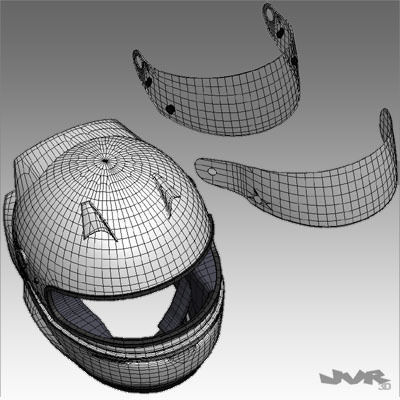

Complete helmet sizes (Vertex and Faces):
- Helmet : 17726 V - 33588 F
- Visor: 2386 V - 3928 F
- Film: 1298 V - 1756 F

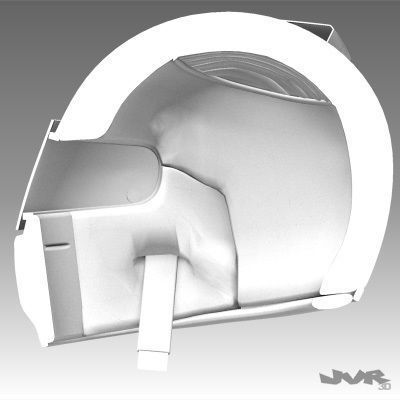

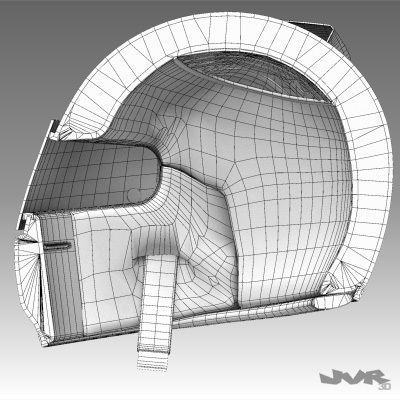

Sectioned helmet sizes (Vertex and Faces):
- Helmet : 9262 V - 16457 F
- Visor: 1200 V - 1980 F
- Film: 774 V - 1044 F

PDF file with instructions is included.

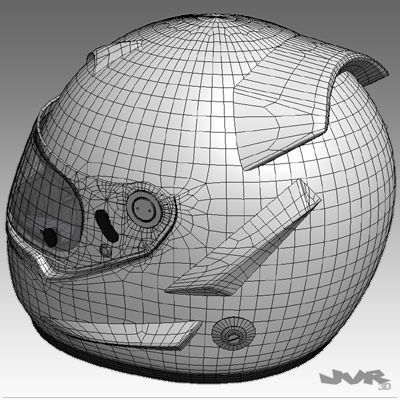

Wire head included.

3DS, OBJ and FBX NOTES:
- No reflexion maps.
- Sometimes welding vertices is needed. Do it with a threshold lower than 0,02 cm and then apply new mesh smooth (45º).

Comments

Tell the author what you think of this product!

gudzevgeniy wrote
gudzevgeniy
Nice work!)
*All prices are exclusive of VAT.
$85.00
License:
Author:jvr3Djvr3D
Buyer ratings: 3 positive / 0 negative
Designer response: 100% in 1.2h
Available formats
  • 3D Studio (.3ds) 1.83 MB
  • PDF (.pdf) (4 files) -
  • 3D Studio Max 9 (.max) 3.06 MB
    Renderer: Mental Ray 3.5
  • OBJ (.obj) 1.73 MB
  • Alias/WaveFront Material (.mtl) 1.73 MB
  • Autodesk FBX 200611 (.fbx) 5.24 MB
More details
  • Animated No
  • Rigged No
  • VR / AR / Low-poly No
  • Geometry Polygon mesh
  • Polygons 64,700
  • Vertices 36,200
  • Textures Yes
  • Materials Yes
  • UV Mapping Yes
  • Unwrapped UVs
  • Plugins used No
