Hydra 70 Rocket v2 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

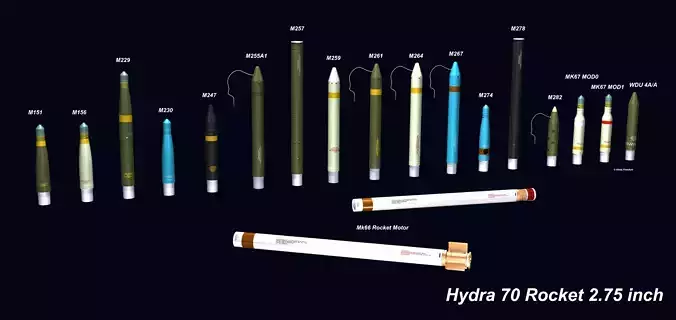

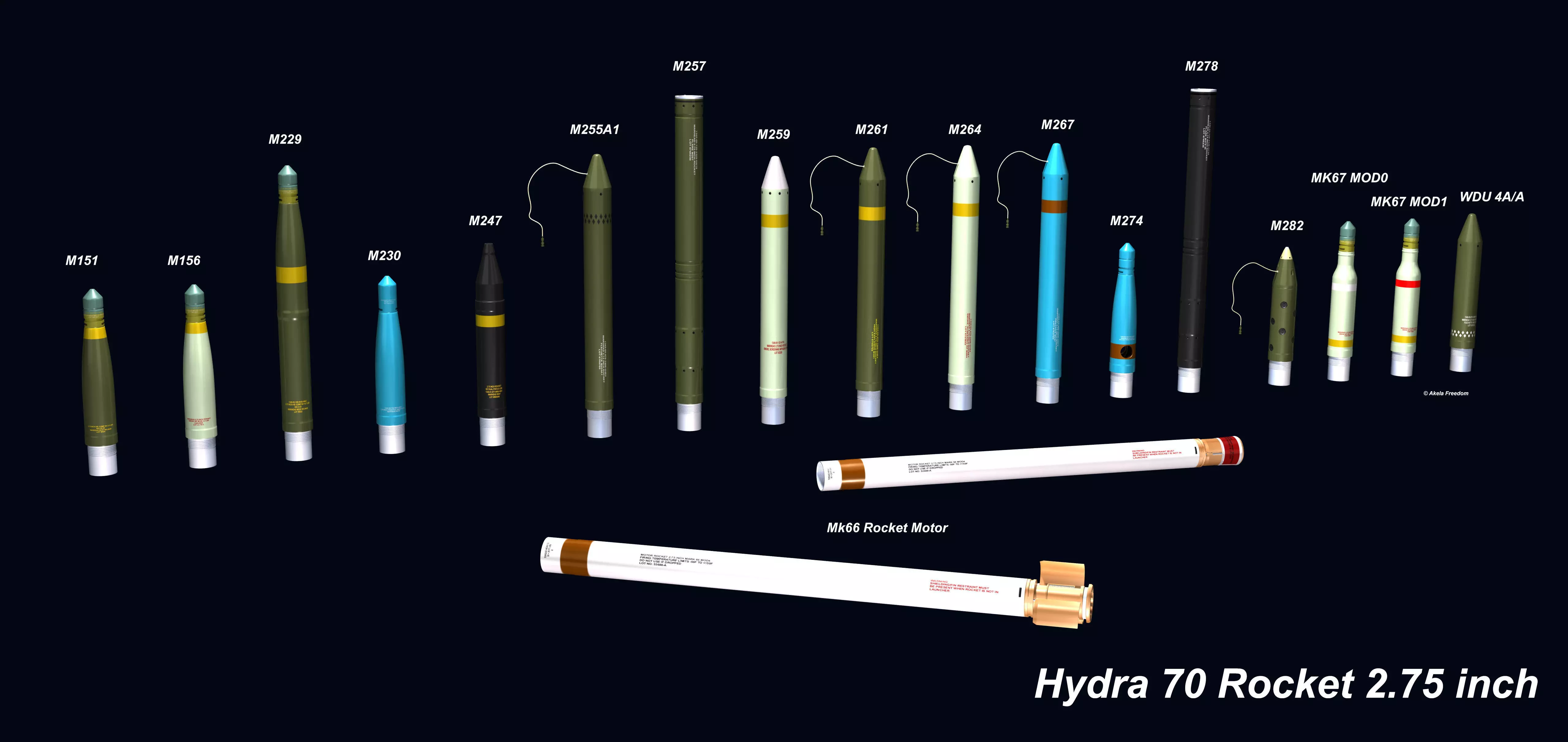

Hydra 70 Rocket 2.75 inch

The Hydra 70 rocket is a 2.75-inch fin-stabilized unguided rocket used primarily in the air-to-ground role.It can be equipped with a variety of warheads, and in more recent versions, guidance systems for point attacks.

Warheads:

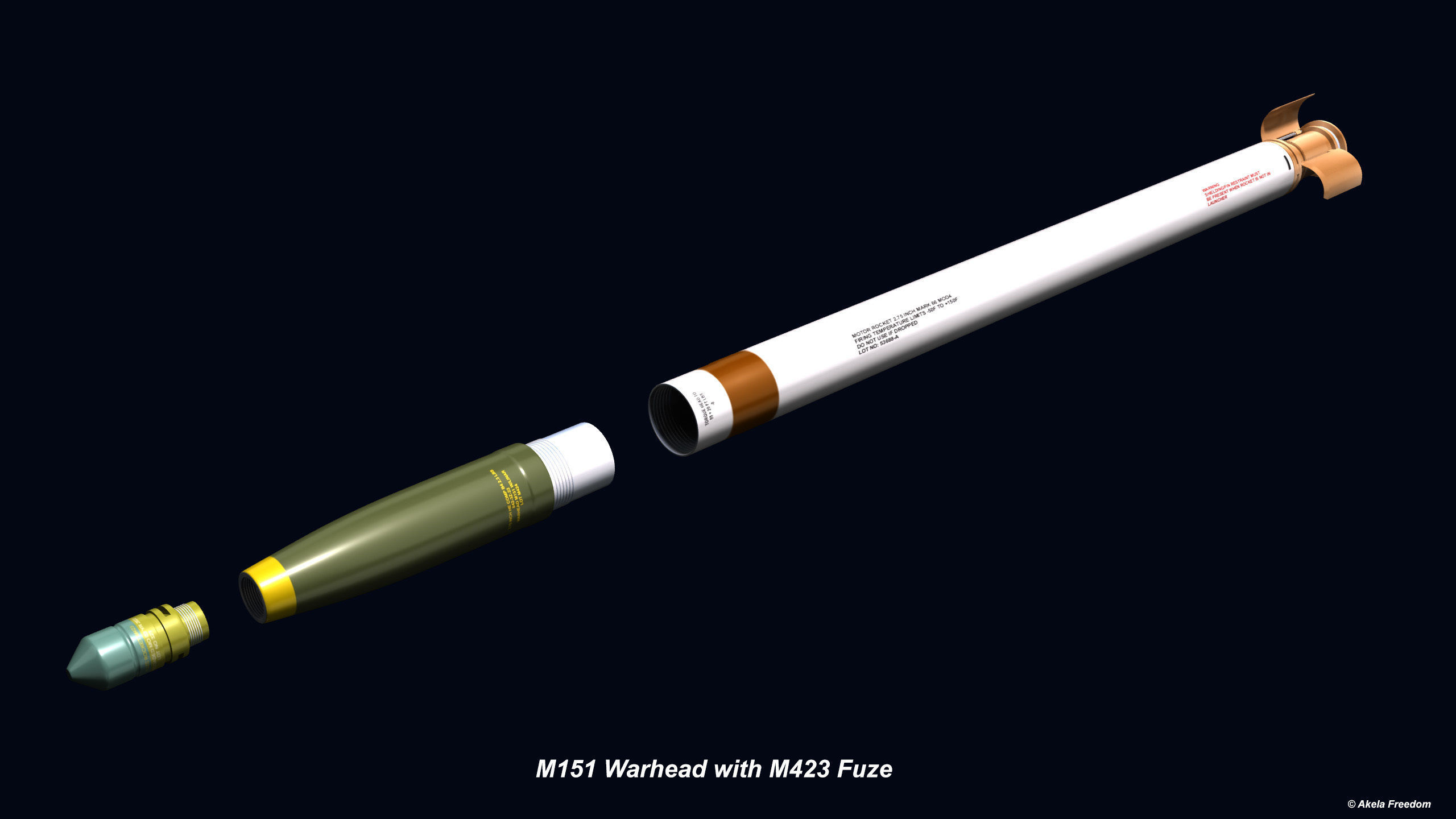

M151 - High-Explosive (HE) an antipersonnel, antimaterial warhead.

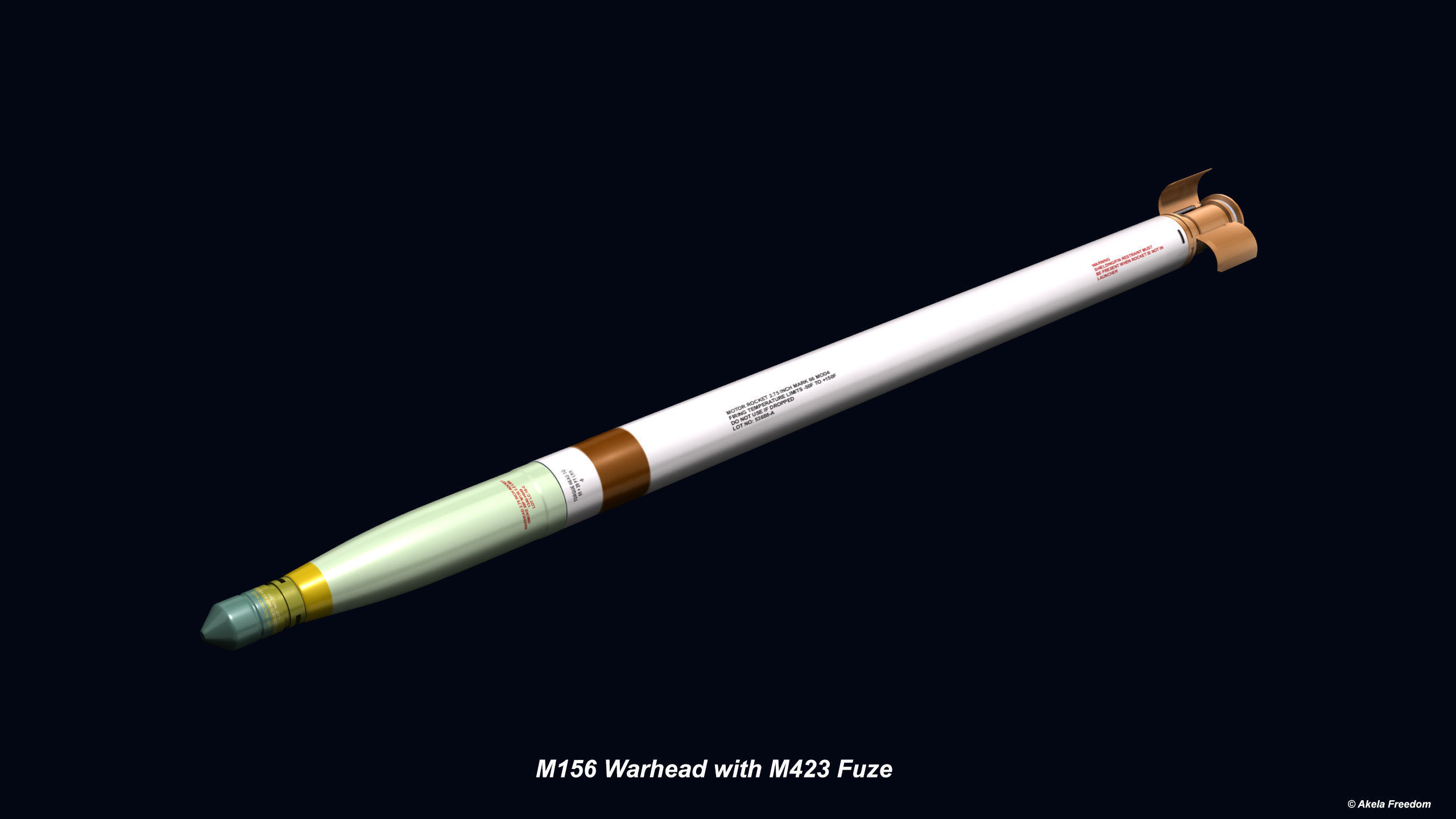

M156 - White phosphorus munitions (WP) primarily used for target marking and incendiary purposes.

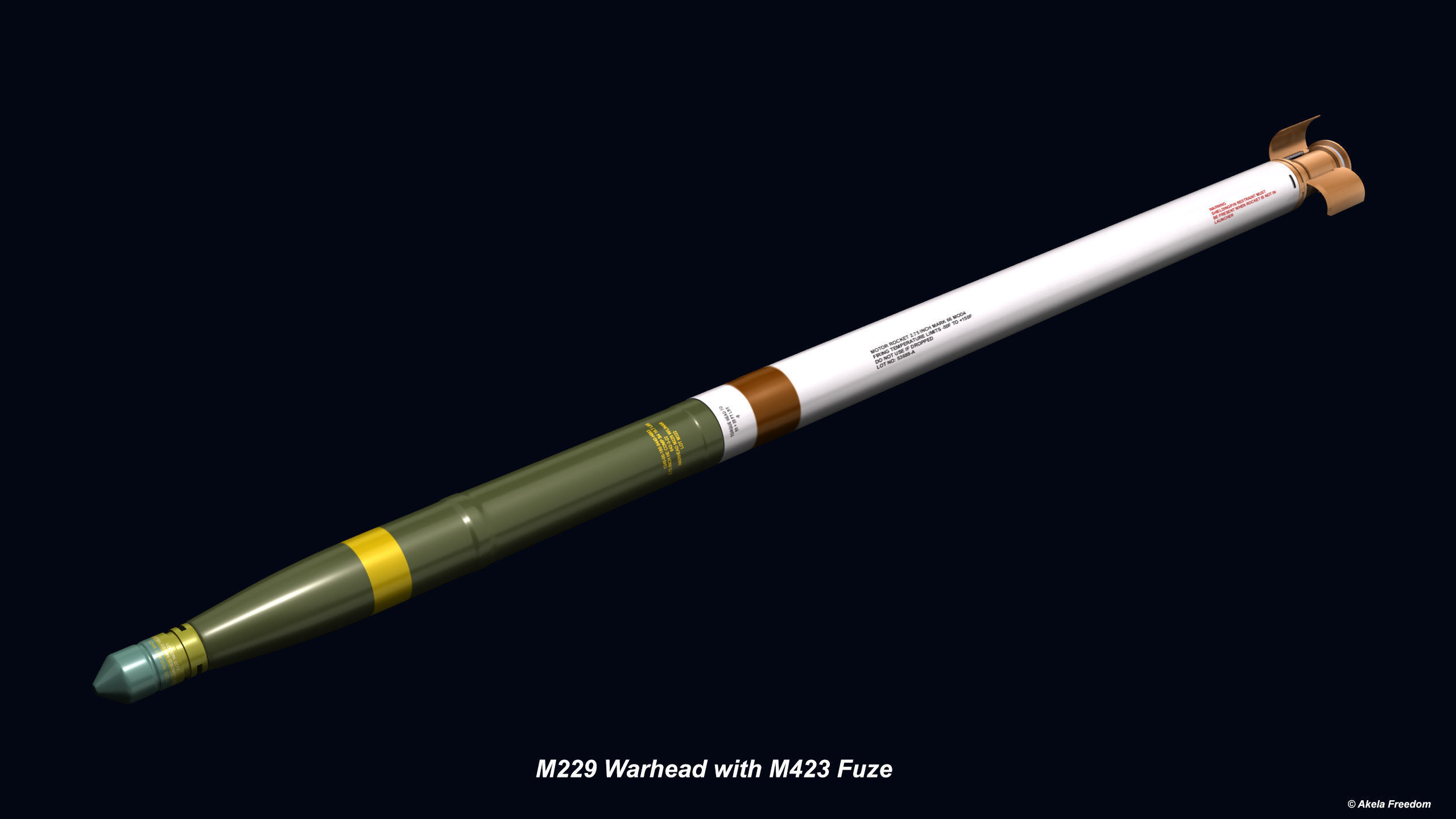

M229 - High-Explosive (HE) an elongated version of the M151.

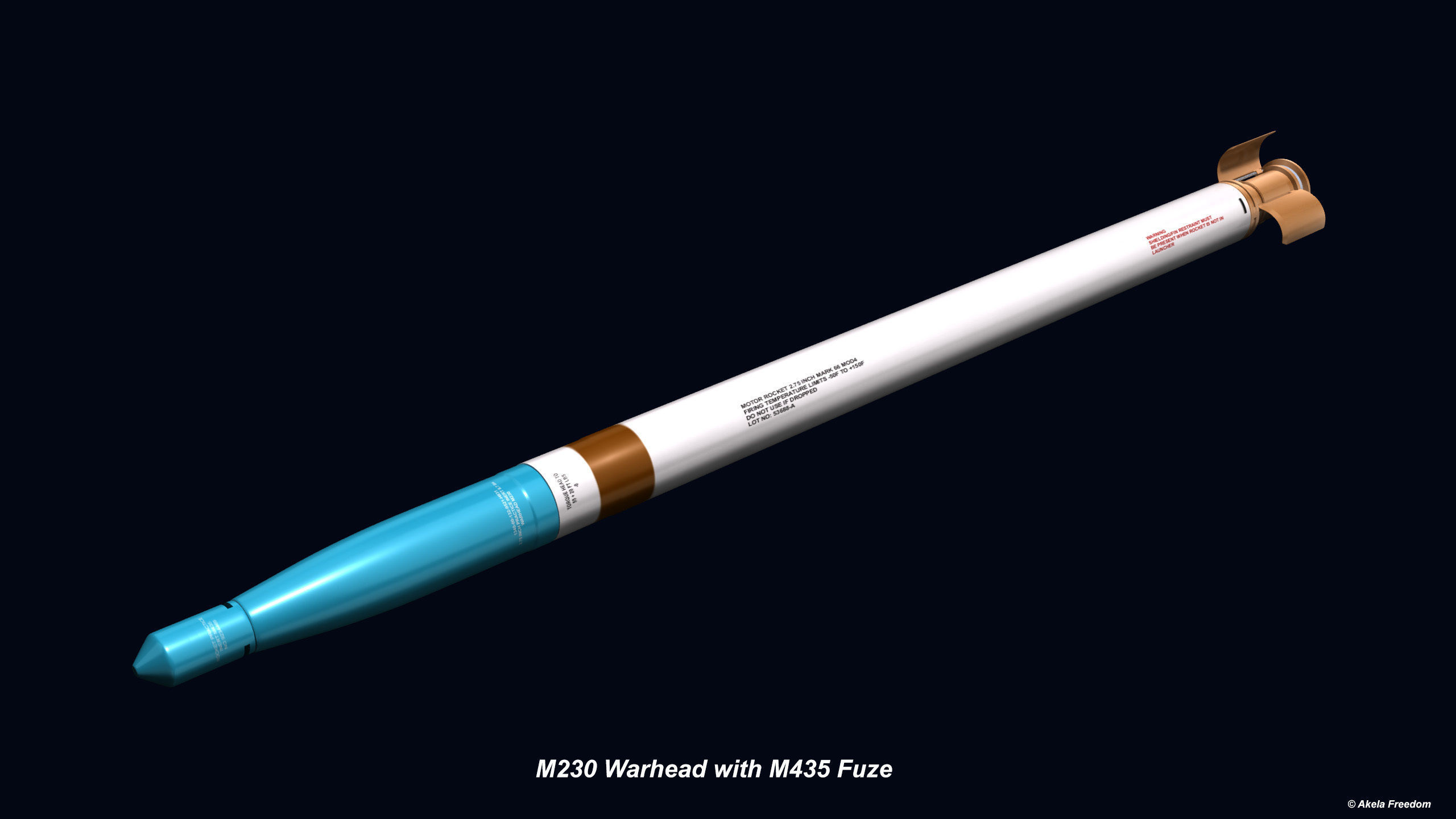

M230 - Practice. This warhead is used for training and testing purposes.

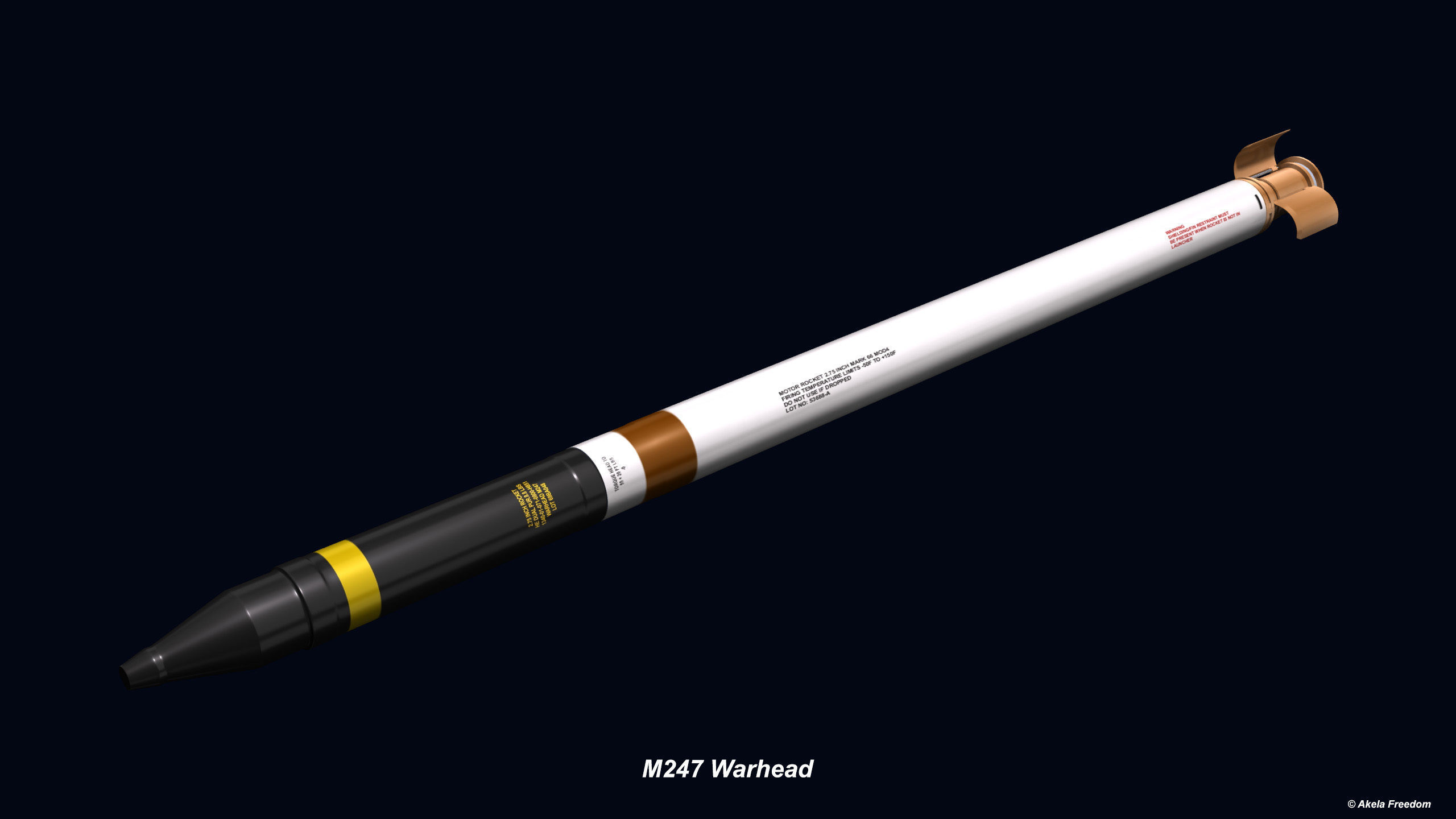

M247 - High-Explosive anti-tank (HEAT) / High-explosive dual purpose (HEDP). With a shape charge for antiarmor capability

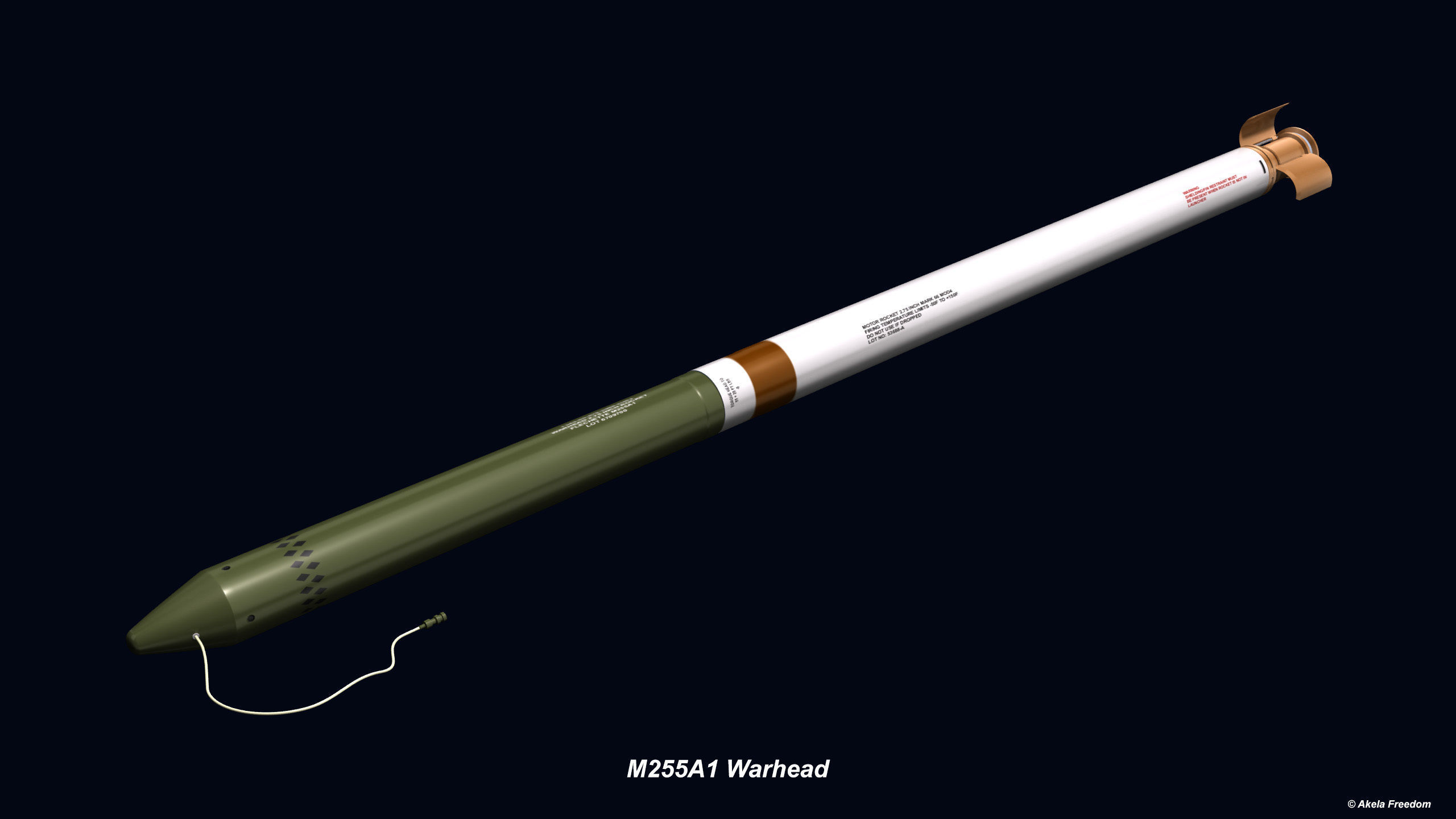

M255A1 - Flechette Warhead is intended to be used against light material and personnel targets.

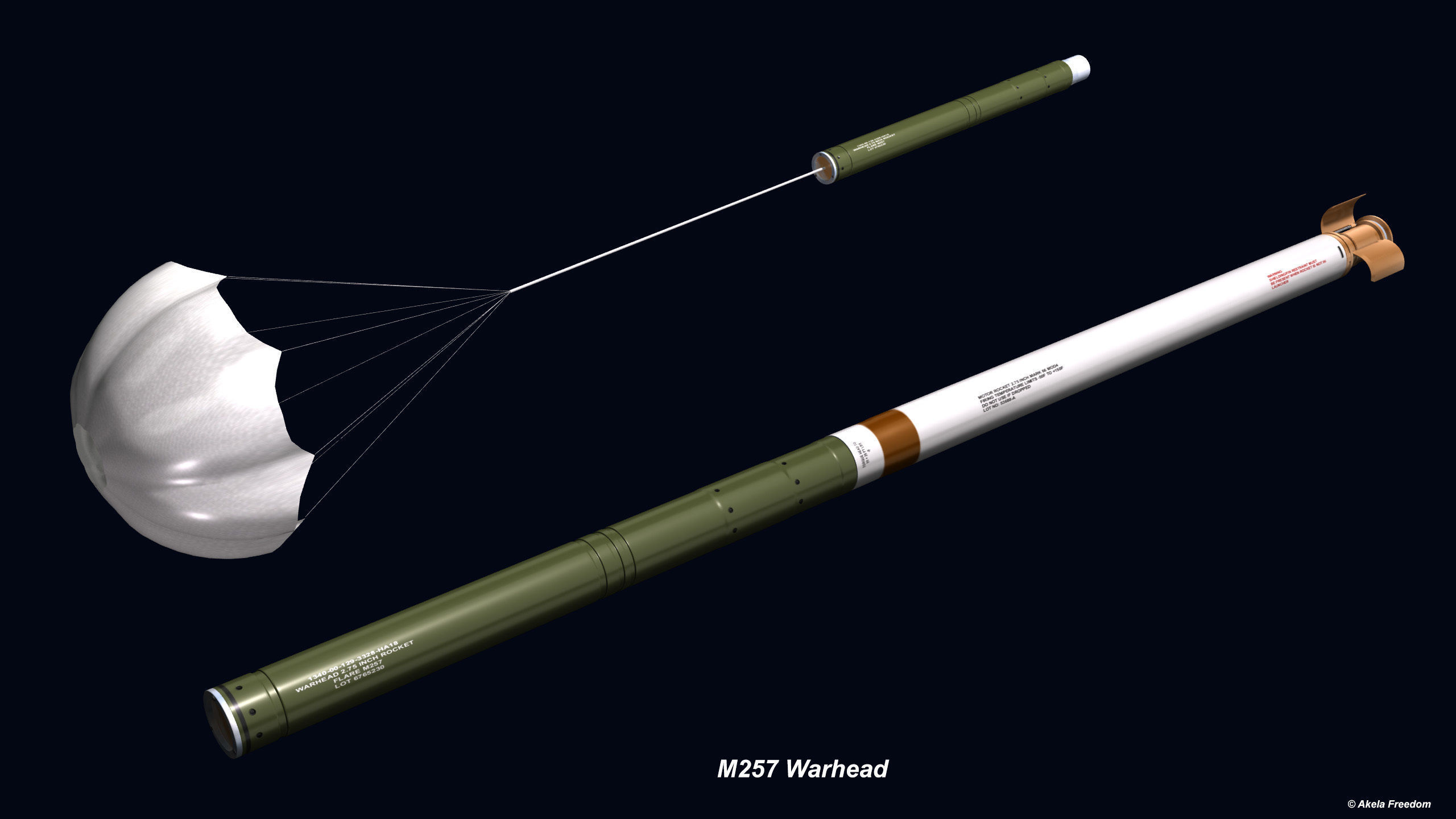

M257 - Parachute illumination. It can illuminate an area in excess of one square kilometer at optimum height.

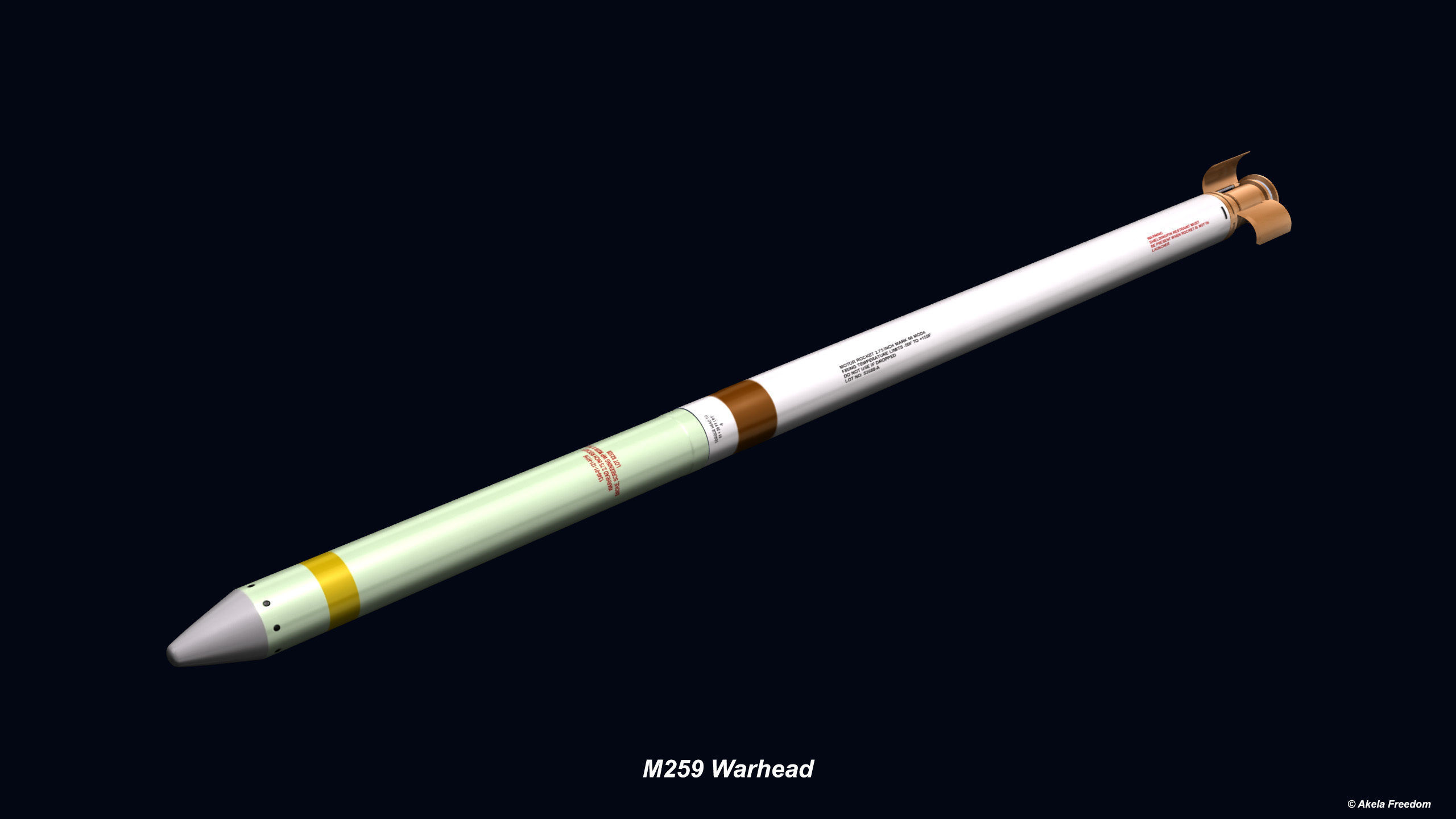

M259 - Smoke-Screening (White Phosphorous). It provides the capability to produce tactical smoke screens.

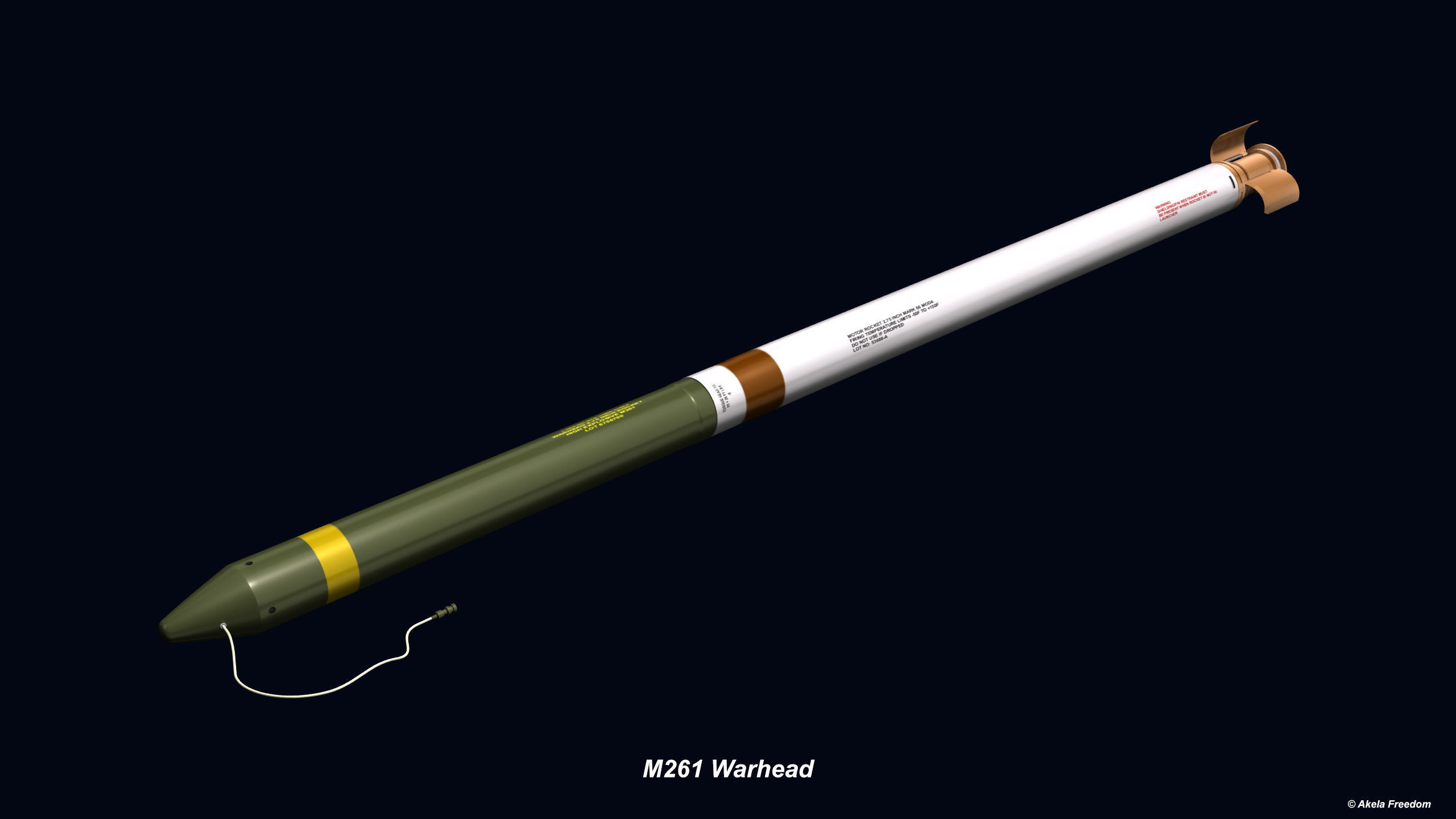

M261 - Multi-purpose submunition (MPSM). Provides improved lethal effectiveness against area targets such as light armor, wheeled vehicles, material, and personnel.

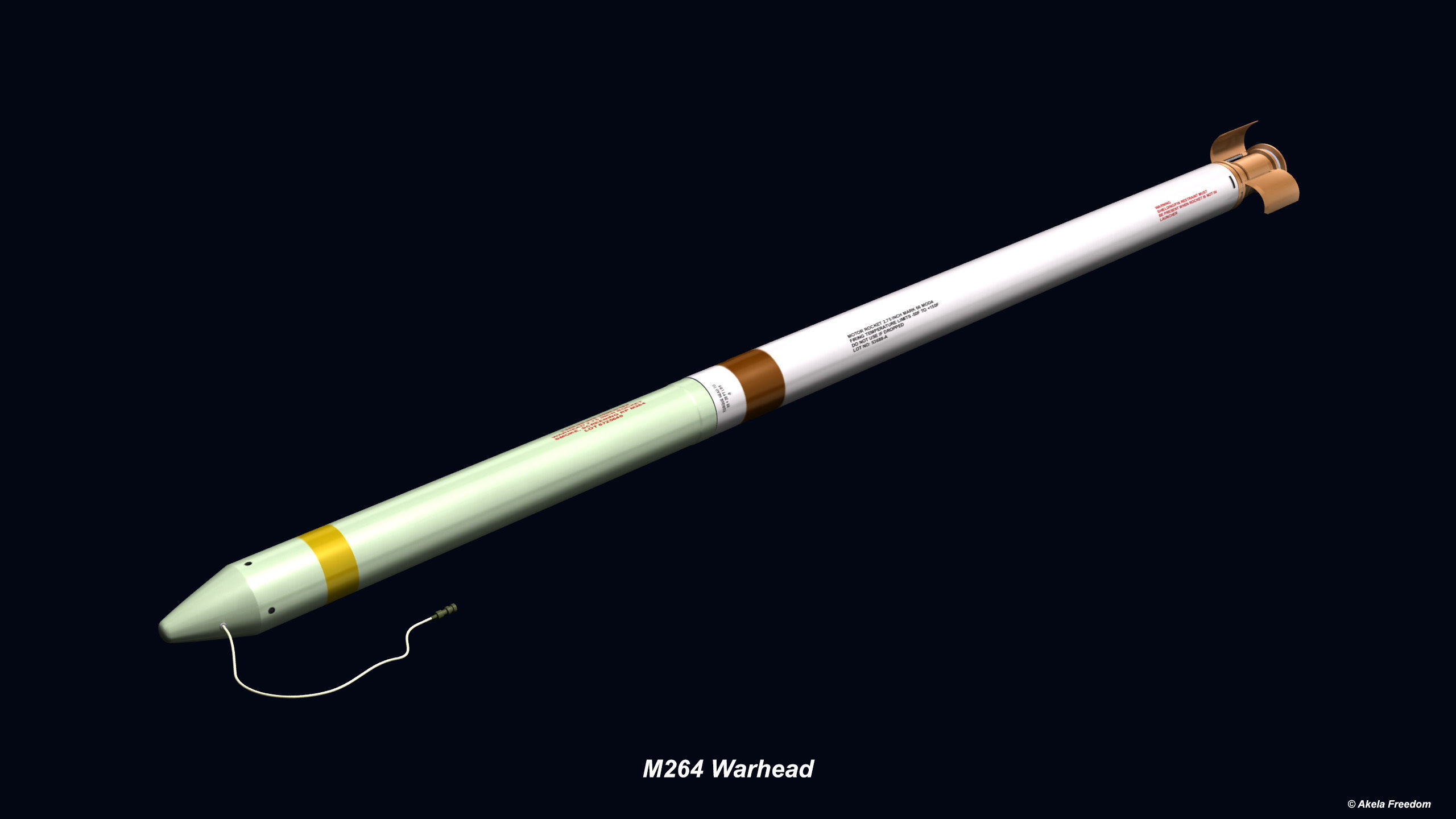

M264 - Red phosphorus (RP) Smoke. Used to provide a protective smoke screen

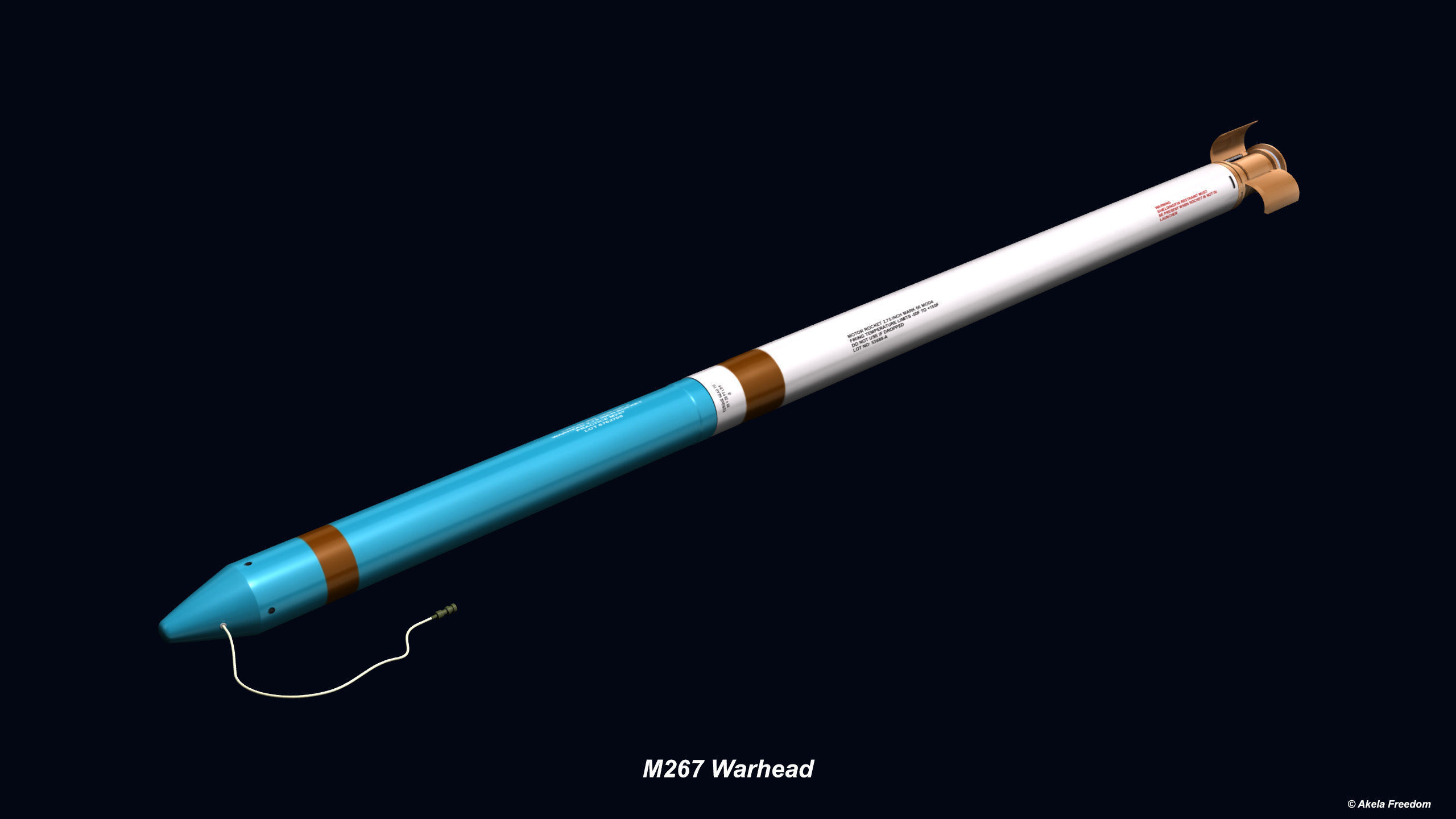

M267 - Smoke Signature Practice round is a physical and ballistic match and is identical in operation to the M261.

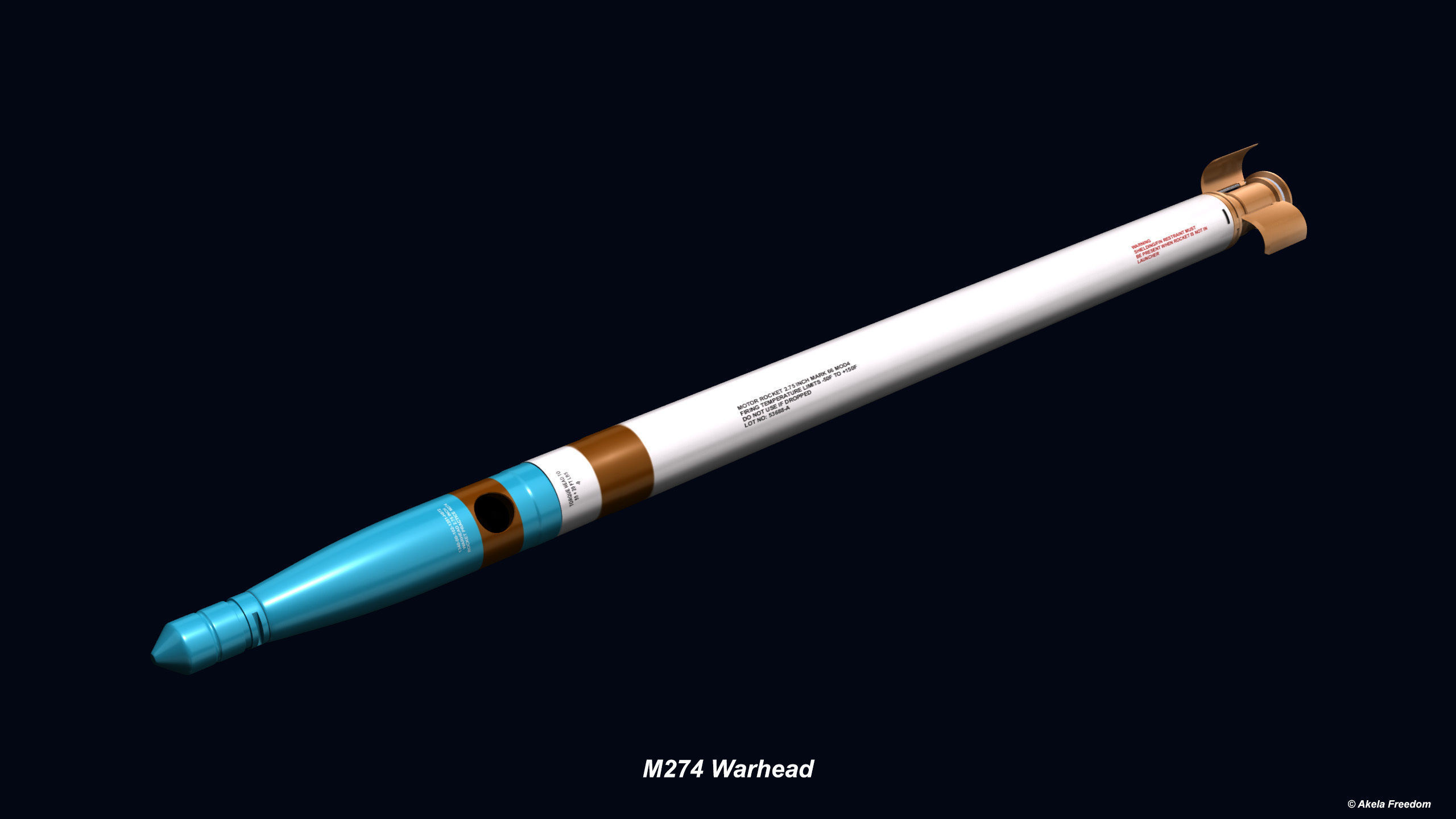

M274 - Practice (Smoke). This warhead is used for training and support testing purpose.

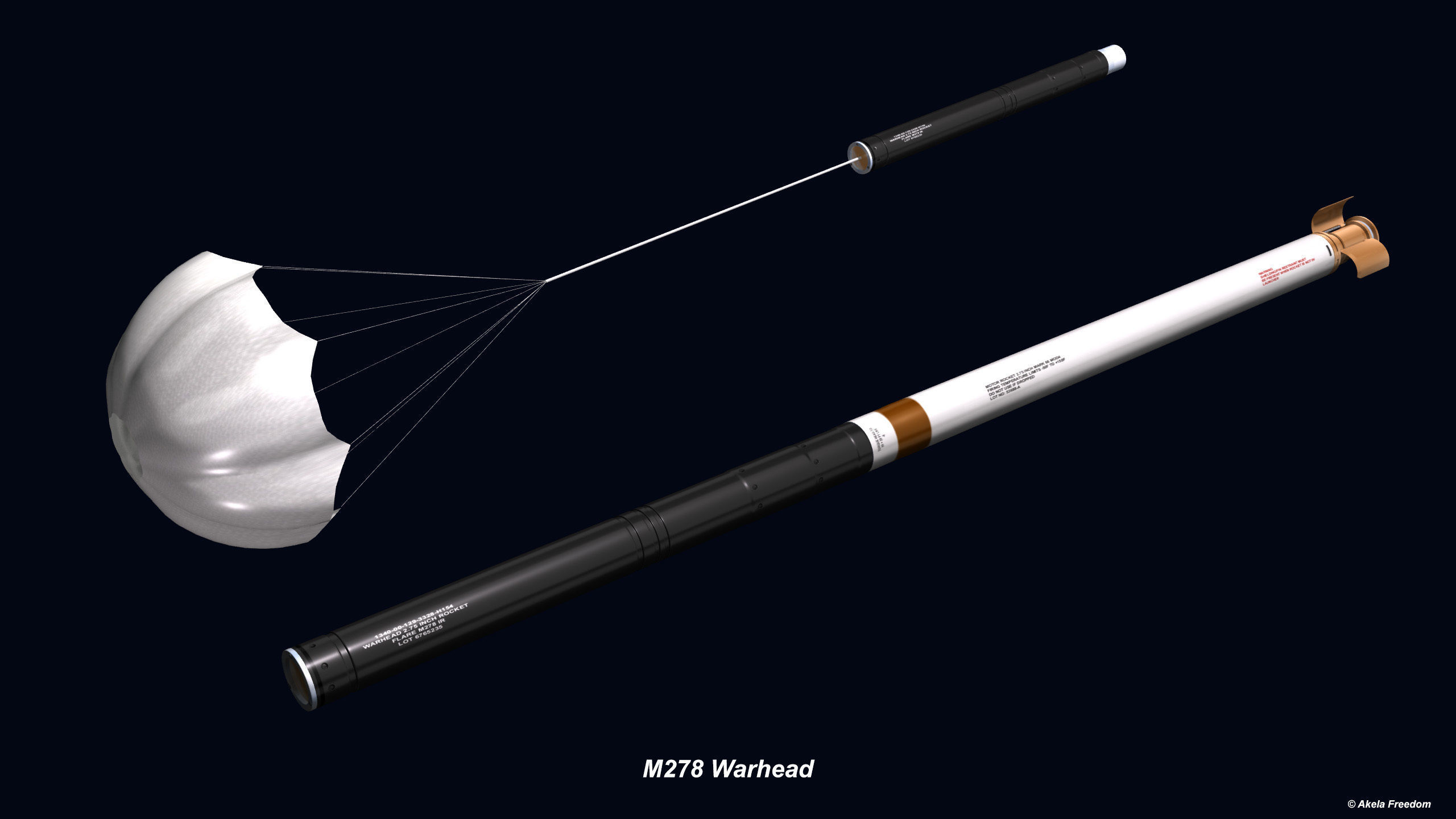

M278 - Infra-red (IR) parachute illumination.

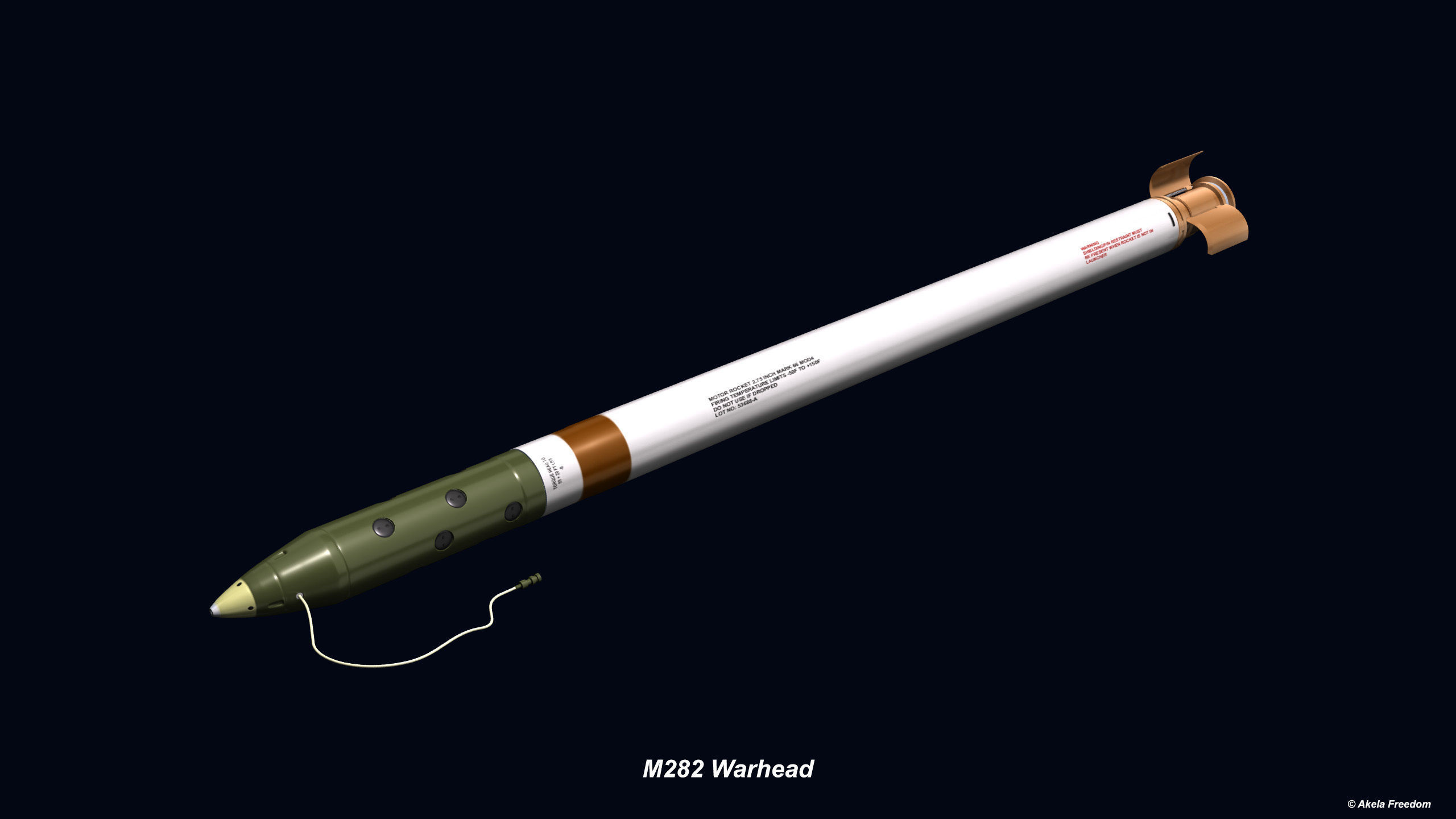

M282 - Multipurpose penetrator warhead

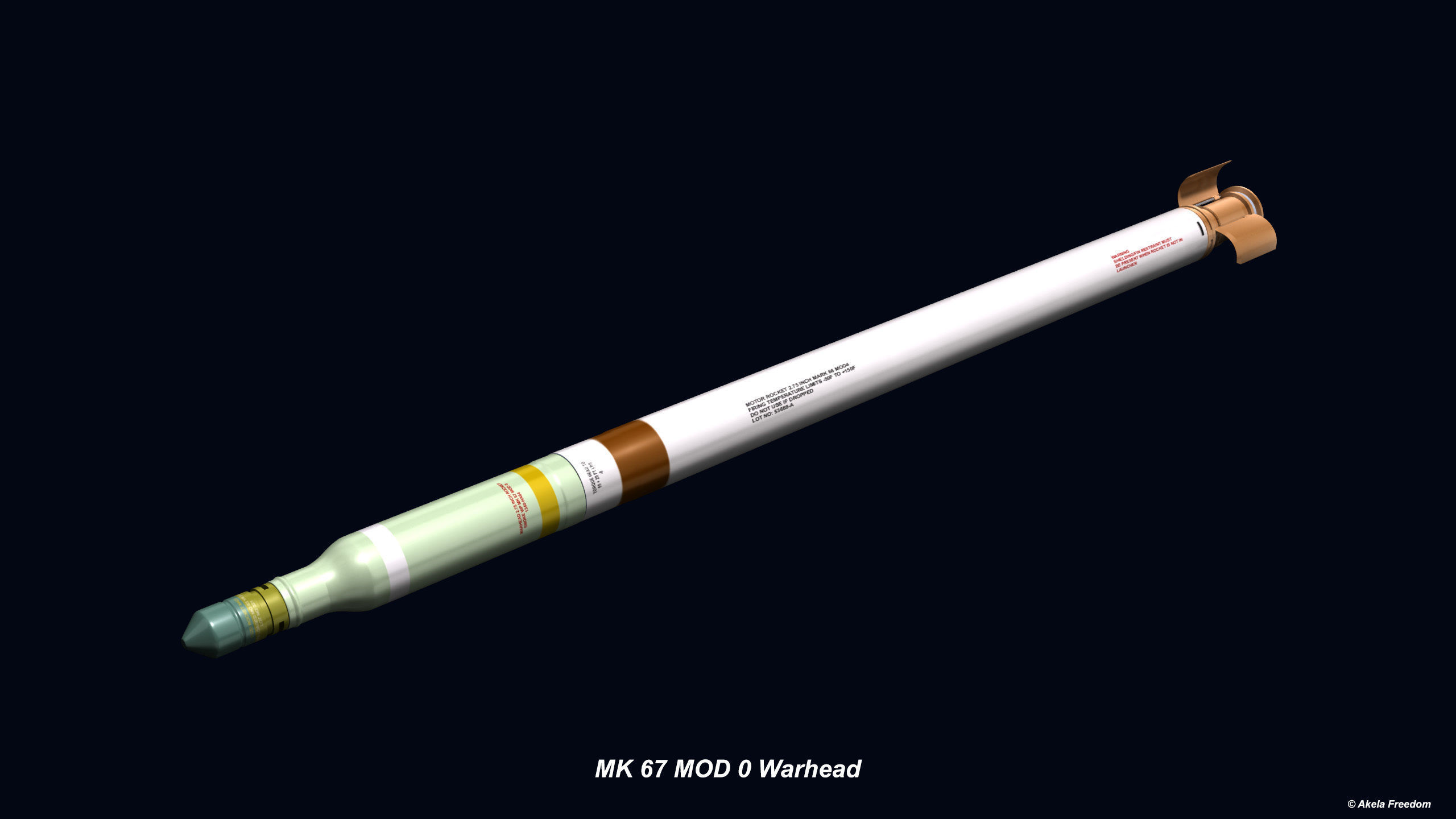

MK 67 MOD 0 - White phosphorus smoke warhead.

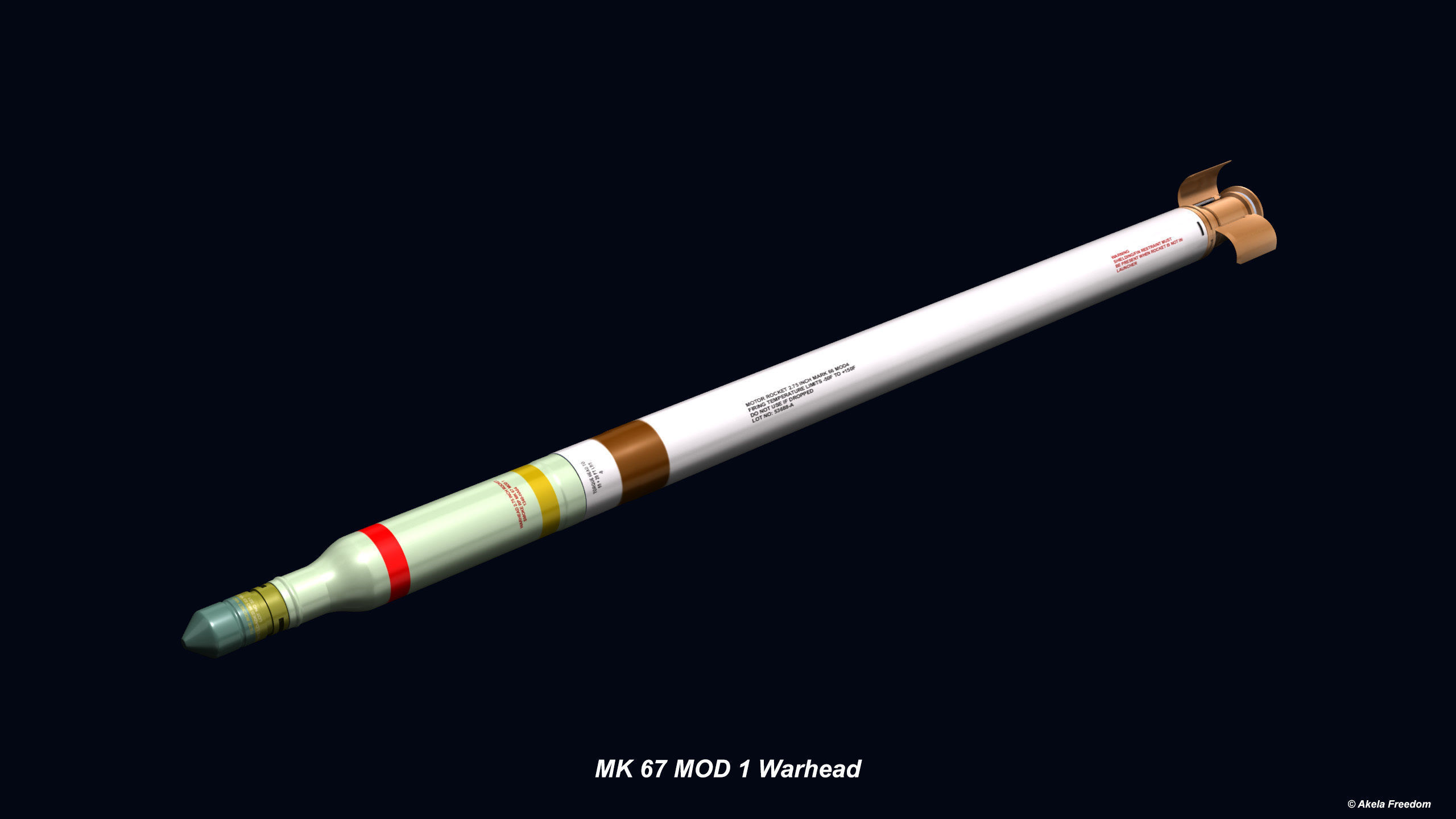

MK 67 MOD 1 - Red phosphorus smoke warhead

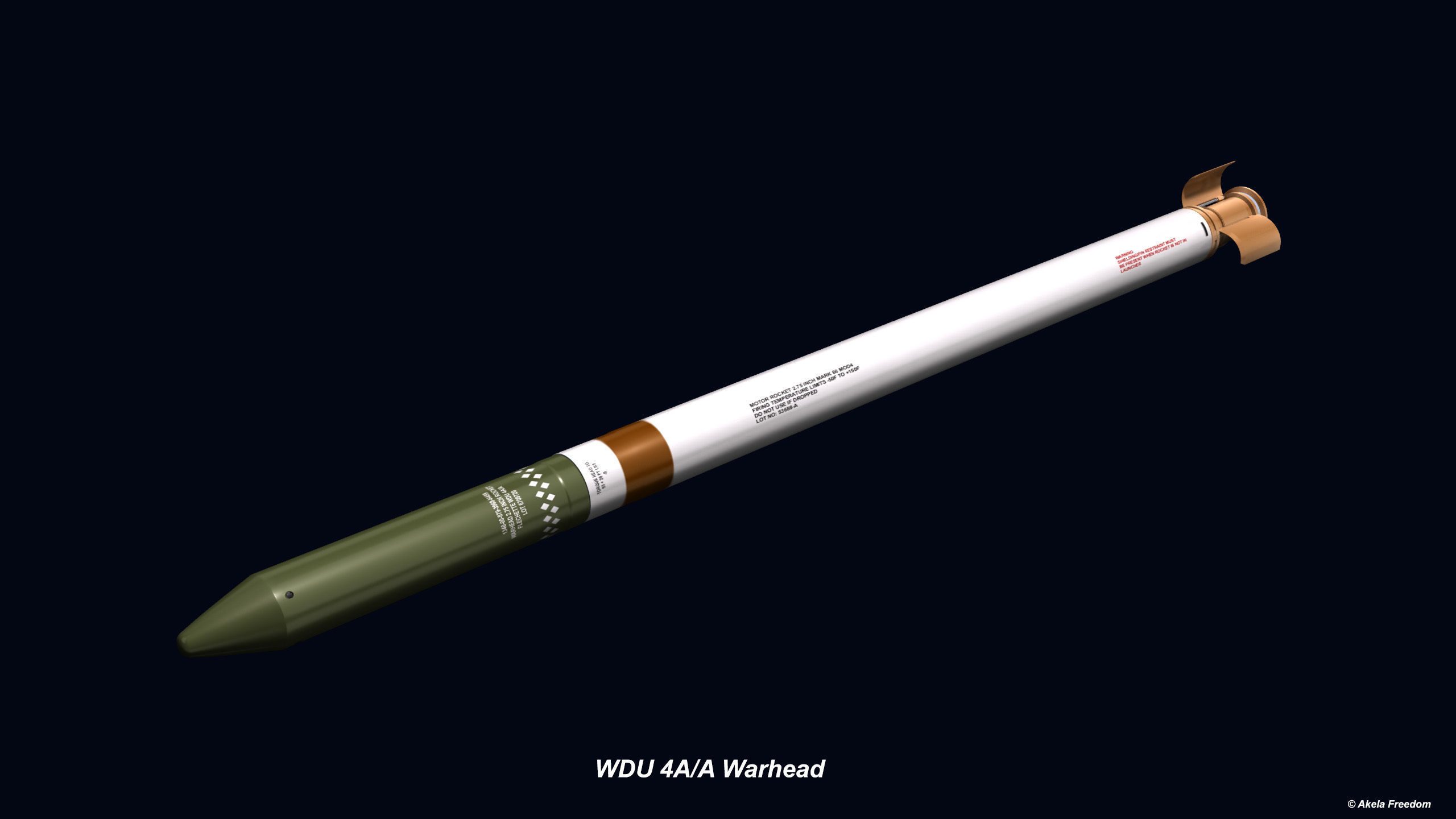

WDU 4A/A - Flechette Warhead. Used primarily for antipersonnel operations.

Fuzes:

M423 - Nose Mount, Point Detonating.

M435 - Inert for training.

About 3D Models:High polygon model with animated elements.All elements of the model are completely based on textures, and do not depend on the settings of materials.

3D format: 3DS MAX 2009, FBX, OBJ.Textures: JPG (Diffuse, Bump), The Textures of 8k size included (Diffuse, Bump).

M151 Warhead M423 Fuze: Polys - 64264Verts - 32142

M156 Warhead M423 Fuze: Polys - 64264Verts - 32142

M229 Warhead M423 Fuze: Polys - 68360Verts - 34190

M230 Warhead M435 Fuze: Polys - 54792Verts - 27406

M247 Warhead: Polys - 36600Verts - 18304

M255A1 Warhead: Polys - 45596Verts - 21317

M257 Warhead: Polys - 78904Verts - 39462

M259 Warhead: Polys - 32248Verts - 16128

M261 Warhead: Polys - 42596Verts - 21317

M264 Warhead: Polys - 42596Verts - 21317

M267 Warhead: Polys - 42596Verts - 21317

M274 Warhead: Polys - 65040Verts - 32528

M278 Warhead: Polys - 78904Verts - 39462

M282 Warhead: Polys - 115180Verts - 57609

MK 67 MOD 0 Warhead: Polys - 74504Verts - 37262

MK 67 MOD 1 Warhead: Polys - 74504Verts - 37262

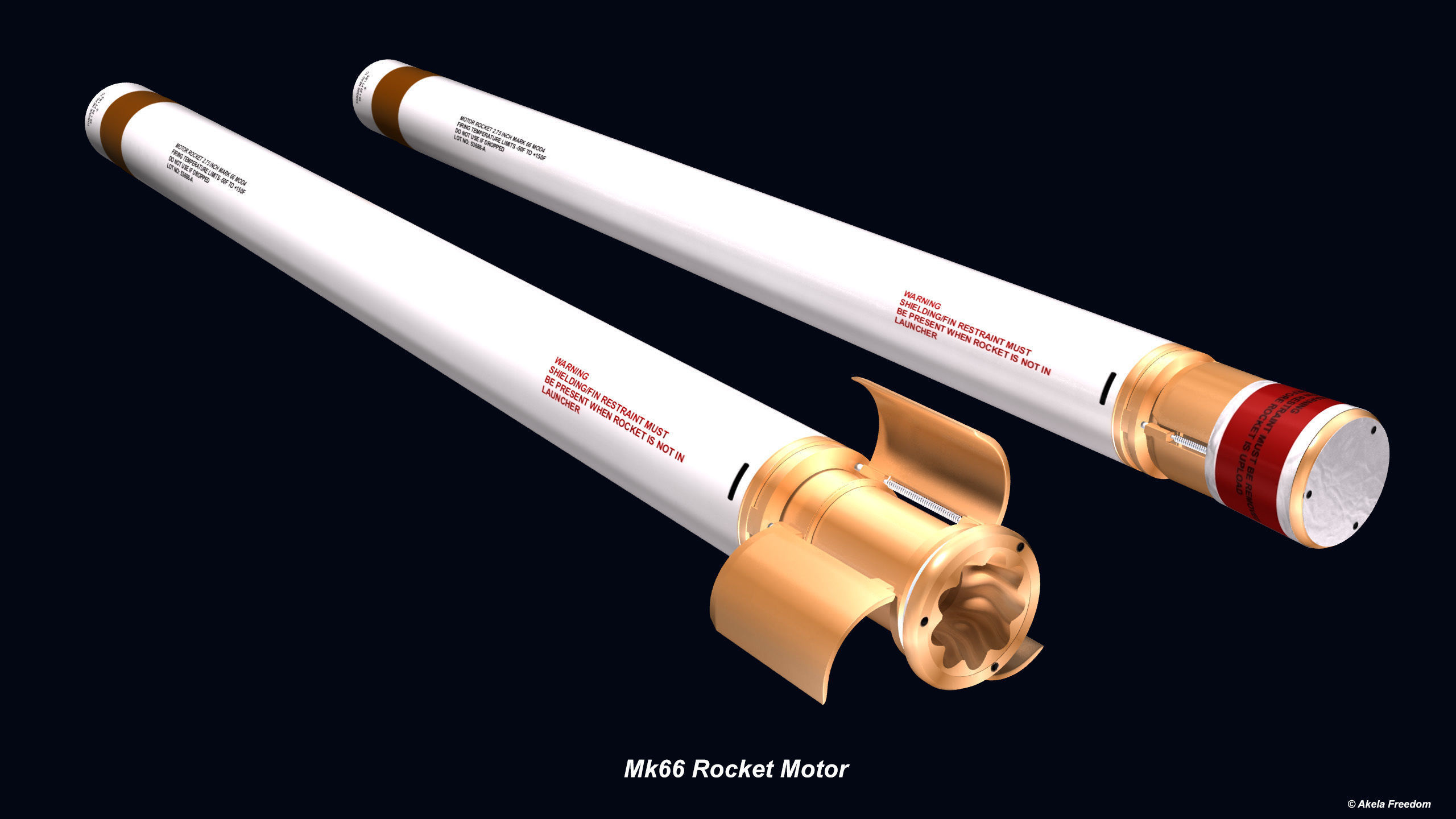

Mk66 Rocket Motor: Polys - 181417Verts - 16000

Parachute for M257 and M278: Polys - 5488Verts - 2760

WDU 4A Warhead: Polys - 31992Verts - 91022

This 3D model is presented as is, namely in those 3D formats that are indicated above. Please note that the author of this 3D model will not remodel or convert the model to any other 3D formats.Therefore, if you have any questions about the 3D model, contact the authors before purchasing the 3D model in order to avoid misunderstandings.

Presented model renders made with Mental Ray.

Animation of the 3D model was made in the 3DS Max program for review. The animation may not display correctly in other programs.

You may be interested in other models of Hydra 70 family

Hydra 70 APKWS IILink for 3D model:https://www.cgtrader.com/3d-models/military/rocketry/hydra-70-apkws-ii-v2

LWL-12-A Rocket LauncherLink for 3D model:https://www.cgtrader.com/3d-models/military/rocketry/lwl-12-a-rocket-launcher

M260 Rocket LauncherLink for 3D model:https://www.cgtrader.com/3d-models/military/rocketry/m260-rocket-launcher

M261 Rocket LauncherLink for 3D model:https://www.cgtrader.com/3d-models/military/rocketry/m261-rocket-launcher

LAU-68 (LAU-131) Rocket LaunchersLink for 3D model:https://www.cgtrader.com/3d-models/military/rocketry/lau-68-lau-131-rockert-launchers-for-hydra-70

LAU-61 (LAU-130) Rocket LaunchersLink for 3D model:https://www.cgtrader.com/3d-models/military/rocketry/lau-61-lau-130-rockert-launchers-for-hydra-70

Fletcher Rocket LauncherLink for 3D model:https://www.cgtrader.com/3d-models/military/rocketry/fletcher-rocket-launcher

LAND-LGR4 LauncherLink for 3D model:https://www.cgtrader.com/3d-models/military/rocketry/land-lgr4-launcher

Hydra 70 ContainersLink for 3D model:https://www.cgtrader.com/3d-models/military/other/hydra-70-containers

Hydra 70 Warhead Storage SystemLink for 3D model:https://www.cgtrader.com/3d-models/military/other/hydra-70-warhead-storage-system
