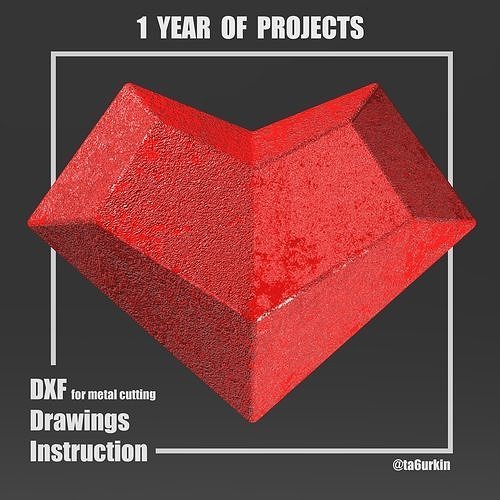

Welding Project Plans Drawings Heart 1 DXF PDF 3D model

All questions regarding the project can be asked in direct instagram (@ta6urkin) or by e-mail (ta6urkin@gmail.com)

The 3D model is not included in the project.

This is a digital product (there is no physical product) intended for the independent production of sheet metal products. You should be able to cut out parts on a CNC metal cutting machine. Also, you should be able to bend the parts on a CNC bending machine.Please note that the drawings are distributed on the condition that your finished product is a finished sculpture, the sale of welding kits based on my drawings is strictly prohibited.

According to the project, there are only three parts, the material is 1.5 mm steel, all the necessary dimensions, weight you can see on the drawings in the project images.

There is no engraving on the dxf, bending is performed along the line indicated by drop-shaped cutouts at the ends of the bending line.

The files you download are not intended for distribution (in any form, digital or printed), they are intended for you and your production. You have the right to manufacture and sell products created according to these drawings (only finished sculpture) in any quantities.

Please note that the drawings are distributed on the condition that your finished product is a finished sculpture, the sale of welding kits based on my drawings is strictly prohibited.

Thank you and good luck with your work!
