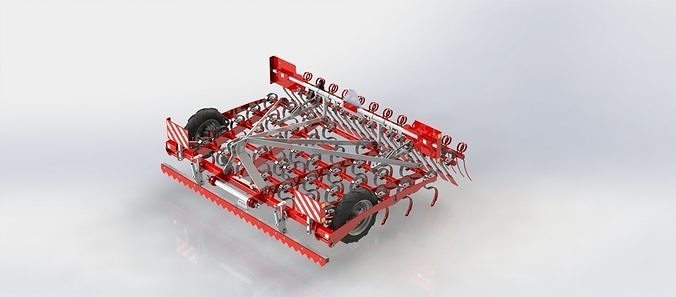

WG 0020 - Tine harrow 3m 3D model

Tine harrow WG 0020 is especially suitable for pre-sowing preparation of the soil after ploughing or stubble-breaking – levelling of the surface and preparation of the sowing bed.Mounted 5-row cultivator with low traction resistance and variable processing depth from 0 to 10 cm.High working speed up to 15 km/h.

Performs 4 operations in one pass:

1. Basic soil levelling zone. A precisely leveled soil surface allows the seedbed to be evenly loosened.
2. Loosening zone. The soil is loosened with share section to the set depth. The depth should be the same as the future sowing depth. Arrow shares allow full-area undercut and weeds control.
3. Wave-levelling zone behind a share loosening section.
4. Final soil levelling zone. The rear harrow ensures a perfect leveled surface with minimum clods for subsequent sowing.

Developed as design documentation for launch into production of this machine. According to the drawings and models, you can implement both single and serial production!Design documentation for launch into production of this machine (in formats: *.sldprt; *.slddrw; *.sldasm; *.igs; *.stp; *.stl; oll cad drawings in *.pdf; programs for plasma (laser) saved in the format: *.DXF)

This is a high-quality, engineering-grade 3D model. Designed with precision, the model includes a complete assembly along with fully detailed 2D technical drawings of each component.It is ideal for: Product design and prototyping. Educational and demonstration purposes3D visualizations or animations CNC manufacturing preparation 3D printing (STL included)

Contents of the package: Full 3D assembly. Separated parts.Detailed dimensions.Material indications.Assembly drawing with exploded view.High-quality STEP (.step), IGES (.iges), STL (.stl) files. Complete technical drawings in PDF and DWG

Technical Highlights:

Modeled in SolidWorks.All parts are real-world scaled (millimeters).Accurate real-world dimensionsHigh-detail componentsReady for fabrication or simulationDesigned for CNC manufacturing, prototyping, or educational useClean parametric structureCompatible with major CAD software.Designed with manufacturing feasibility in mind.Recommended Use:

Technical planningCustom fabricationEducational materialUsage: Suitable for engineers, farmers, and DIY enthusiasts.

Textures not included. This is a solid CAD model, not polygonal mesh.

Need your own version of this model? I can modify or create new equipment to suit your needs.
