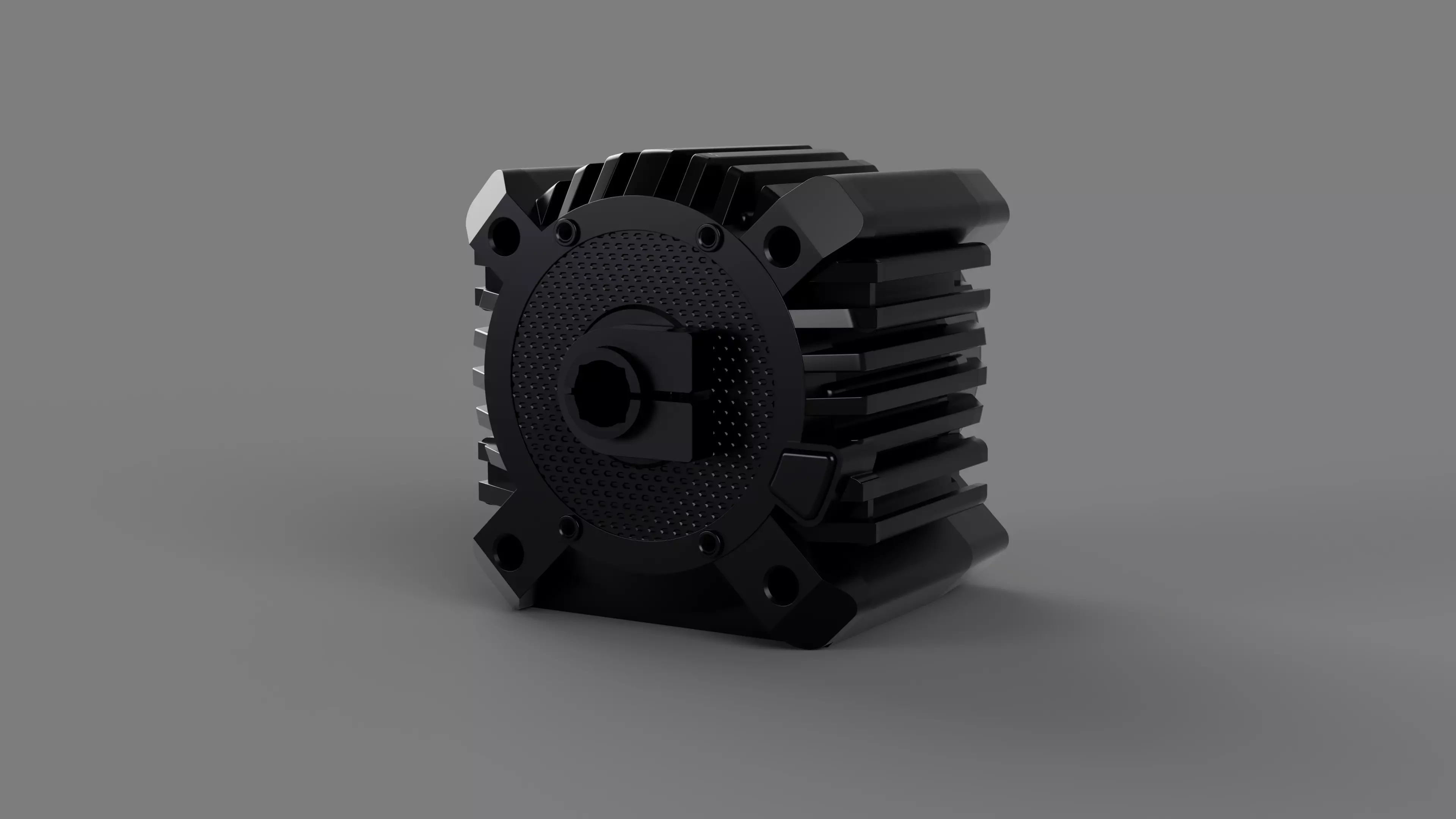

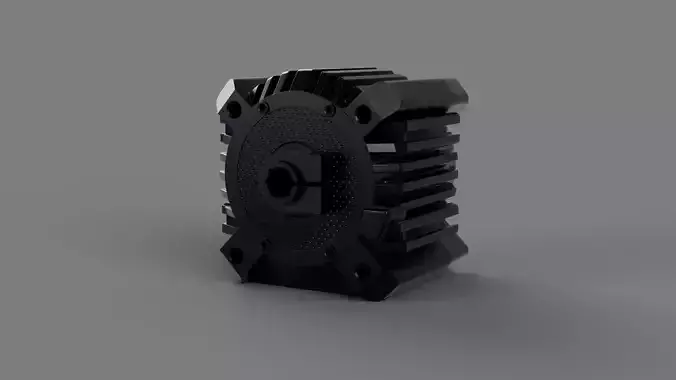

High-precision CAD reference model of the Fanatec GT DD Pro wheelbase. This model was reverse-engineered from the physical unit using calipers, focusing on dimensional accuracy for mounting and clearance purposes.
This asset is intended for sim racing DIY projects, cockpit design, custom modification development, and visualization.
Key Features & Accuracy:
- Mounting Points: The bottom and lateral T-Nut rail system and side mounting points are 100% accurate to the real unit, allowing for precise design of mounting brackets or cockpit decks.
- Ports & IO: Rear connection ports (USB-C, Power, Shifter, Pedals) and the front power button are modeled in their exact locations
- Geometry: The model includes the aluminum chassis, front and back plastic covers, and the steering shaft output.
Included Files: .STEP, .F3Z (Native Fusion 360), .OBJ, .STL (Raw exports)
Important Notes:
- Quick Release: This model includes the base-side shaft but does NOT include the QR1 or QR2 quick-release unit.
- Internals: This is a purely external geometric representation. The interior does not contain the direct drive mechanism or PCBs.
- Textures: As this is primarily a CAD engineering export, the .OBJ file may require manual material/texture assignment in your rendering software.
3D Printing / Manufacturing: Please note that this is a CAD reference model designed for visualization and sim cockpit engineering. It is NOT optimized for 3D printing (FDM/SLA) or CNC manufacturing. The included .STL files are raw exports provided for reference purposes only.
The model is de-badged (no logos) for copyright safety
