High-precision CAD reference model of the Sim Lab VARIO Vesa Adapter, designed specifically for sim racing triple screen setups. This model focuses on dimensional accuracy for cockpit planning, clearance checks, and visualization of complex monitor alignment systems.
This asset is intended for sim racing DIY projects, rig design, custom cockpit development, and engineering visualization.
Key Features & Accuracy:
- Adjustment Mechanism: Detailed modeling of the fine-tuning mechanism used for aligning monitors (X, Y, and Z-axis adjustments), crucial for visualizing how to eliminate bezel gaps and monitor sag in a triple screen array.
- Mounting Standards: Accurate mounting holes corresponding to standard VESA patterns (75x75 / 100x100) and standard aluminum extrusion profile attachment points.

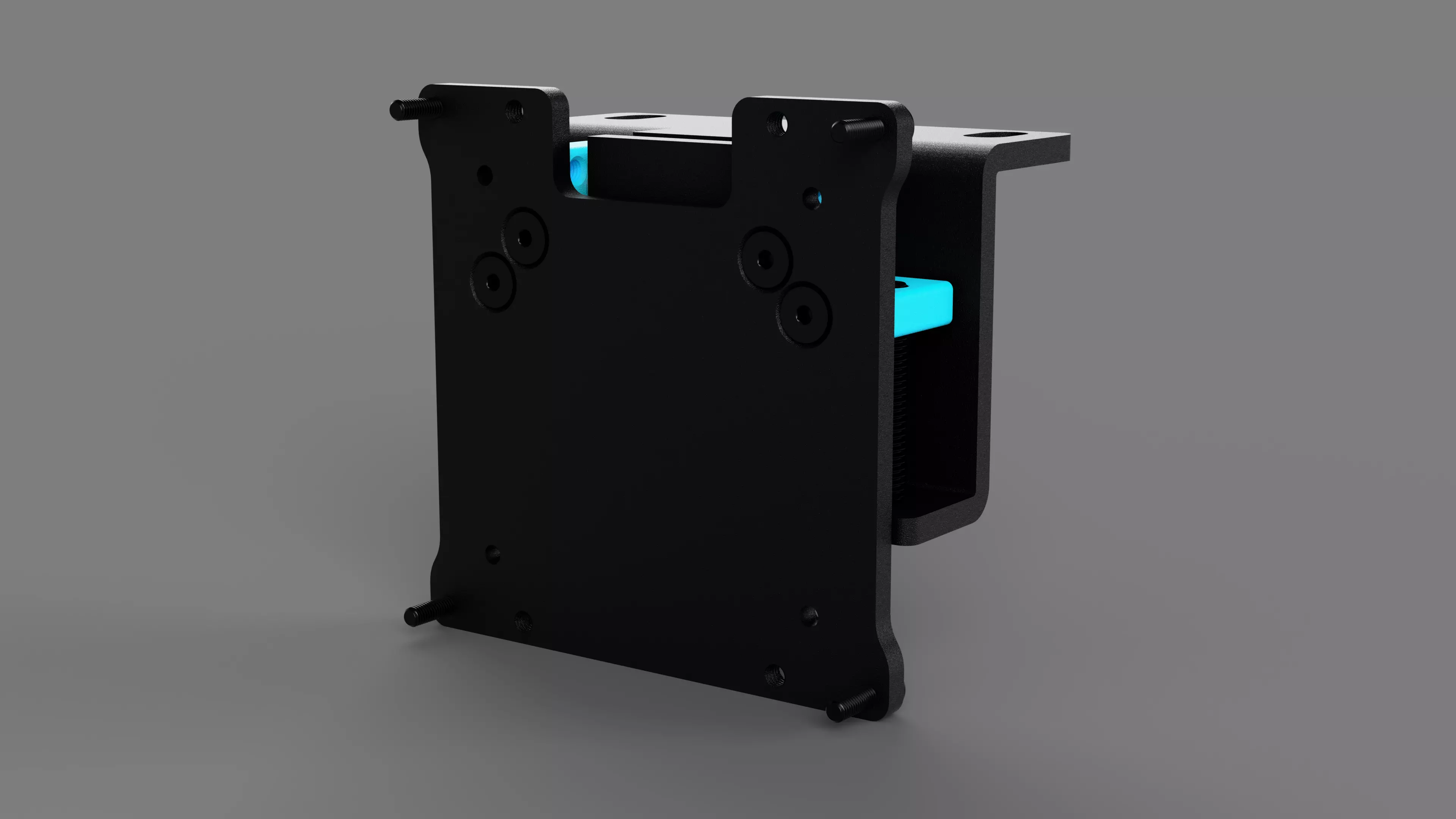

- Geometry: The model represents the full assembly, including the VESA plate, the adjustment bracket, and the profile mount block.
Included Files: .STEP, .F3Z (Native Fusion 360)
Important Notes:
- Hardware: This is a geometric representation of the assembly. It does not include physical screws or nuts in the BOM, but the holes are dimensioned for standard M-series bolts used in sim racing hardware.
- Textures: As this is primarily a CAD engineering export, the .OBJ file may require manual material/texture assignment in your rendering software.
- Copyright Safety: The model is a generic representation of the mechanical concept for copyright safety.
Manufacturing Warning:Please note that this is a CAD reference model designed for visualization and sim cockpit engineering. It is NOT optimized for manufacturing.
