High-quality, professional 2D AutoCAD drawing of a River Crossing Pipeline using the Micro-Tunneling method. This structural and infrastructural engineering design is perfect for civil engineers, consultants, and contractors looking for a standard reference layout.

Project Details & Specifications:

• Total Length: 460 Meters
• Crossing Method: Micro-Tunneling / Trenchless Technology
• Pipe Diameter (Carrier Pipe): Ø800mm (OD)
• Steel Jacking Pipe: Ø1200mm (ID)
• Annular Grout Thickness: 100mm

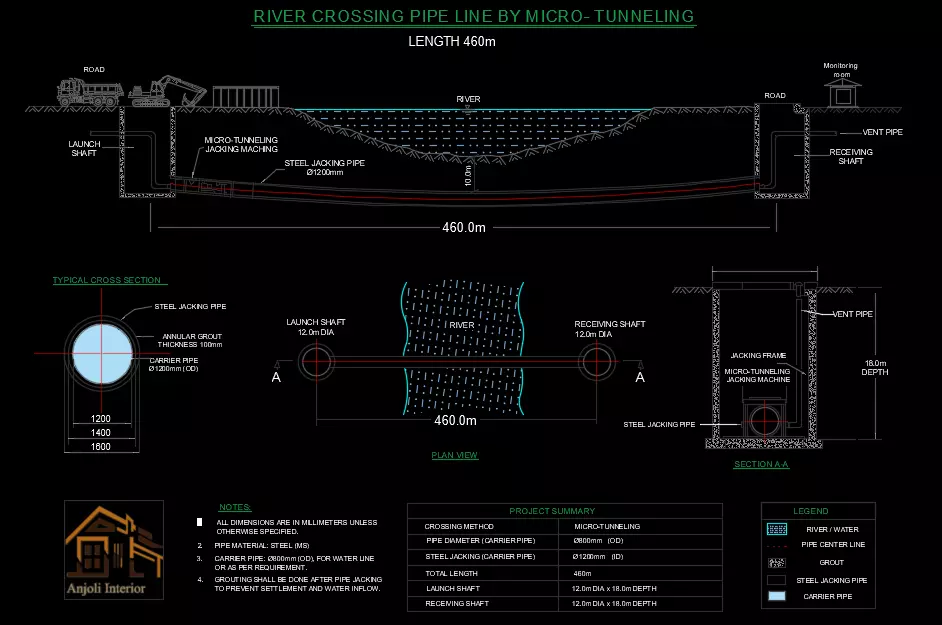

What's Included in the Drawing:

1. Main Longitudinal Section (Profile View of the 460m River Crossing)
2. Typical Cross-Section Details of the Carrier & Jacking Pipe
3. Plan View of the Launch Shaft and Receiving Shaft (12.0m Diameter)
4. Section A-A: Detailed Jacking Frame & Micro-Tunneling Jacking Machine Setup (18.0m Depth)
5. Project Summary Table & Technical Notes
6. Clear Legend for Rivers, Pipe Center Lines, and Grout

File Formats Available in the Main Package:

• .DWG (Native AutoCAD Format)
• .DXF (Drawing Exchange Format for universal compatibility)

All dimensions and details are drawn to professional engineering standards. Ready to use and easily customizable for your infrastructure projects.
