Professional 2D AutoCAD typical details of a Washout Pipe Line system for water supply networks and civil infrastructure projects. This DWG/DXF asset includes two standard installation types/methods for discharging washout water.
What's Included in This Drawing Set:

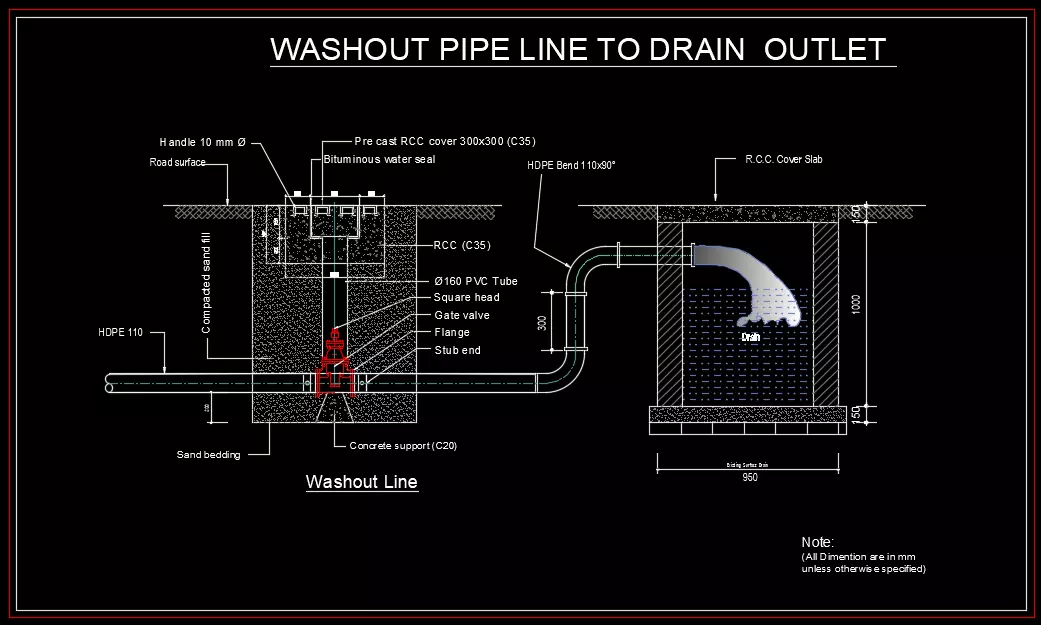

- Washout Pipe Line to Drain Outlet: Complete section layout showing 110mm HDPE pipe, gate valve assembly with PVC tube casing, concrete chamber, and final discharge into a standard 950mm wide storm drain.
- Washout Pipe Line to Ditch Outlet (Type A - By Gravity): Standard detail for open channel/ditch discharge featuring slope protection line, granular material fill, and gravity-fed outlet setup.
- Complete Technical Labeling: Clear detailing of components including Precast RCC covers, Bituminous water seal, Square head operations, Flanges, Stub ends, and Concrete supports (C20/C35).
All dimensions are clearly marked in millimeters (mm). Perfect for municipal pipeline designers, MEP consultants, and CAD technicians looking for ready-to-insert typical drawings.
File Formats: .DWG, .DXF
