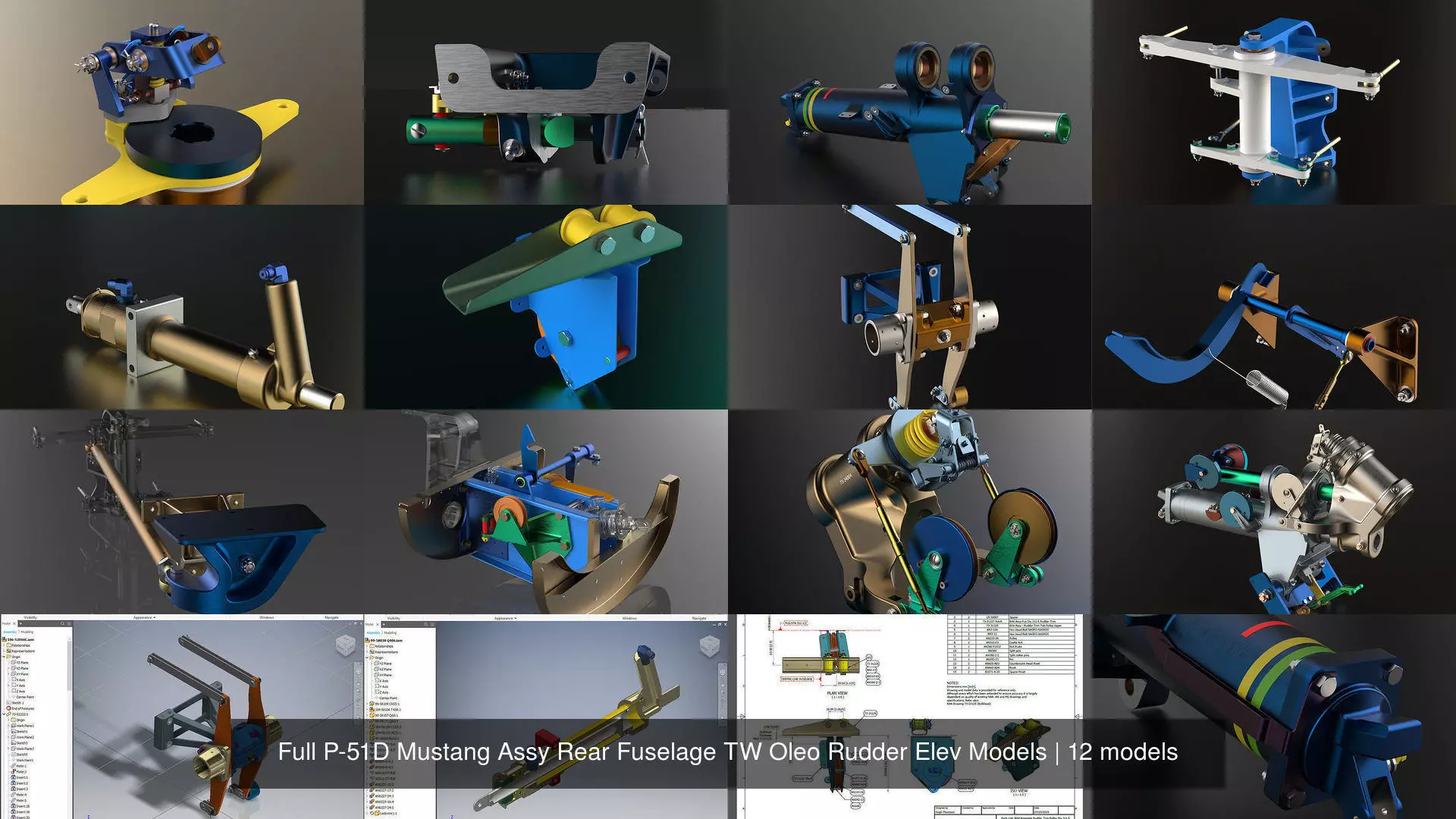

Full P-51D Mustang Assy Rear Fuselage TW Oleo Rudder Elev Models 3D Model Collection
3D Model | .dwg | .stl | .stp | .pdf | .x_t | .x_b |
|---|---|---|---|---|---|---|
From our P-51 Mustang project.
Developed over a period of 2 years is this selection of sub-assembly 3D Cad models. Formats: DWG, STL, STP and Parasolid X-B (Solidworks, Solidedge format). All files are transferable to all 3d cad systems. Also included are Parts Lists for each assembly with accurate dimensional positioning information.
The P-51 Mustang Project: Our primary purpose is the review of methods applicable to the design and construction of historical aircraft. The P-51 Mustang has been one of our primary subjects for research in criteria of conic design. Inherent to this research we have developed a number of mechanical assemblies in CAD to ascertain positional relationships and study the construction methods.
The 3D CAD models are professionally developed; some of which are now being made available publicly for the first time. The Parts list drawings include important dimensional information to accurately locate components.
3D Collection formats
Format limitations
- Stereolithography(.stl) 12/12
- STEP(.stp) 12/12
- Parasolid(.x_t) 12/12
- Parasolid(.x_b) 12/12
- PDF(.pdf) 12/12
- AutoCAD(.dwg) 11/12
3D Collection details
- Publish date2019-11-02
- Collection ID#2148470
- Animated 0/12
- Rigged 0/12
- VR / AR / Low-poly 0/12
- PBR 0/12
- Ready for 3D Printing
