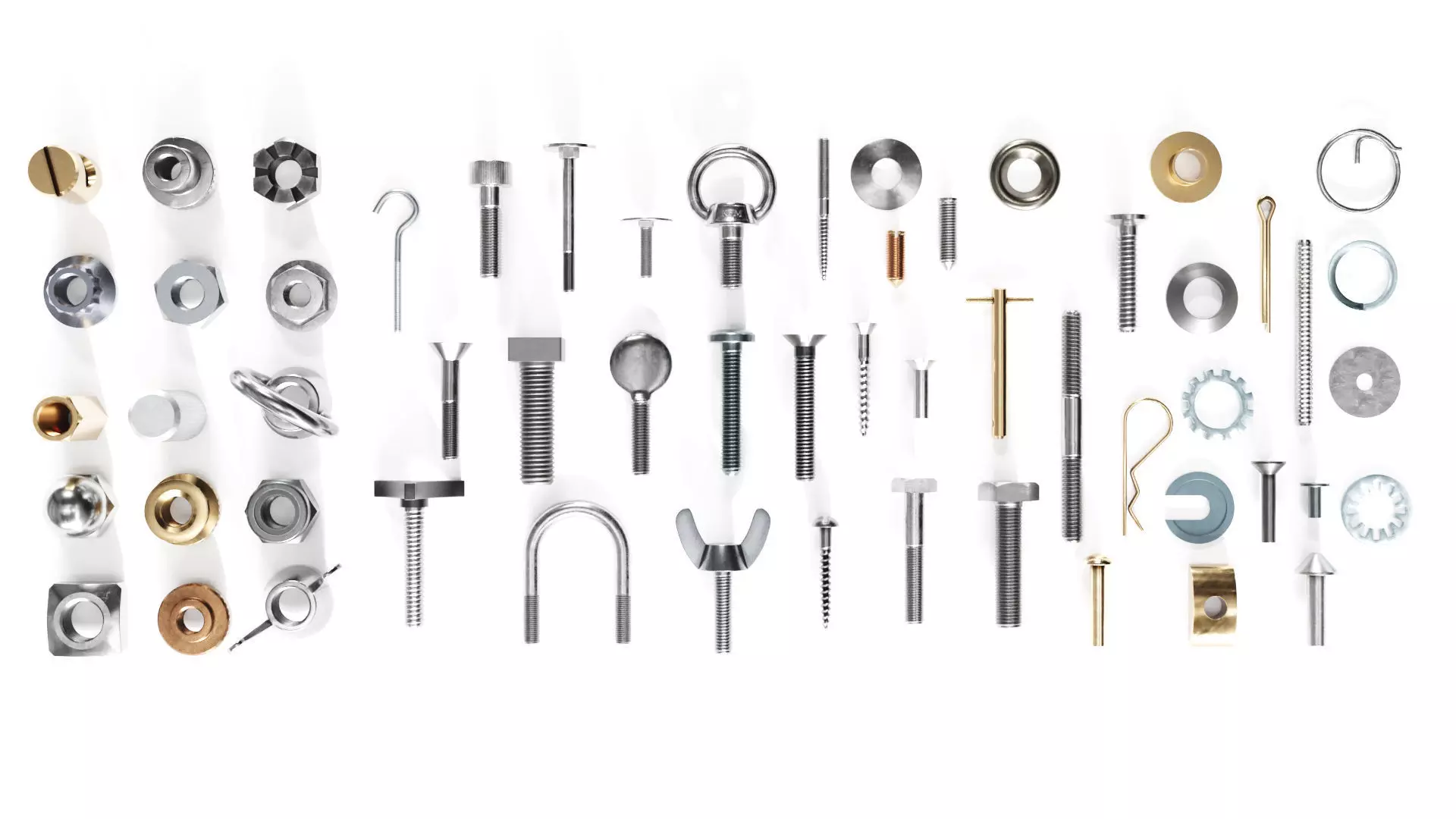

Large collection of fasteners 3D model

The collection of 15 nuts, 21 bolts/screws and 21 rivets/pins/studs/washers was made in Blender 3.1

Render 1920x1080 px jpeg (Cycles)

Transformations has been reset and model is placed at scene origin [0, 0, 0 XYZ].

Textures PBR metal-rough 2048x2048 png

• base color
• roughness
• heigh
• normal
• metallic

Models are not triangulated and consist mainly of quadrilaterals (the number of triangles is minimized, but due to the geometry of the thread, it is not possible to completely abandon them).

Each model has a ready-made UV-map without overlap

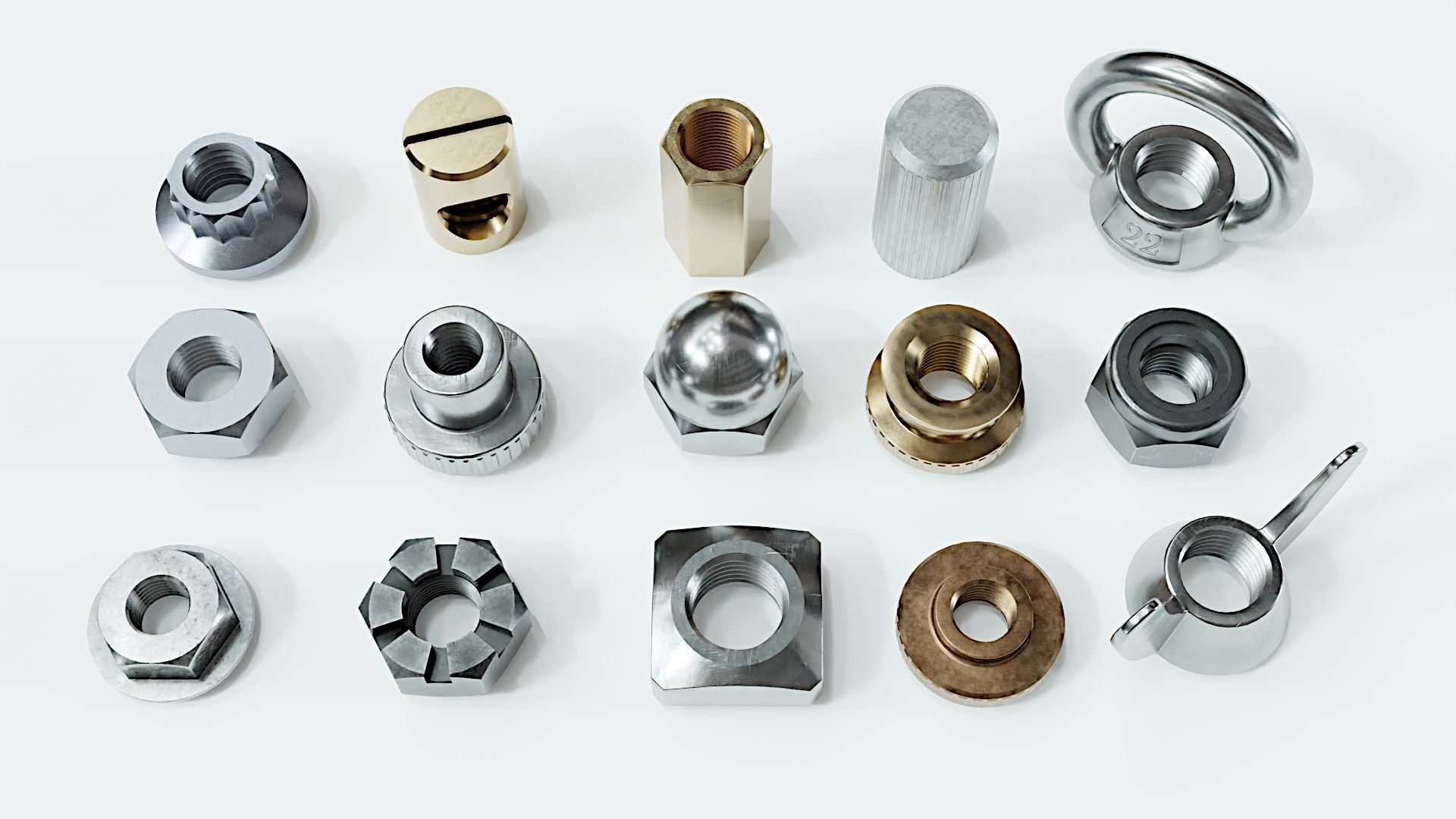

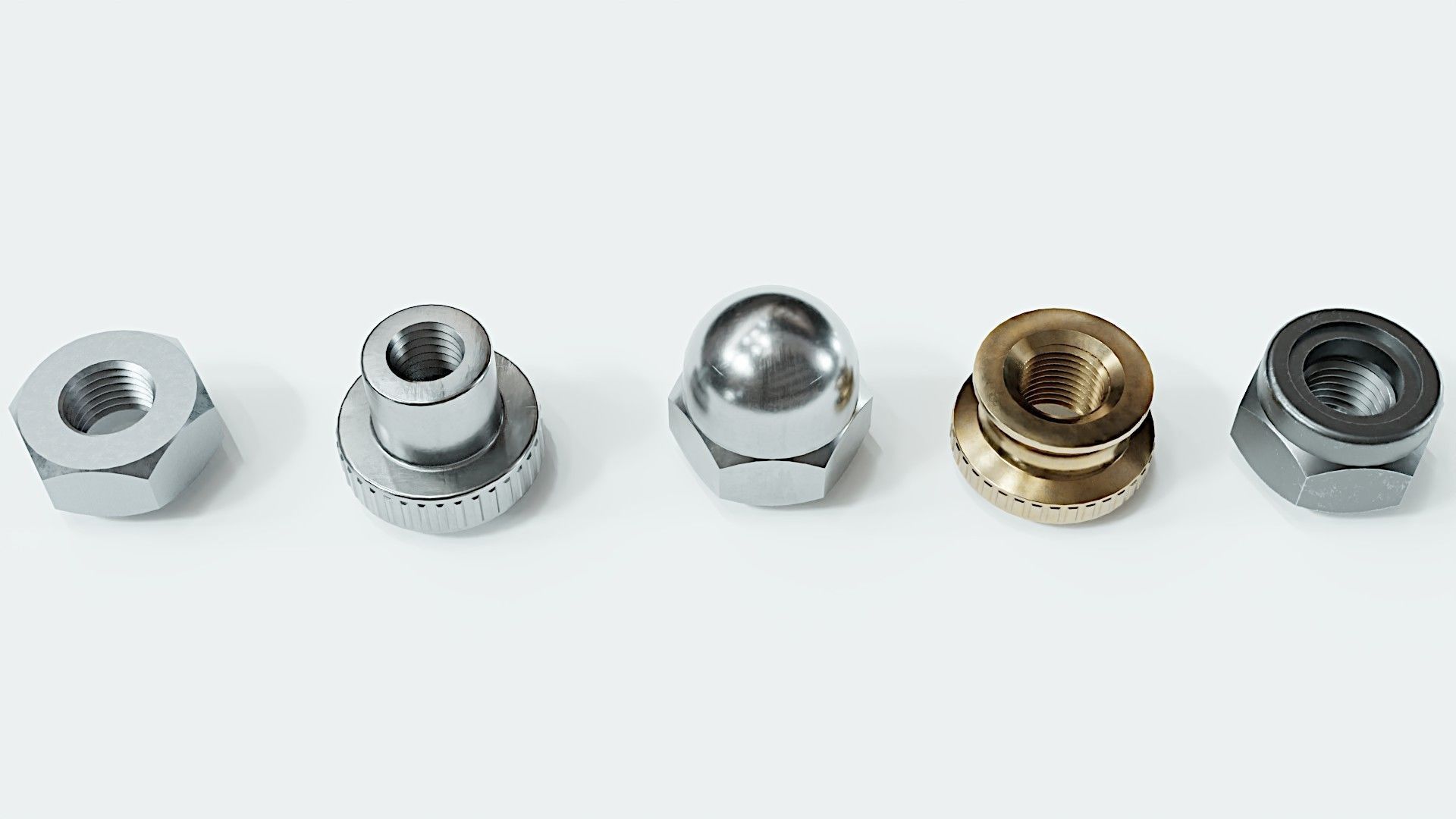

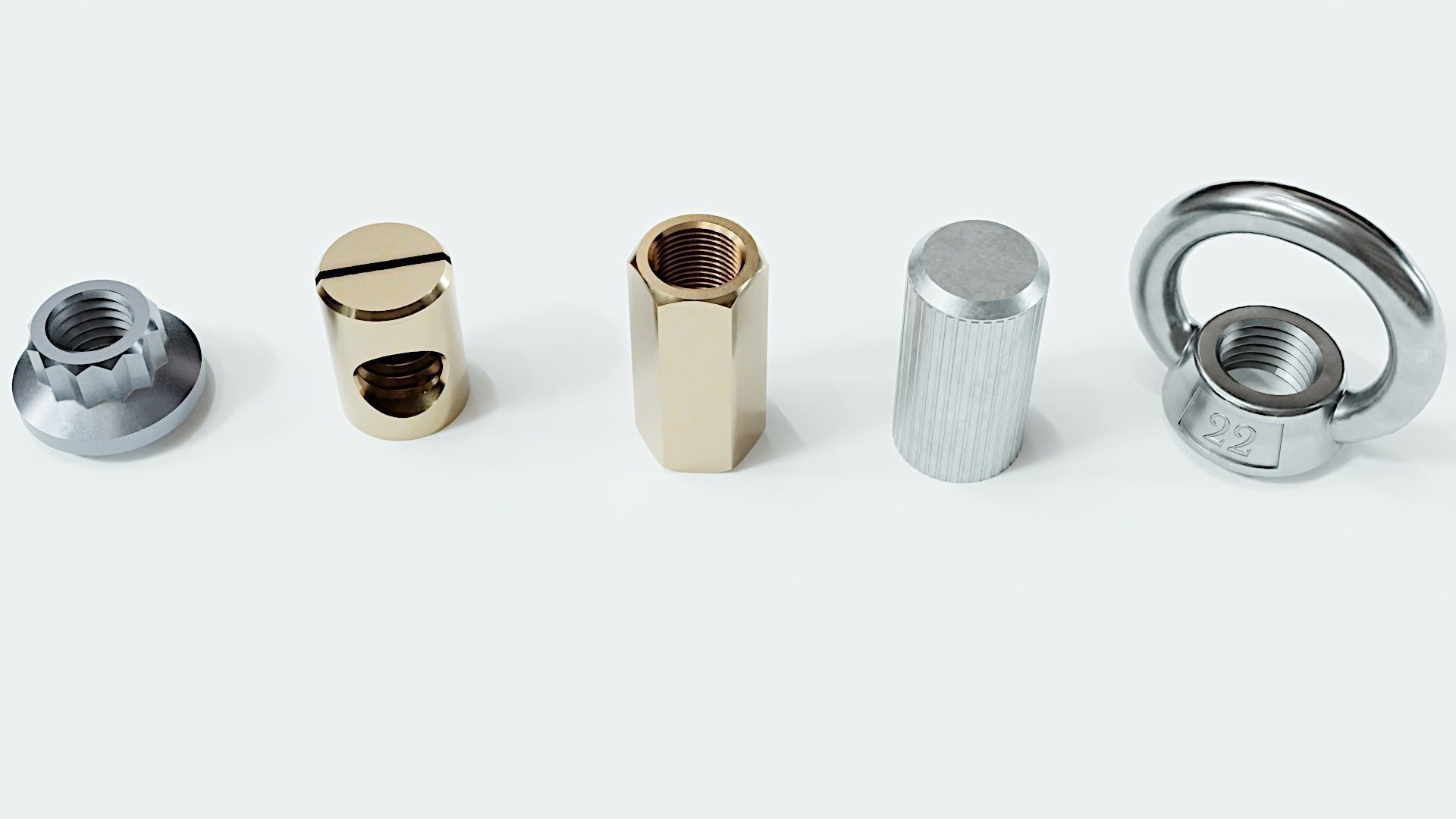

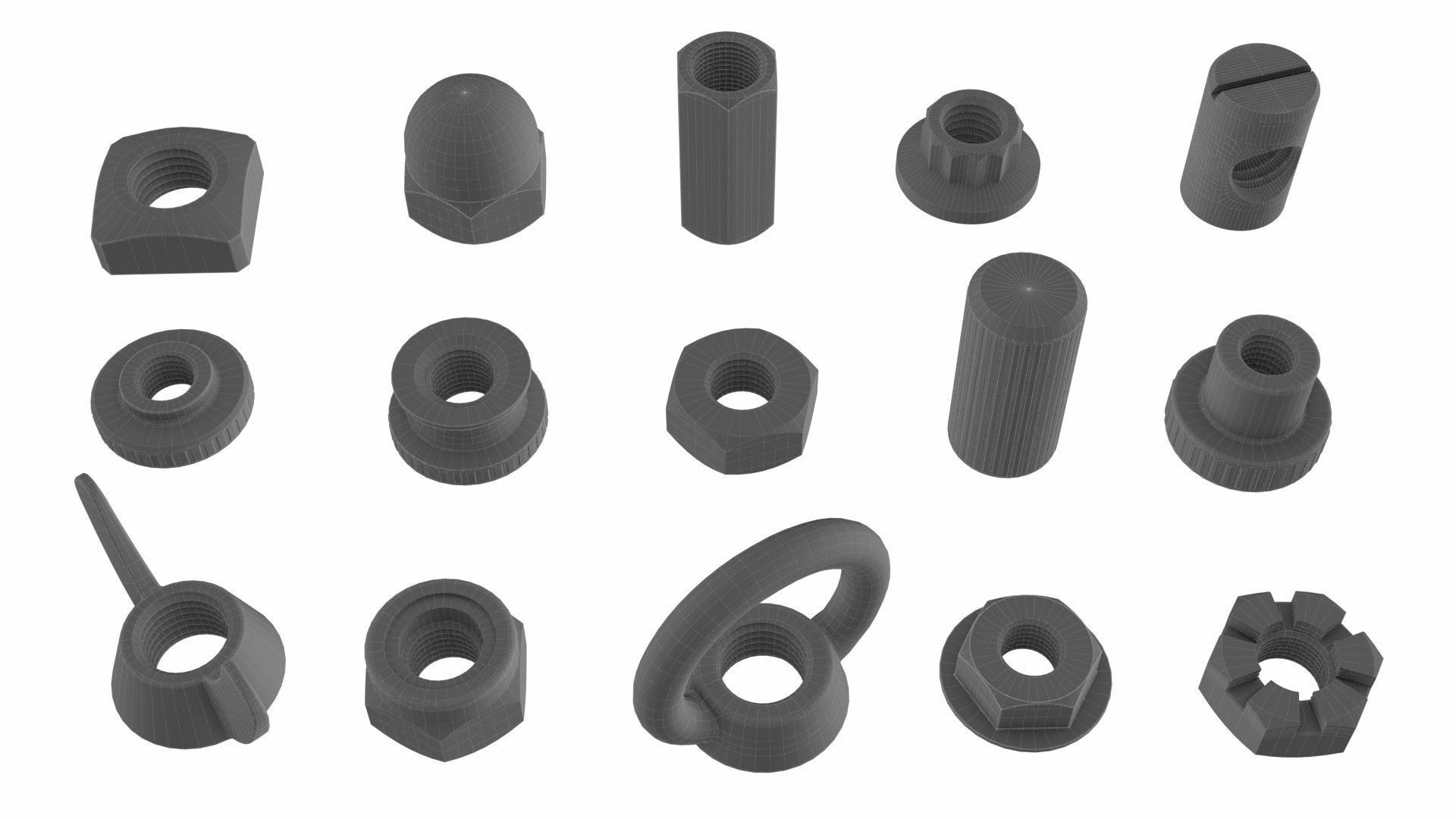

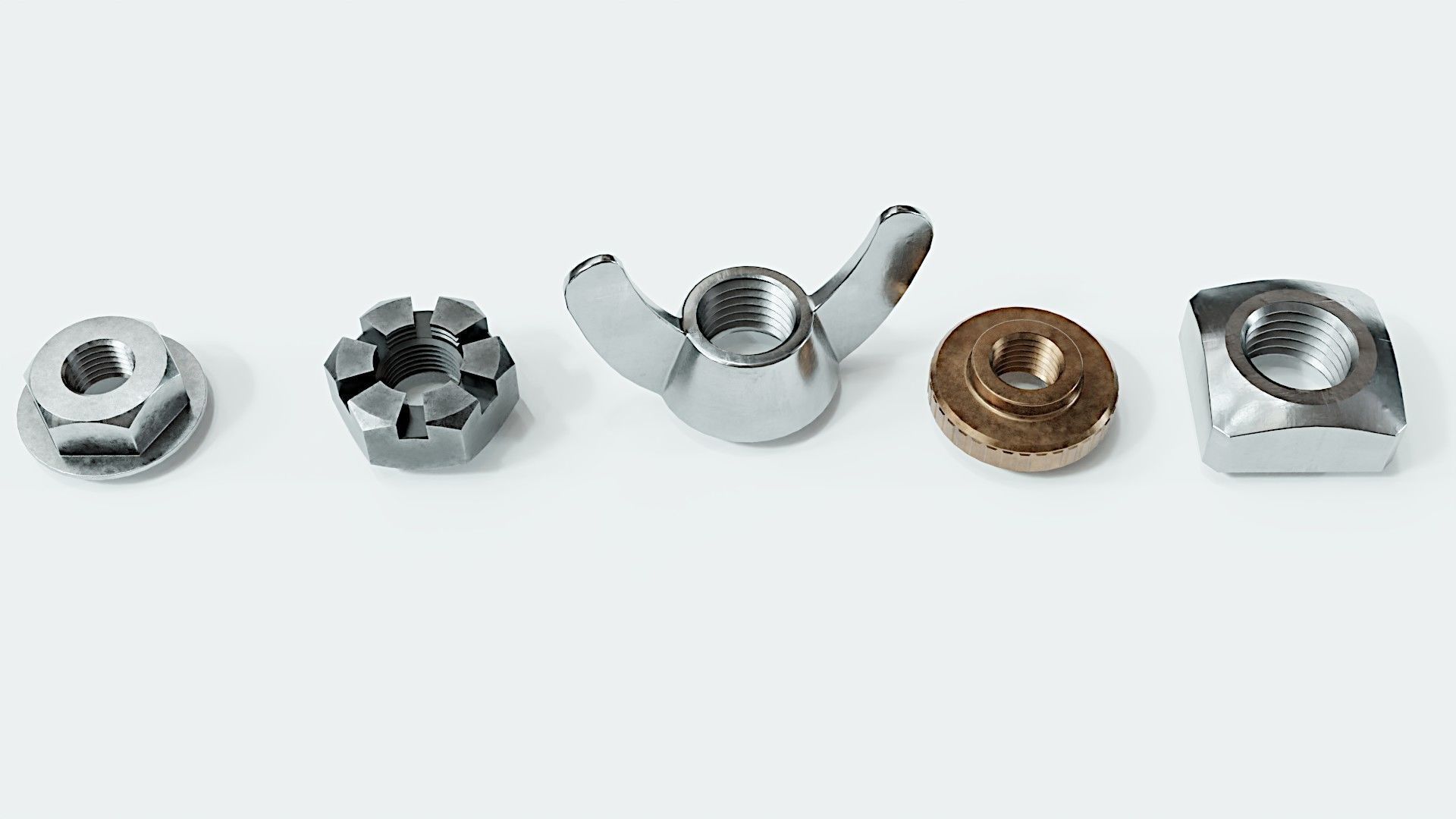

Nuts (sizes and number of polygons/vertices)

• 12 points nut (diameter 0.25 m, height 0.125 m / 2586 polygons and 2582 vertices)
• barrel nut (diameter 0.175 m, height 0.27 m / 3054 polygons and 3014 vertices)
• cap nut (diameter 0.25 m, height 0.23 m / 2784 polygons and 2734 vertices)
• coupling nut (diameter 0.160 m, height 0.33 m / 5540 polygons and 5518 vertices)
• flange nut (diameter 0.25 m, height 0.08 m / 2282 polygons and 2272 vertices)
• hexagonal nut (diameter 0.25 m, height 0.1 m / 1368 polygons and 1352 vertices)
• knurled nut (diameter 0.25 m, height 0,2 m / 3278 polygons and 3275 vertices)
• knurled nut type 2 (diameter 0.175 m, height 0.35 m / 3026 polygons and 2988 vertices)
• knurled thumb nut (diameter 0.25 m, height 0.132 m / 2810 polygons and 2806 vertices)
• lock nut (diameter 0.25 m, height 0.14 m / 1838 polygons and 1823 vertices)
• ring nut (diameter 0.25 m, height 0.376 m / 2510 polygons and 2502 vertices)
• slotted nut (diameter 0.25 m, height 0.1 m / 1768 polygons and 1763 vertices)
• square nut (length/width 0.25 m, height 0.1 m / 1594 polygons and 1590 vertices)
• thumb nut (diameter 0.25 m, height 0.08 m / 1982 polygons and 1979 vertices)
• wing nut (diameter 0.3 m, height 0.273 m / 2122 polygons and 2118 vertices)

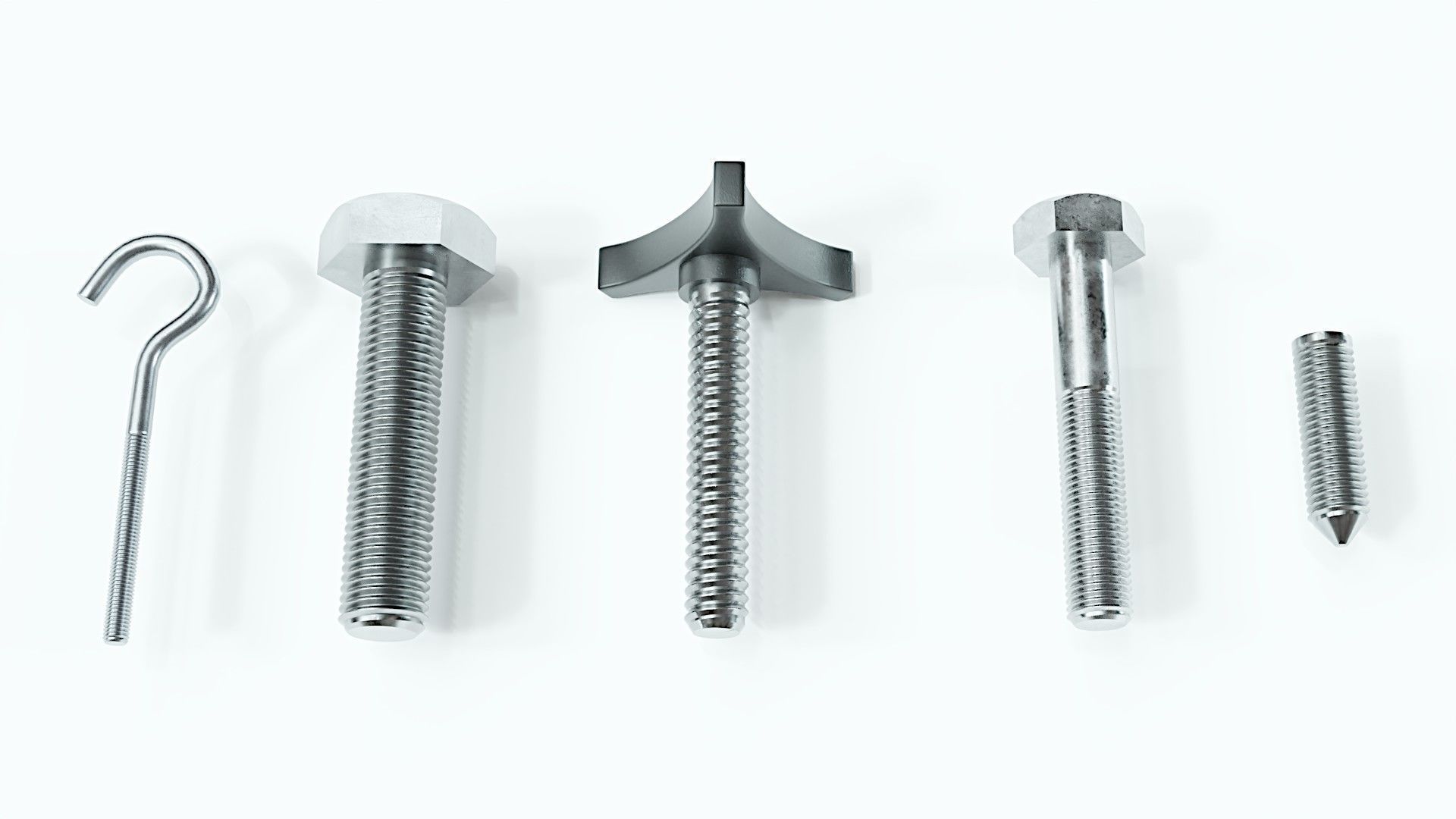

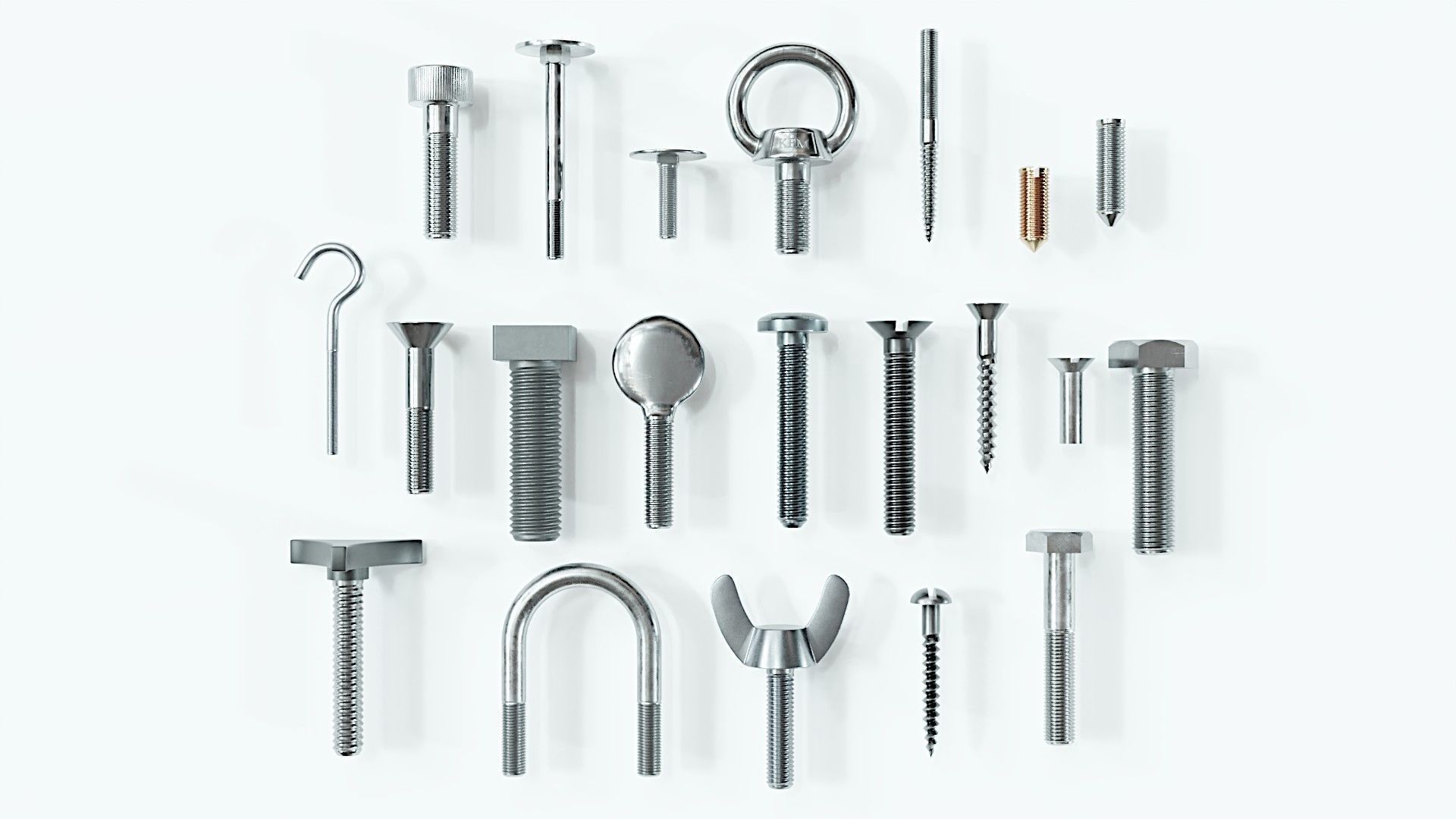

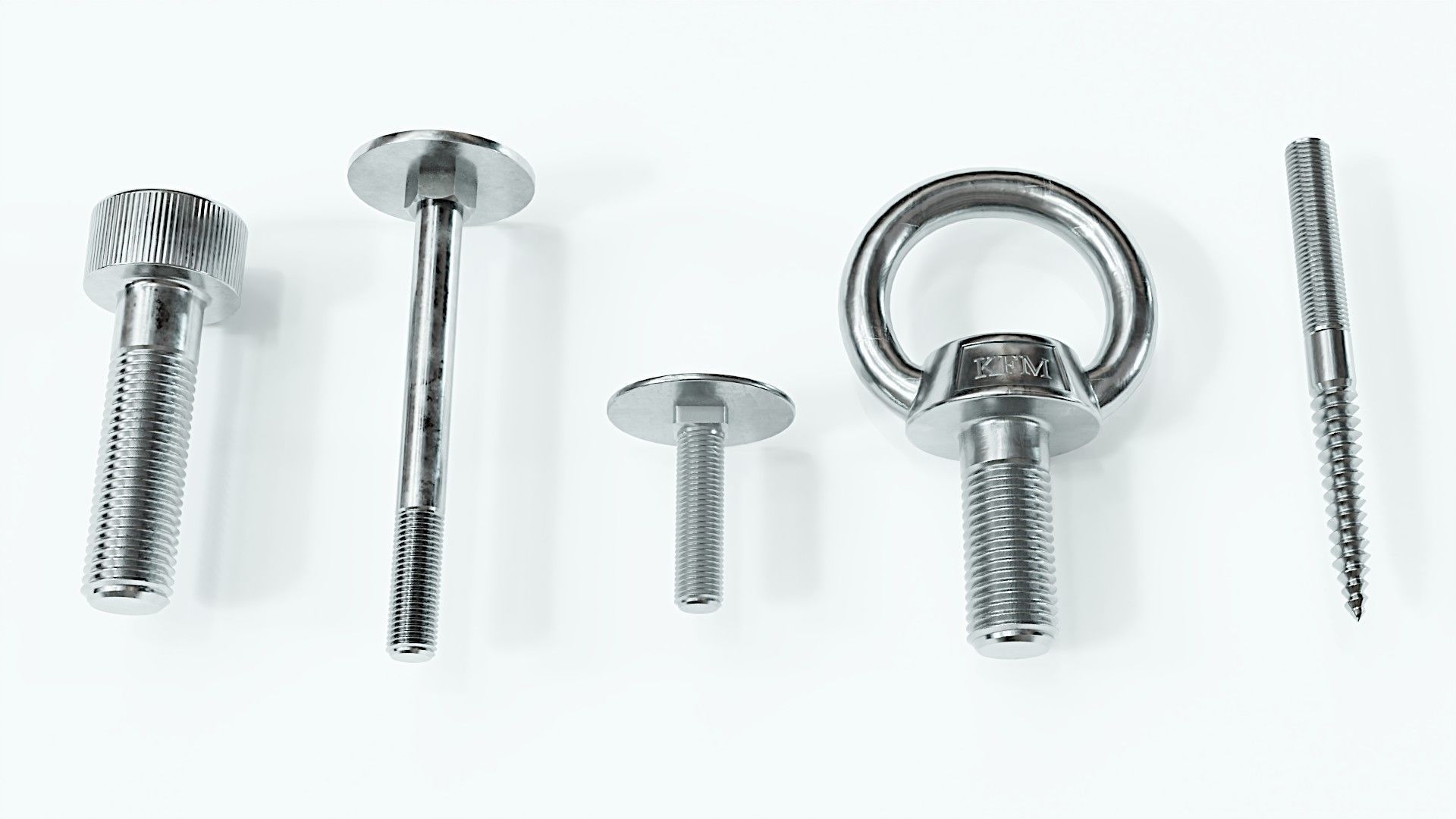

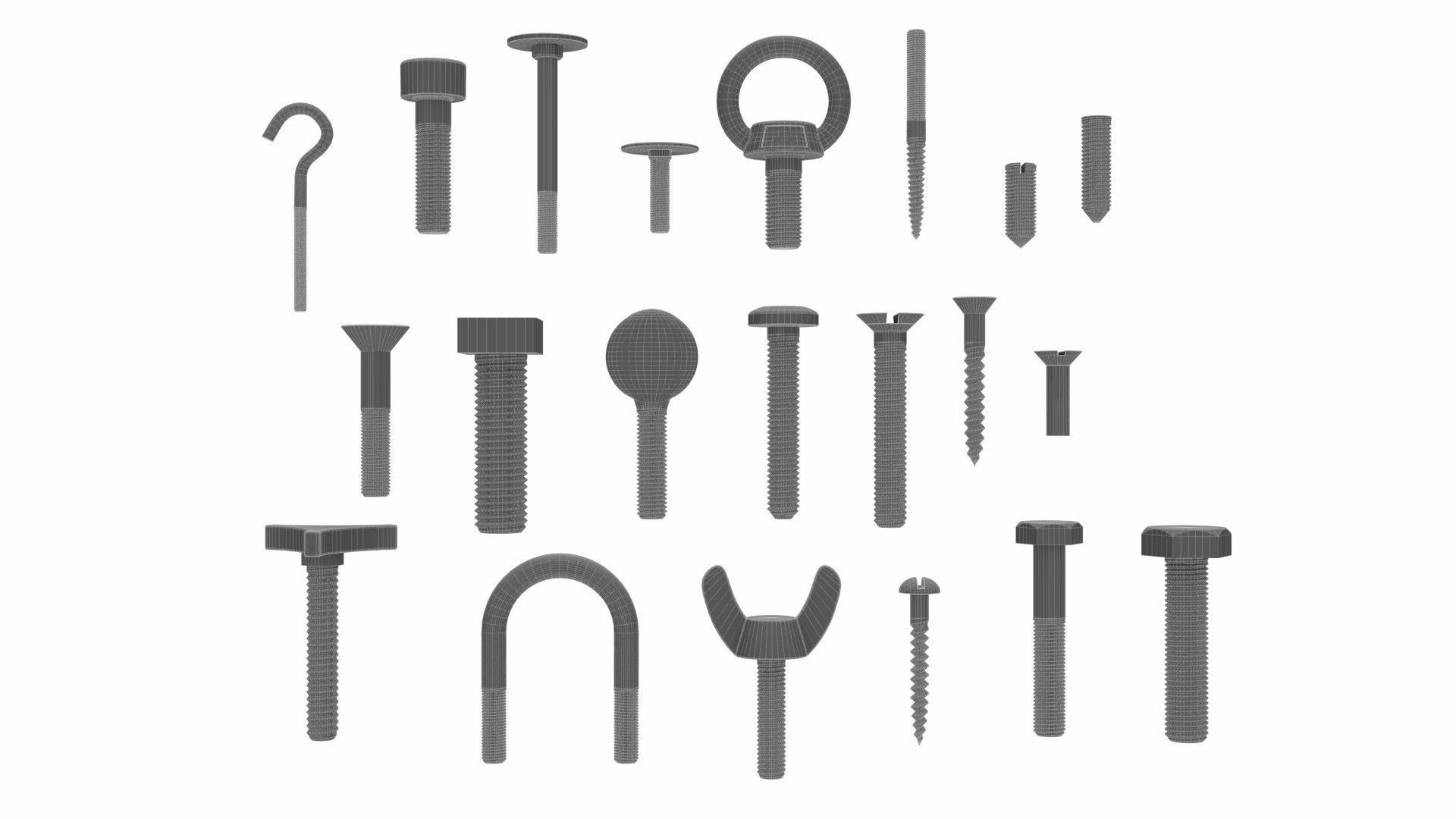

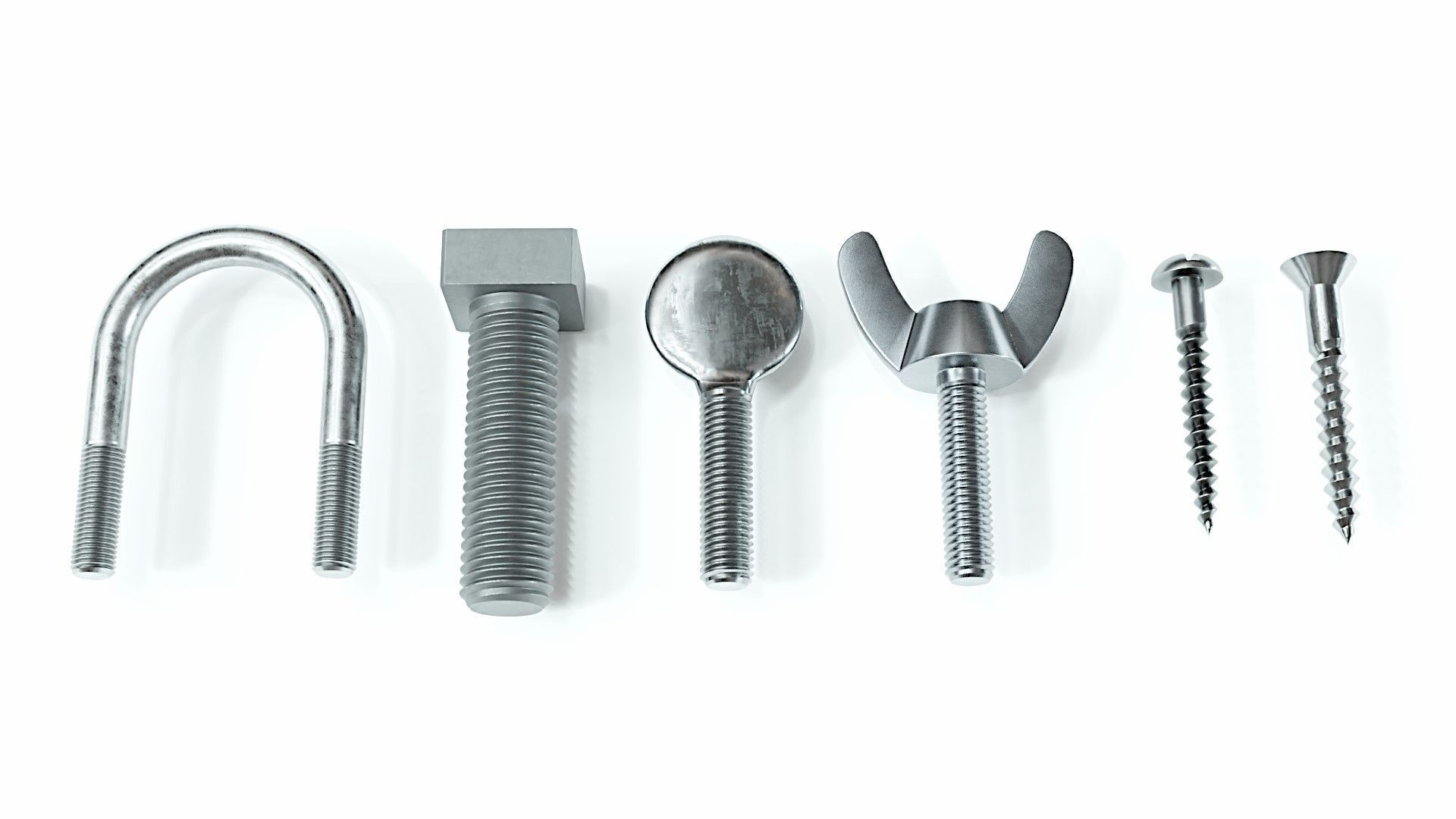

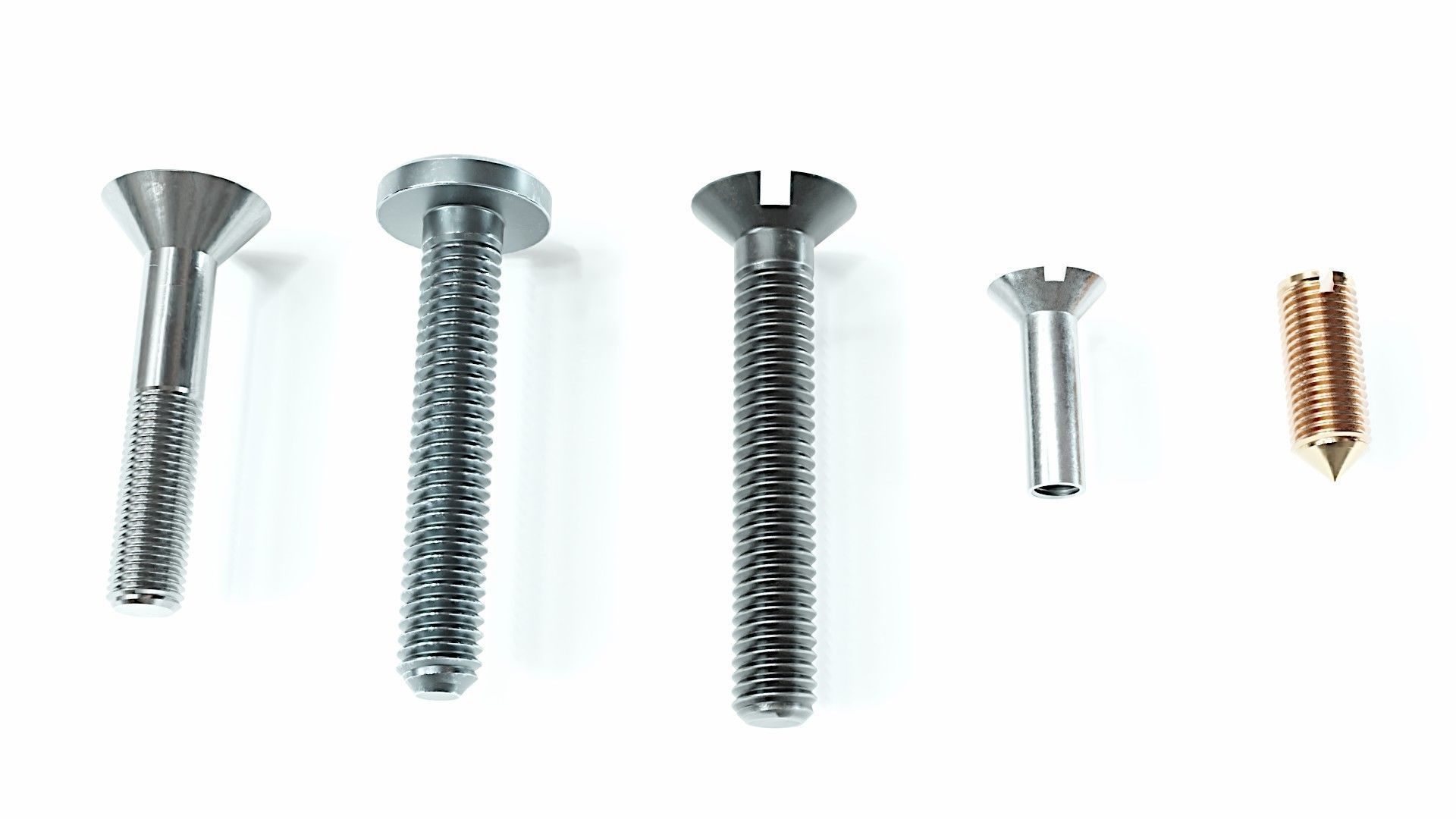

Bolts and screws (sizes and number of polygons/vertices)

• allen bolt (diameter 0.153 m, height 0.4 m / 4898 polygons and 4860 vertices)
• elevator bolt 1 (diameter 0.188 m, height 0.5 m / 4367 polygons and 4341 vertices)
• elevator bolt 2 (diameter 0.183 m, height 0.2 m / 5475 polygons and 5447 vertices)
• eye bolt (diameter 0.316 m, height 0.5 m / 4418 polygons and 4375 vertices)
• hanger bolt (diameter 0.045 m, height 0.5 m / 8497 polygons and 8459 vertices)
• hex bolt 1 (diameter 0.212 m, height 0.5 m / 5663 polygons and 5637 vertices)
• hex bolt 2 (diameter 0.157 m, height 0.5 m / 4988 polygons and 4980 vertices)
• hexagonal socket set screw (diameter 0.07 m, height 0.25 m / 3800 polygons and 3756 vertices)
• hook bolt (diameter 0.169 m, height 0.5 m / 9110 polygons and 9072 vertices)
• knob bolt (diameter 0.314 m, height 0.5 m / 4993 polygons and 4992 vertices)
• mashine screw 1 (diameter 0.166 m, height 0.5 m / 5591 polygons and 5559 vertices)
• mashine screw 2 (diameter 0.16 m, height 0.5 m / 5841 polygons and 5837 vertices)
• sex bolt (diameter 0.113 m, height 0.2 m / 5404 polygons and 5397 vertices)
• slotted set screw (diameter 0.07 m, height 0.2 m / 3129 polygons and 3108 vertices)
• socket screw (diameter 0.159 m, height 0.4 m / 4347 polygons and 4322 vertices)
• square head bolt (diameter 0.18 m, height 0.5 m / 4070 polygons and 4032 vertices)
• thumb screw (diameter 0.22 m, height 0.5 m / 4719 polygons and 4681 vertices)
• u bolt (width 0.376 m, height 0.5 m / 8572 polygons and 8530 vertices)
• wing bolt (diameter 0.33 m, height 0.5 m / 5002 polygons and 4964 vertices)
• wood screw 1 (diameter 0.104 m, height 0.4 m / 2305 polygons and 2256 vertices)
• wood screw 2 (diameter 0.1 m, height 0.4 m / 3089 polygons and 3050 vertices)

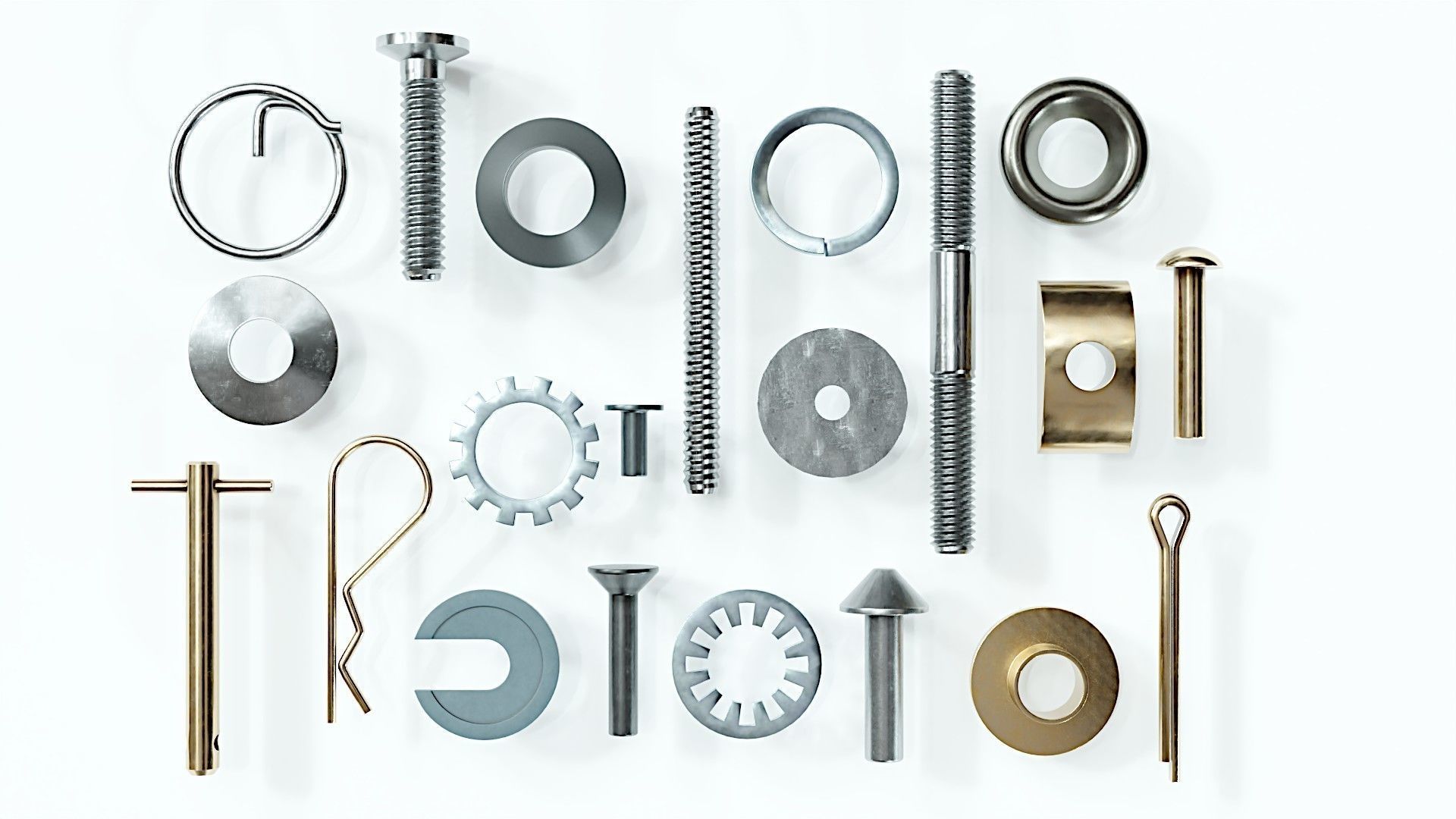

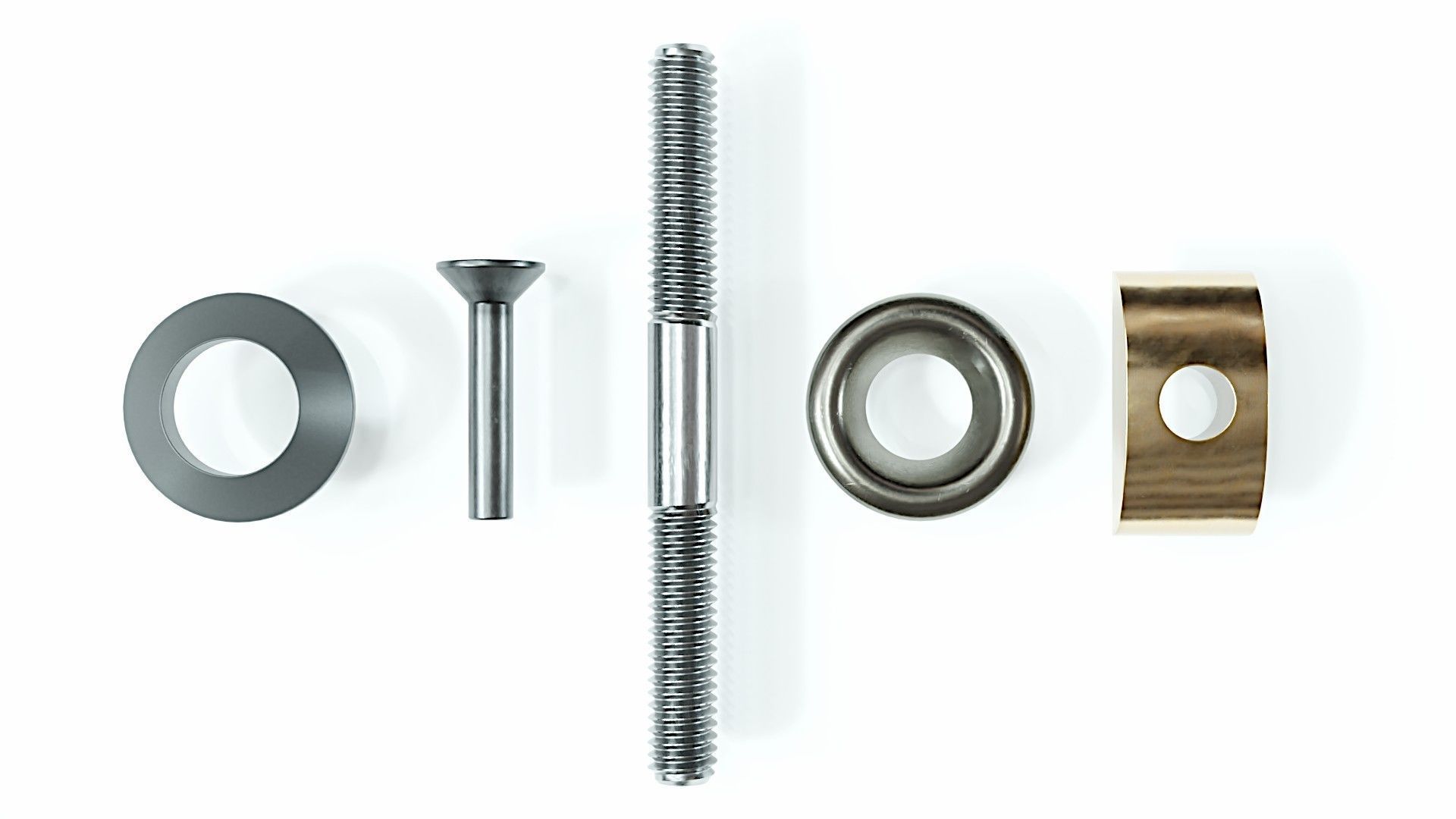

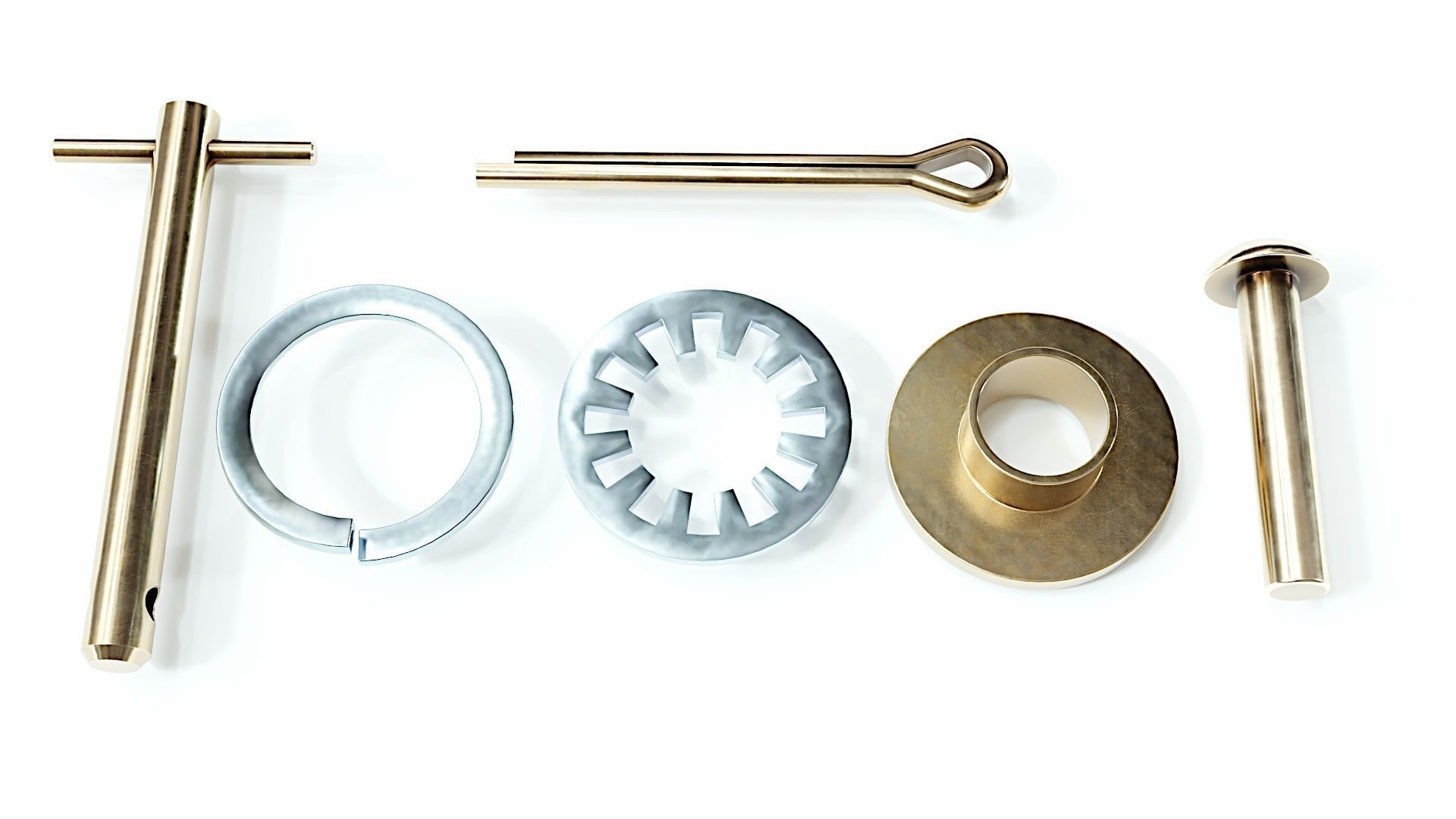

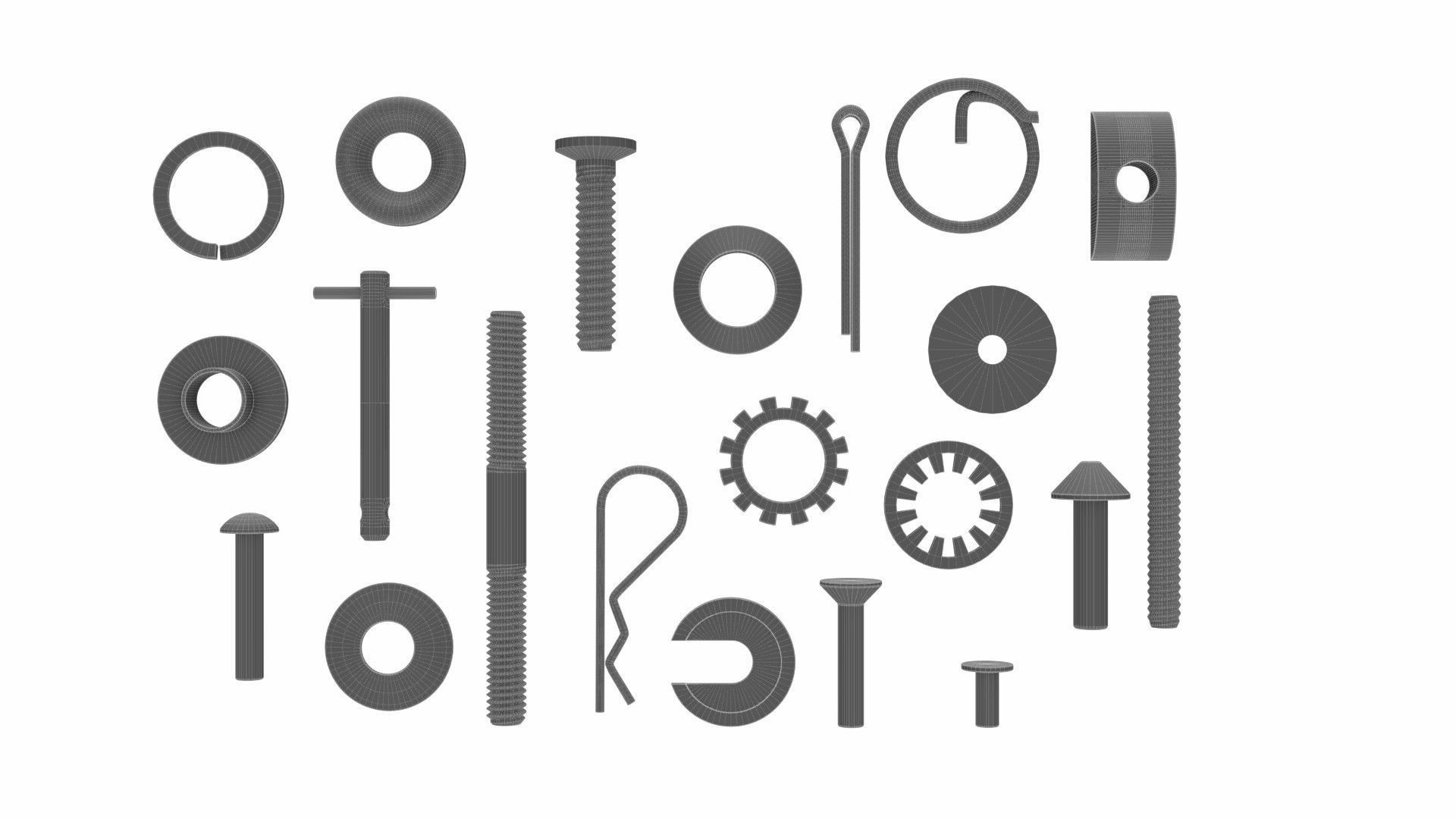

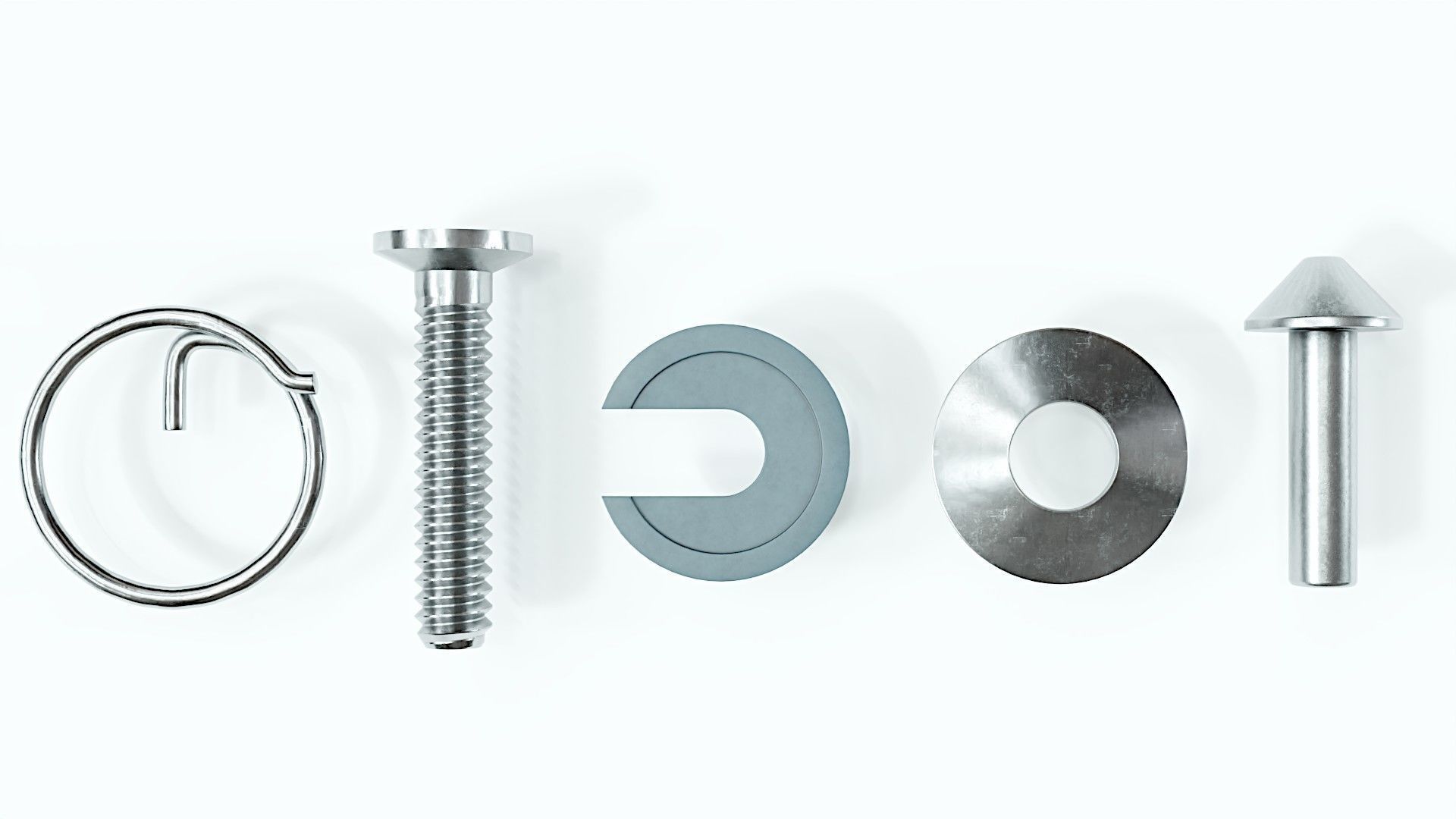

Rivets, pins, studs and washers (sizes and number of polygons/vertices)

• c-washer (diameter 0.25 m, height 0.016 m / 4122 polygons and 4124 vertices)
• circle cotter pin (diameter 0.3 m, height 0.05 m / 2128 polygons and 2114 vertices)
• clinch stud (diameter 0.155 m, height 0.4 m / 3170 polygons and 3132 vertices)
• conical head rivet (diameter 0.149 m, height 0.32 m / 832 polygons and 802 vertices)
• conical washer (diameter 0.25 m, height 0.026 m / 2560 polygons and 2560 vertices)
• countersunk head rivet (diameter 0.119 m, height 0.28 m / 672 polygons and 642 vertices)
• countersunk washer (diameter 0.25 m, height 0.04 m / 2496 polygons and 2496 vertices)
• crescent washer (width 0.15 m, legnth 0.29 m height 0.08 m / 8448 polygons and 8440 vertices)
• dome washer (diameter 0.25 m, height 0.05 m / 2048 polygons and 2048 vertices)
• double end stud (diameter 0.08 m, height 0.8 m / 6008 polygons and 6766 vertices)
• external tooth washer (diameter 0.25 m, height 0.02 m / 3528 polygons and 3480 vertices)
• fender washer (diameter 0.25 m, height 0.006 m / 128 polygons and 128 vertices)
• flat head rivet (diameter 0.1 m, height 0.12 m / 672 polygons and 642 vertices)
• fully threaded stud (diameter 0.06 m, height 0.64 m / 5712 polygons and 5674 vertices)
• hair pin cotter pin (width 0.179 m, length 0.48 height 0.02 m / 1560 polygons and 1538 vertices)
• internal tooth washer (diameter 0.25 m, height 0.014 m / 1896 polygons and 1896 vertices)
• non threaded clevis pin (diameter 0.235 m, height 0.52 m / 1056 polygons and 992 vertices)
• shoulder washer (diameter 0.25 m, height 0.08 m / 2880 polygons and 2880 vertices)
• snap head rivet (diameter 0.11 m, height 0.32 m / 672 polygons and 642 vertices)
• split pin (width 0.02 m, length 0.48 m, height 0.07 m / 1656 polygons and 1657 vertices)
• split washer (diameter 0.25 m, height 0.04 m / 1090 polygons and 1092 vertices)

Formats:

• blend (textures are packed into a .blend file )

• dae (textures in a separate archive )
• fbx (textures in a separate archive )
• obj (textures in a separate archive )
• 3ds (textures in a separate archive )
• max (3d Max 2020 - Vray) (textures are included in the archive with the file)
