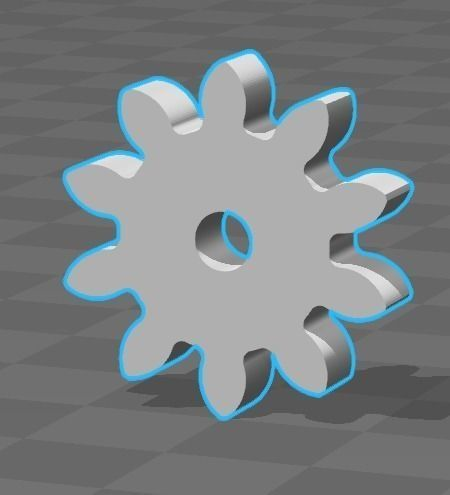

GEAR-SPUR z-10Teeth module-2mm h-5mm axis-diam-2mm 3D print model

Z = number of teeth h= thickness of the cog-wheel (gear) m= normal modulus.

Pitch diameter= z*m Outside Diameter = m*(z+2)

This cog-wheel (gear) have a circular hole of 2mm for the axis It’s a simple SPUR cog-wheel (gear)

/ ! \ 2 cog-wheels working together must have the same « m » (normal modulus) the ratio is given by Z1/Z2

If you didn’t find the cog-wheel you were looking for, send me a e-mail to : with Z, h, m and other expectation

    This product has no reviews yet
    GEAR-SPUR z-10Teeth module-2mm h-5mm axis-diam-2mm
    All prices are exclusive of VAT
    Save with CGTrader Credits
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 75% in 23.6h
    3D Print Modeling
    Hire me
    3D model formats
    • Stereolithography (.stl)1.06 MB
    3D model details
    • Publish date2016-07-28
    • Model ID#631492
