Cog-wheels 9 to 50 teeth m2 h5 d2 3D print model

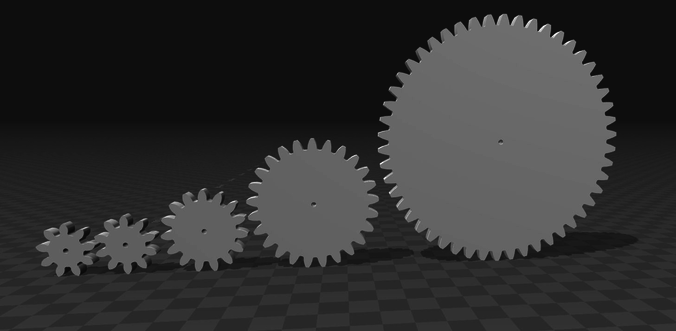

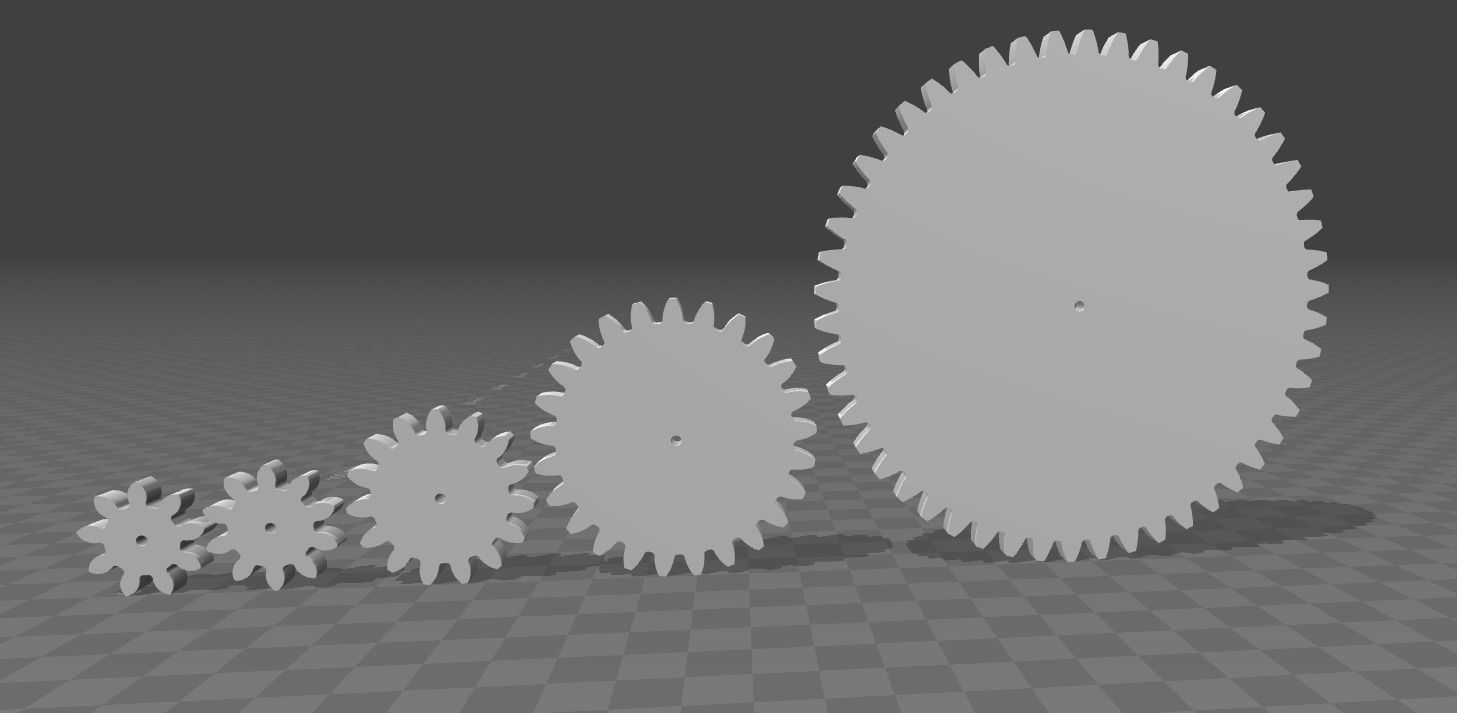

Cog-wheels 9 to 50 teeth m2 h5 d2

Z = number of teeth (9,10,11,12,13,14,15,20,25,30,35,40,45&50) h= thickness of the cog-wheel (gear) m= normal modulus. d= diameter of the hole

This cog-wheel (gear) have a circular hole of “d”mm for the axis It’s a simple SPUR cog-wheel (gear)

/ ! \ 2 cog-wheels working together must have the same « m » (normal modulus) the ratio is given by Z1/Z2

If you didn’t find the cog-wheel you were looking for, send me a e-mail to : cube77-3D@hotmail.com with Z, h, m and other expectation If you want only some of this cog-wheels, send me a e-mail to : cube77-3D@hotmail.com, and I will create a new upload with these a bit cheaper.

    This product has no reviews yet
    Cog-wheels 9 to 50 teeth m2 h5 d2
    $25.00
    Save with CGTrader Credits
    Royalty Free License
    cube77
    cube77
    (5 reviews)
    Response 75% in 23.6h
    3D Print Modeling
    Hire me
    3D model formats
    • Stereolithography (.stl) (14 files)-
    3D model details
    • Publish date2016-12-05
    • Model ID#669315
