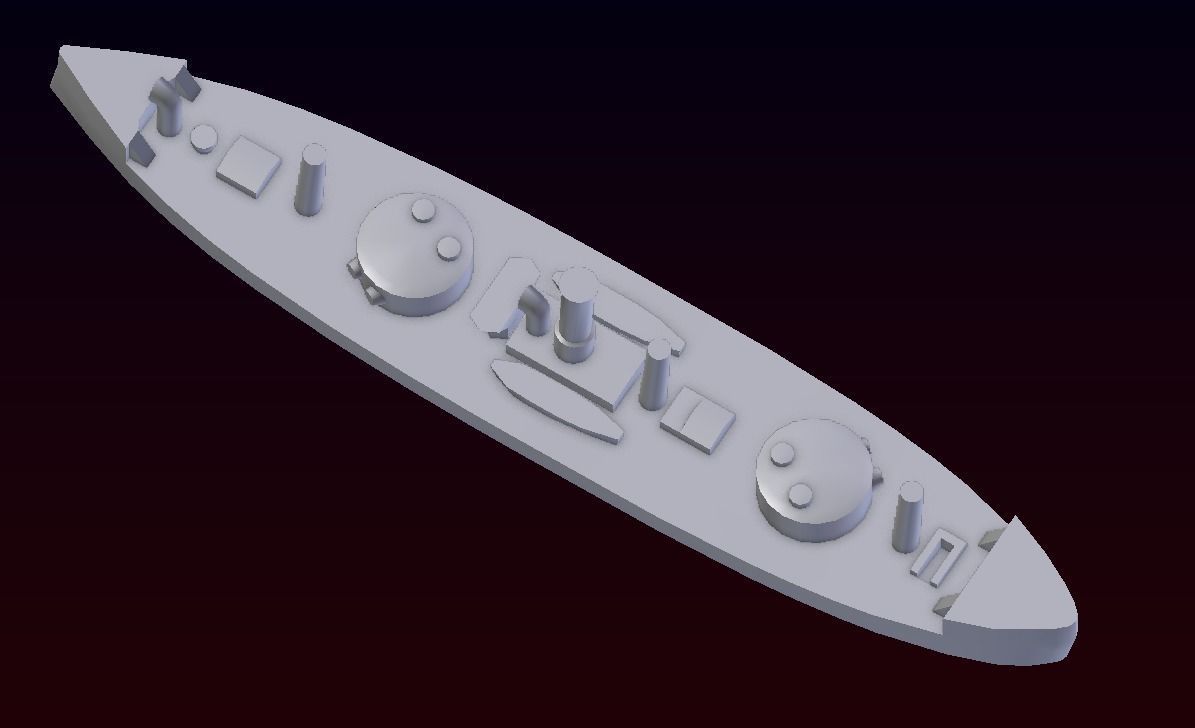

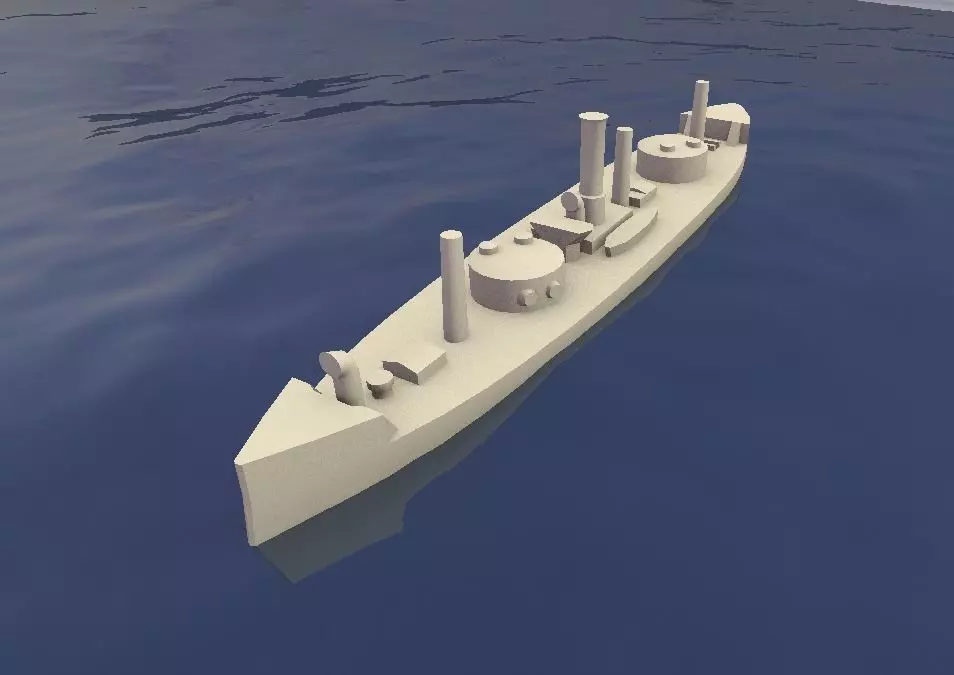

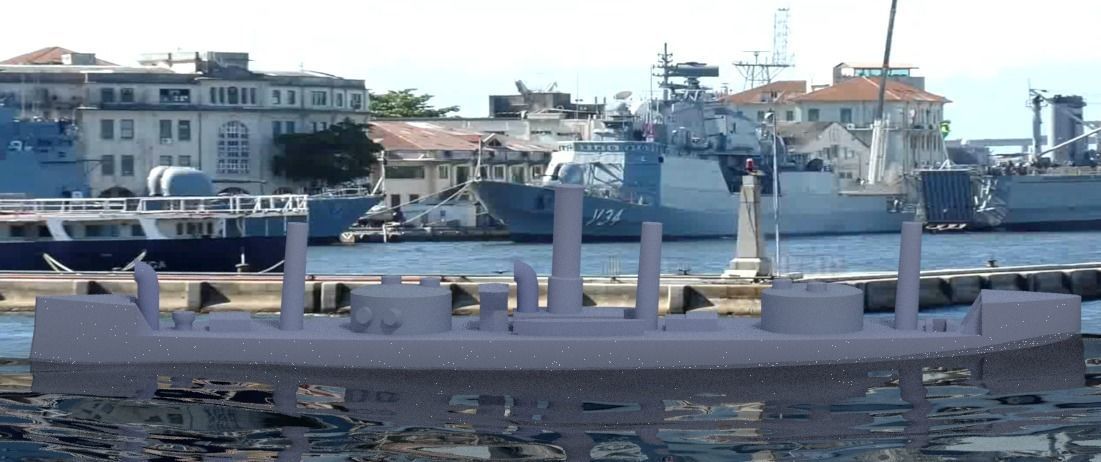

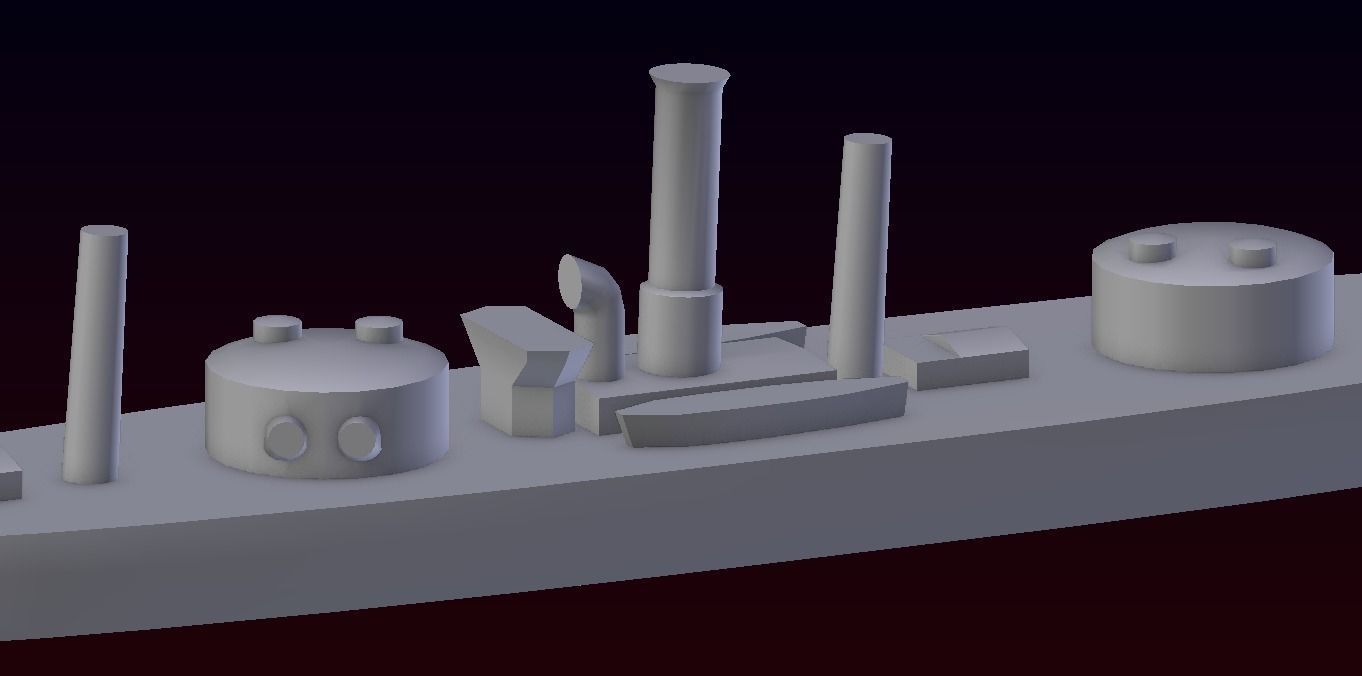

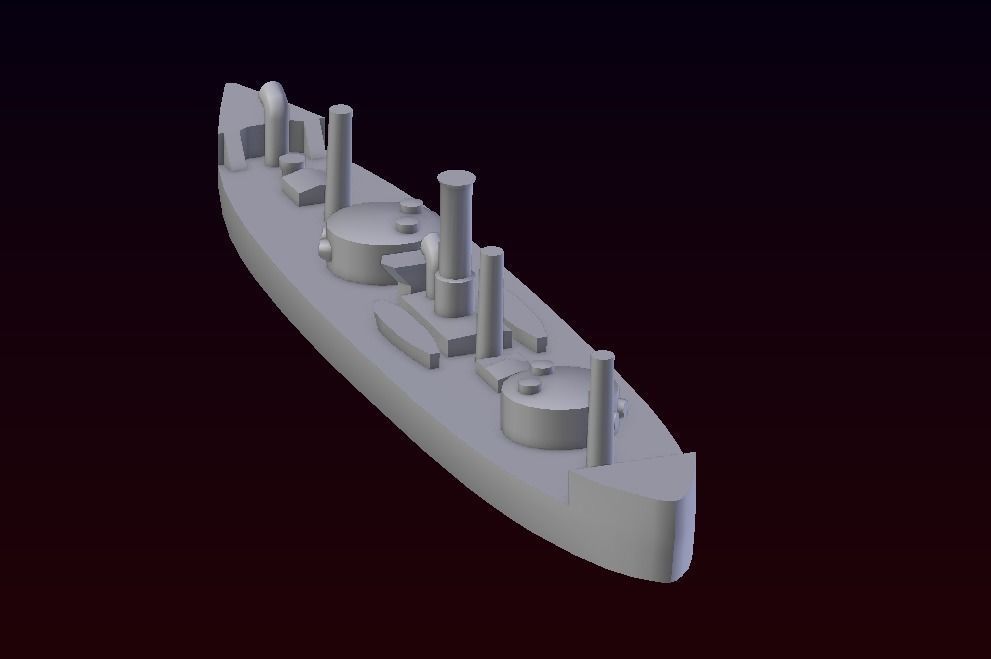

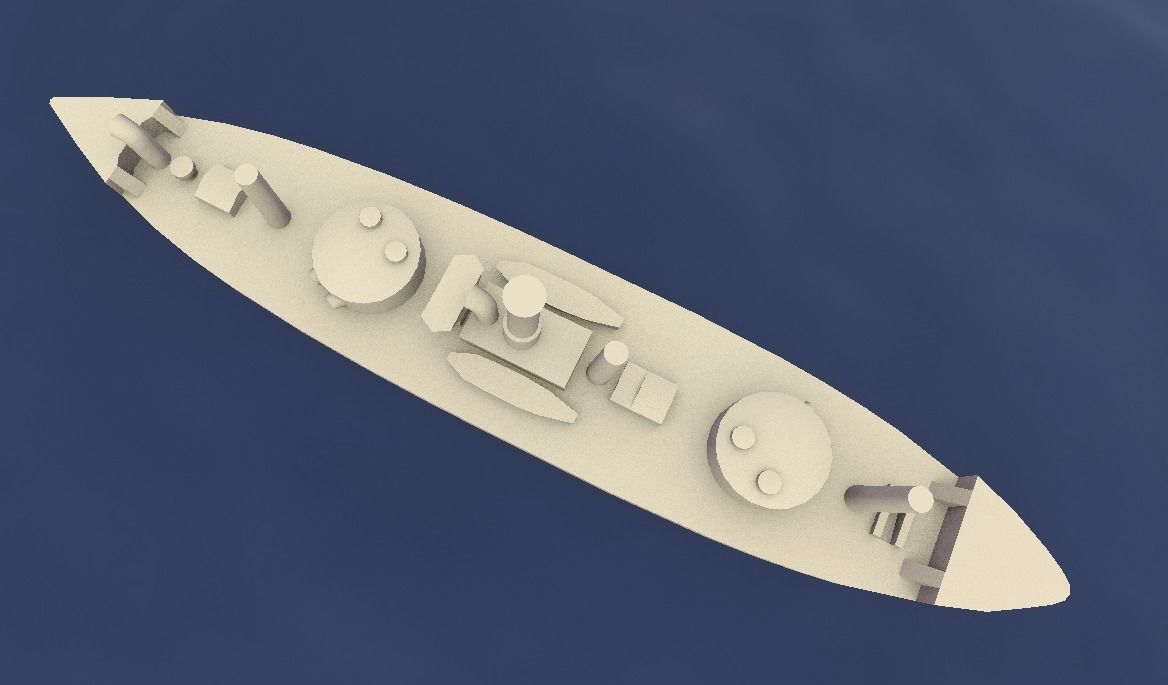

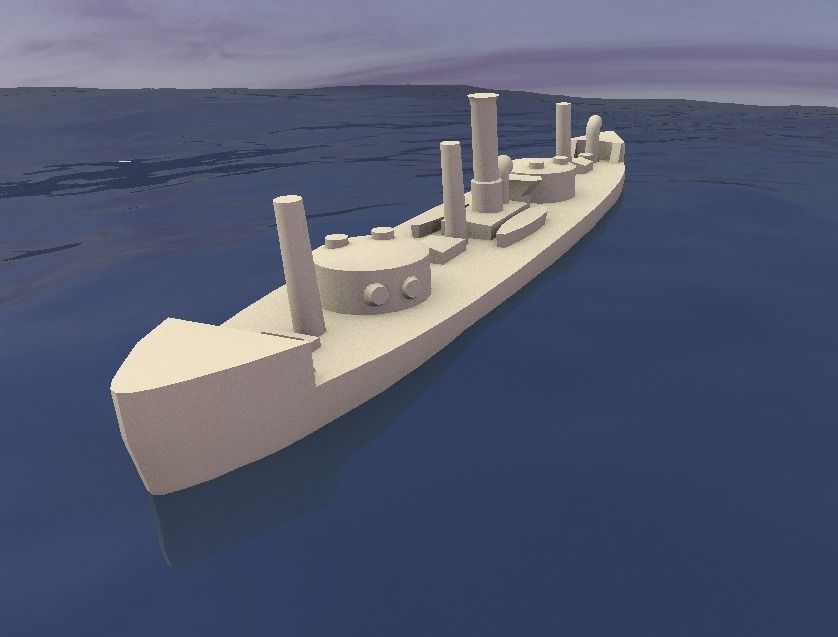

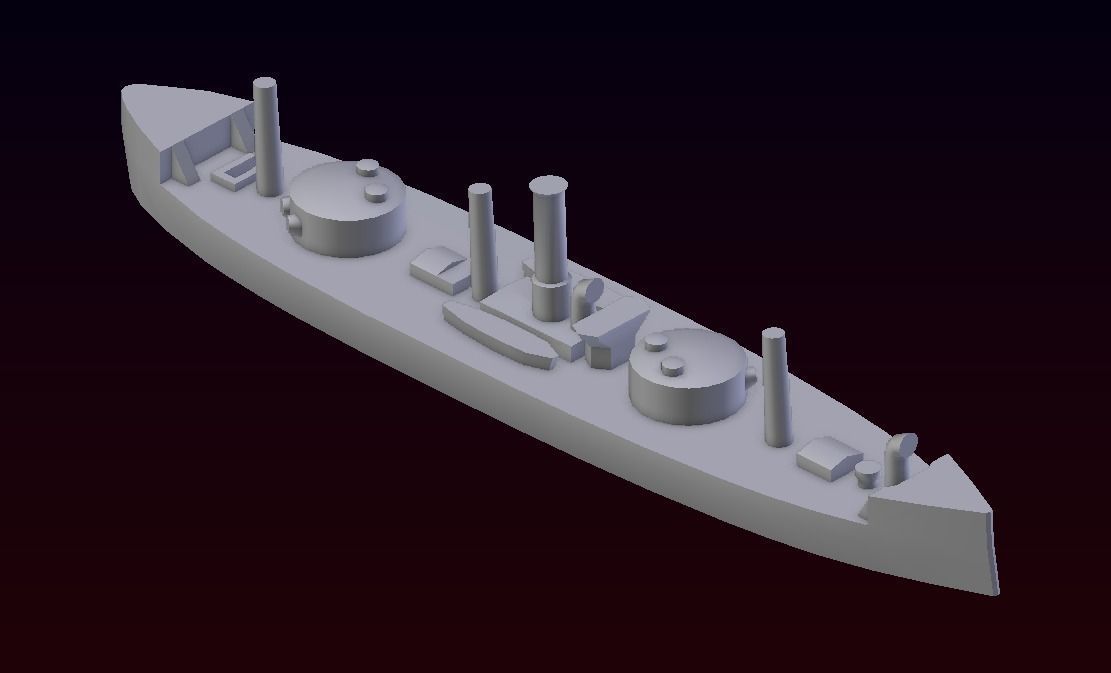

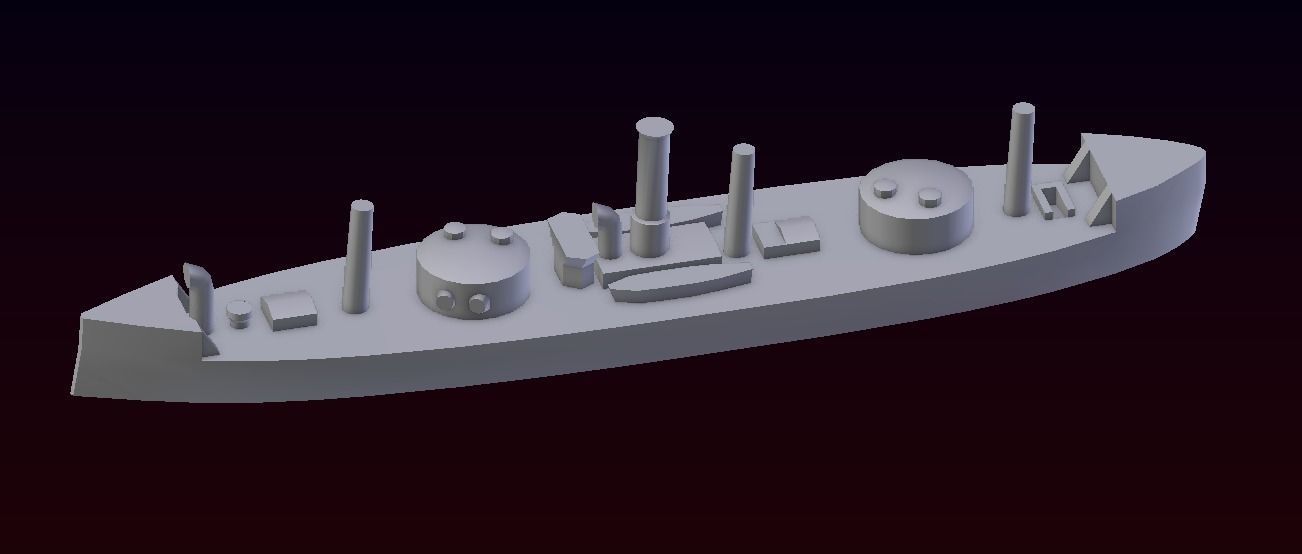

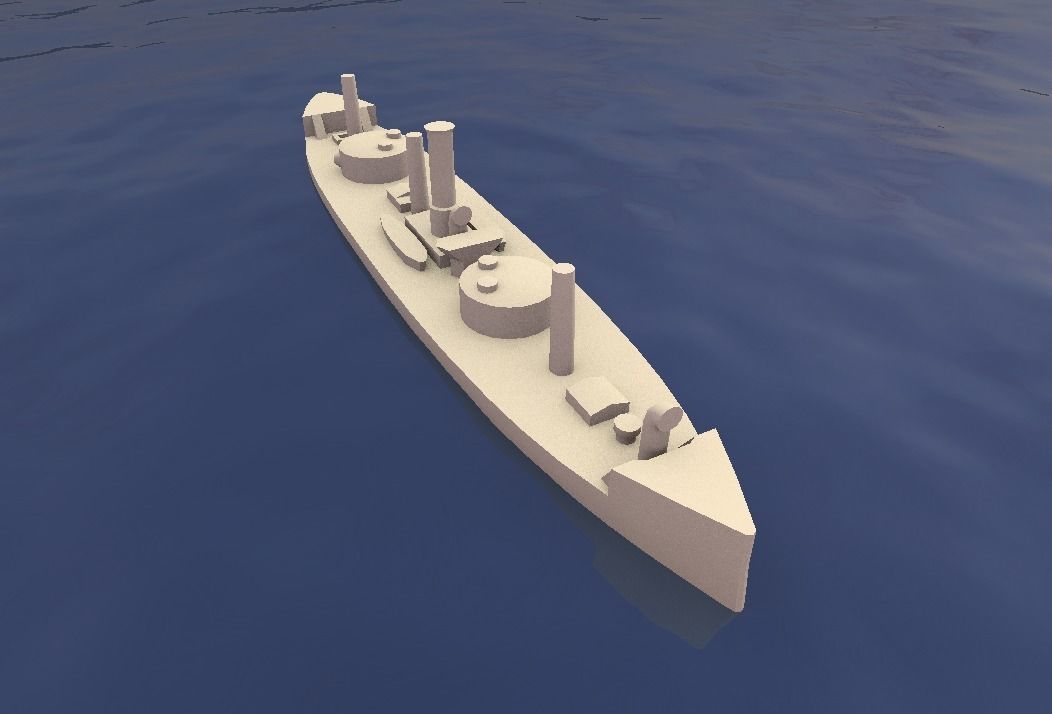

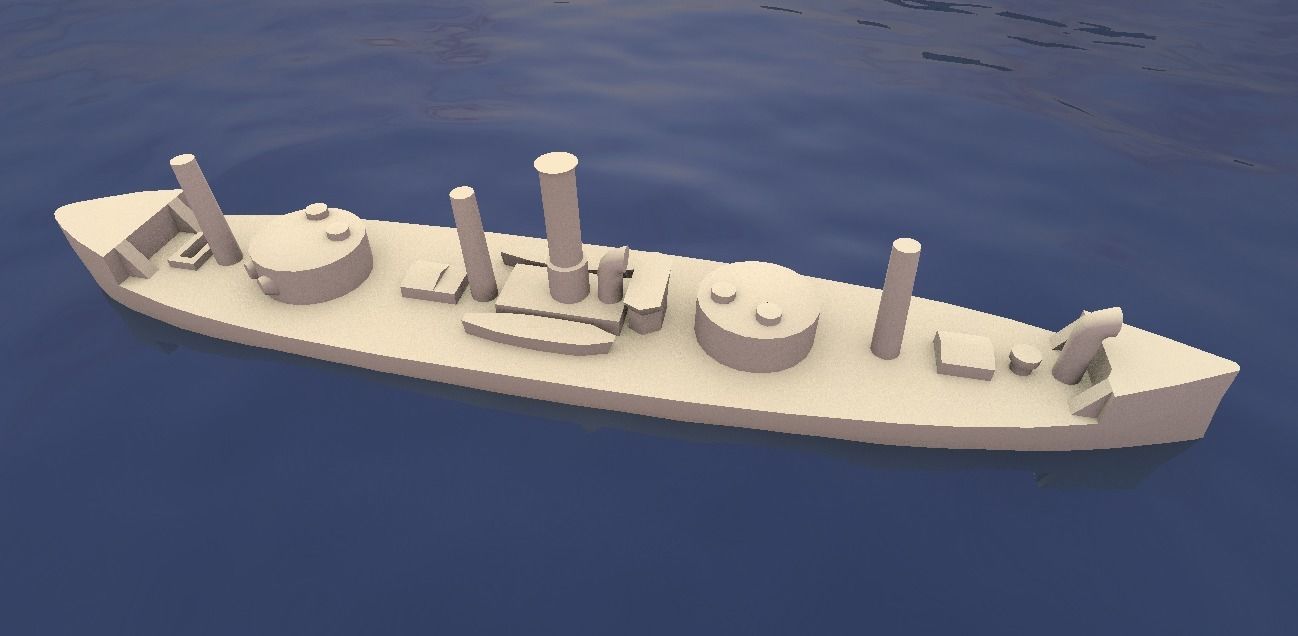

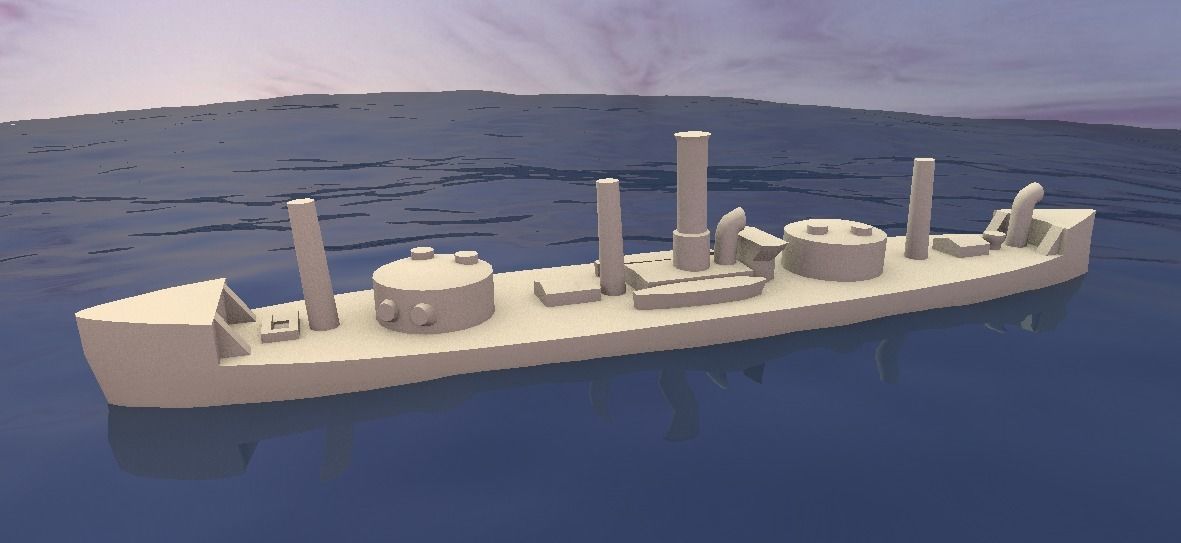

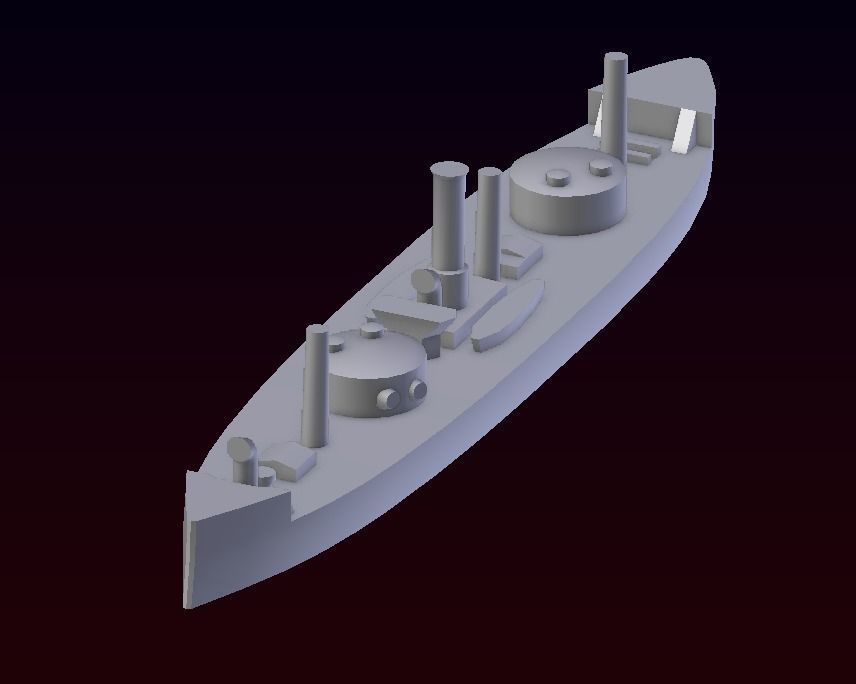

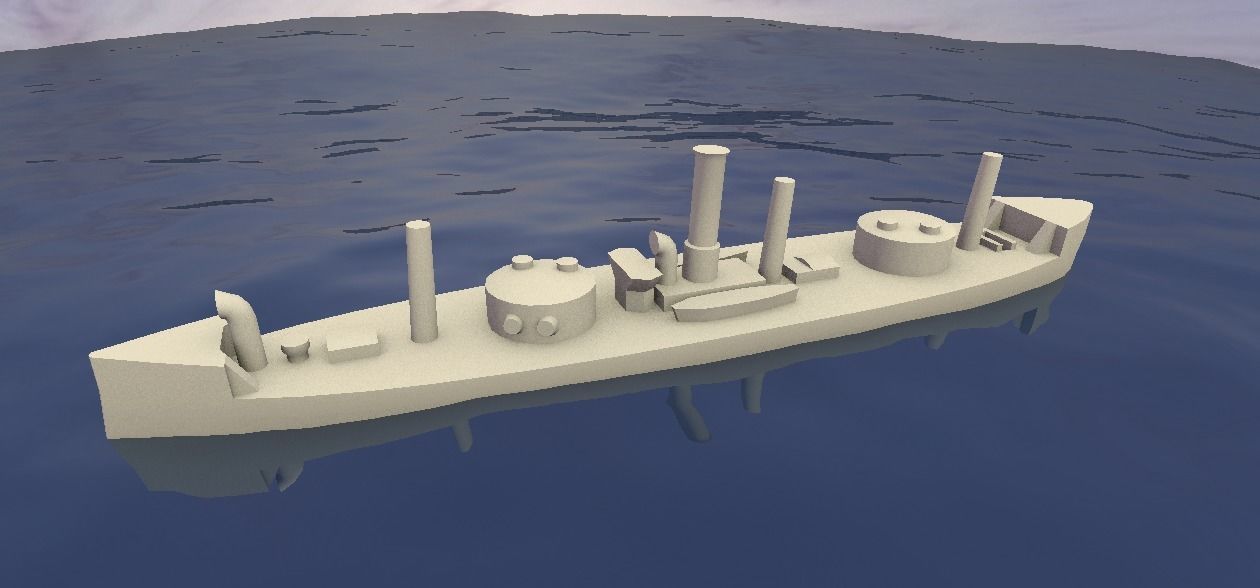

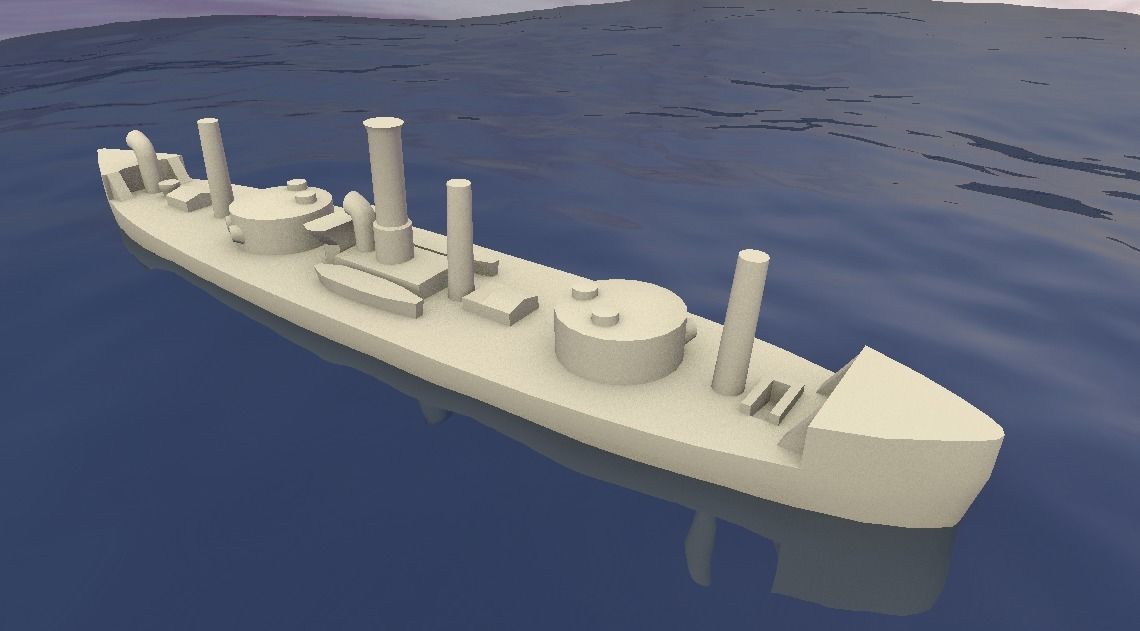

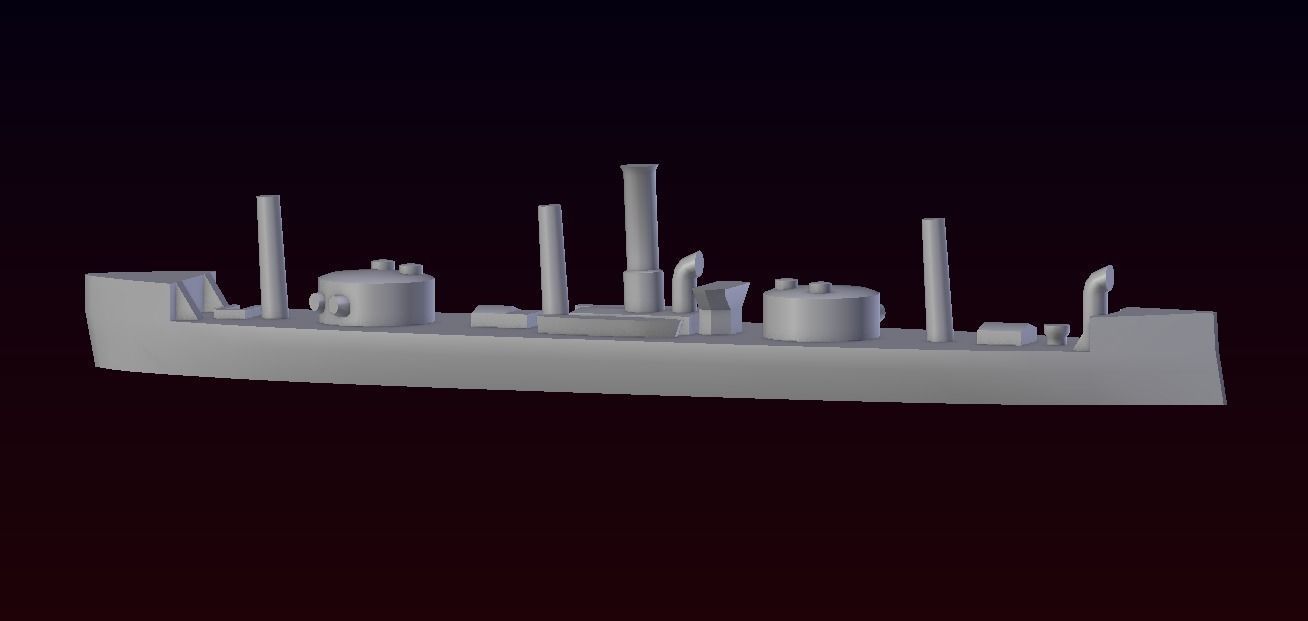

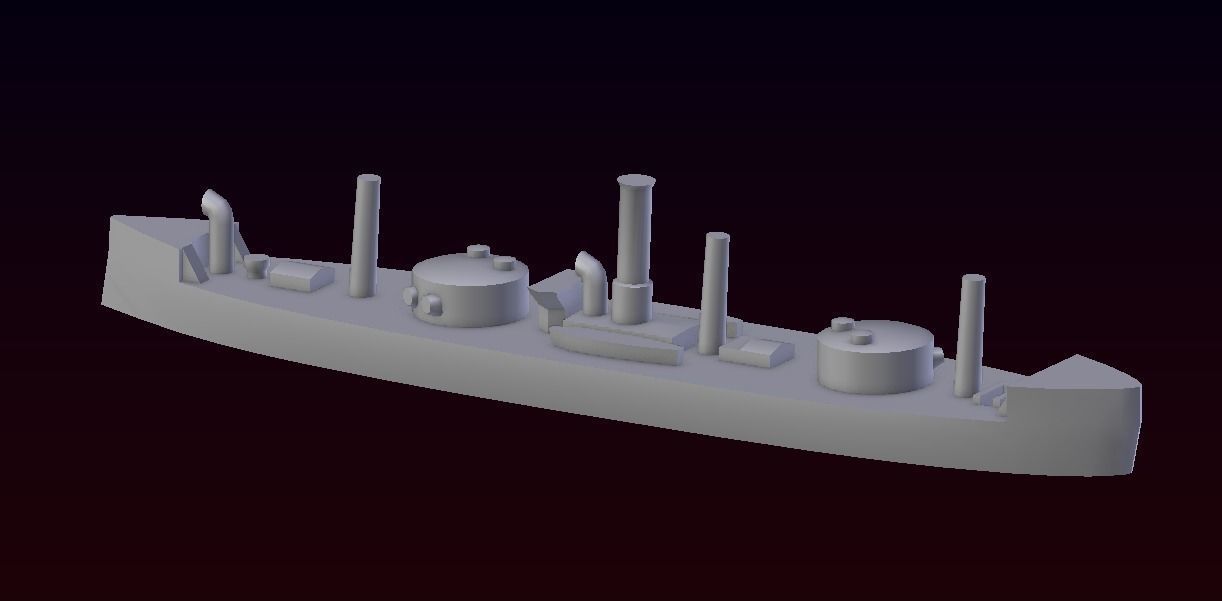

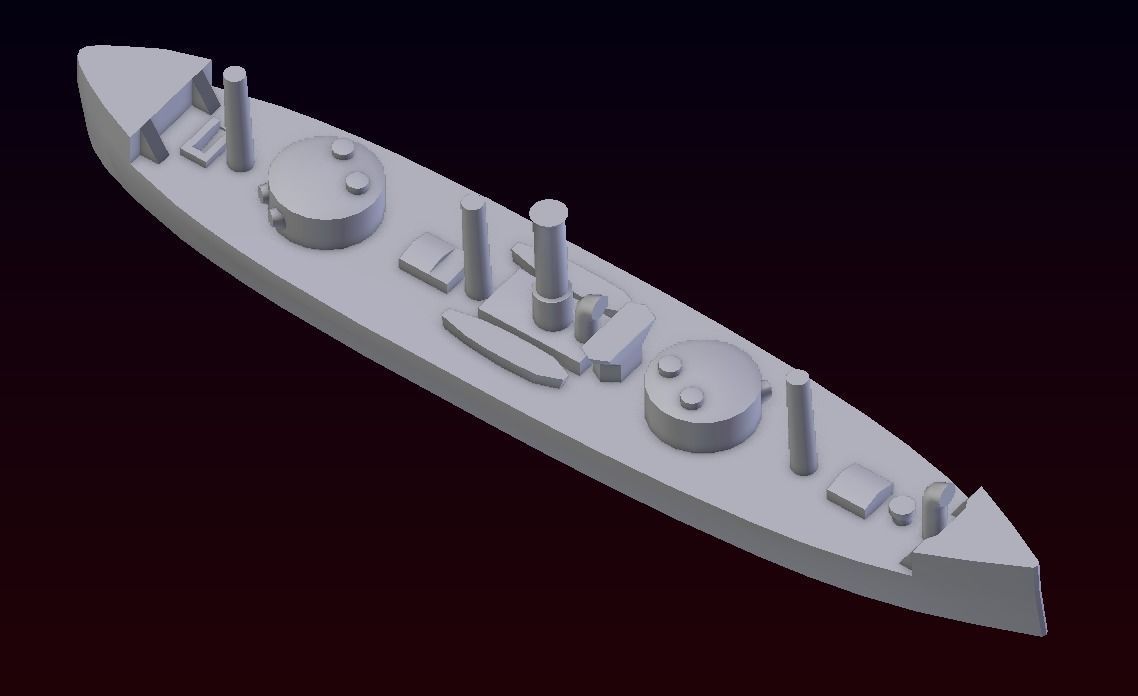

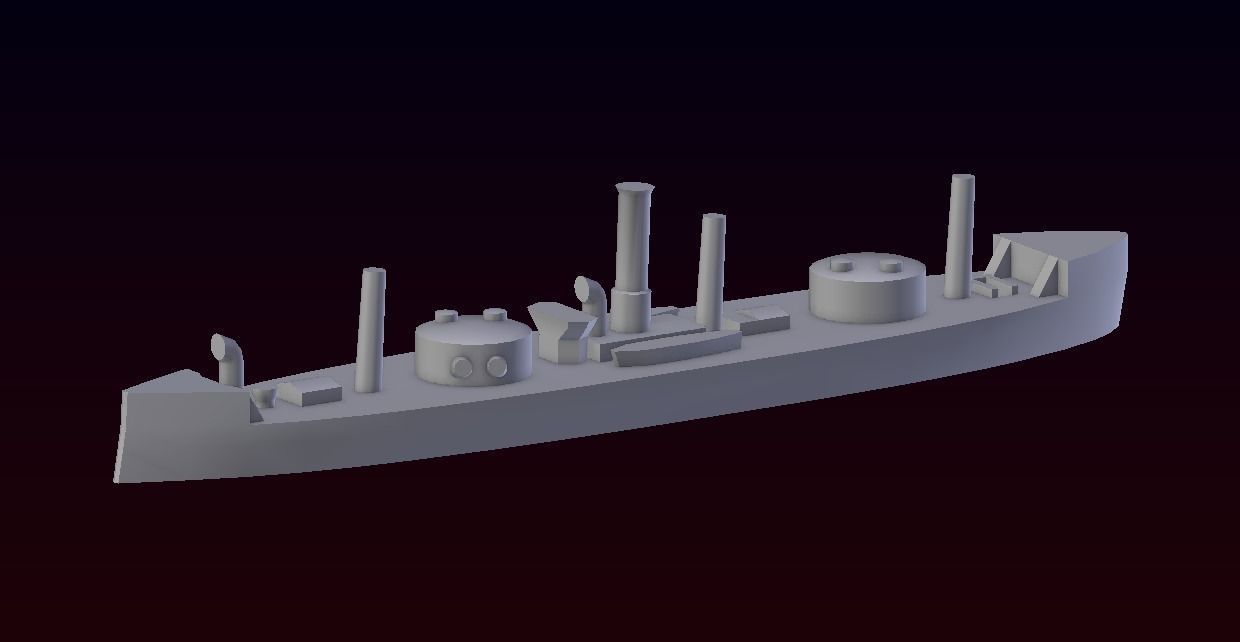

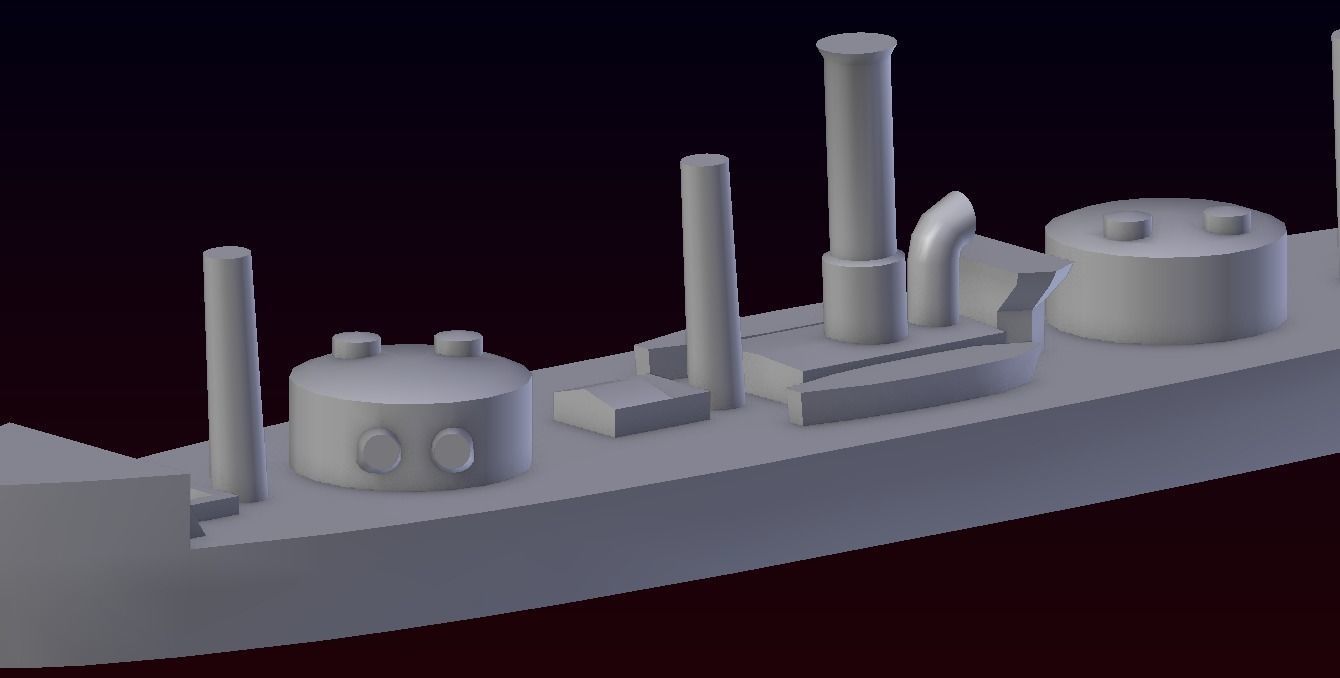

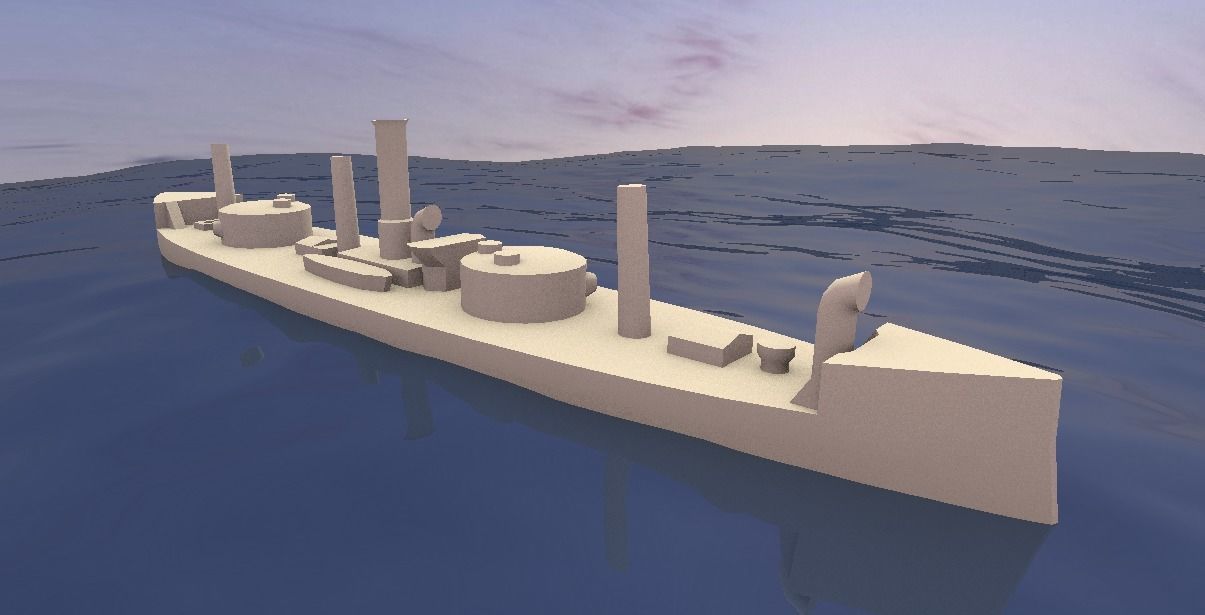

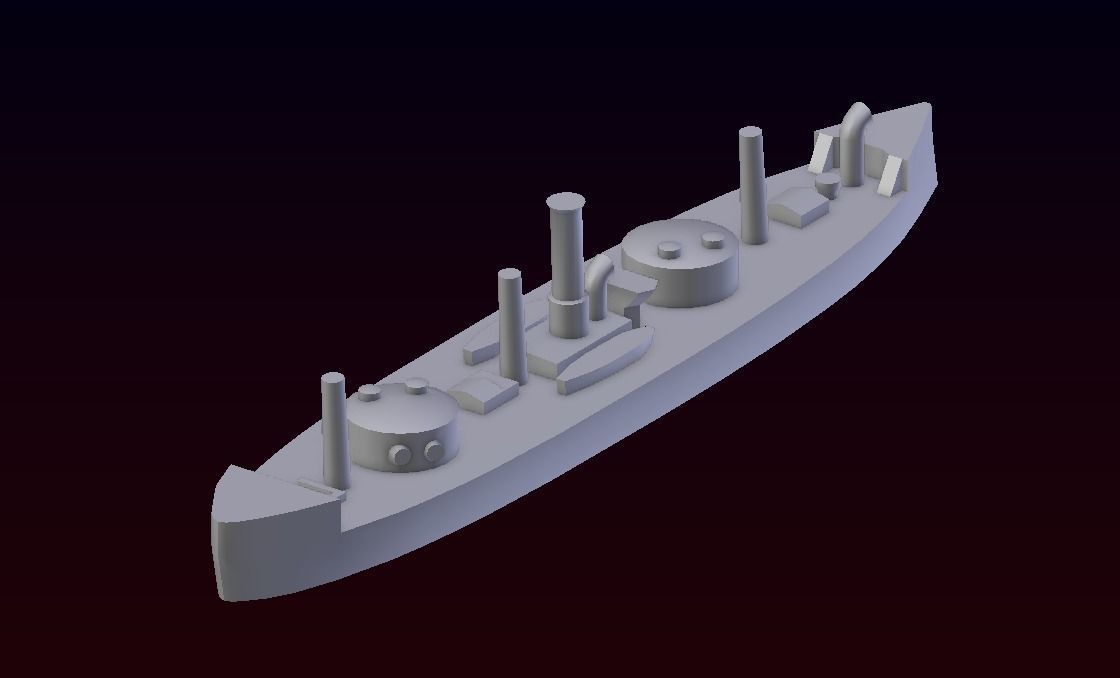

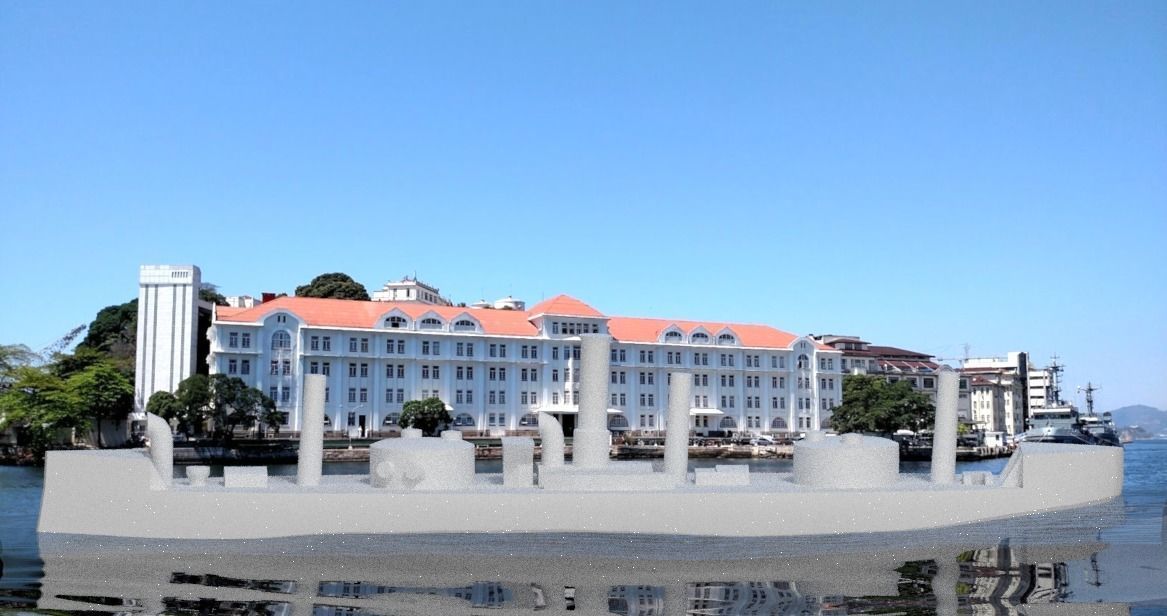

Brazilian Ironclad Lima Barros 3D print model
The package contains 3D files for model printing - Brazilian Ironclad Lima Barros. Note: Stylized model for easy printing.
The template contains the following file formats for printing: .fbx, .stl, .obj, and .ply.
The size of the model is 170mm (17cm) x 31mm (3.1cm) x 31mm (3.1cm). Scale: 1:360.
Created in Blender 2.79b.

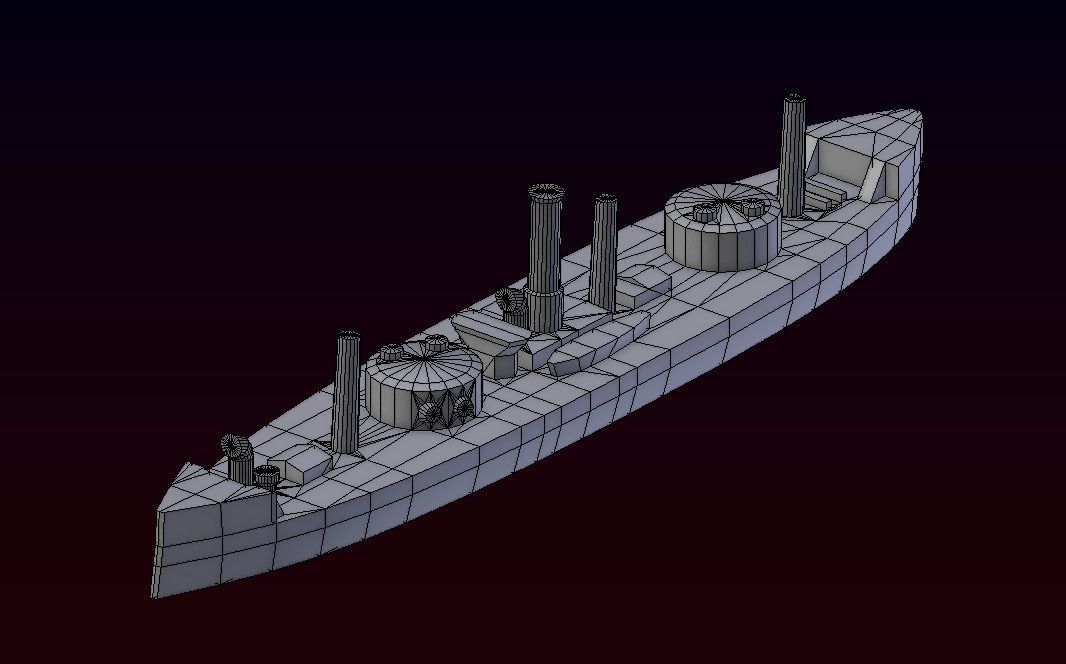

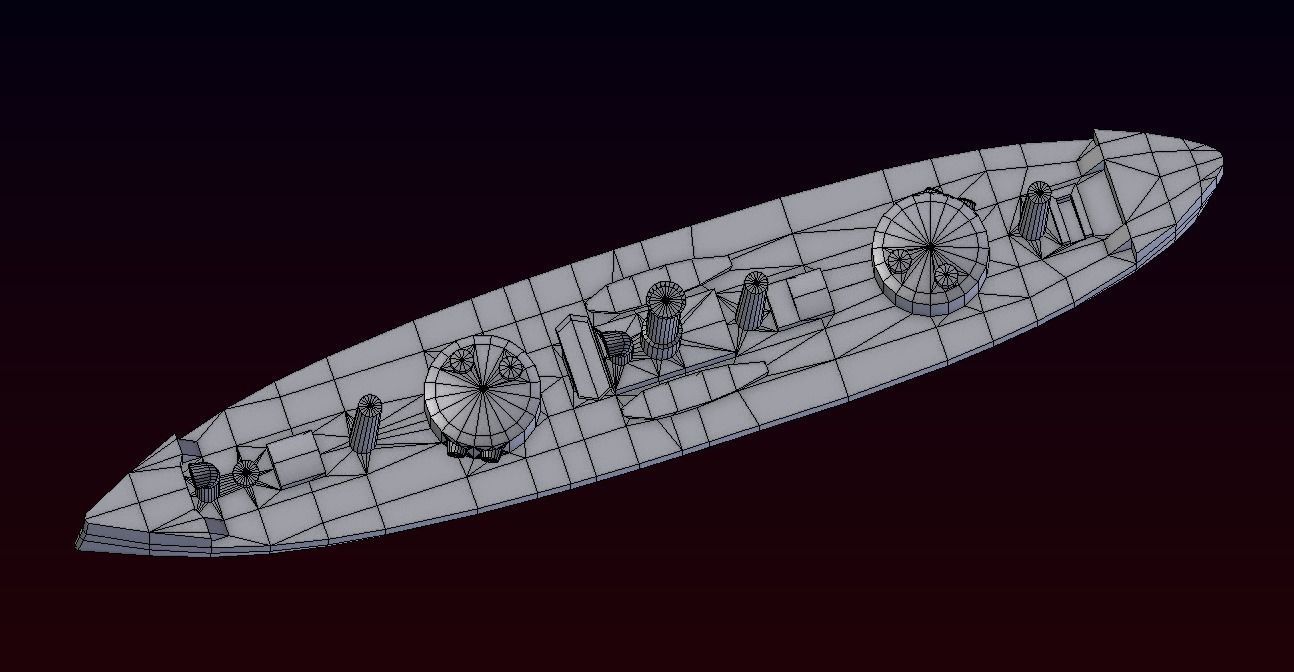

Verts - 1428
Faces - 1726
Tris - 2852
Historical Note: The Brazilian ironclad Lima Barros (formerly Bellona) was a warship that served the Brazilian Imperial Armada. She participated in the 1864–70 War of the Triple Alliance between Brazil, Argentina and Uruguay against Paraguay. The ship was built at the Laird & Brothers shipyard in Birkenhead, England, and was launched at sea in 1866. The Lima Barros was the first and only ship to be named, a tribute to Francisco José de Lima Barros, who was killed on board of the Corvette Jequitinhonha, in the Naval Battle of Riachuelo, on June 11, 1865.
He was sent to the front still in 1866 participating in the battles of Curupaiti and later Humaitá. At dawn on March 2, 1868, Cabral and Lima Barros were approached in the vicinity of Humaitá by 24 enemy canoes disguised as camalotes with about 300 men on board. The canoes came sailing together in a pair of twos with 20 rods of separation from each other, so that they would be tied to the side of the ships by the same current. The surprise allowed the attackers to seize the deck of the Lima Barros and Cabral ships, whose crew locked themselves in the towers, but soon the Brazil and Herval corvettes intervened, strafing the occupied decks. The Paraguayans withdrew after suffering about 200 casualties. Brazilians had 40 casualties.
DISPLACEMENT: 1,705 long tons (1,732 t) - LENGTH: 61 m (200 ft 2 in) - BEAM: 11.6 m (38 ft 2 in) - DRAFT: 3.9 m (12 ft 8 in).
Installed: POWER: 2,100 ihp (1,600 kW) ** PROPULSION: 2 shafts, 2 trunk steam engines ** SAIL PLAN: Barque-rigged ** SPEED: 12 knots (22 km/h; 14 mph).
COMPLEMENT: 170 officers and men.
ARMAMENT: 2 × twin 120-pounder Whitworth rifled muzzle loader guns.
ARMOR: Belt: 3–4.5 in (76–114 mm) ** GUN TURRET: 4.5 in (114 mm).
- This model is dedicated to 3D printing.
Hope you like! Also check out my other models, just click on my username to view full gallery.
Any doubts please contact me, I am at your disposal.
