Description

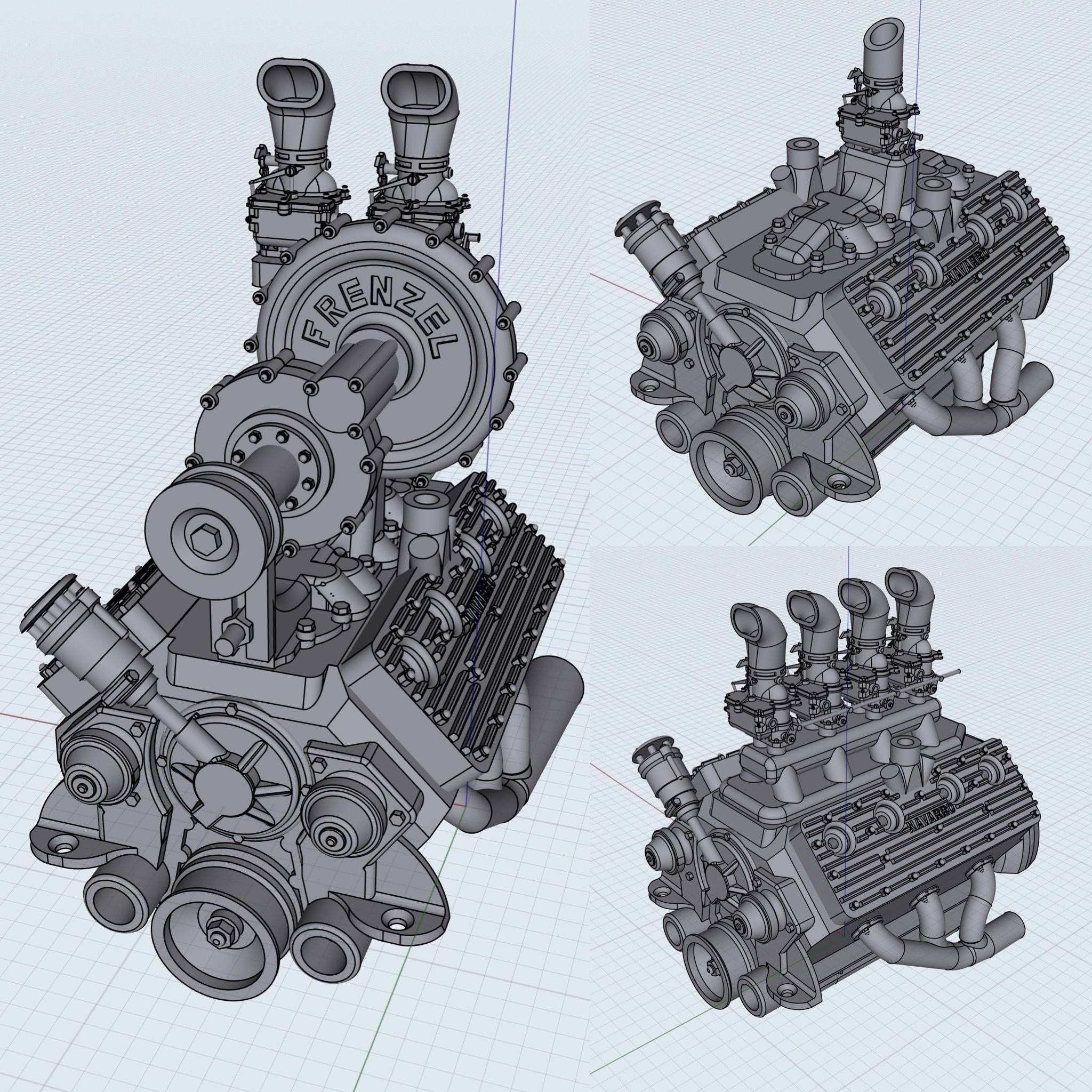

Designed from scratch is a highly detailed Ford Flathead with 3 versions of intakes.

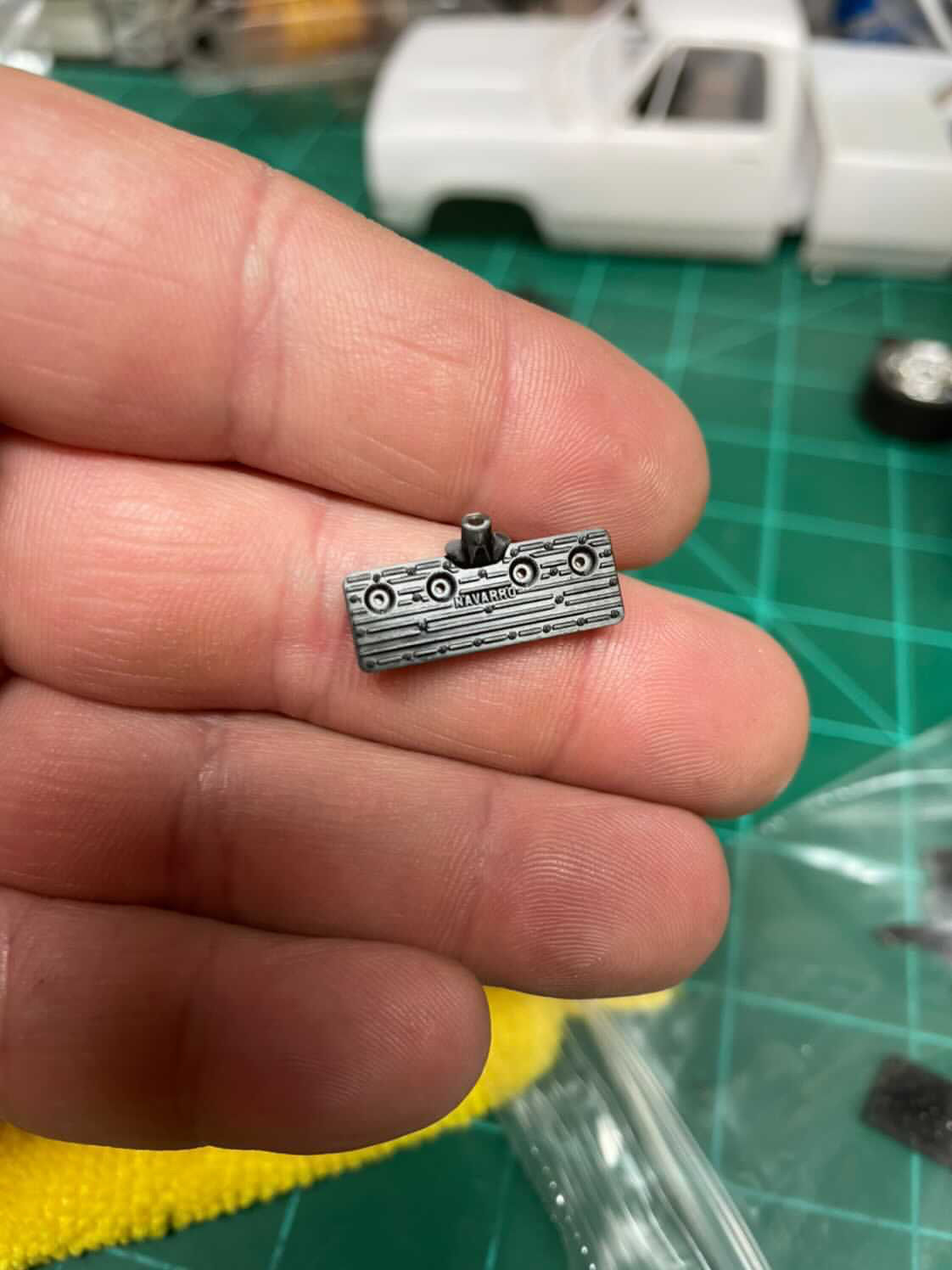

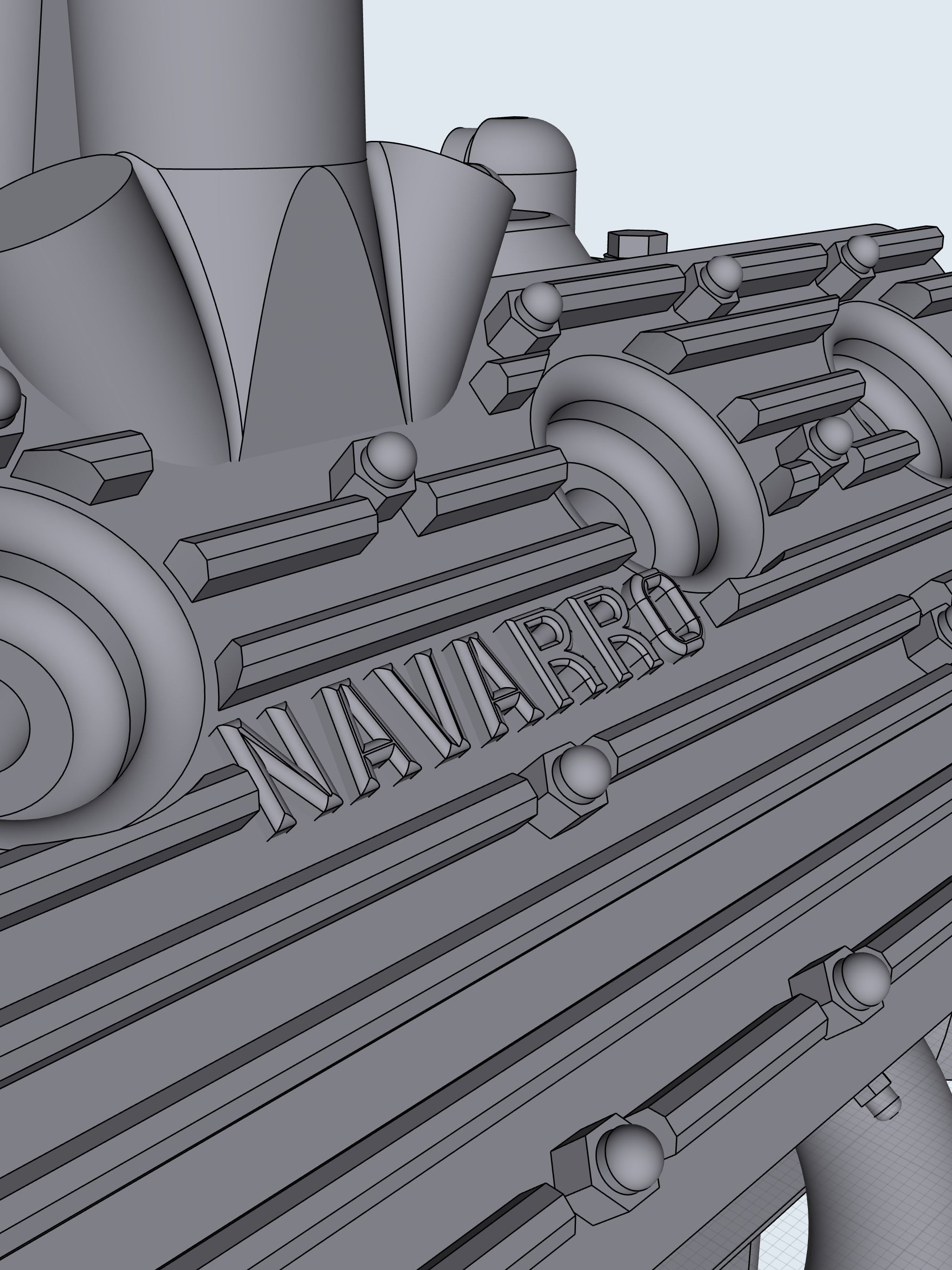

The main engine has all the bolts and fittings as the original, uses aftermarket Navarro Heads, and a separate Quick-Wire magneto.

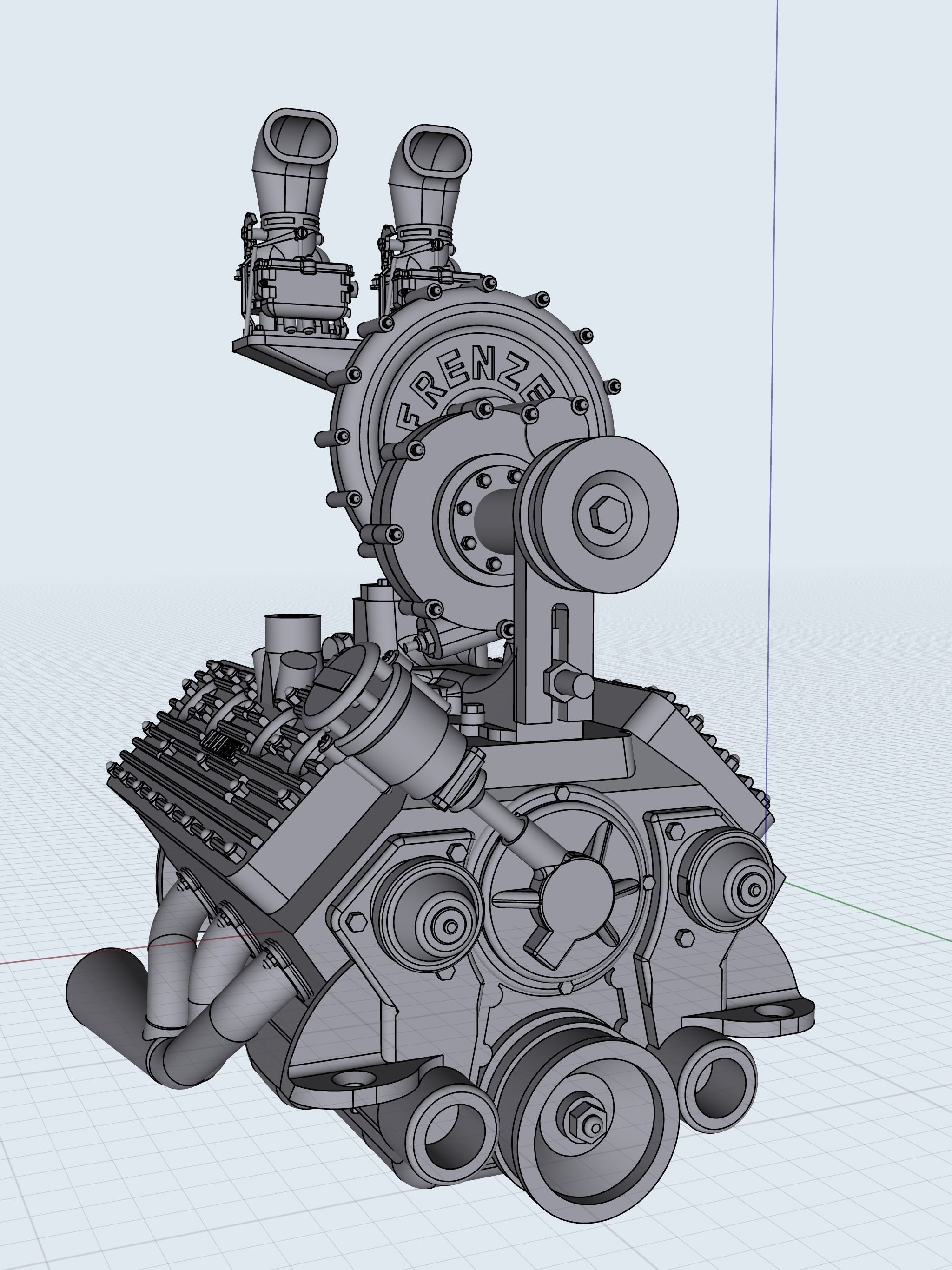

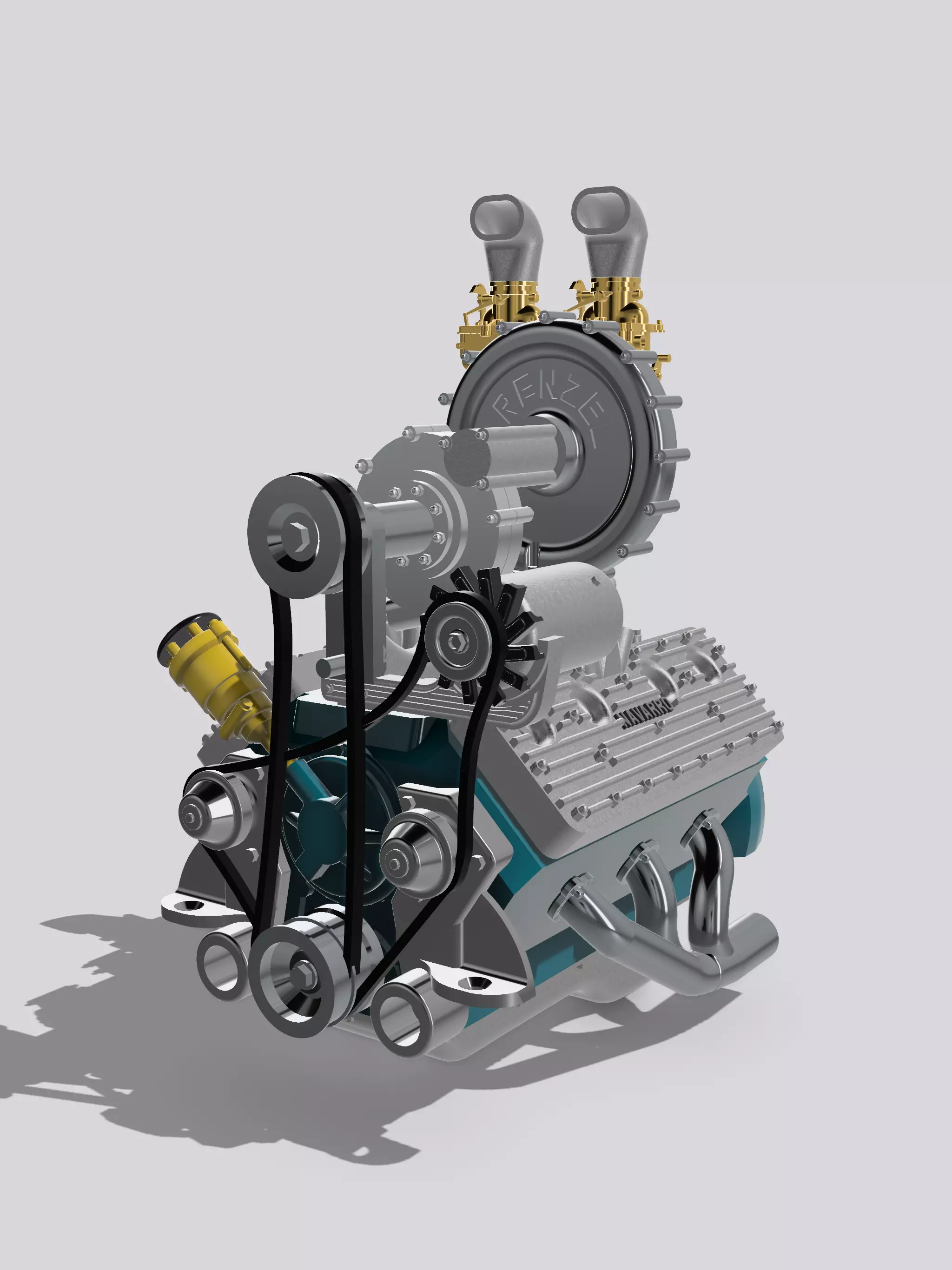

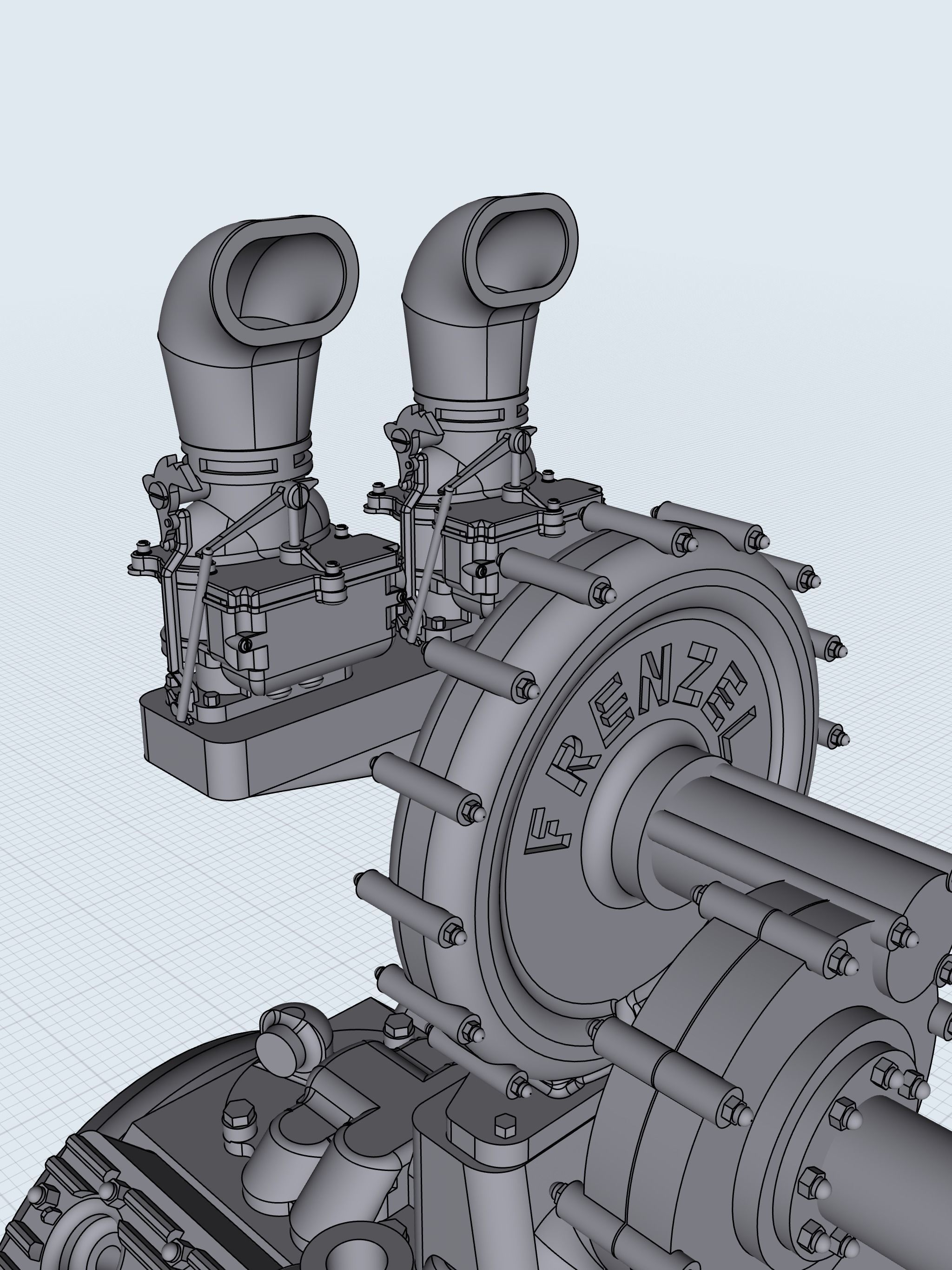

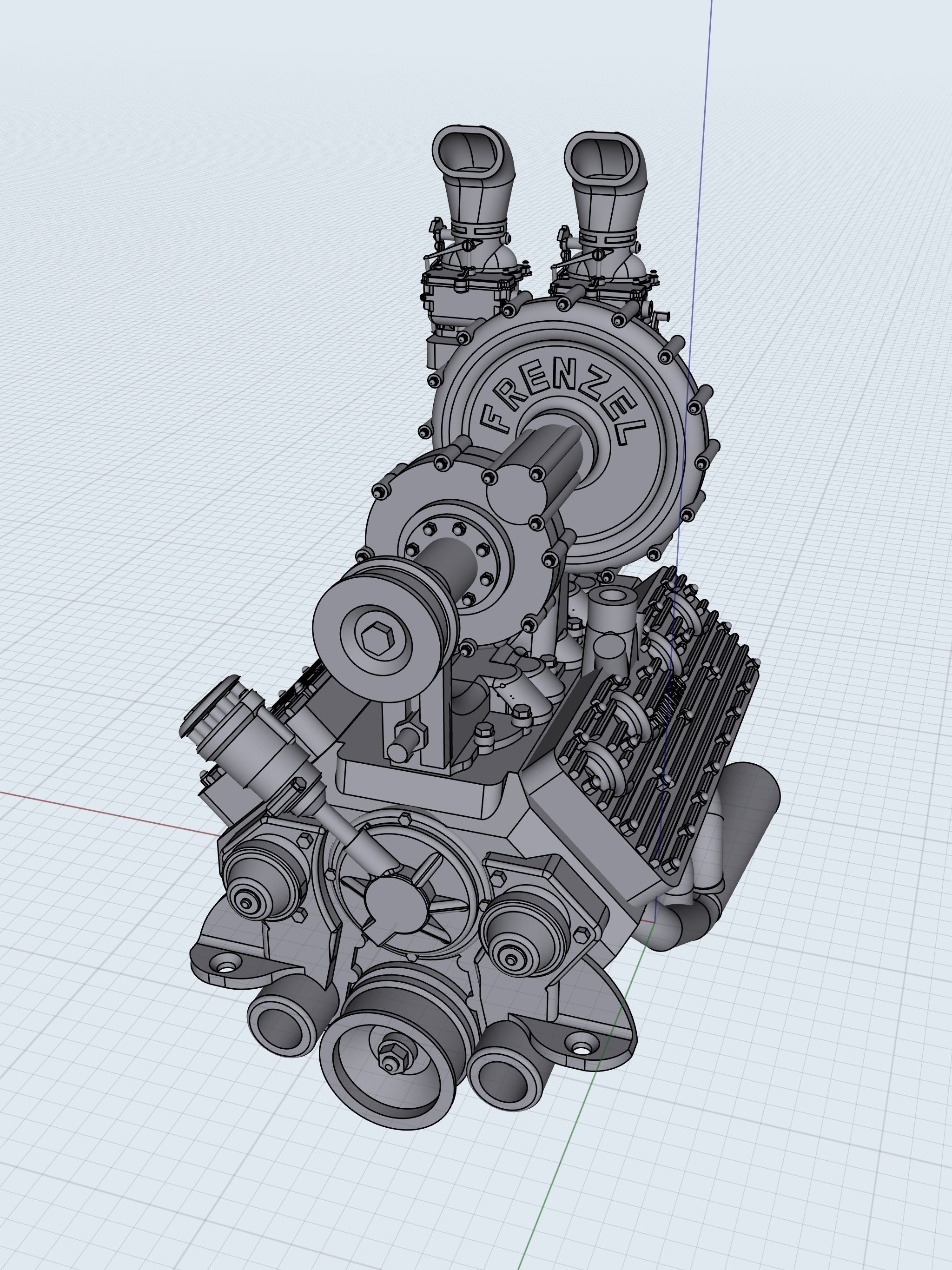

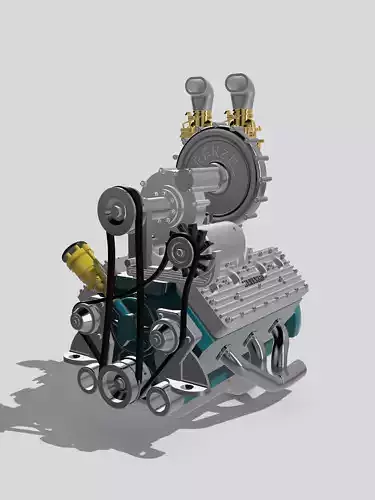

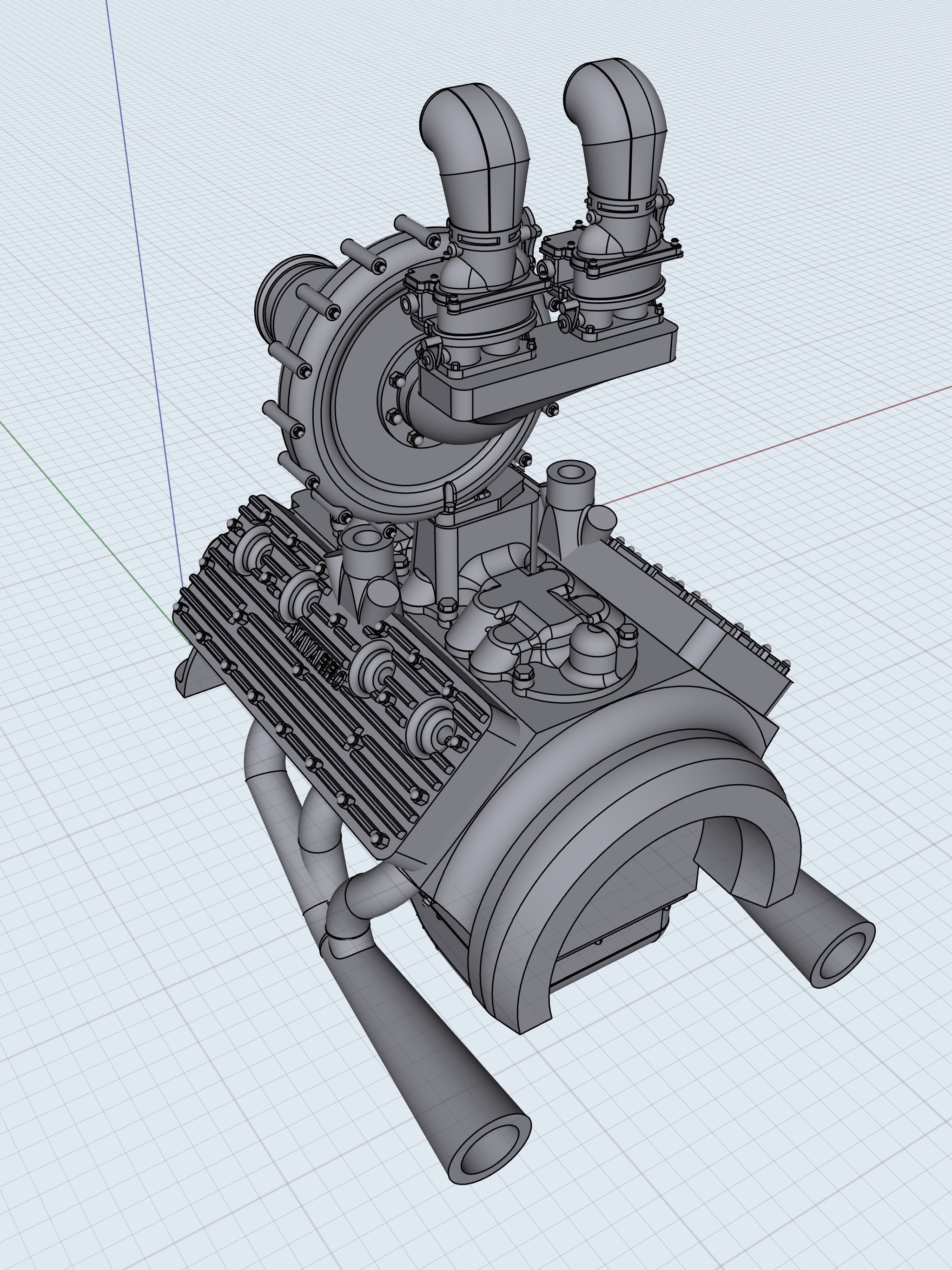

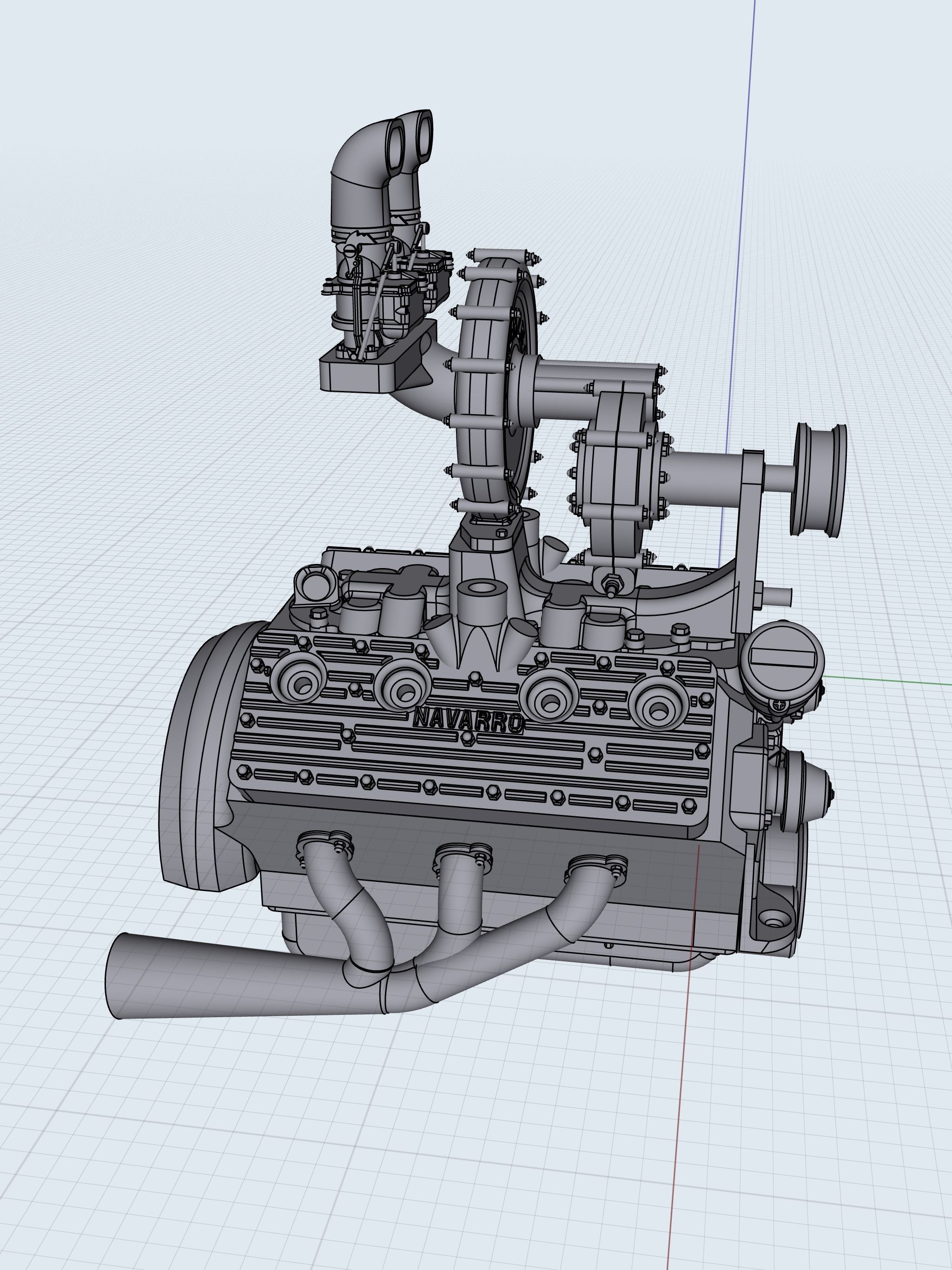

The Supercharged version uses an intricate Frenzel supercharger system, twin Stromberg 97 carbs, and racing headers.

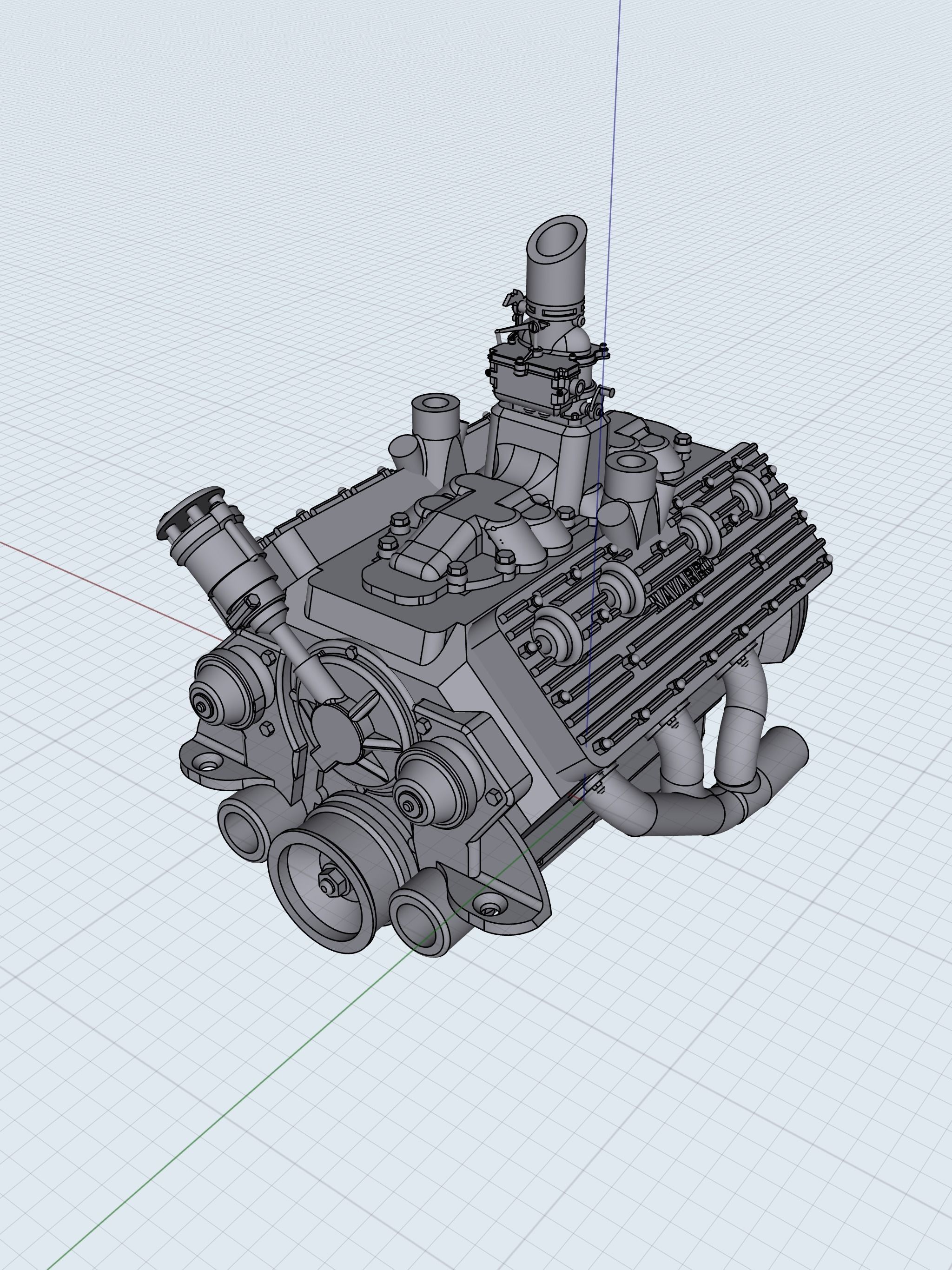

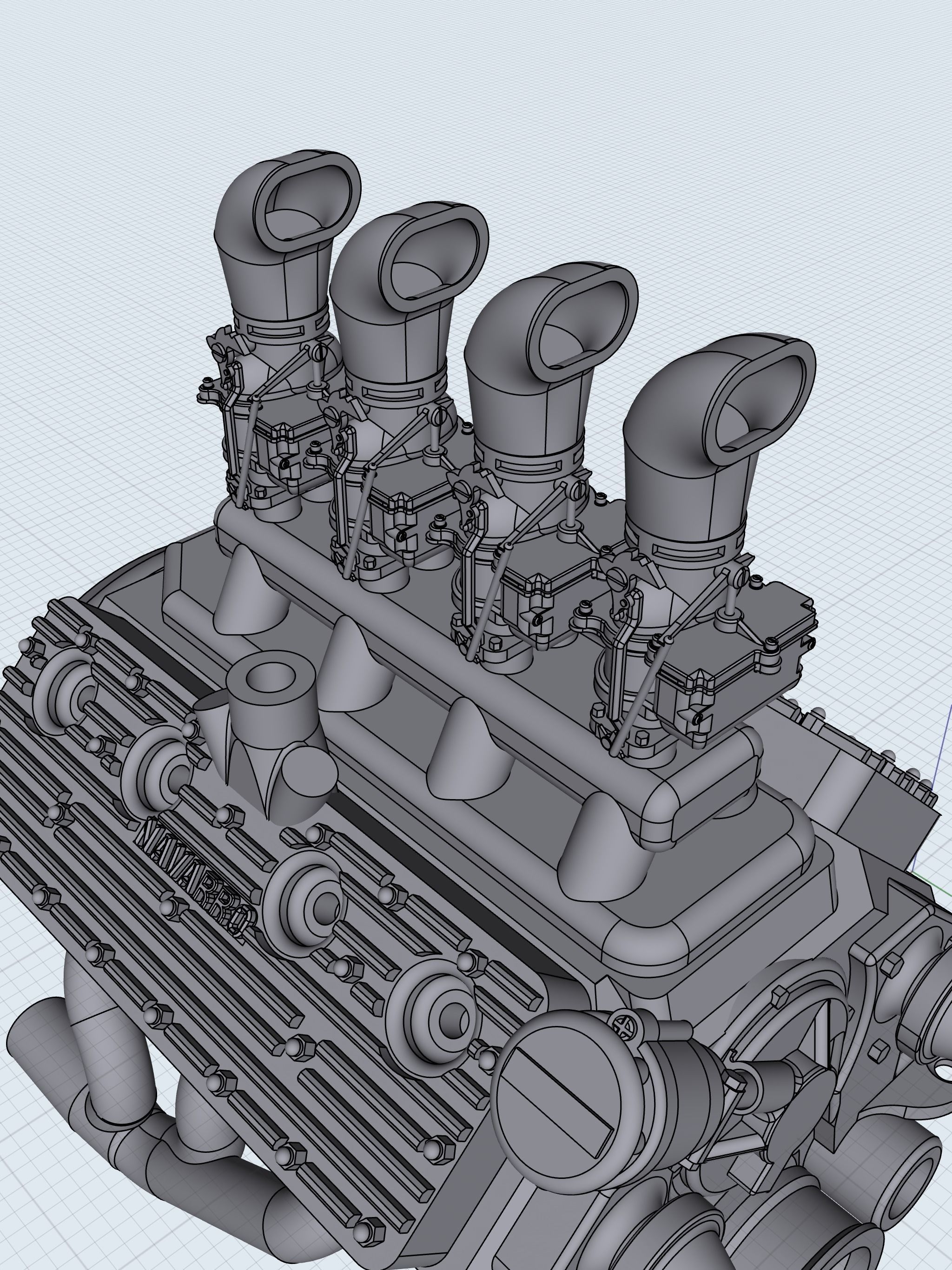

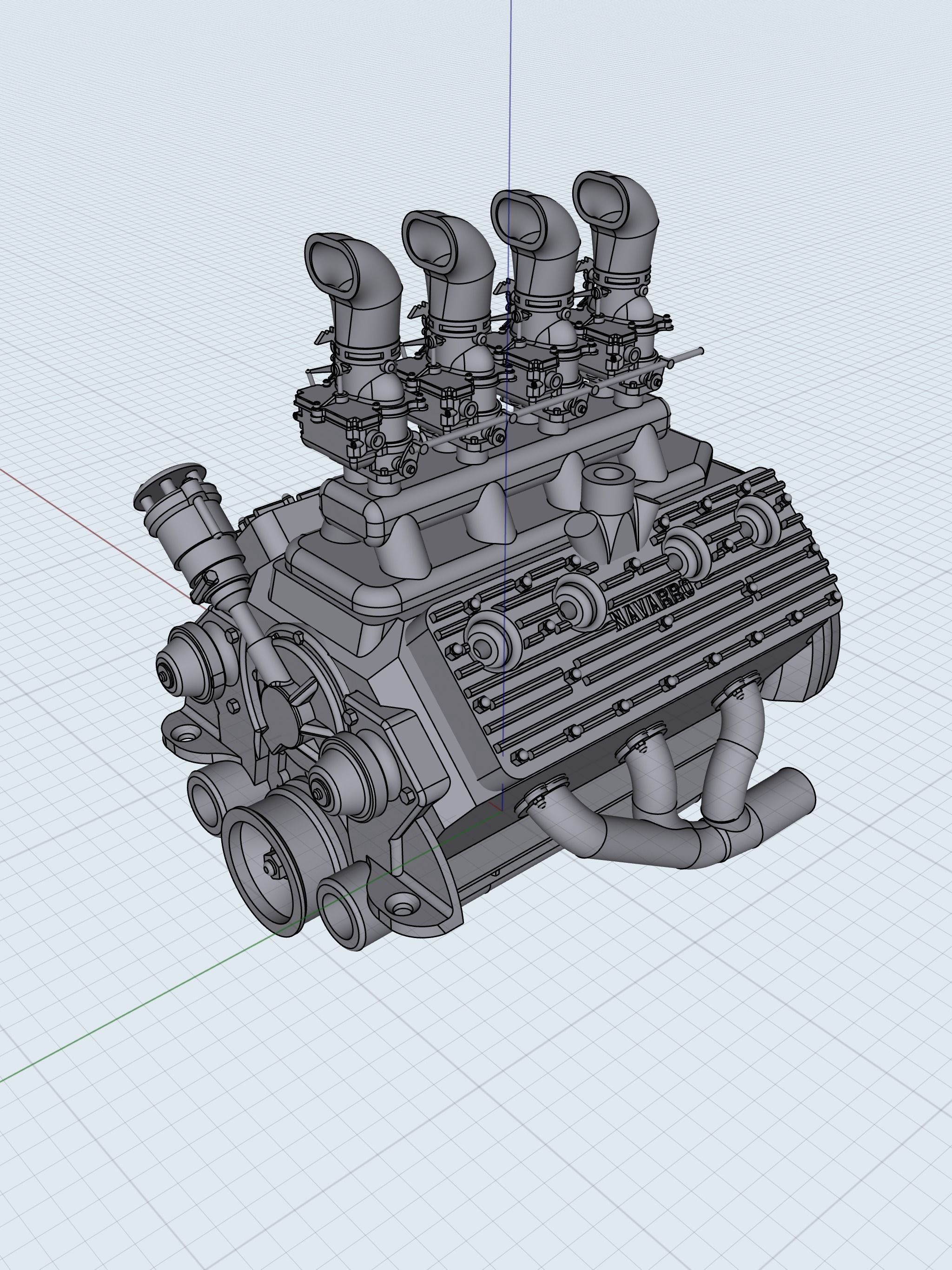

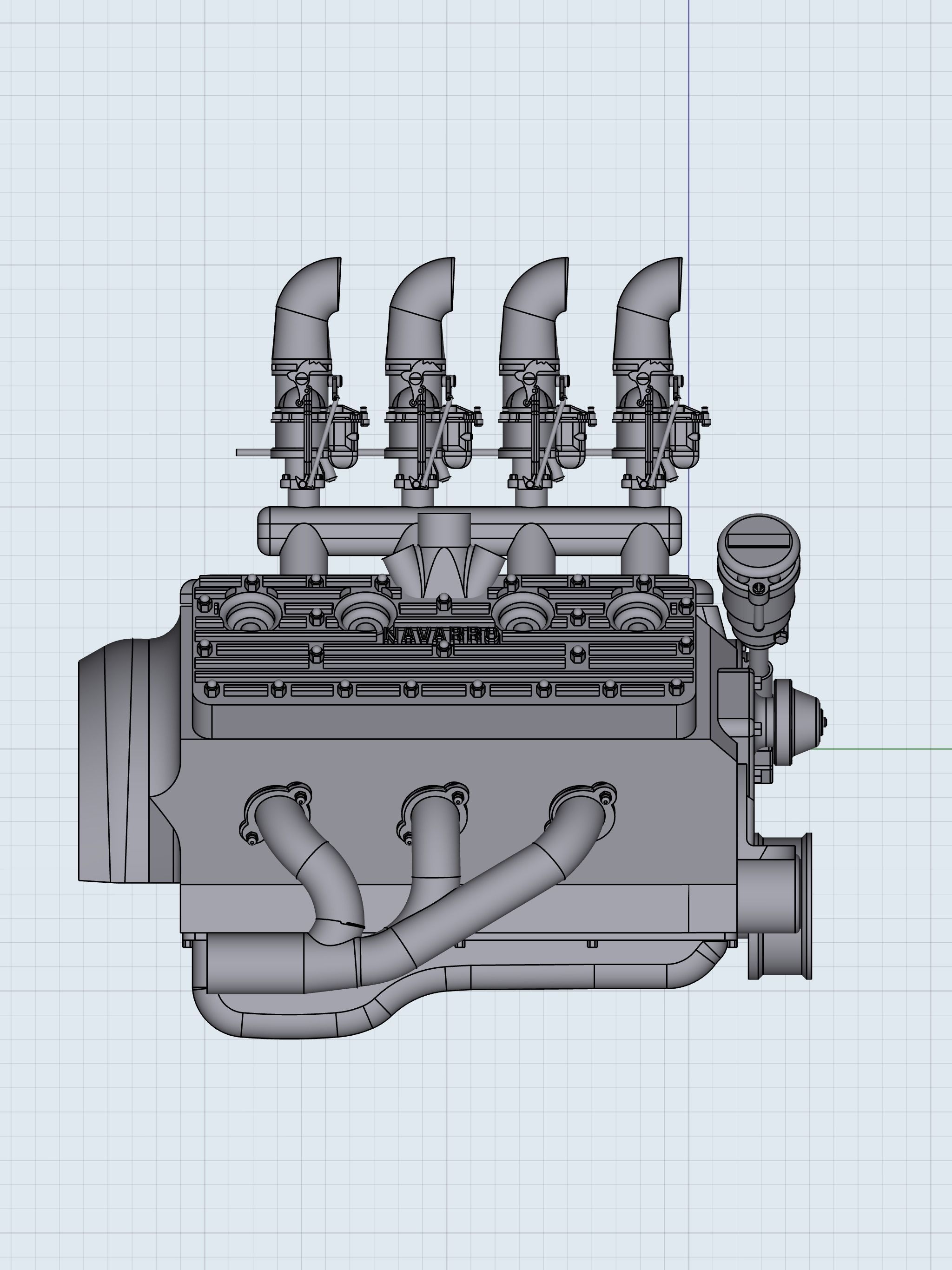

The 4x2 version uses 4x Stromberg 97s on an era-correct cast intake (early style tunnel ram), and more basic headers

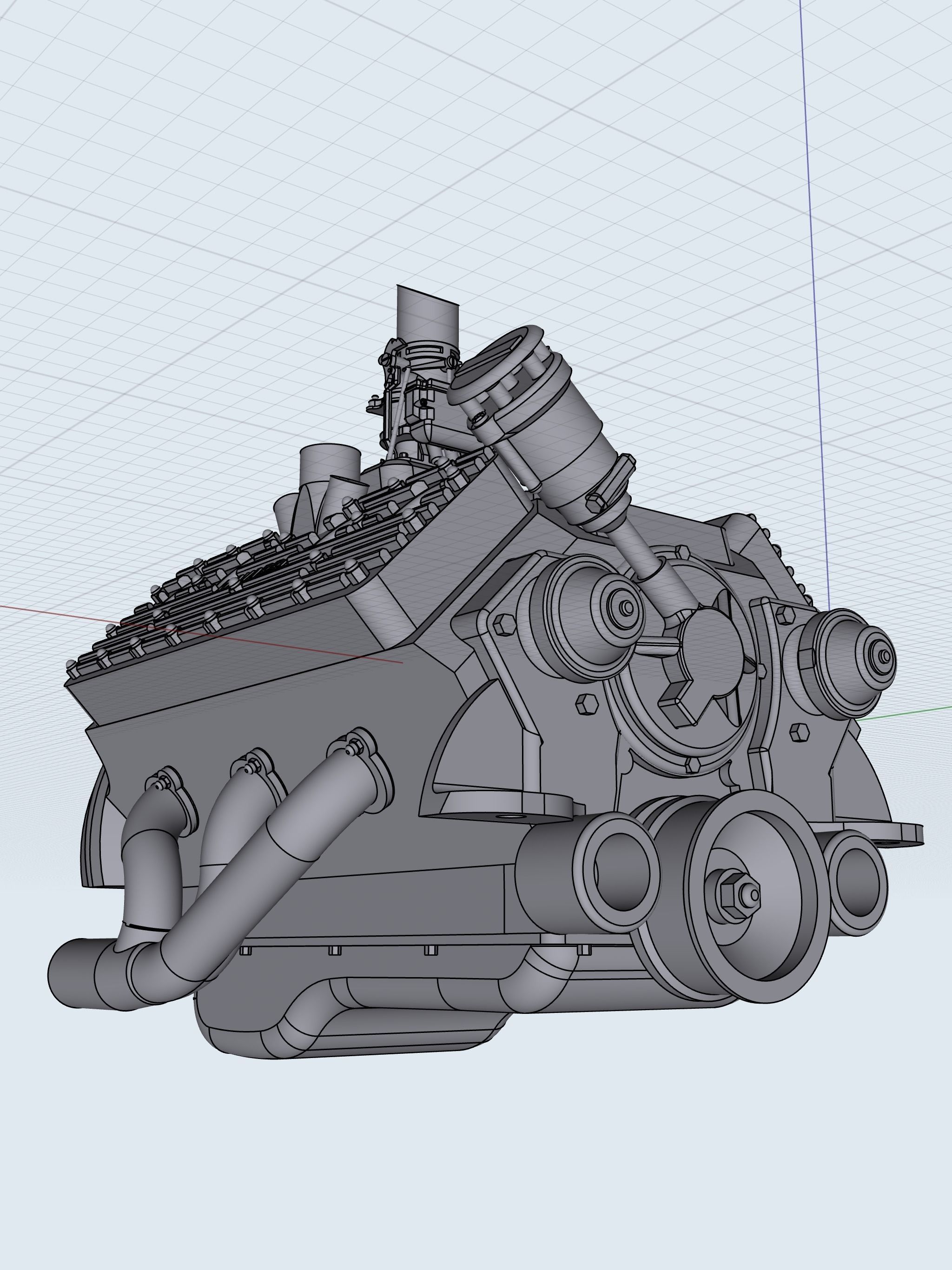

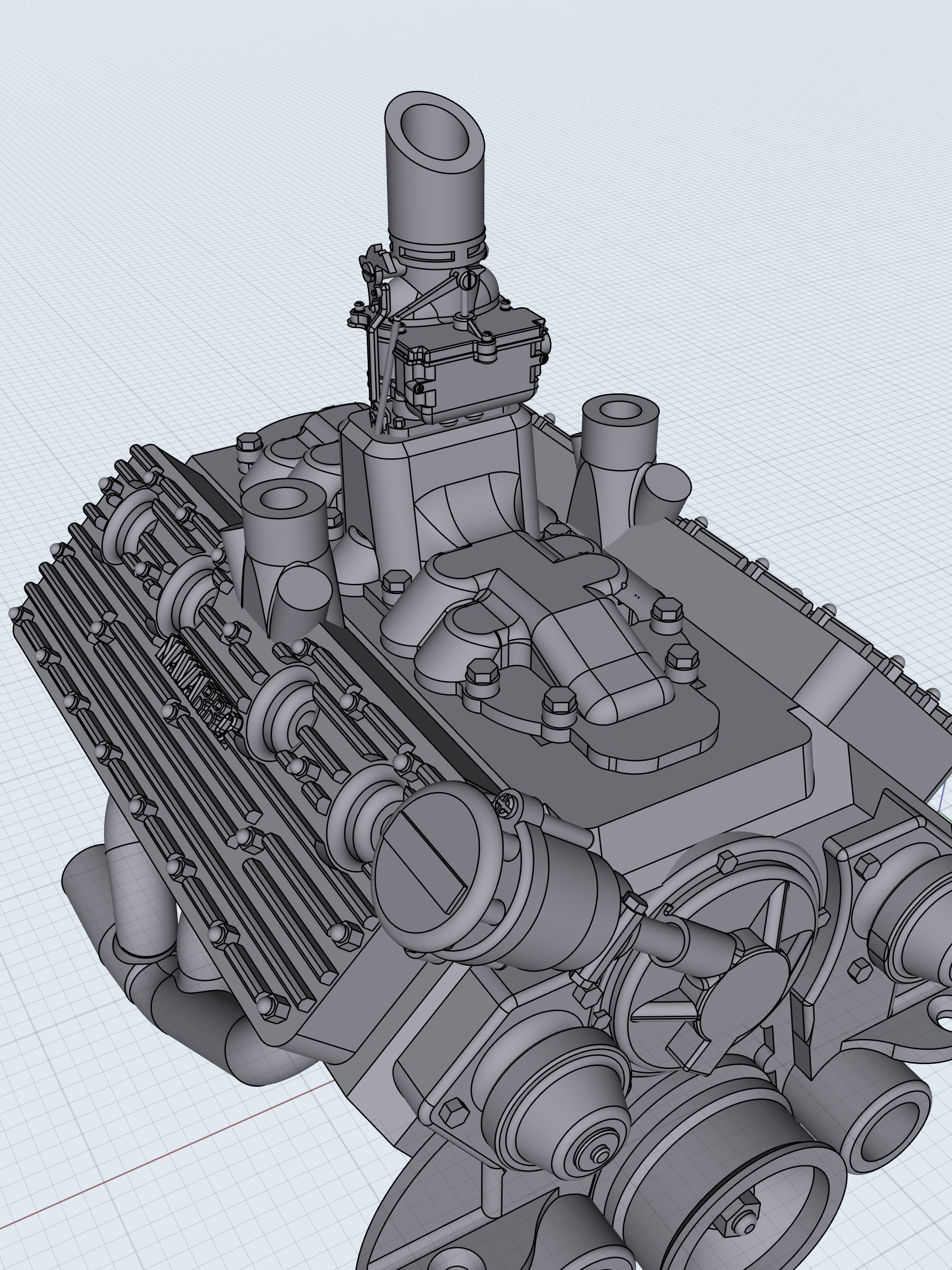

The single 2 barrel version uses 1 Stromberg 97 carb on a more traditional intake.

UPDATES;

  • Generator & bracket added

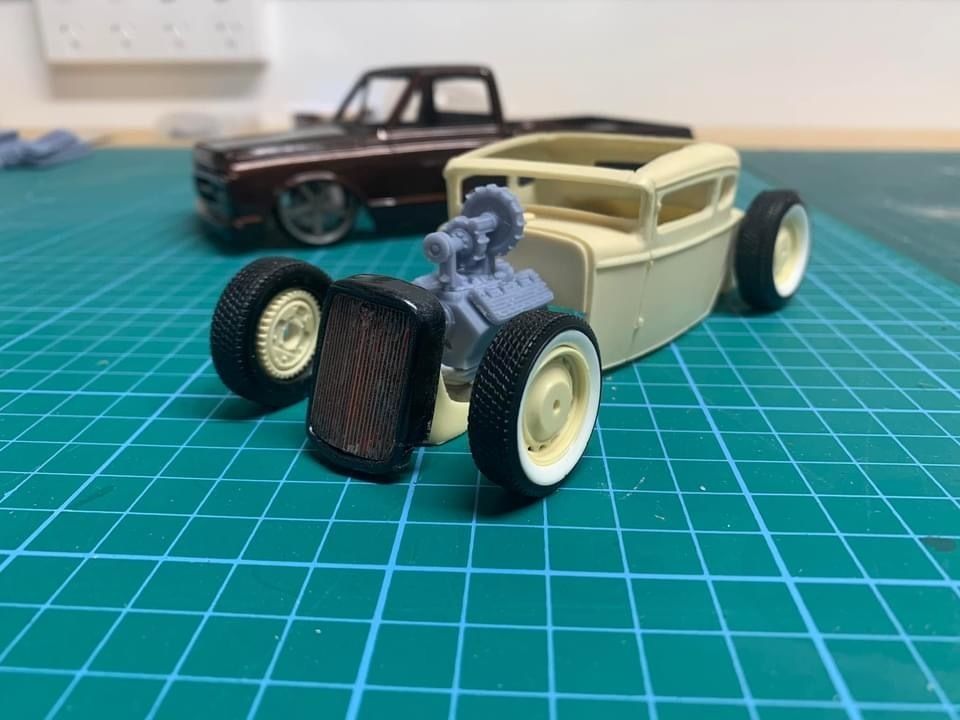

All are high in detail, ideal for scale modeling (currently in 1/24 and 1/25 scale).

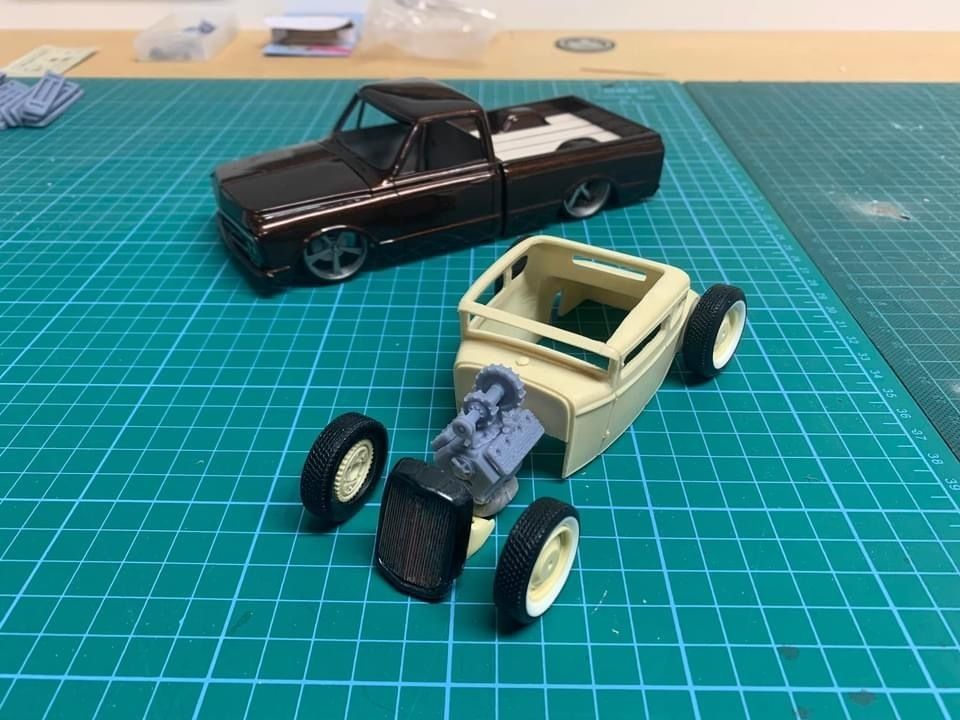

Perfect for those hotrod or ratrod builds! Design can be seperated into individual parts if requested

Be sure to tag @mattys_custom_scale on Instagram with your finished prints & projects!

Intended for personal use, not to be redistributed without consent

Item rating
6 0
S
steveotheman 2023-01-14 14:08:04 UTC
Recommended
This file is incredible. Perfection in design. Prints out perfectly.
HOTROD Flathead engine 3 versions Frenzel Supercharged set
$12.99

Custom License
HOTROD Flathead engine 3 versions Frenzel Supercharged set
$12.99

Custom License
Response 97% in 37.3h

3D Model formats

Format limitations
  • Stereolithography (.stl) (15 files)234 MB

3D Model details

  • Publish date2021-10-13
  • Model ID#3323010
  • Ready for 3D Printing
