Parking Assist 3D print model

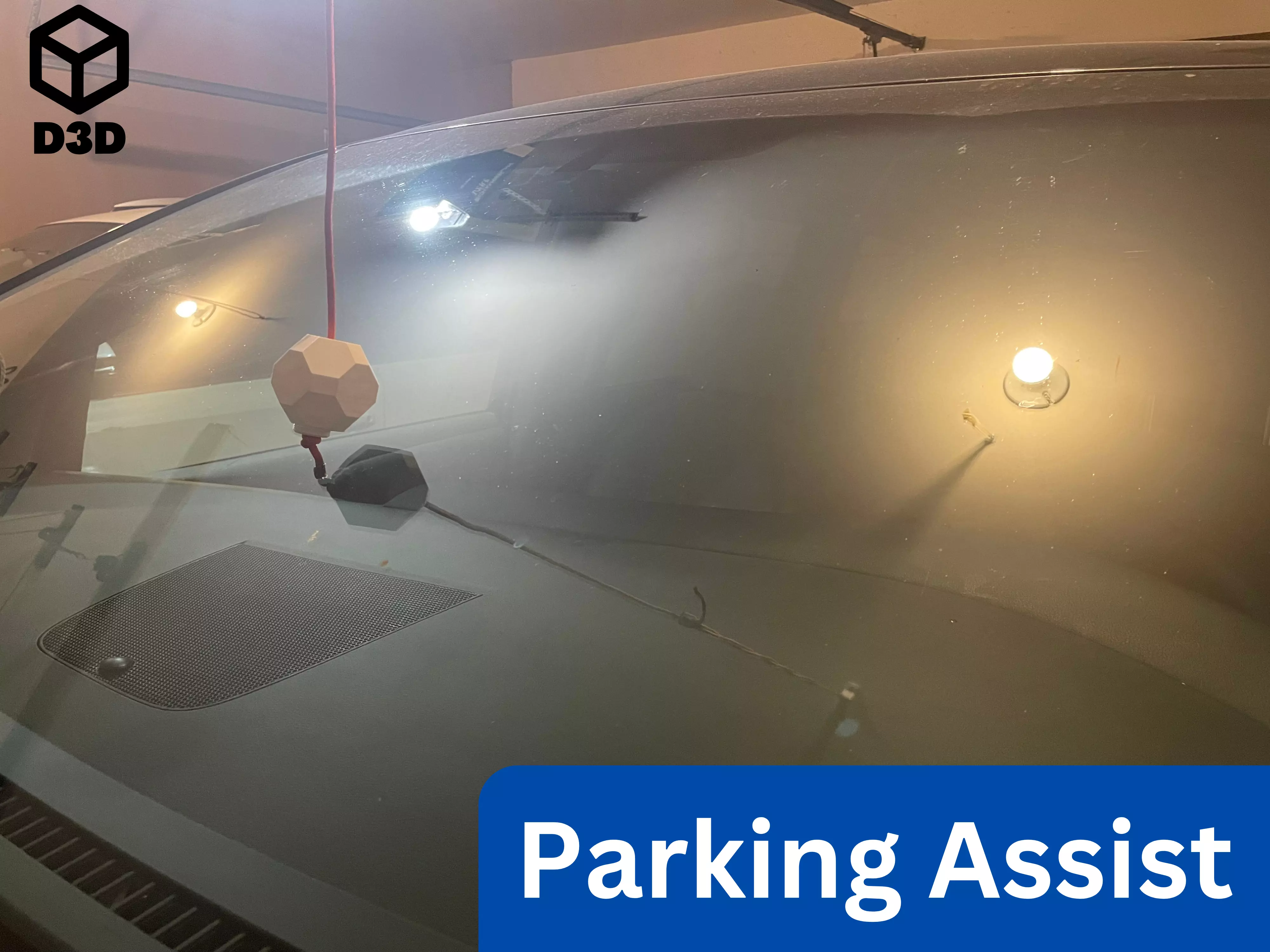

This is a simple, but effective adjustable parking assist. It is easy to assemble and install. It is mostly 3d printed, but dose requires some extra hardware.

Parts

• Ceiling bracket (included)
• Ball (included)
• Stopper (included)
• Rope tensioner (included)
• Drywall anchors (2x) (not included)
• Screws (2x) (shaft must be smaller than 10 mm in diameter) (not included)
• Paracord (the length depends on the height of your ceiling) (not included)

Print Instructions

• Material: PLA or PETG
• Supports: No
• Orientation: Print everything with its bottom facing the build plate

Assembly (as shown in photos)

• Step 1
  • Cut your paracord to length (the paracord needs to be 1.5 to 2 times the distance from your ceiling to the point you want your parking assist to hang to)
  • Thread one end of the paracord through the ball
  • Then thread the same end through the stopper
  • Tie an overhand knot on that end of the para cord to stop it from sliding out
• Step 2
  • Thread the other end of the paracord through one of the holes on either end of the rope tensioner
  • Then thread the rope into the middle hole of the rope tensioner
  • Thread the rope through the ceiling bracket
  • Pass the paracord through the last hole in the rope tensioner
  • Tying overhand knot in the para cord to stop it from sliding out of the rope tensioner
• Step 3
  • Place the ceiling bracket on the ceiling where you would like your parking assist to hang from
  • Well you hold the ceiling bracket in place, push your screws through the holes in the ceiling bracket to make indents in the drywall
  • Screw your drywall anchors into the ceiling, using the indents that you made in the drywall as a guide
  • Screw the ceiling bracket into the ceiling using the drywall anchors
  • Adjust your parking assist to the correct height

If you enjoy this model, please leave a like and a comment. Please contact me if you have any questions, concerns, or problems.
