Bring the Power of the Seas to Your Collection!

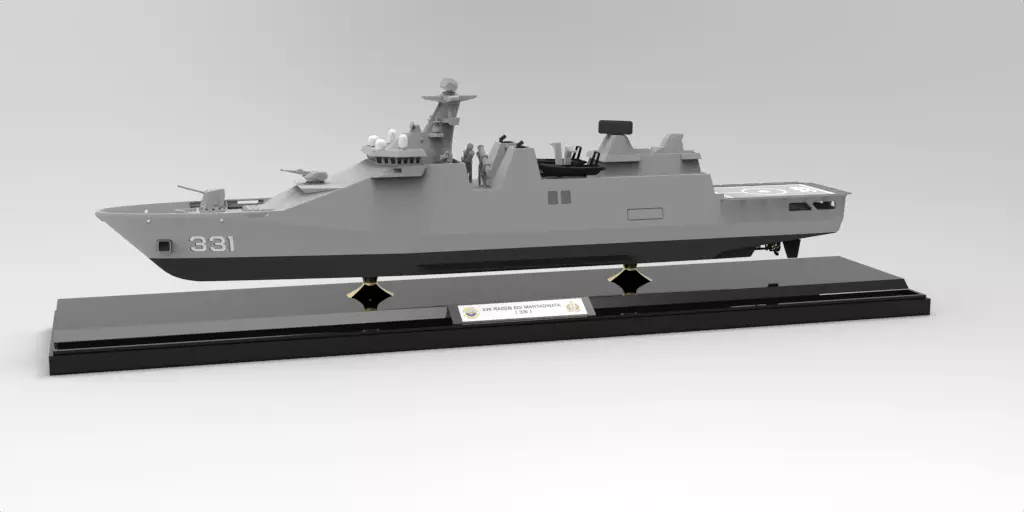

This is a highly detailed 3D model of the KRI Raden Edi Marthadinata Class, meticulously designed for 3D printing enthusiasts and naval history collectors. Whether you are building a tabletop fleet or a high-quality display piece, this model captures the aggressive lines and intricate details of modern/historical naval engineering.

Features:High-Fidelity Detail: Includes accurate radar arrays, weapon systems, lifeboats, and deck textures.

Print-Optimized: Designed with 3D printing in mind—walls are reinforced, and fragile parts are balanced for durability.

Scalability: While modeled at Scale, 1:240, the high resolution allows you to scale it up or down without losing quality.

Multiple Formats: Provided in STL, OBJ, and [Add other formats like FBX].

Technical Specifications:Parts: [Mention if it's a single piece or split into parts, e.g., Split into 5 easy-to-print interlocking parts].

Recommended Settings: Best printed in Resin (SLA) for maximum detail, but also compatible with well-tuned FDM printers.

Hollowed Option: [Mention if you included a hollowed version to save resin].

What’s Included:Full Ship Body (Solid & Hollow versions).

Separate Add-ons (Turrets, Radars, Mast).

[Optional] Assembly Guide PDF.

Scale 1:240Length: 500.00 mm Width: 110.00 mm

The R.E. Martadinata class of guided-missile frigates of the Indonesian Navy are SIGMA 10514 types of the Netherlands-designed Sigma family of modular naval vessels, the frigates are each built from six modules or sections, four built at the PT PAL shipyard at Surabaya, while the other two, consisted of the power plant and the bridge and command centre modules,[3] at Damen Schelde Naval Shipbuilding in the Netherlands.[4]

Raden Eddy Martadinata has a length of 105.11 m (344 ft 10 in), beam of 14.02 m (46 ft 0 in), draft of 3.75 m (12 ft 4 in), and her displacement is 2,365 t (2,328 long tons). The ship is powered by combined diesel or electric (CODOE) propulsion, consisted of two 10,000 kW (13,000 shp) MCR diesel engines and two 1,300 kW (1,700 shp) MCR electric motors connected to two shafts with controllable-pitch propellers. Her maximum speed is 28 knots (52 km/h), range of 5,000 nautical miles (9,300 km) while cruising at 14 knots (26 km/h), and endurance up to 20 days. The frigate has complement of 122 personnel.[1][4]

She is armed with one OTO Melara 76 mm gun,[5] one 35 mm Rheinmetall Oerlikon Millennium Gun close-in weapon system, and two 20 mm Denel GI-2 autocannons.[6] For surface warfare, Raden Eddy Martadinata are equipped with eight Exocet MM40 Block III anti-ship missiles, and twelve vertical launching system cell for MBDA MICA anti-aircraft missiles. For anti-submarine warfare, she is equipped with two triple 324 mm EuroTorp B515 torpedo tubes for A244/S Mod.3 Whitehead torpedoes.[7]

Her electronic system and sensors consisted of Thales Group TACTICOS combat management system[8] with ten Multifunction Operator Consoles (MOC) Mk.4,[9][10][11] SMART-S Mk 2 3D multibeam surveillance radar integrated with Thales TSB 2520 IFF system, Sperry Marine BridgeMasterE ARPA navigation radar, STIR 1.2 MK.2 (STING) electro-optical fire control system, LINK Y Mk 2 datalink system, Thales UMS 4132 Kingklip medium frequency active/passive hull-mounted sonar, CAPTAS 2/UMS 4229 variable depth sonar, Thales VIGILE 100 ESM, Thales Scorpion ECM,[9] and TERMA SKWS DLT-12T 130mm decoy launchers located in port and starboard.[7]

Raden Eddy Martadinata also has a hangar and flight deck at stern and could accommodate one <10 tons helicopter.[1] The ship is usually assigned with an Eurocopter AS565 Panther helicopter.[12] The frigate also carries two rigid-hull inflatable boats.[1]
