Model Railway Modern Drainage Catchpits 3D print model

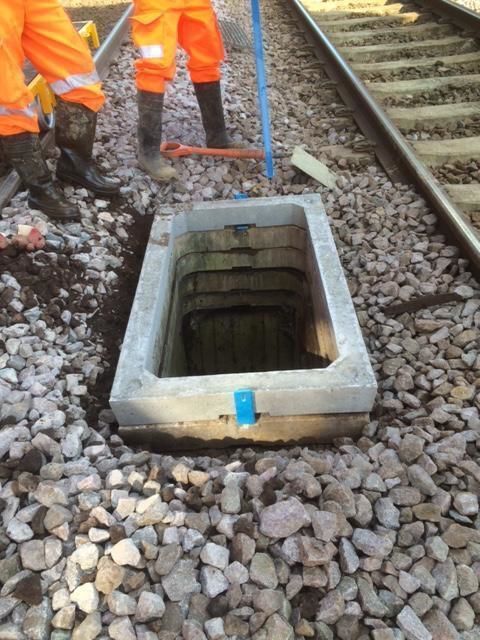

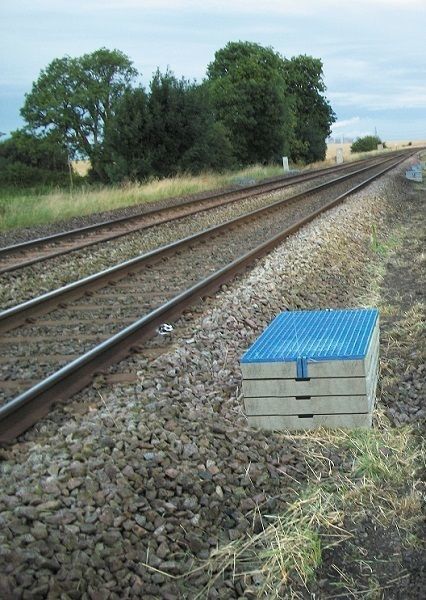

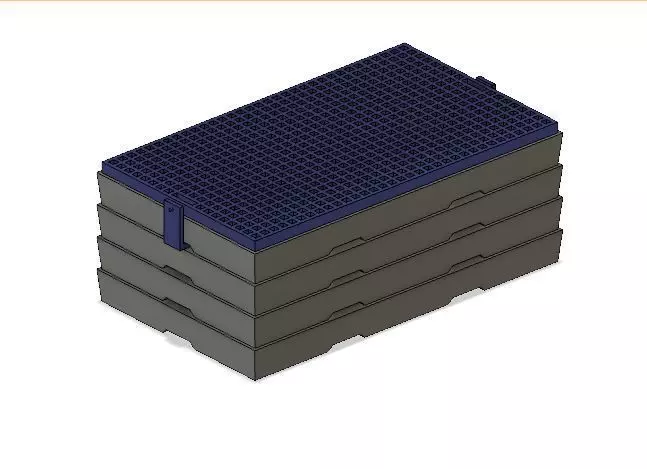

Catchpits that are ideal for any modern layout, these are found everywhere on modern UK railways.

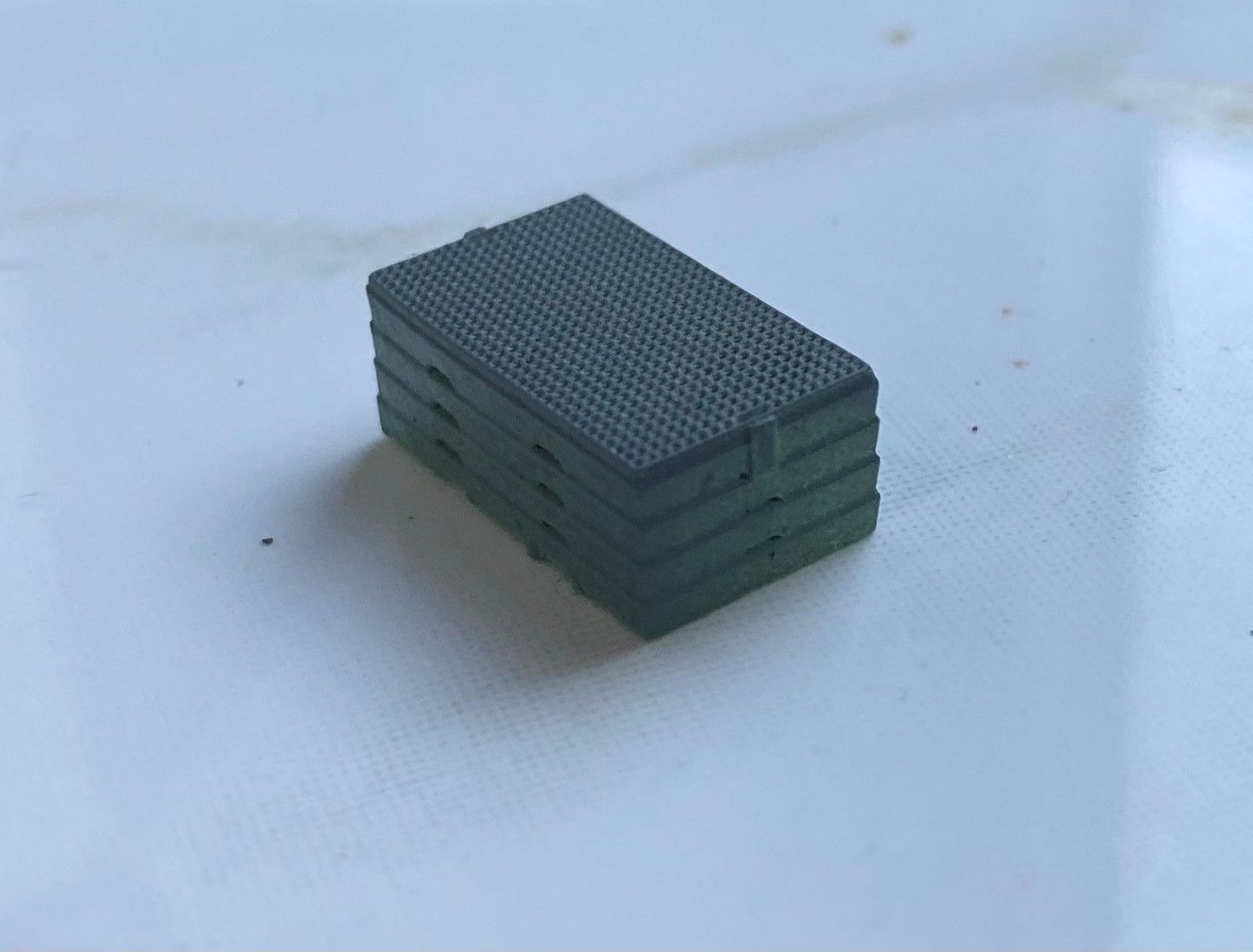

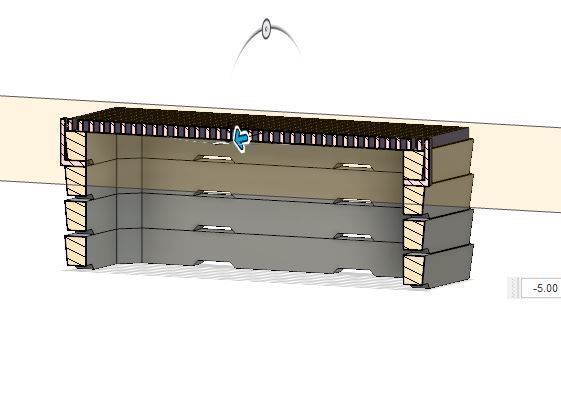

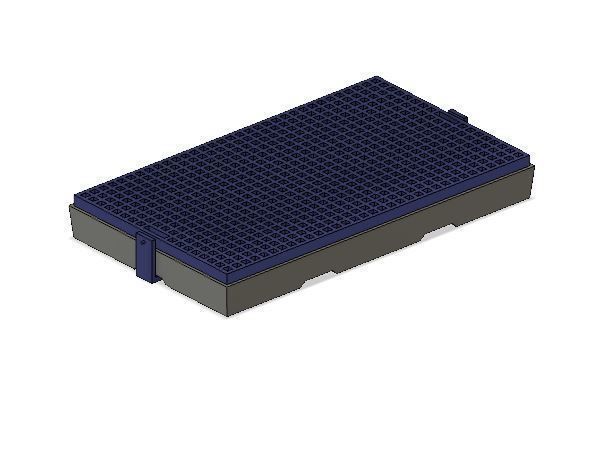

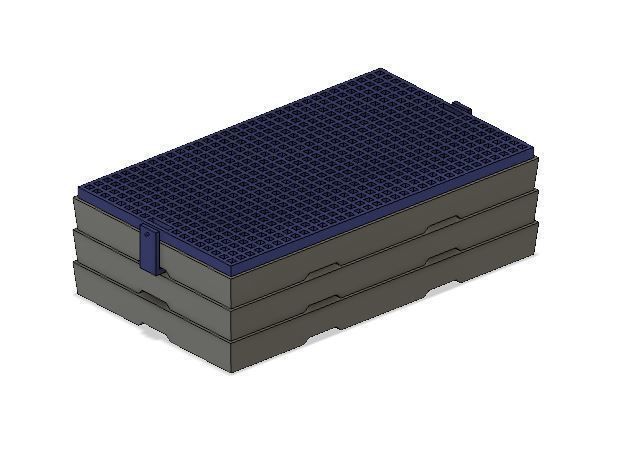

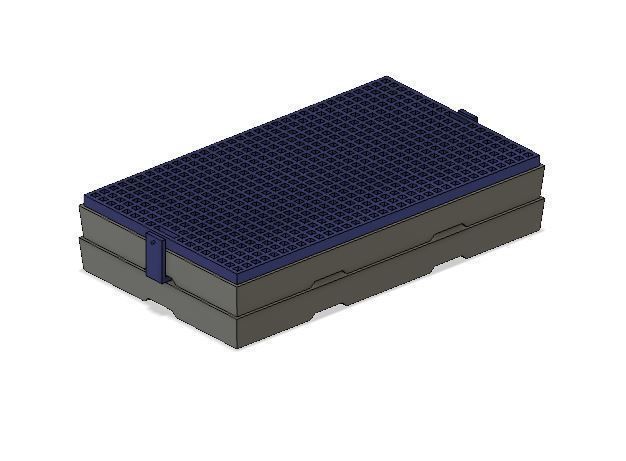

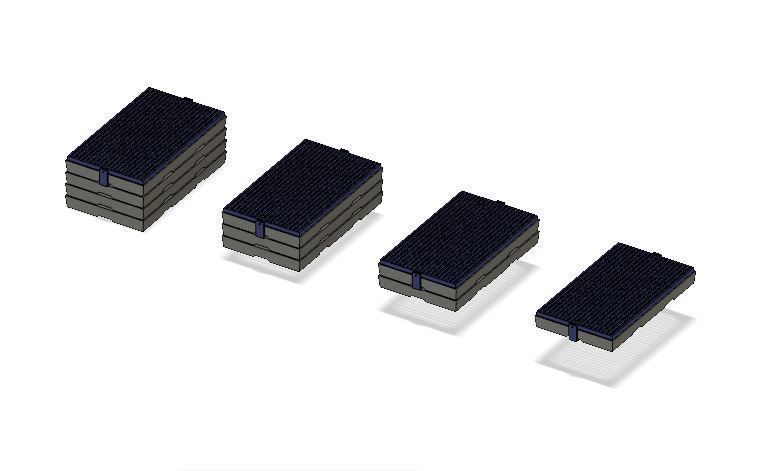

These have been designed to be printed on any gauge of model railway, just needs to be sized the gauge you are using. I have produced these with different amount of concrete rings, in real life these are set at various heights so this is why I have included four versions.

They have been designed at OO Gauge, 1/76.2 scale, for HO print at 87%, 1/87 scale, for O UK print at 175%, 1/43.5 scale, for O International print at 158%, 1/48 scale. for N gauge print at 51.49%, 1/148 scale. (Caution: I have not printed this model in N gauge so can’t guarantee its printability)

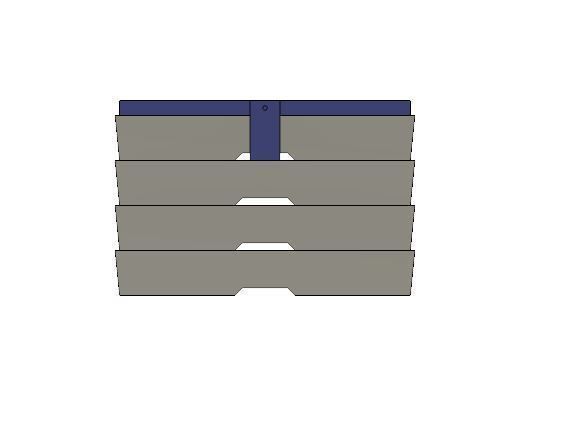

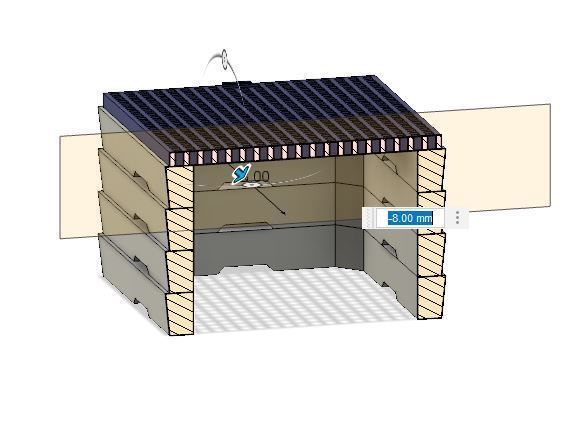

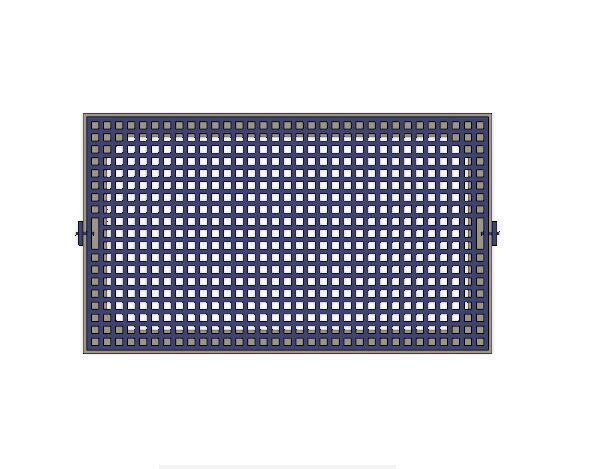

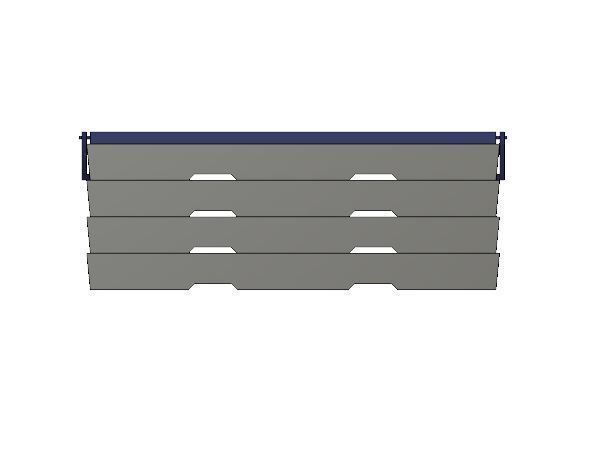

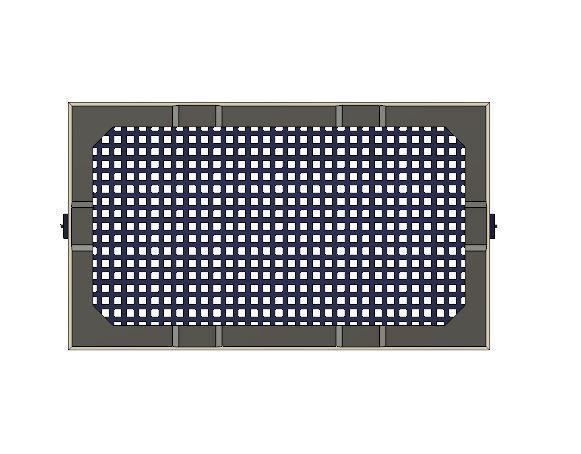

Dimensions in OO = L 17mm x W 10mm x D 2mm (Additional heights 1.5mm each concrete ring)

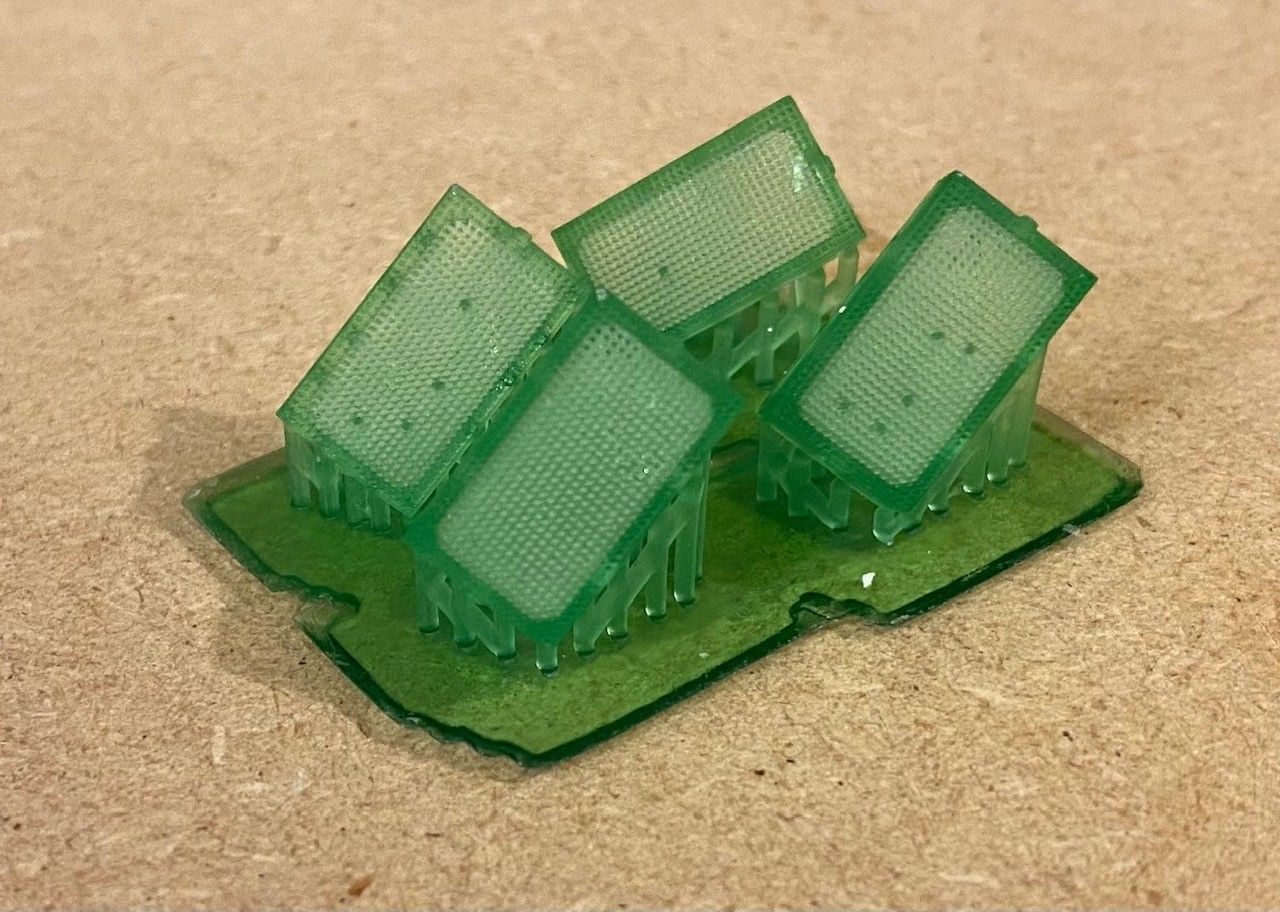

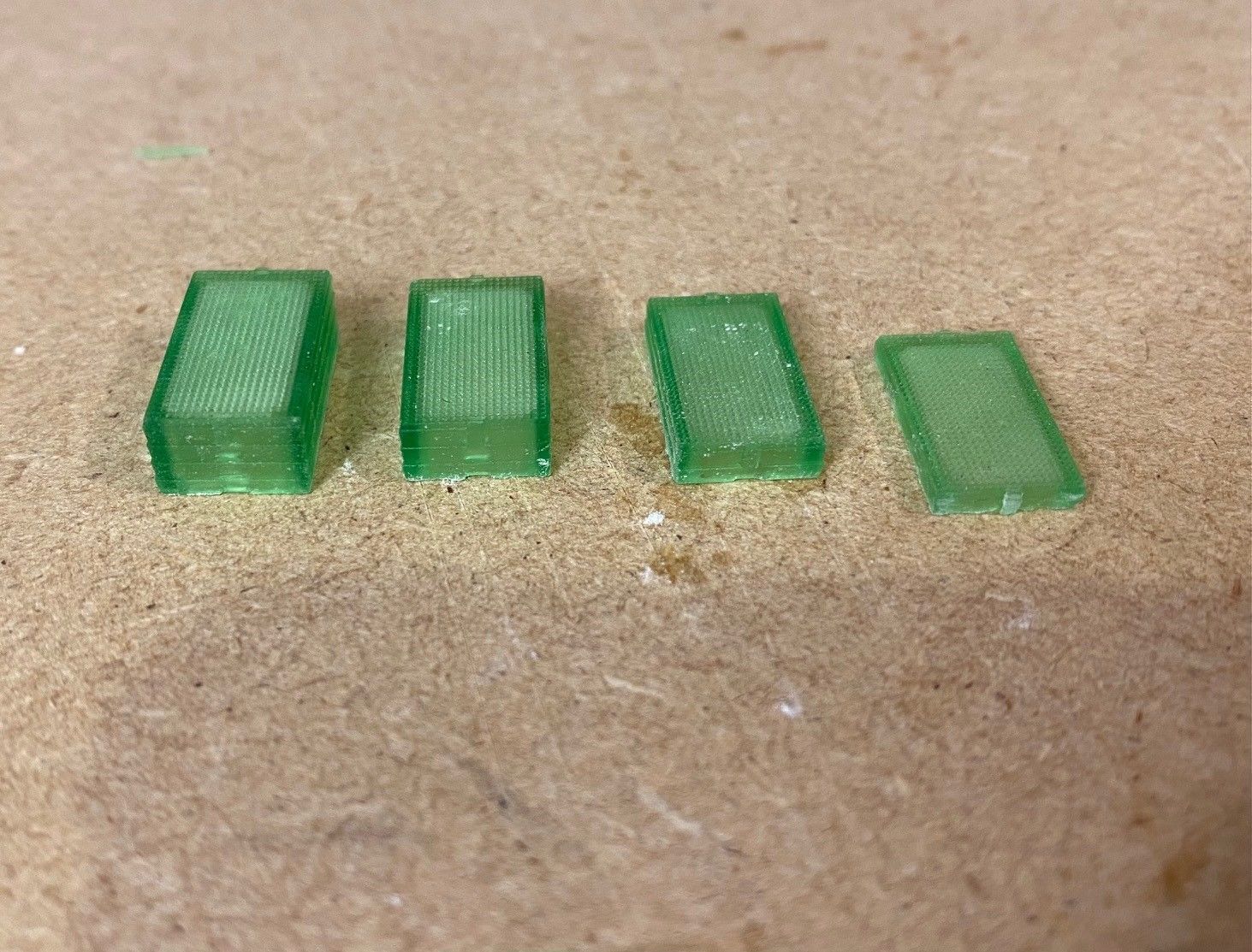

Example in photo is printed on a AnyCubic Photon. Recommend printing this item on 3D resin printer.

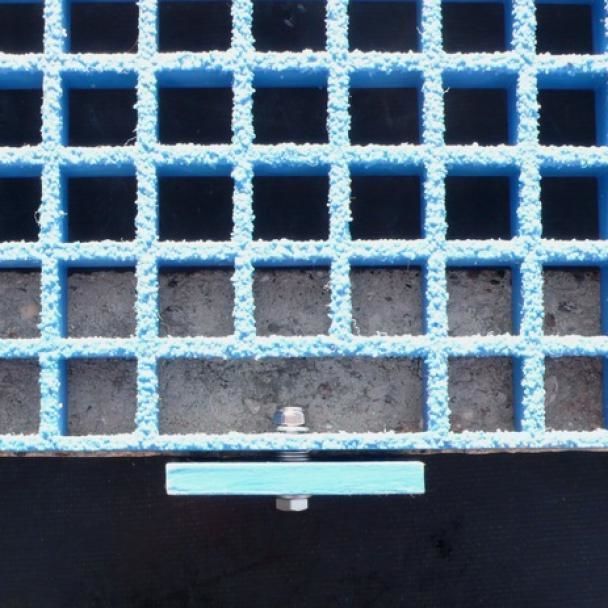

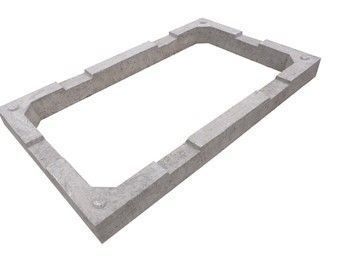

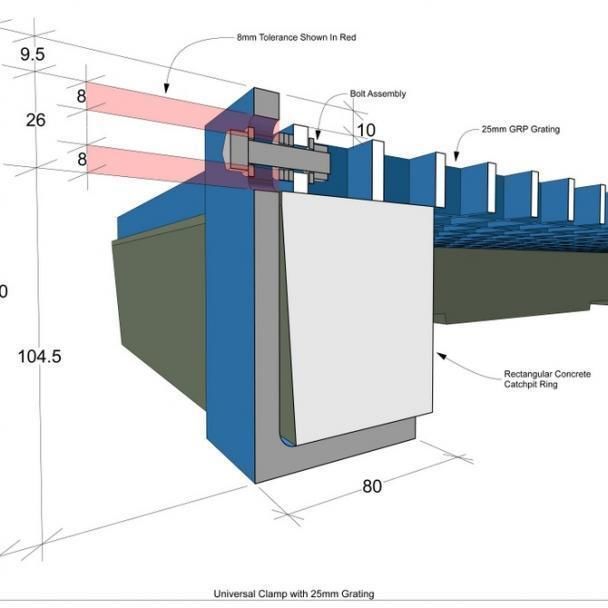

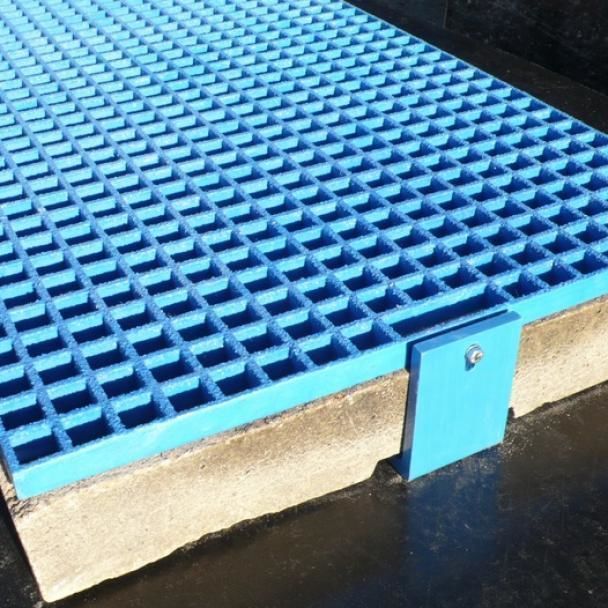

What is a catchpit? A Catchpit is essentially an empty chamber with an inlet pipe and an outlet pipe set at a level above the floor of the pit. Any sediment carried by the system settles out whilst in the Catch-Pit, from where it can be periodically pumped out or removed. Usually covered by Grill or Man hole cover
