Computer Fan

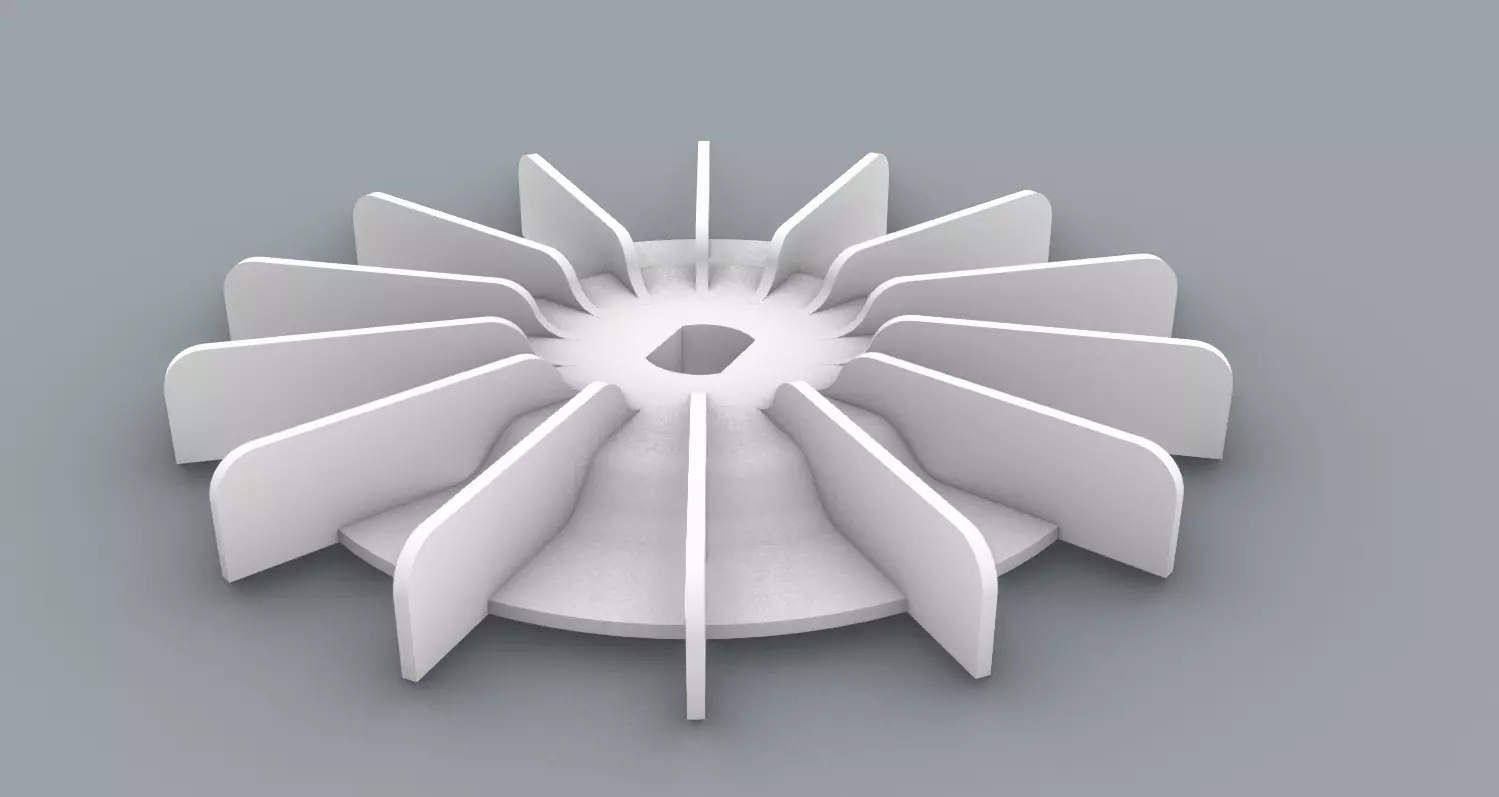

Computer Fan 3D print model

Description

3D Model of Computer fan, made for PC Usage to replace old broken fan.

Model is ready to be used in 3D Printing, Design, CNC..

Notes:

All models are preprinted in order to get highest quality possible.

Model is simplified for printing.

Dimensions

Length: 146.68mm

Width: 150mm

Height: 20.95mm

Includes OBJ and STL file.

http://hovla.net

About

A computer fan is any fan inside, or attached to, a computer case used for active cooling. Fans are used to draw cooler air into the case from the outside, expel warm air from inside and move air across a heat sink to cool a particular component. Both axial and sometimes centrifugal (blower/squirrel-cage) fans are used in computers. Computer fans commonly come in standard sizes, such as 92 mm, 120 mm (most common), 140 mm, and even 200–220 mm. Computer fans are powered and controlled using 3-pin or 4-pin fan connectors.While in earlier personal computers it was possible to cool most components using natural convection (passive cooling), many modern components require more effective active cooling. To cool these components, fans are used to move heated air away from the components and draw cooler air over them. Fans attached to components are usually used in combination with a heat sink to increase the area of heated surface in contact with the air, thereby improving the efficiency of cooling. Fan control is not always an automatic process. A computer's BIOS can control the speed of the built-in fan system for the computer. A user can even supplement this function with additional cooling components or connect a manual fan controller with knobs that set fans to different speeds.[1] In the IBM PC compatible market, the computer's power supply unit (PSU) almost always uses an exhaust fan to expel warm air from the PSU. Active cooling on CPUs started to appear on the Intel 80486, and by 1997 was standard on all desktop processors.[2] Chassis or case fans, usually one exhaust fan to expel heated air from the rear and optionally an intake fan to draw cooler air in through the front, became common with the arrival of the Pentium 4 in late 2000.[2]

Item rating
0 0
Computer Fan
$10.00

Royalty Free License
Computer Fan
$10.00

Royalty Free License
Response 100% in 14.0h
3D Modeling
3D Print Modeling
Low-poly Modeling
Rendering
Animating
Hire me

3D Model formats

Format limitations
  • OBJ (.obj, .mtl)2.25 MB
  • Stereolithography (.stl)17.1 MB

3D Model details

  • Publish date2023-06-01
  • Model ID#4540908
  • Ready for 3D Printing
