Laser Cut Paint Rack 3D print model

Description

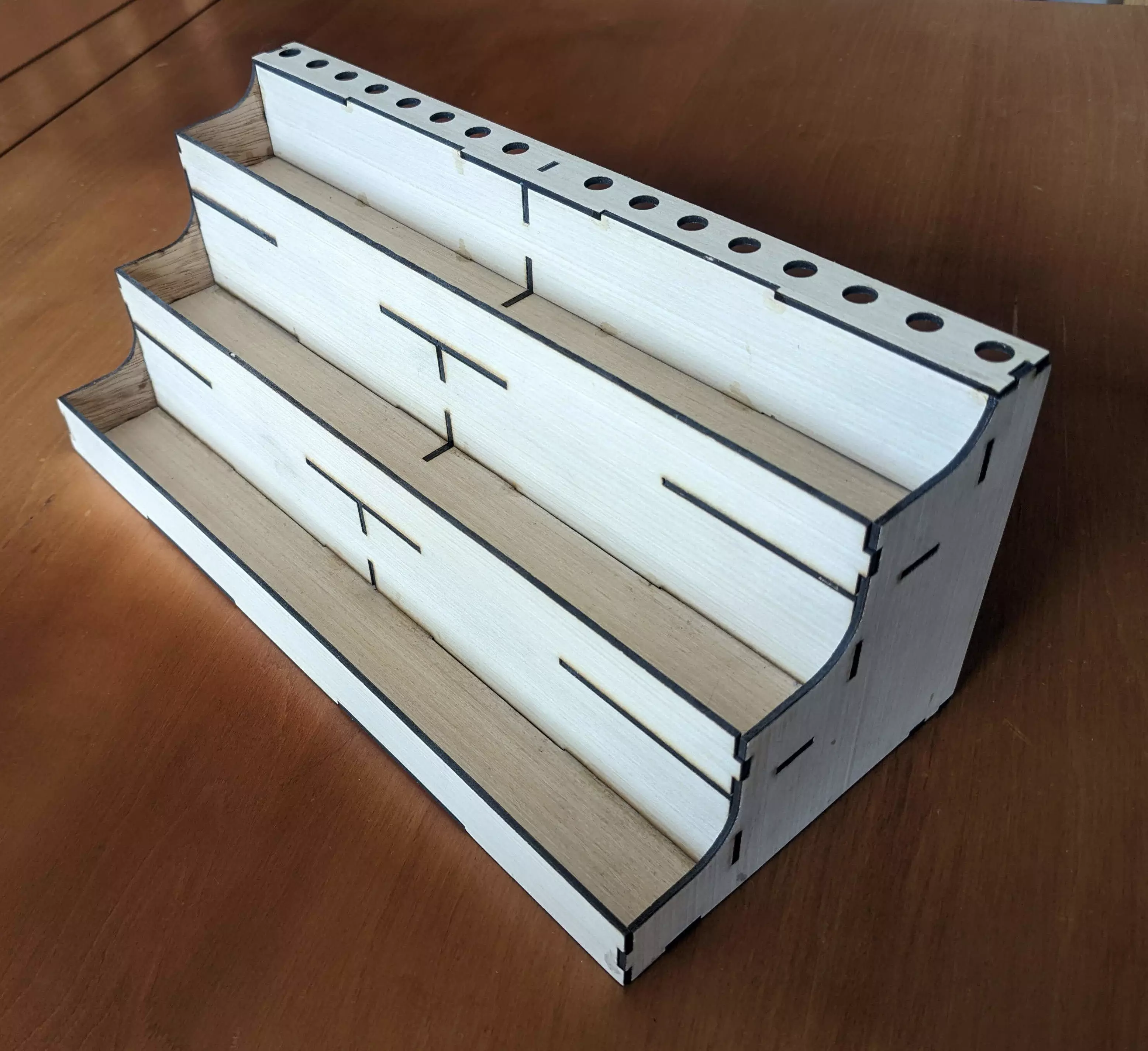

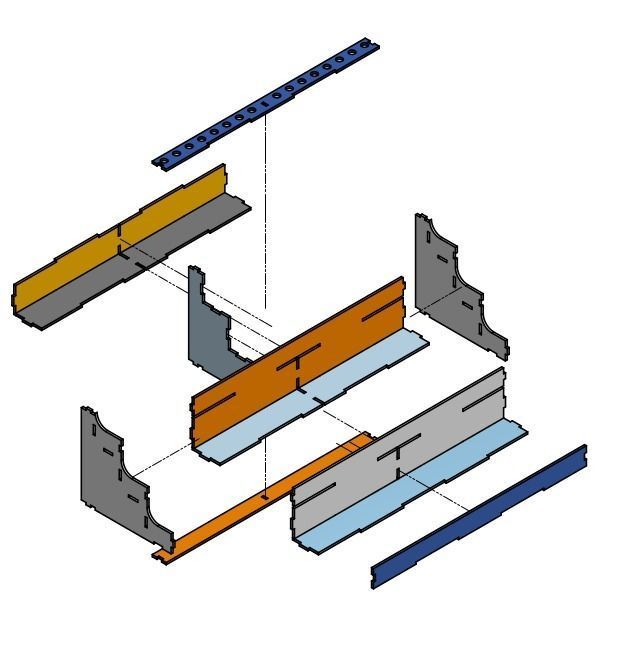

Files for laser cutting a paint rack suitable for miniature paint bottles.Designed for 2.75mm thick material (photo shows a version in 2.75mm ply). The shelves are 34.5mm deep to allow for common bottles sizes of 25mm and 30mm diameter.A coloured exploded view is included to aid with assembly.Glue will be required.

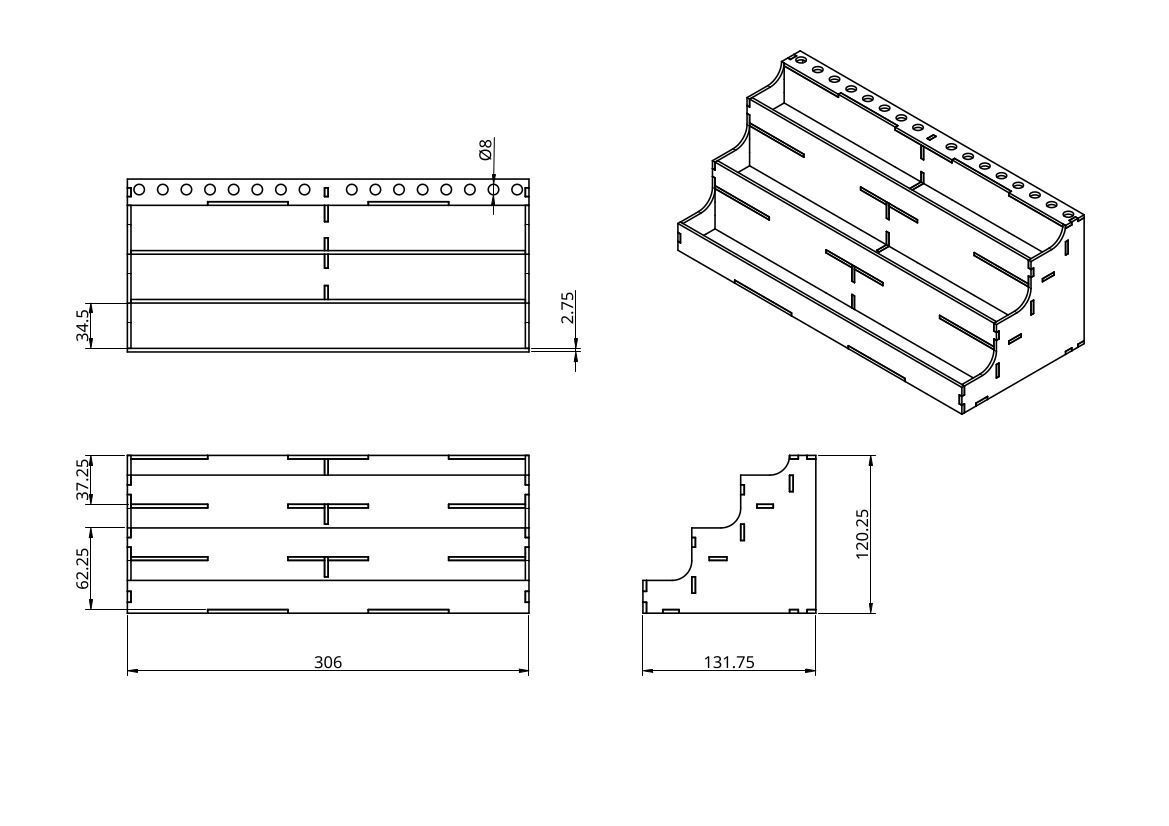

Overall Width: 306mmOverall Height: 120.25mmOverall Depth: 131.75mm

Other dimensions included in PaintRackDimensions.pdf
