Xbox Series X or S Wireless Controller Faceplate 3D print model

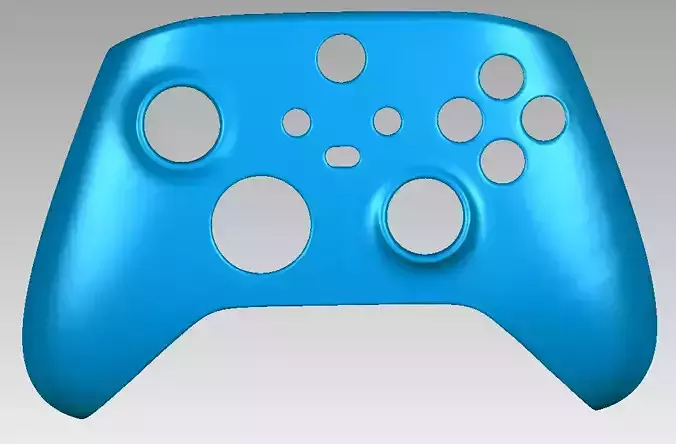

Xbox Series X or S Wireless Controller Faceplate

Wanted to make a base copy of the stock faceplate (will be making the back cover and battery enclosure as well on a separate listing)

Uploaded a version with some holes for the threads to latch on to. (The version that worked well with mine was the scaled with holes one) Minor clean up and used a deburring tool for the circle areas so that the all fit well.

Will be uploading better fits and alignment if needed. For now v3faceplatescaledwithholes works and you just screw it in place with the right alignment and post processing

There is a raw 3D scanned version (should fit with post processing done) but doesn't have the holes needed for the threads to screw in place. I only did this for initial alignment testing

Used PLA Pro material (Will still test resin prints to check fit)

Printed at an angle where the grips are facing upwards (Refer to photo)

Calibrate your printers to get the best dimensional accuracy for this print

Scale accordingly i remember adjusting the size by 0.2mm at a time (increase or decrease accordingly)
