Digital LED 7-SEG mini display indicator on a conditional board 3D print model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

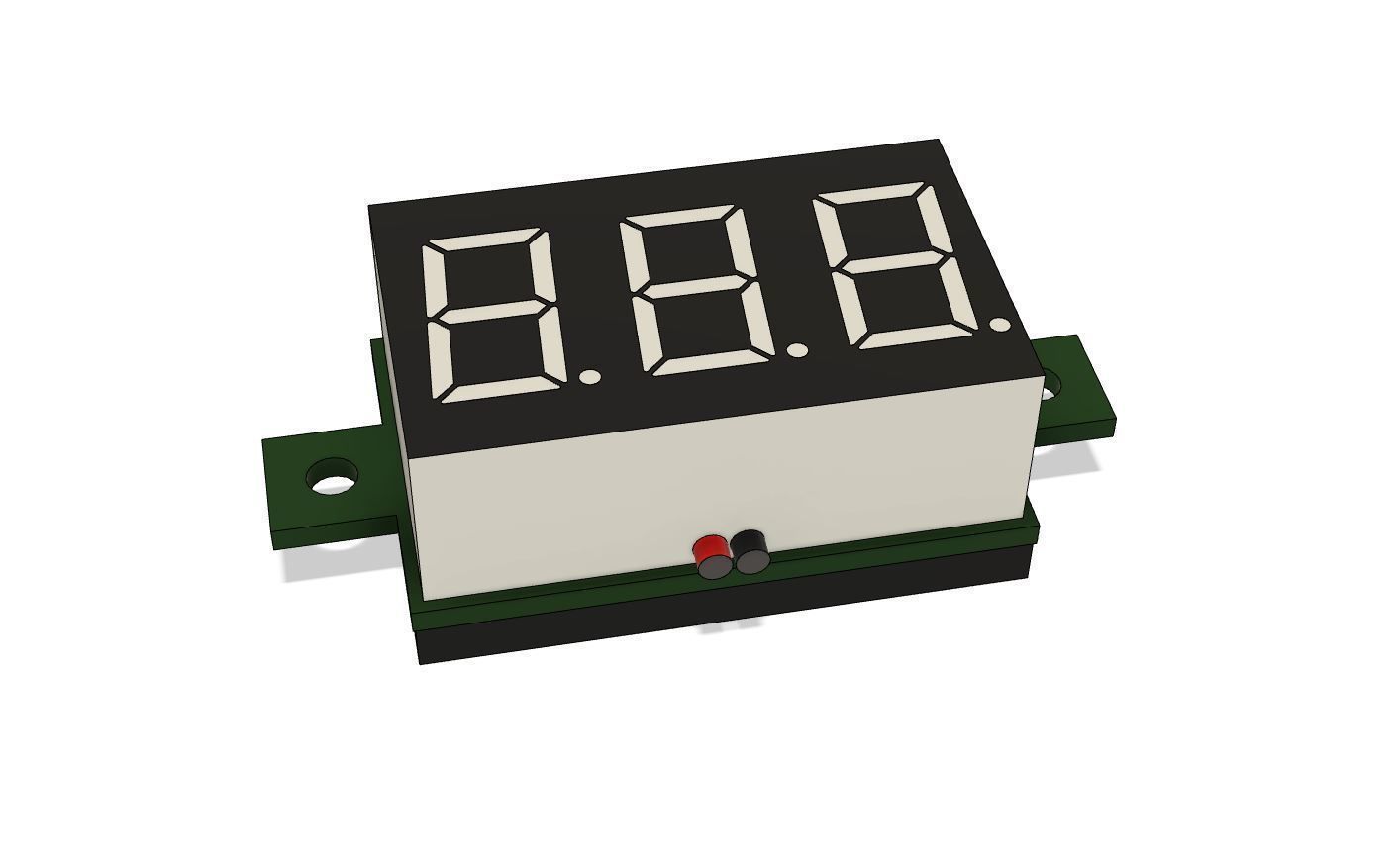

A model of the popular 7-seg mini display. Originally created in solid-state CAD format.This model is perfect for the layout of this indicator in the 3D assembly of the device you are designing, and will help save your precious time.

Common designations of this display:DY3631K; GNT-3631BS; GNT-3631AS-21; FYT-3631AD-11; FYT-3631AUG-21; CS1-TP1-I-A.

The scale of the model is 1:1. The dimensions are for reference in the image.
