Embraer E1 Ultimate Kit 3D print model

Embraer E1 (E170, E175, E190, E195) Ultimate Kit (Mechanisms not included)

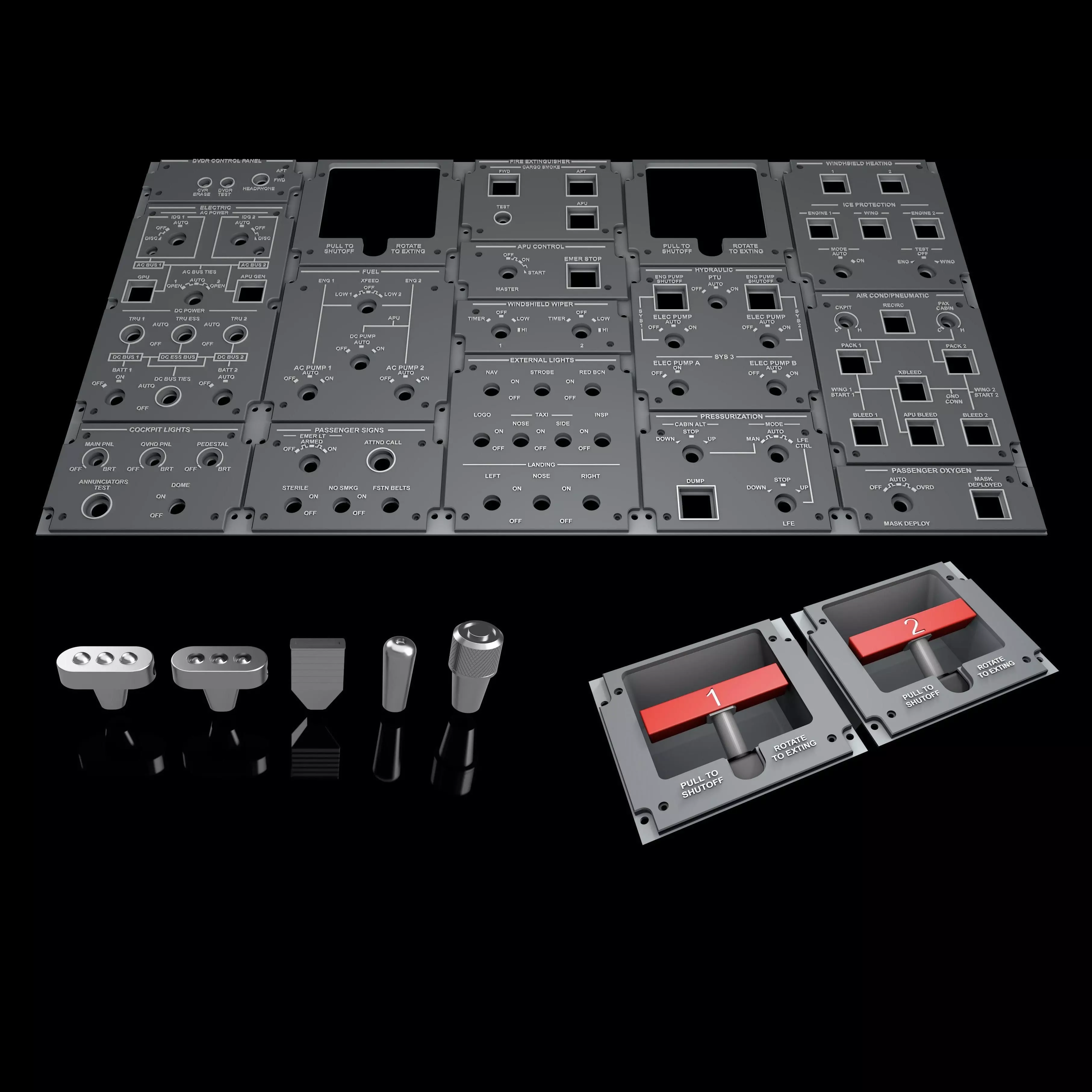

This kit includes the following items (With both back-plate and front-plate at real aircraft scale and ready for 3D printing):

All E1 Overhead Panels:

• Aircond & Pneumatic Panel
• Apu Control Panel
• Cockpit Lights Panel
• Dvdr Control Panel
• Electric Panel
• External Lights Panel
• Fire Extinguisher Panel
• Fire Left Panel
• Fire Right Panel
• Fuel Panel
• Hydraulic Panel
• Passanger Oxygen Panel
• Passenger Signs Panel
• Pressurization Panel
• Windshield & Ice Protection Panel
• Windshield Wiper Panel

Note: All panels (besides the Electric one, wich is avaliable with a split version) only require a 235 x 235 mm bed size and can be printed with any regular Ender 3 printer.

All Toggle Switch Knobs:

• Landing Light Knob
• Landing Light Knob (with bubble version)
• Beacon Type Knob
• EmerLt Type Knob
• Regular Type Knob

The Dummy Fire Mechanism:

• Dummy Fire Lever Shell
• Dummy Fire Lever Tube
• Dummy Fire Lever Bar 1
• Dummy Fire Lever Bar 2

The files are designed in a way that allows creating the backlight effect without the need for a laser cutting machine. For that, just do the following steps:

(1) - Print the panels with transparent PLA. (I recommend printing it with 20% infill, and 0.12mm quality). (2) - Apply primer and paint your panels the way you want (Do not sand them yet). (3) - Now with your primer and paint finished, place your sandpaper (I recommend higher grits) on top of a flat surface, and rub the panels on top of it, so that the paint that covered the decals comes out; be careful to not damage your painting.
