Netflix Lemony Snickets A Series of Unfortunate Events Spyglass 3D print model

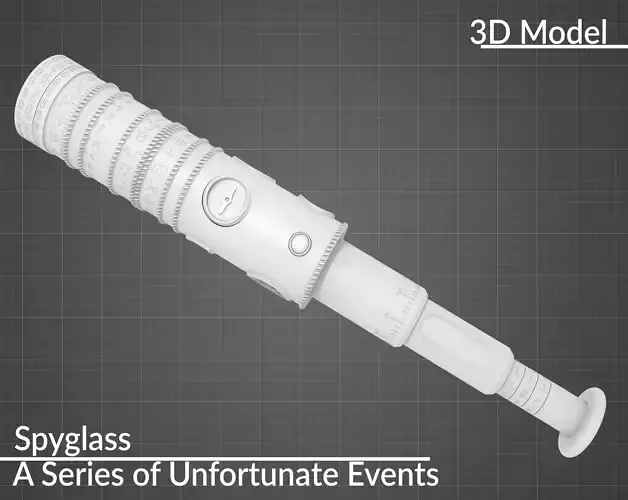

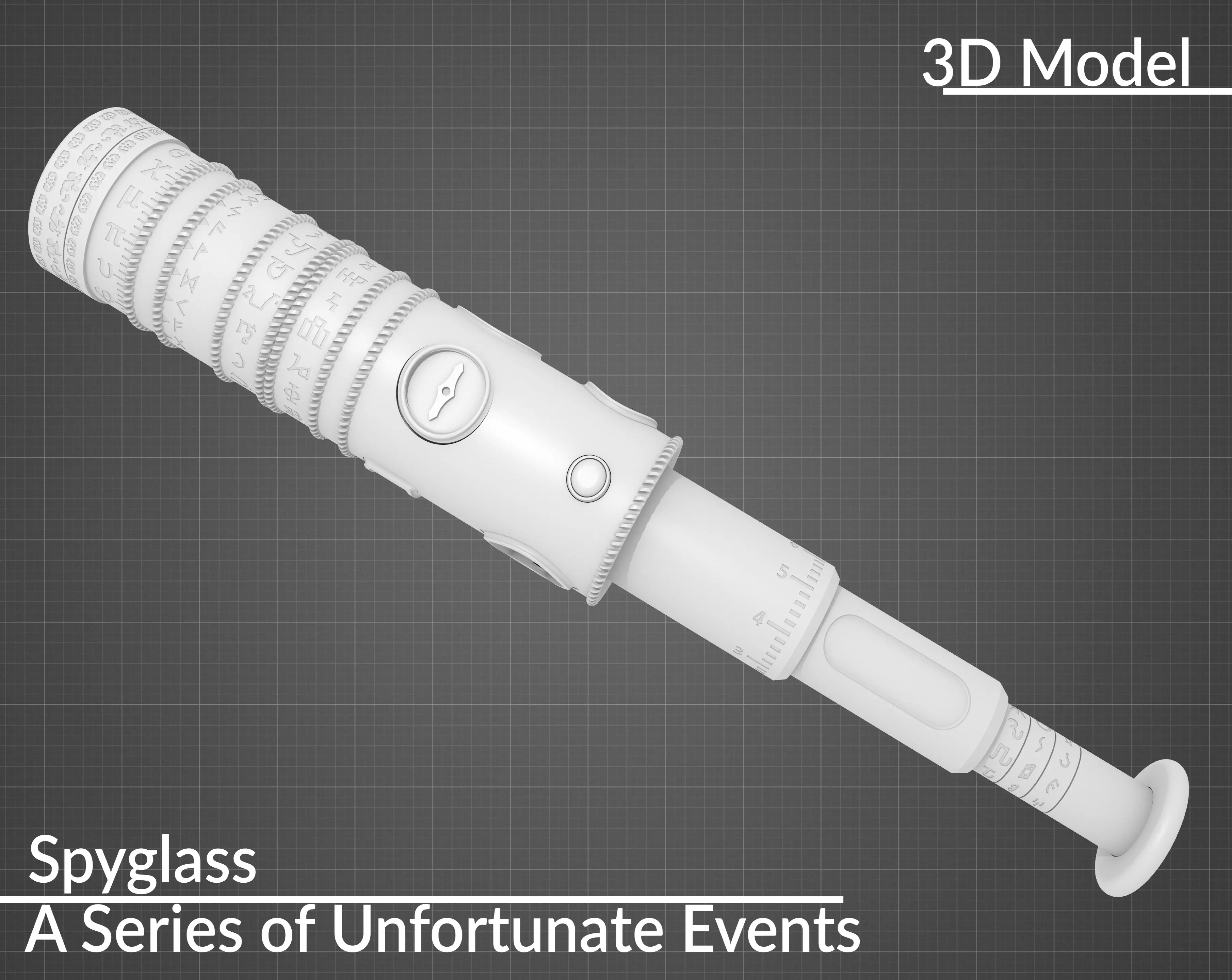

This is my model of Spyglass from the Series of Unfortunate Events Spyglass (Netflix) For this model you'll need 2mm rod for hinge, and 5 x 2,5mm screw heads. The first four rings spins and click. There is place in a toggleable zoom part for 1mm foam/felt if you want smoother movement. (I used wood veneer to make nice texture to wood parts as well as cheap 20x25 monocular for optic glass parts)

Printing instructions: -Choose if you want to print eye lid with hinges or if you want to print them separately and glue them later for stronger part -Print 2 x meter1 -Print 3 x meter 2 -Print 3 x arrow1 _ -Print 2 x _arrow2 -Print 7 x spiral -Print just one of the other parts

Assembly instructions: -Start putting on and gluing parts to guide in order: spiral -> wood3 -> spiral -> click4 -> ring4 (onto click4) -> spiral -> spiral -> click3 -> ring3 (onto click3) -> -> spiral -> wood2 -> click2 -> ring2 (onto click2) -> spiral -> wood1 -> spiral -> click1 -> ring1 (onto click1) -> eye2

(-Optional: attache middle hinge to eye1 and two side hinges to eye2 like in model with hinges) -Attache two eye parts by 2mm rod (or by piece of 1.75mm filament) -Glue spiral end to wood4 part. -Put zoom3 part into zoom2 part .-Put zoom2 part into zoom1 part. -Put zoom1 part into wood4 part. -Glue zoom end to zoom3 part so it would lock all parts from falling. -Glue all meters onto their places (Use photos as refrence) -Glue wood4 with all zoom and meter parts onto guide to close everything.

If there is still problem with assembly feel free to send me a message.
